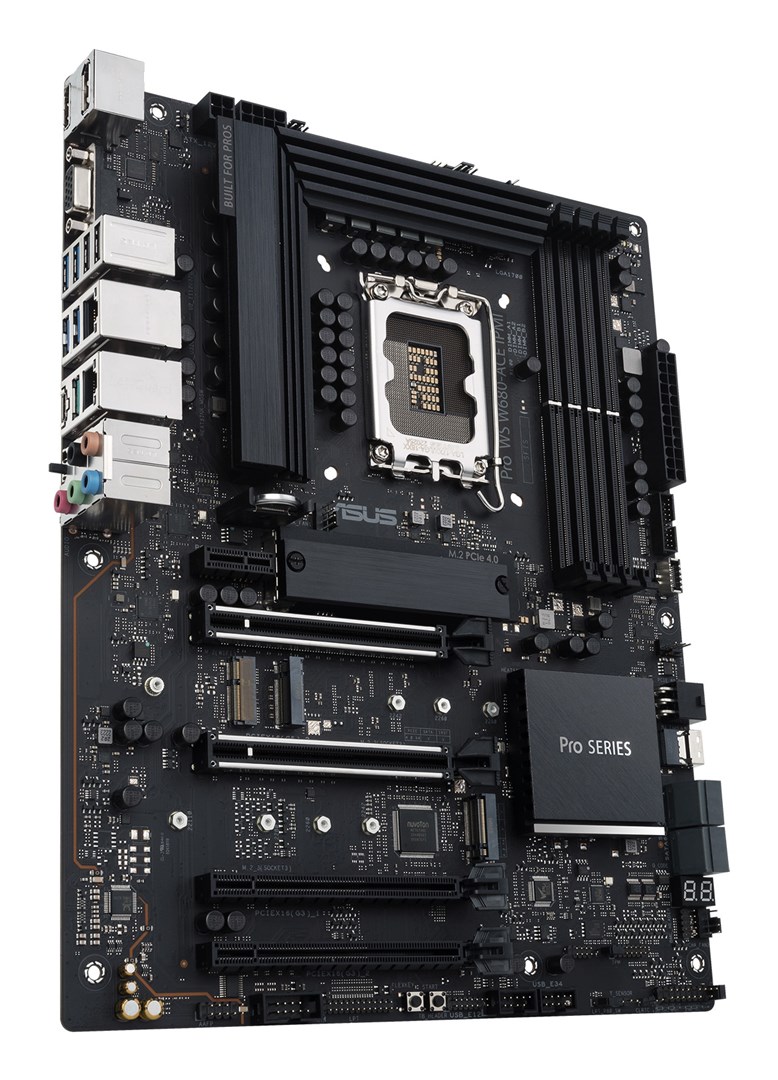

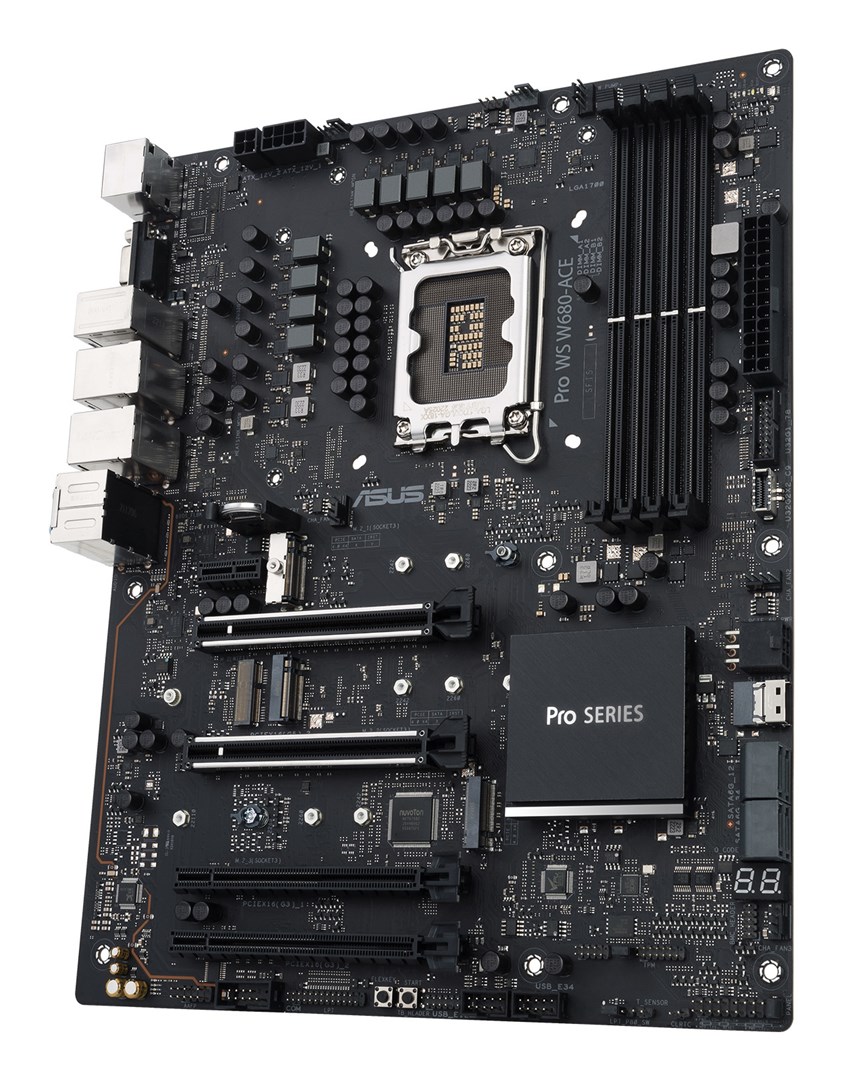

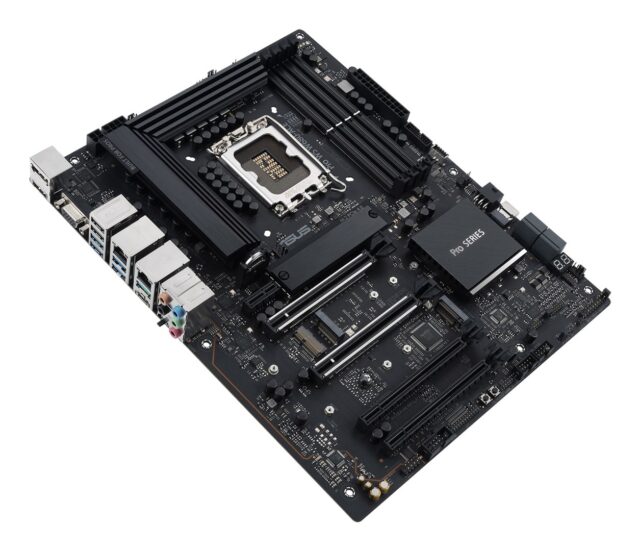

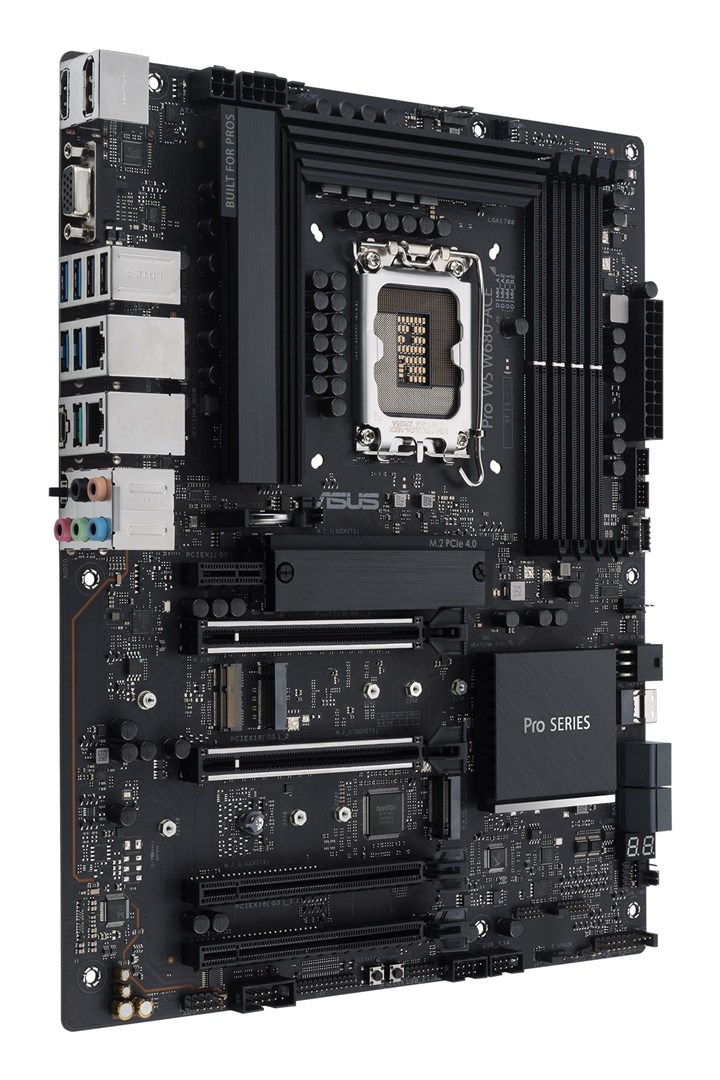

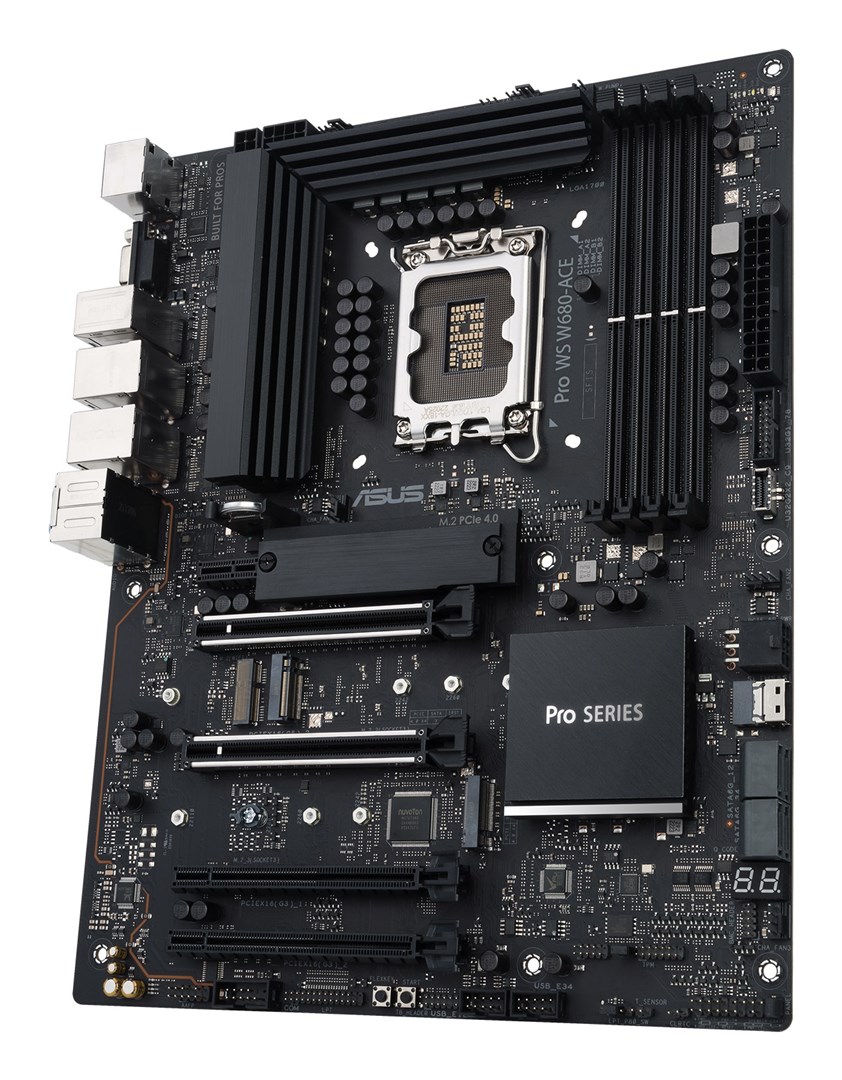

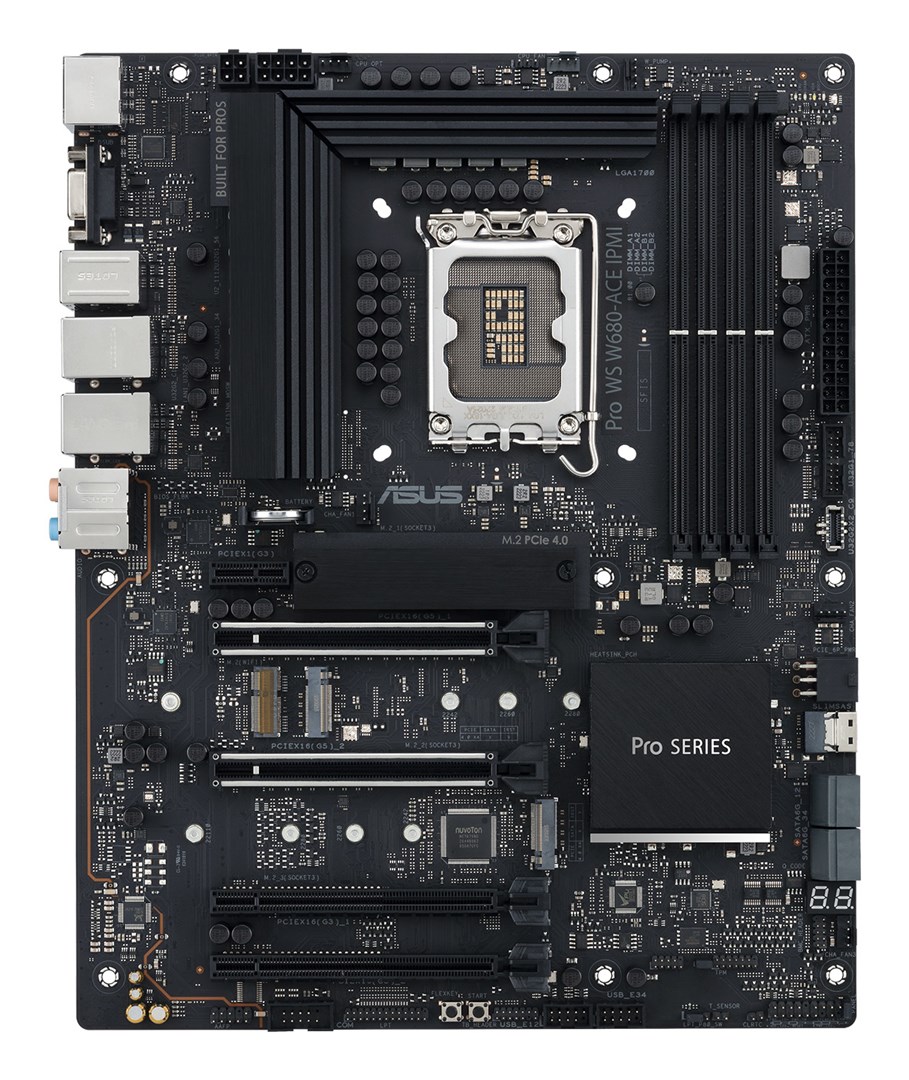

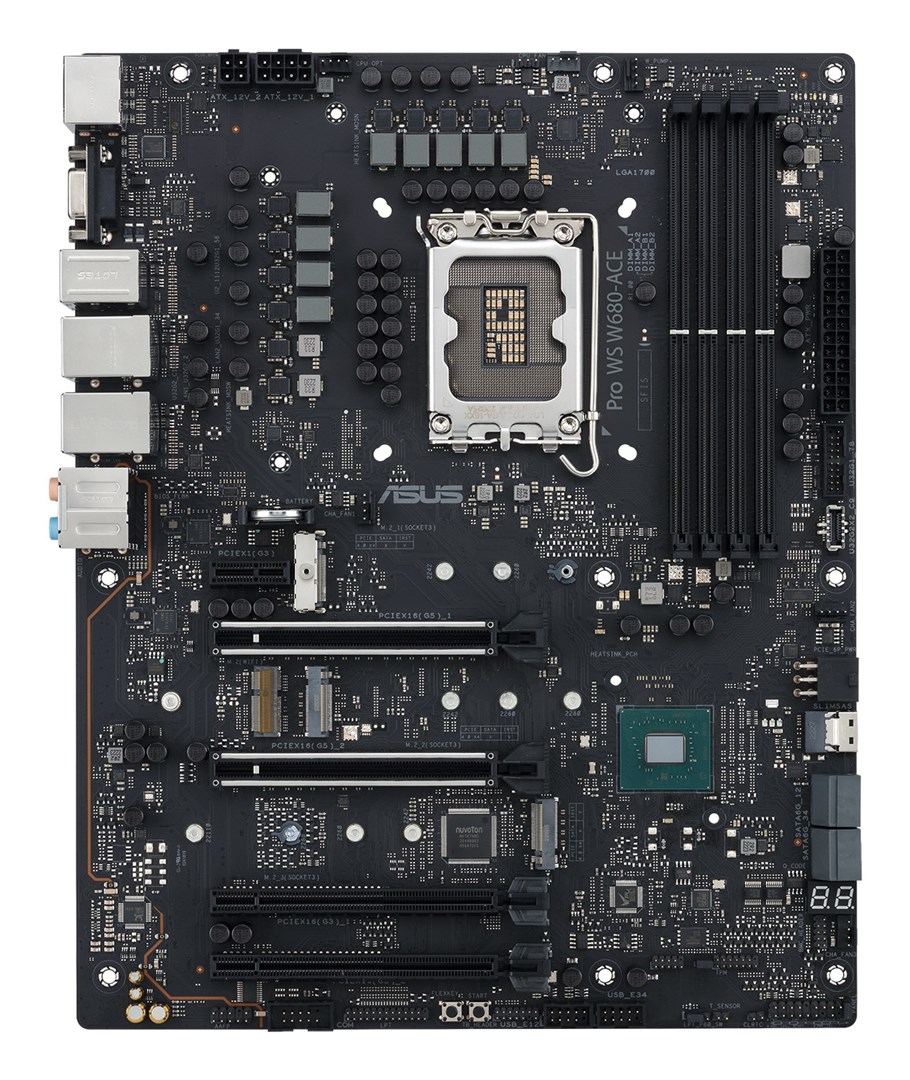

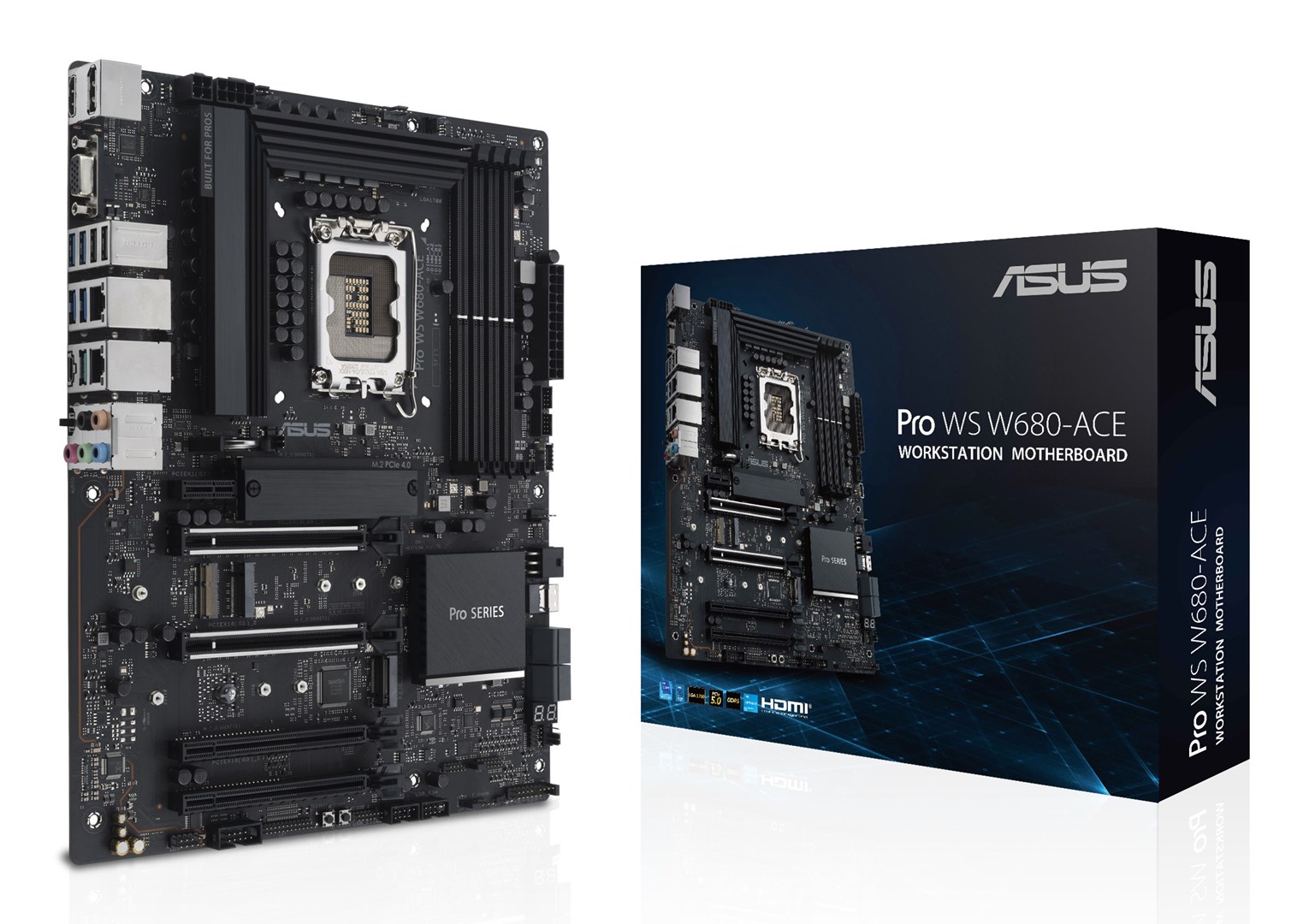

ASUS PRO WS W680-ACE Intel W680 LGA 1700 ATX motherboard
3.837,34 lei
9 în stoc
Informații suplimentare
| Producator |
ASUS |
|---|---|
| Cod Produs |
90MB1DZ0-M0EAY0 |
| Audio output channels |
7.1 channels |
| Thunderbolt headers |
1 |
| Motherboard form factor |
ATX |
| Motherboard chipset |
Intel W680 |
| Supported storage drive interfaces |
M.2, NVMe, SATA III |
| Maximum internal memory |
128 GB |
| Power source type |
ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |
| DisplayPort version |
1.4 |
| Weight |
997 g |
| DisplayPorts quantity |
1 |
| Unbuffered memory |
Yes |
| Supported storage drive types |
HDD & SSD |
| Number of SATA III connectors |
4 |
| Motherboard chipset family |
Intel |
| RAID support |
Yes |
| Product colour |
Black |
| Microphone in |
Yes |
| Back-to-BIOS button |
Yes |
| PCI Express x16 (Gen 3.x) slots |
2 |
| Component for |
PC |
| HDMI version |
2.1 |
| Maximum number of SMP processors |
1 |
| Package height |
76 mm |
| Integrated SAS ports |
1 |
| Supported processor sockets |
LGA 1700 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Depth |
244 mm |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of chassis fan connectors |
3 |
| HDMI ports quantity |
1 |
| On-board graphics card |
No |
| 12V power connector |
Yes |
| Line-in |
Yes |
| Ethernet LAN |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Number of memory slots |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| RAID levels |
1, 5, 10 |
| Number of M.2 (M) slots |
3 |
| BIOS memory size |
256 Mbit |
| Compatible processor series |
Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Windows operating systems supported |
Windows 11, Windows 10 x64 |
| Cables included |
SATA |
| BIOS type |
UEFI AMI |
| Supported memory types |
DDR5-SDRAM |
| Front panel audio connector |
Yes |
| Number of M.2 (E) slots |
1 |
| ECC сompatibility |
ECC & Non-ECC |
| Package width |
331 mm |
| Processor manufacturer |
Intel |
| Cooling type |
Passive |
| Wi-Fi |
No |
| USB 2.0 ports quantity |
2 |
| Package weight |
1.18 kg |
| Package depth |
266 mm |
| User guide |
Yes |
| Number of storage drives supported |
11 |
| ATX Power connector (24-pin) |
Yes |
| Memory slots type |
DIMM |
| TPM connector |
Yes |
| CPU fan connector |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Height |
50 mm |
| Processor socket |
LGA 1700 |
| Parallel processing technology support |
Not supported |
| Width |
305 mm |
| Number of HDDs supported |
8 |
| Number of COM connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
