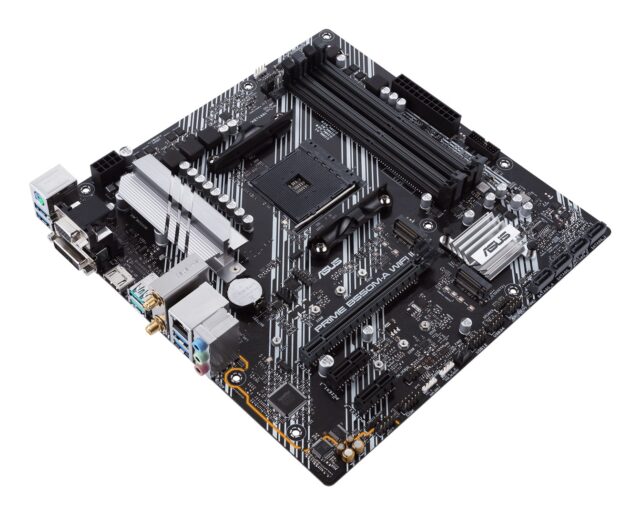

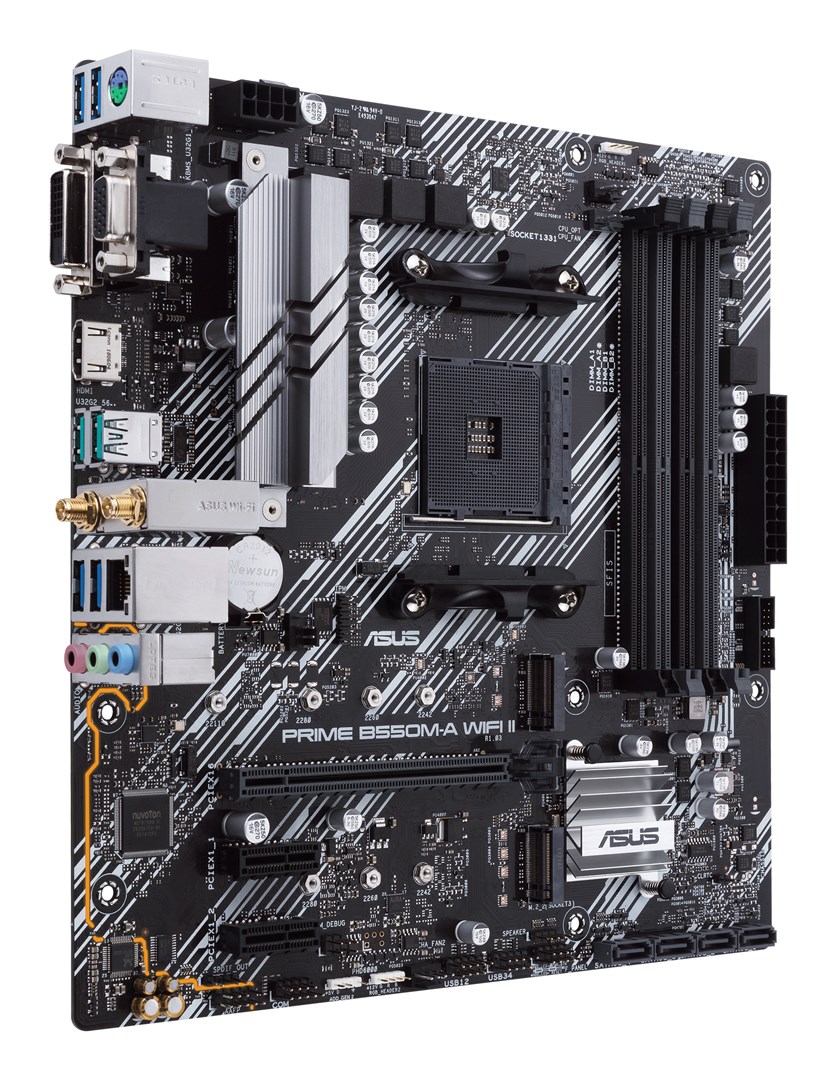

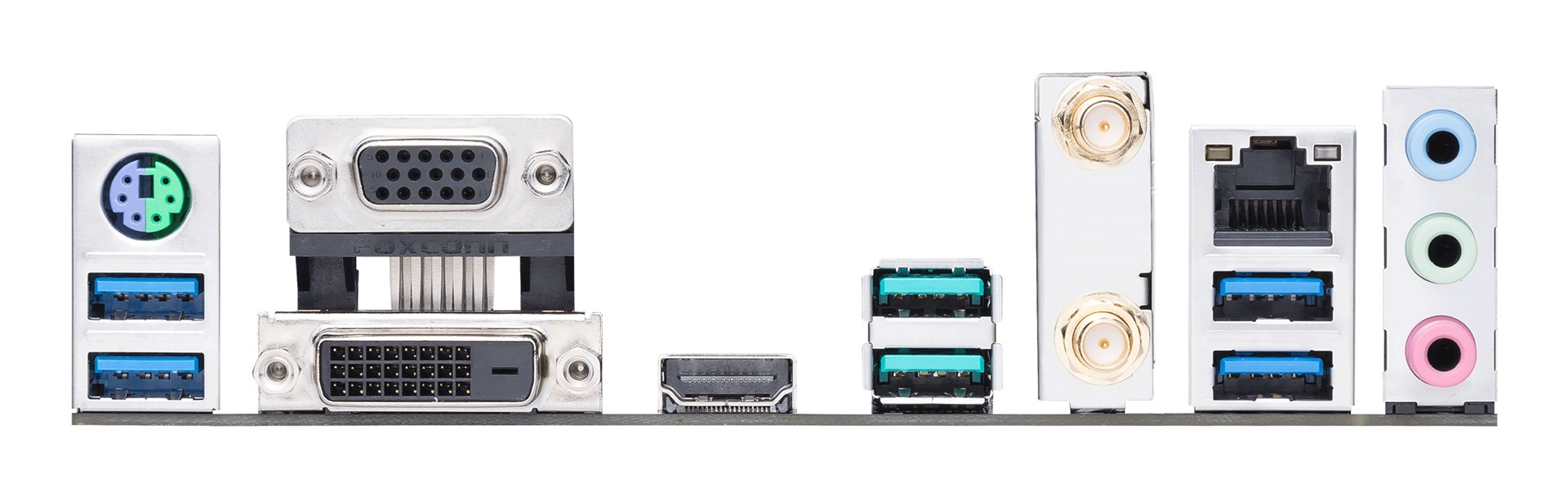

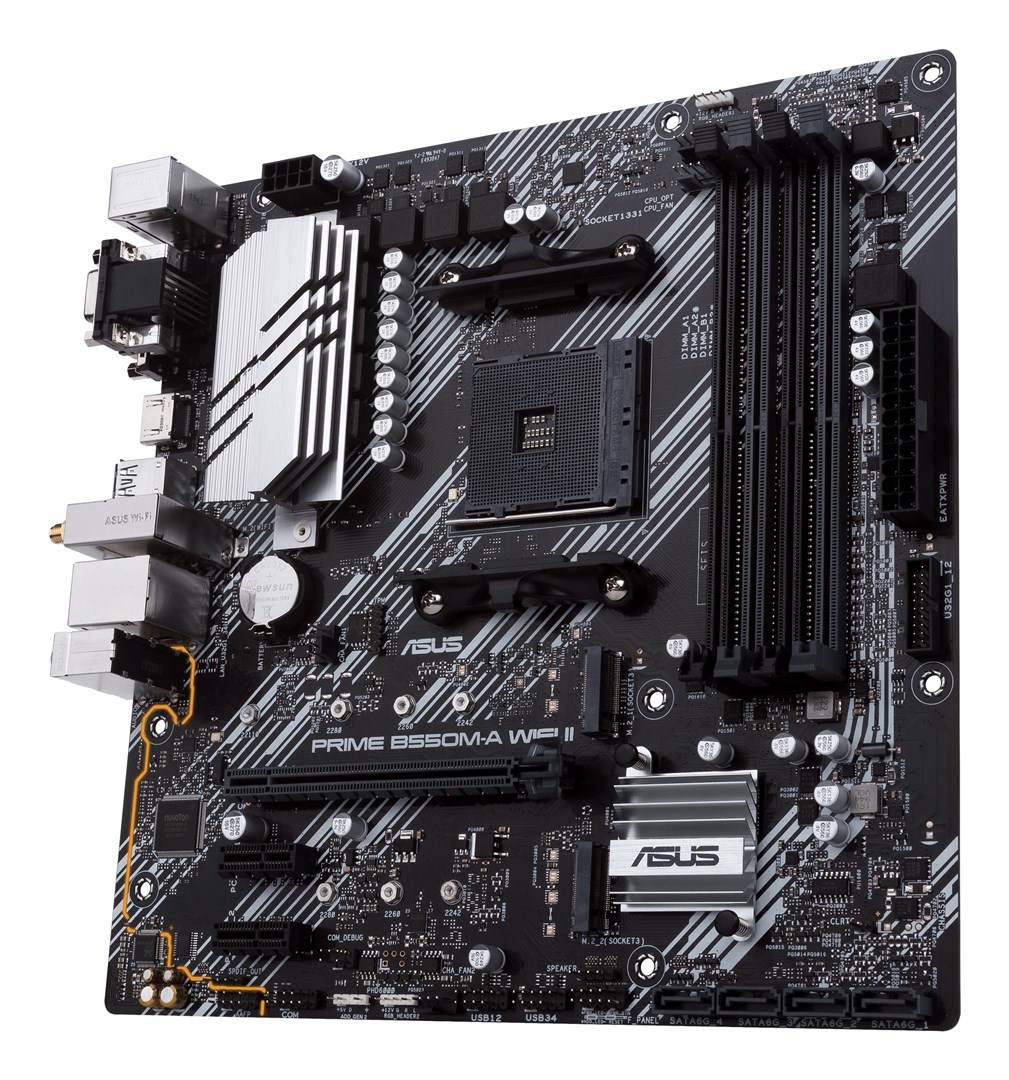

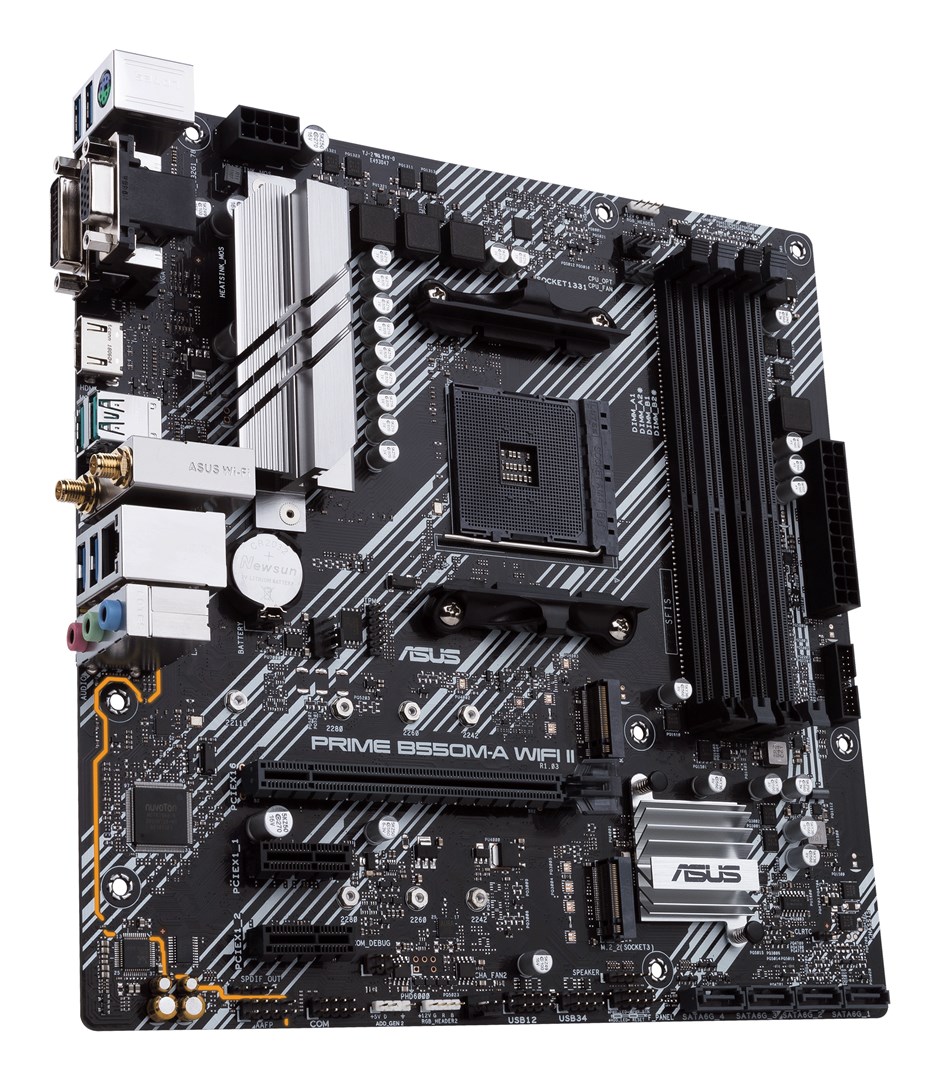

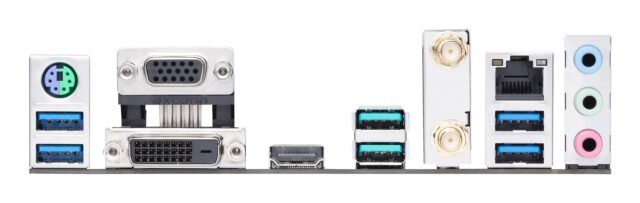

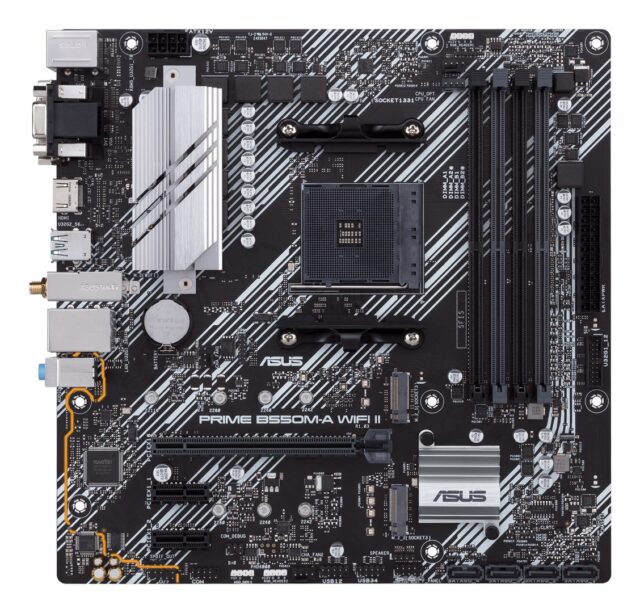

ASUS PRIME B550M-A WIFI II AMD B550 Socket AM4 micro ATX
773,33 lei
Stoc epuizat
| Producator |
ASUS |
|---|---|
| Cod Produs |
90MB19X0-M0EAY0 |
| Packaging content |
2 x SATA 6Gb/s cables |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Headphone outputs |
1 |
| Supported memory clock speeds |
3000, 3733, 4400, 3600 MHz, 3466, 2133, 2400, 2800, 3200, 2666, 4266, 3866, 4866 MHz, 4133, 4000, 4800, 4600, 3333, 4466 |
| VGA (D-Sub) ports quantity |
1 |
| Number of memory slots |
4 |
| Height |
67 mm |
| Processor socket |
Socket AM4 |
| Supported memory types |
DDR4-SDRAM |
| Microphone in |
Yes |
| Depth |
244 mm |
| Unbuffered memory |
Yes |
| WiFi-AP antenna jack |
1 |
| Memory slots type |
DIMM |
| Wi-Fi |
Yes |
| ECC сompatibility |
ECC |
| Bluetooth version |
5.2 |
| Ethernet interface type |
Gigabit Ethernet |
| Bluetooth |
Yes |
| RGB LED pin header |
Yes |
| Number of storage drives supported |
6 |
| Width |
244 mm |
| 12V power connector |
Yes |
| LAN controller |
Realtek RTL8111H |
| Wi-Fi standards |
802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax) |
| Compatible processor series |
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Ethernet LAN |
Yes |
| Weight |
845 g |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Clear CMOS jumper |
Yes |
| HDMI ports quantity |
1 |
| Number of EATX power connectors |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| HDMI version |
2.1 |
| Parallel processing technology support |
Not supported |
| Motherboard form factor |
micro ATX |
| DVI-D ports quantity |
1 |
| USB 2.0 connectors |
2 |
| Number of M.2 (M) slots |
2 |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Harmonized System (HS) code |
84733020 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Processor manufacturer |
AMD |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Windows operating systems supported |
Windows 11 x64, Windows 10 x64 |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of COM connectors |
1 |
| Drivers included |
Yes |
| Cables included |
SATA |
| Audio output channels |
7.1 channels |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Front panel audio connector |
Yes |
| Motherboard chipset |
AMD B550 |
| RAID levels |
1, 10 |
| S/PDIF out connector |
Yes |
| PCI Express x1 (Gen 3.x) slots |
2 |
| USB connector type |
USB Type-A |
| BIOS type |
UEFI AMI |
| Supported storage drive interfaces |
M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| Maximum internal memory |
128 GB |
| Wake-on-LAN ready |
Yes |
| Supported storage drive types |
HDD & SSD |
| PS/2 ports quantity |
1 |
| On-board graphics card |
No |
| Number of chassis fan connectors |
2 |
| RAID support |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Product colour |
Multicolour |
| TPM connector |
Yes |
| Supported processor sockets |
Socket AM4 |
| Motherboard chipset family |
AMD |
