Sold out

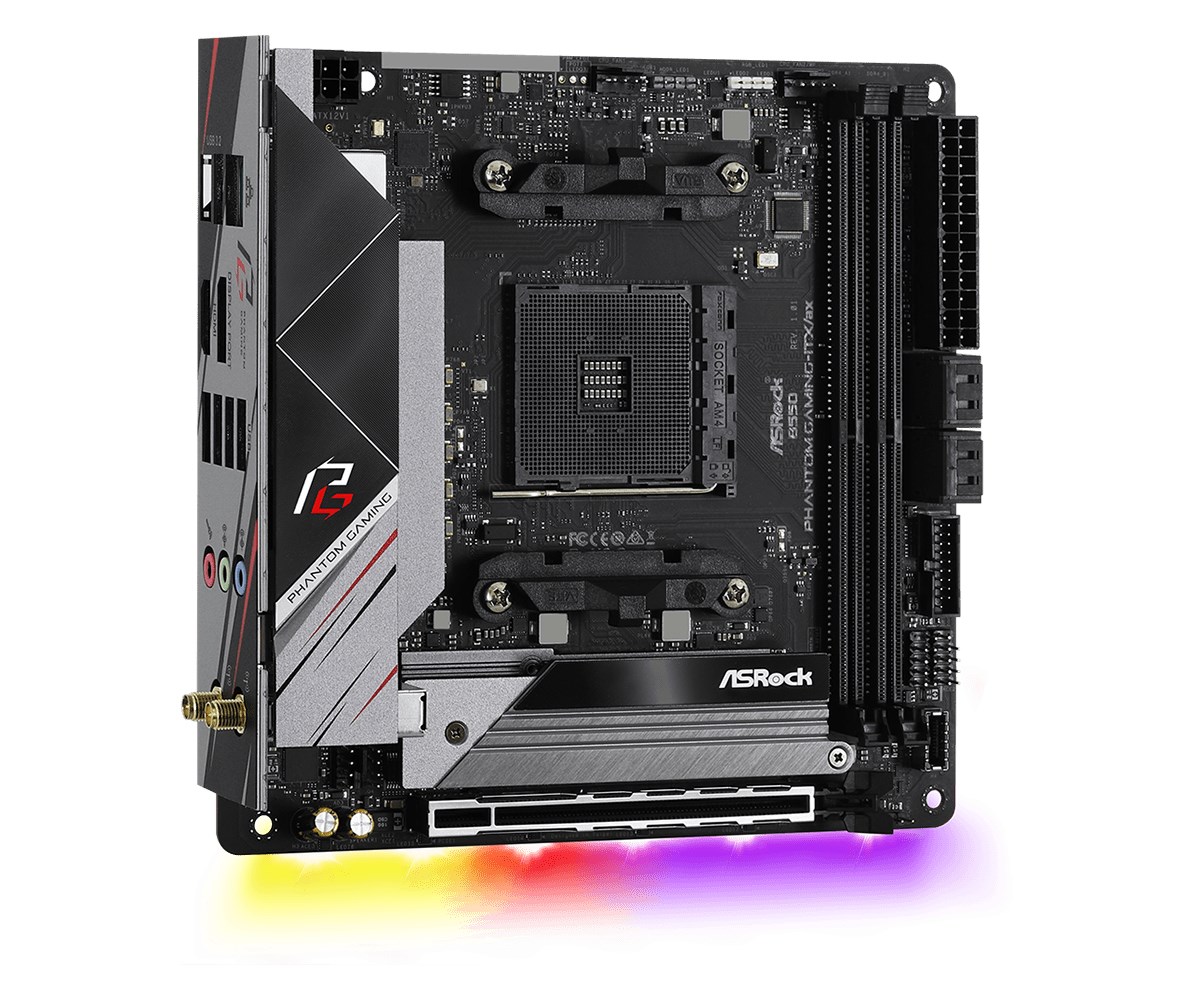

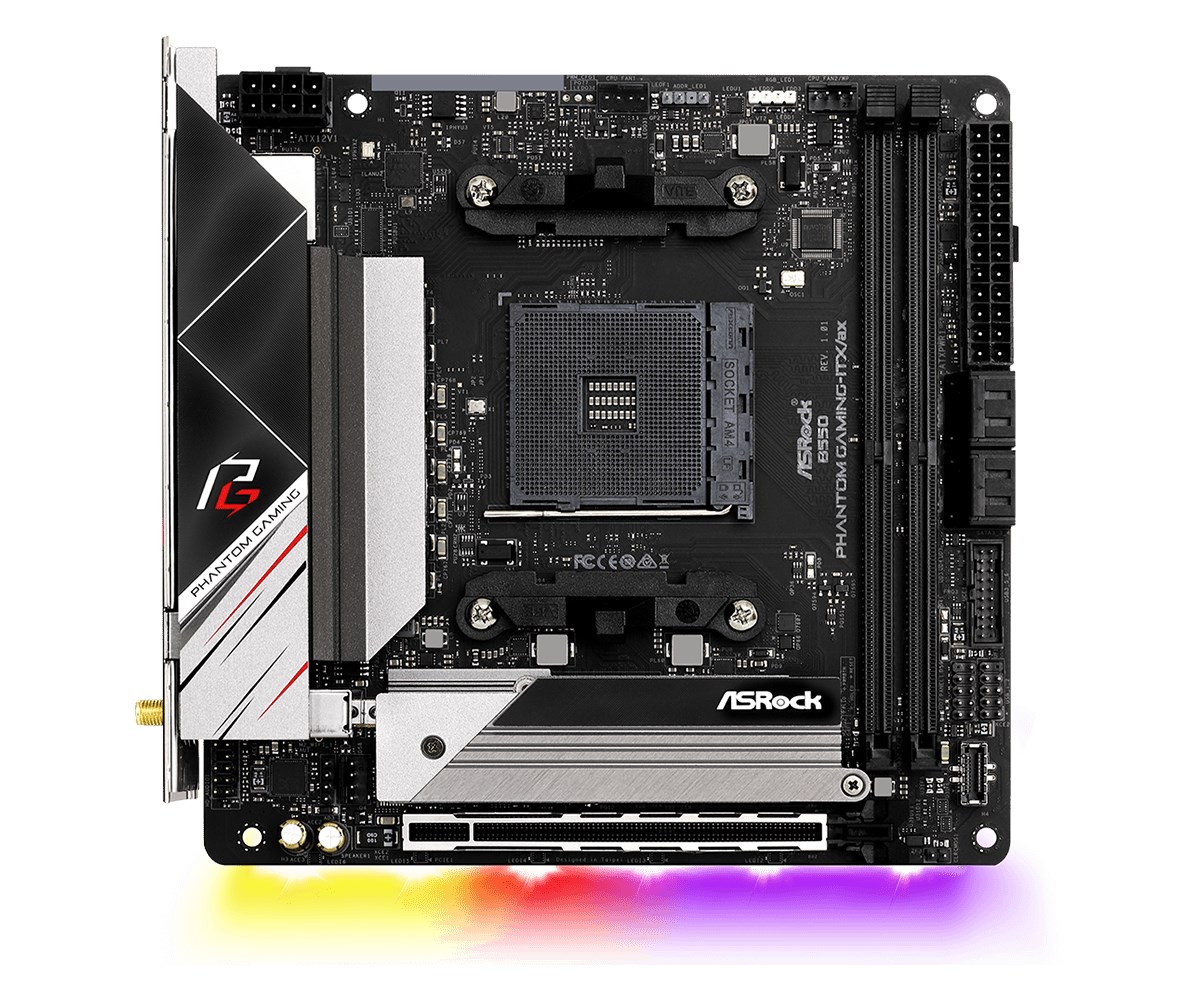

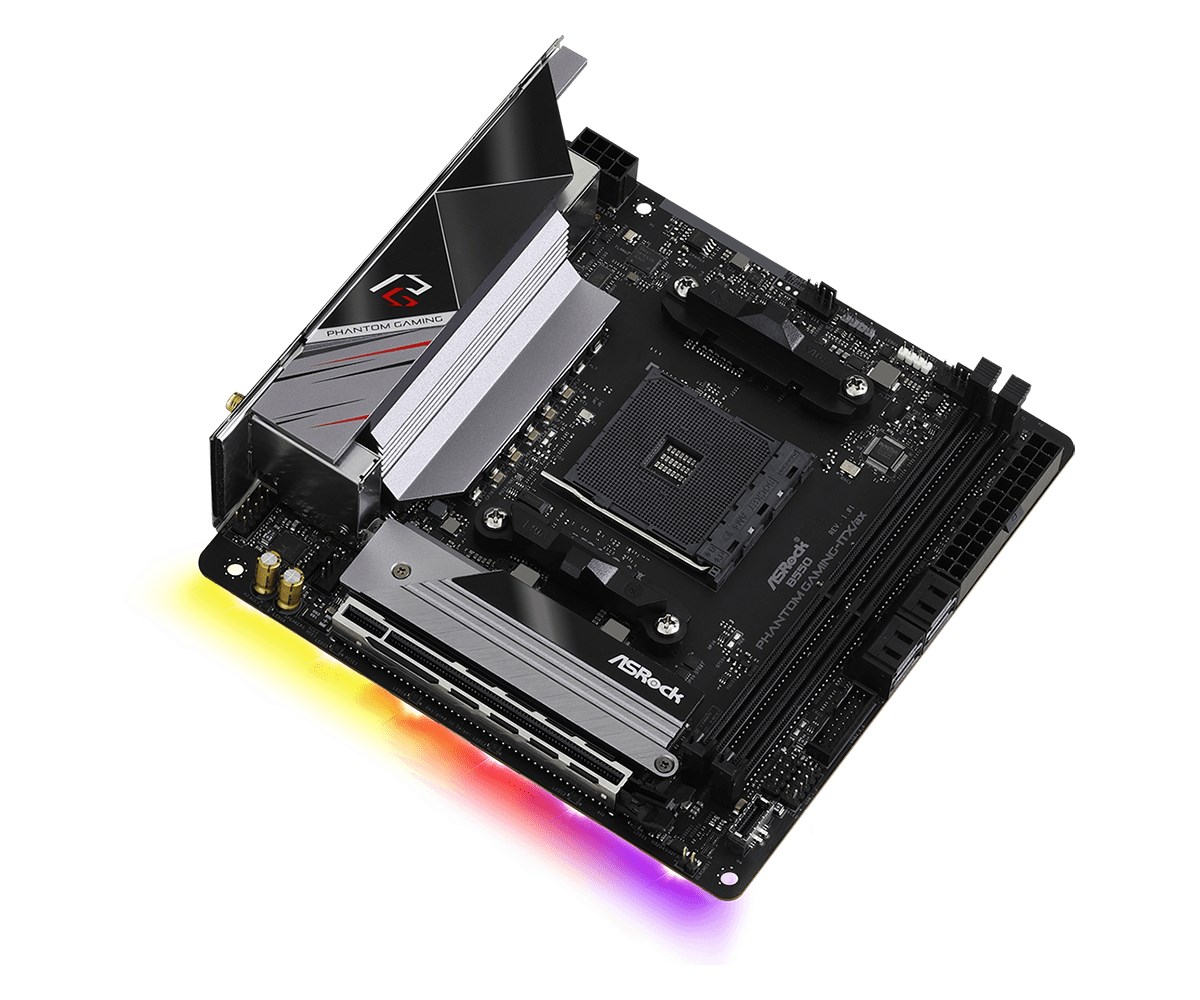

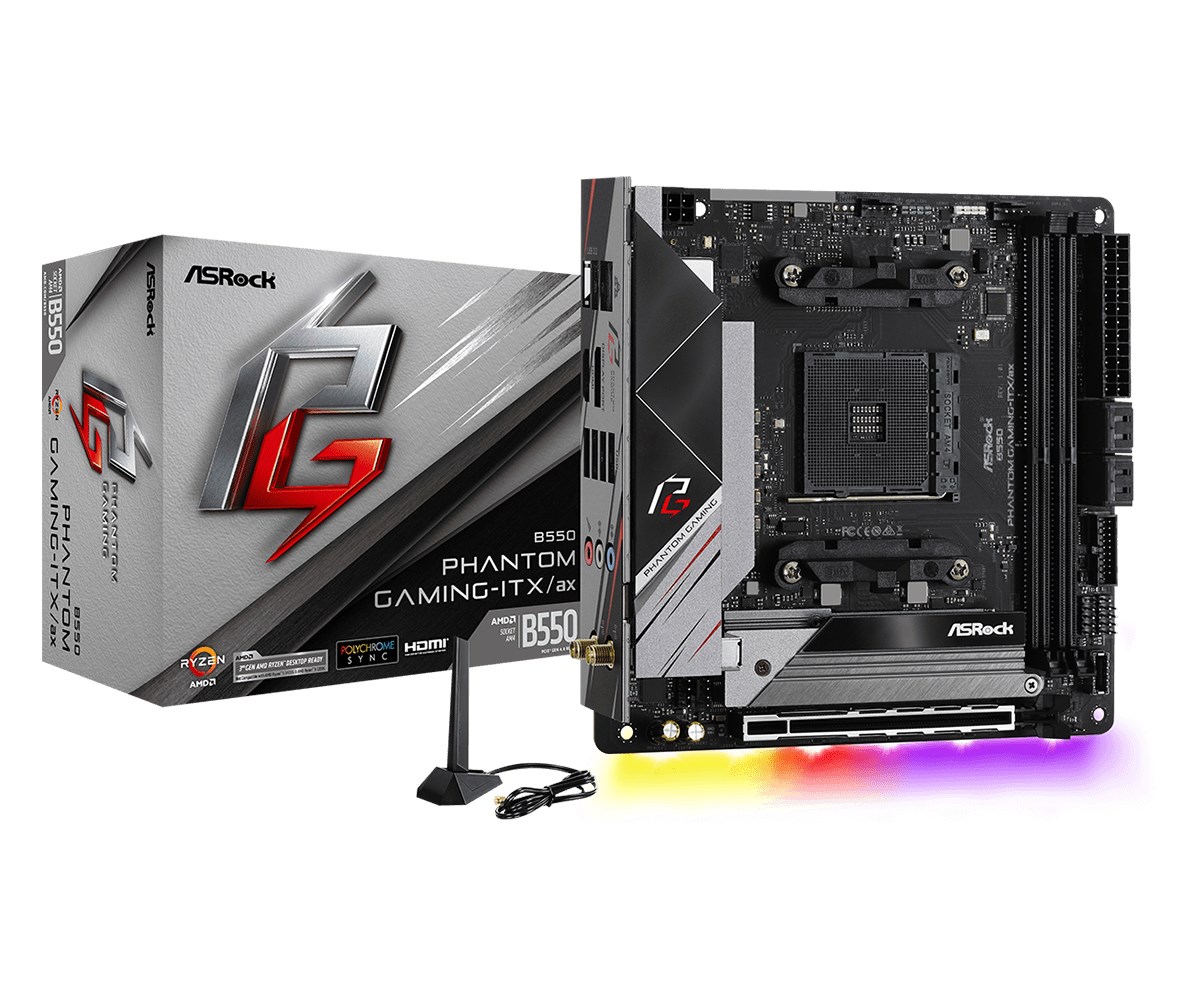

Asrock B550 Phantom Gaming-ITX/a Socket AM4 mini ITX AMD B550
1.477,26 lei
Stoc epuizat
Informații suplimentare
| Producator |
Asrock |
|---|---|
| Cod Produs |
B550 PHANTOM GAMING-ITX/AX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Graphics card |
Radeon Vega |
| HDMI ports quantity |
1 |
| Supported memory clock speeds |
4800, 4933 MHz, 4866 MHz, 4733, 4666, 5000, 4533, 4466, 4133, 4000, 2933, 3600 MHz, 3200, 4266, 2400, 3466, 2133, 4200, 3866, 4333, 4600, 2667, 3733, 4400, 3800 |
| EPS power connector (8-pin) |
Yes |
| DVI-I ports quantity |
1 |
| Audio output channels |
7.1 channels |
| DisplayPorts quantity |
1 |
| Wi-Fi standards |
Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g |
| Ethernet LAN (RJ-45) ports |
1 |
| Drivers included |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Wake-on-LAN ready |
Yes |
| Maximum internal memory |
64 GB |
| Motherboard chipset family |
AMD |
| USB 2.0 connectors |
1 |
| BIOS type |
UEFI AMI |
| Audio chip |
Realtek ALC1220 |
| CPU fan connector |
Yes |
| HDCP |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Motherboard chipset |
AMD B550 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Supported storage drive interfaces |
M.2, Serial ATA III |
| DirectX version |
12.0 |
| Motherboard form factor |
mini ITX |
| DisplayPort version |
1.4 |
| ATX Power connector (24-pin) |
Yes |
| Bluetooth |
Yes |
| Depth |
170 mm |
| Graphics card family |
AMD |
| Width |
170 mm |
| RGB LED pin header |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of memory slots |
2 |
| Ethernet LAN |
Yes |
| Compatible processor series |
3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7 |
| On-board graphics card |
Yes |
| Maximum number of SMP processors |
1 |
| Processor manufacturer |
AMD |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
DIMM |
| Wi-Fi |
Yes |
| Processor socket |
Socket AM4 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Bluetooth version |
5.1 |
