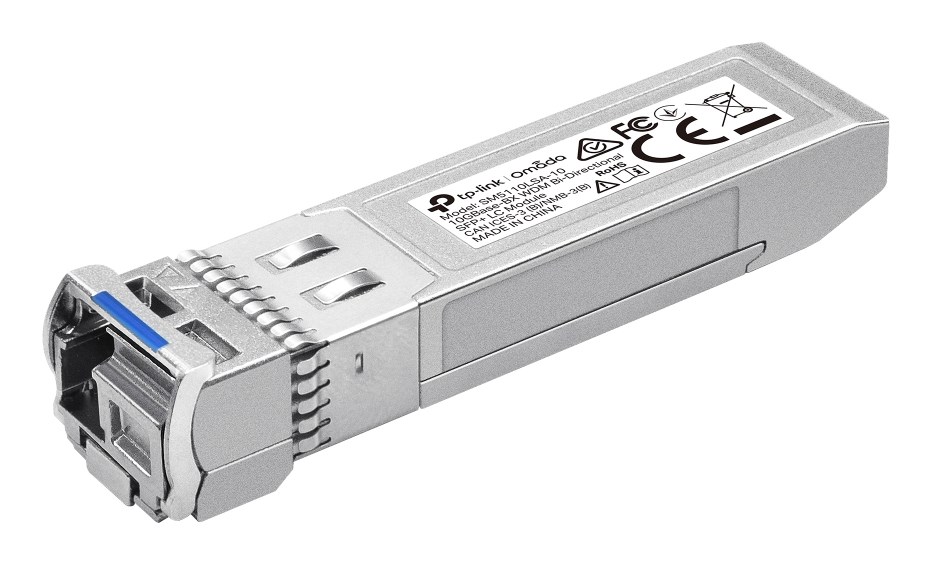

TP-Link Omada SM5110LSA-10 network transceiver module Fiber optic 10312 Mbit/s SFP+
314,90 lei
4 în stoc
Descriere
Technical Specifications
| -40 – 85 °C |
| 10 – 90% |
| 5 – 90% |
| 10312 Mbit/s |
| 0 – 70 °C |
| Silver |
| IEEE 802.3ae |
| 10000 m |
| 1270 nm |
| Fiber optic |
| 14 mm |
| Yes |
| Federal Communications Commission (FCC), RoHS, CE |
| 12 mm |
| Yes |
| 3.3 V |
| Yes |
| LC (UPC) |
| 1 pc(s) |
| 9/125 µm |
| Yes |
| 57 mm |
| SFP+ |
| 1330 nm |
| 70 °C |
Informații suplimentare
| Producator |
TP-LINK |
|---|---|
| Cod Produs |
SM5110LSA-10 |
| Maximum transfer distance |
10000 m |
| Quantity per pack |
1 pc(s) |
| Width |
57 mm |
| Input voltage |
3.3 V |
| Height |
12 mm |
| Maximum data transfer rate |
10312 Mbit/s |
| Networking standards |
IEEE 802.3ae |
| Interface type |
SFP+ |
| Storage temperature (T-T) |
-40 – 85 °C |
| Fiber optic connector |
LC (UPC) |
| Tx wavelength (max) |
1330 nm |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Product colour |
Silver |
| Single-mode fiber (SMF) supported |
Yes |
| Hot-swap |
Yes |
| Operating temperature (T-T) |
0 – 70 °C |
| SFP transceiver type |
Fiber optic |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Rx wavelength (max) |
1270 nm |
| Manual |
Yes |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage relative humidity (H-H) |
5 – 90% |
| Depth |
14 mm |
| Maximum operating temperature |
70 °C |
| Compliance certificates |
RoHS, CE, Federal Communications Commission (FCC) |
