Teltonika TSW200 | PoE+ Switch | 8x RJ45 1000Mb/s PoE+, 2x SFP, 240W
864,85 lei
5 în stoc

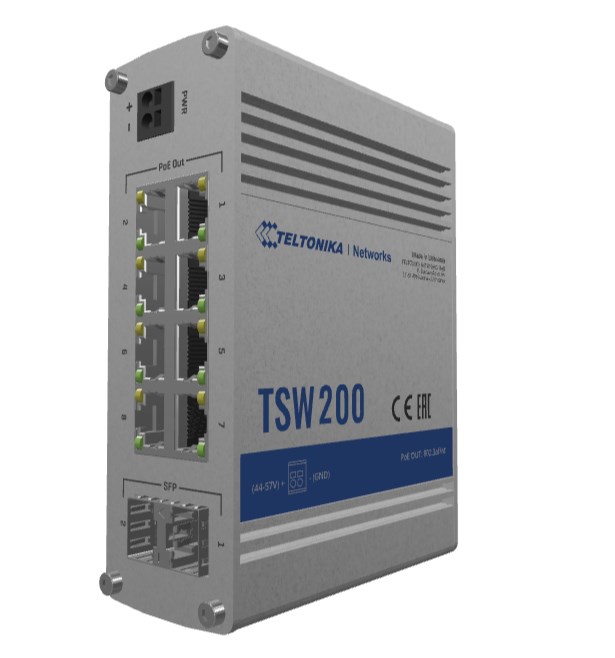

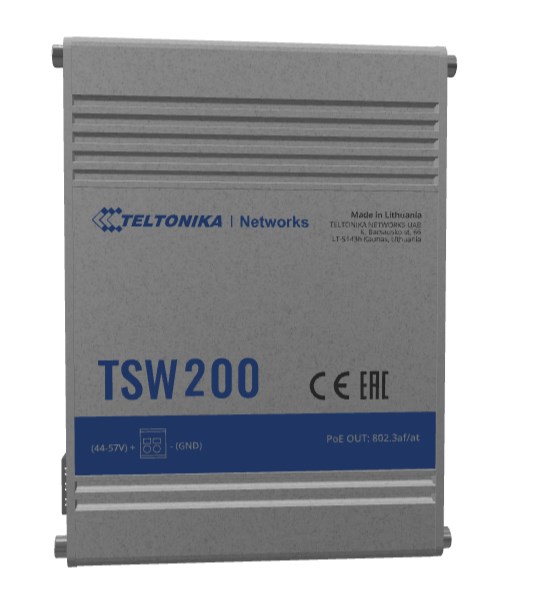

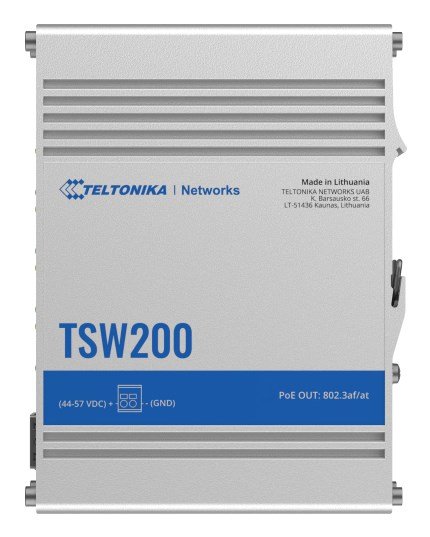

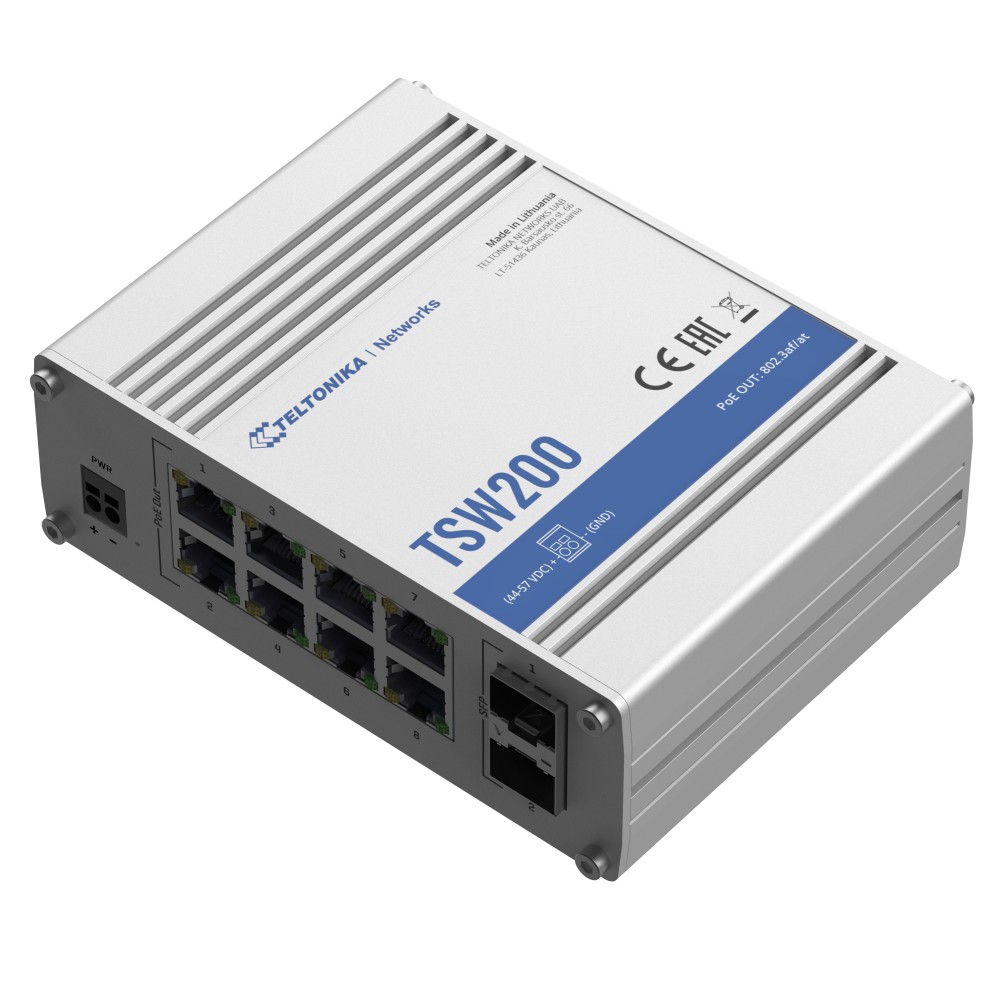

TSW200 industrial unmanaged switch from Teltonika Networks
The TSW200 is the first switch in the Teltonika Networks portfolio with eight Gigabit Ethernet ports supporting IEEE802.3af and IEE802.3at Power-over-Ethernet standards. Now you can connect more devices and power them simultaneously with a power budget of 240W. This unmanaged switch requires no configuration, so the time and resources required to install the solution are minimal. The plug-and-play design of this switch will allow you to connect multiple IP cameras, point-of-sale (POS) systems, access points or other PoE-compatible devices to the Internet in minutes and reduce unnecessary cabling.
Key features of Teltonika TSW200
The TSW100 switch enables power supply centralization, providing up to 30 watts of power per port and reducing the costs associated with power installation. It has 10/100/1000 Mb/s Ethernet ports and can operate in temperatures from -40 °C to +75 °C, making it an economical high-bandwidth solution for industrial Ethernet networks.
Key features of Teltonika TSW200
- 2 SFP ports for long-range fiber optic communications
- 8 PoE ports with support for 802.3af and 802.3at standards
- 8 Gigabit Ethernet ports with speeds up to 1000 Mbps
- Industrial design and durable aluminum housing
- Total PSE power budget up to 240 watts
- Plug-n-Play – No configuration required
- DIN rail and surface mounting options

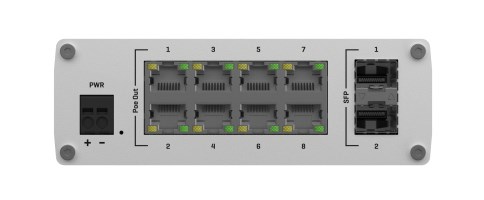

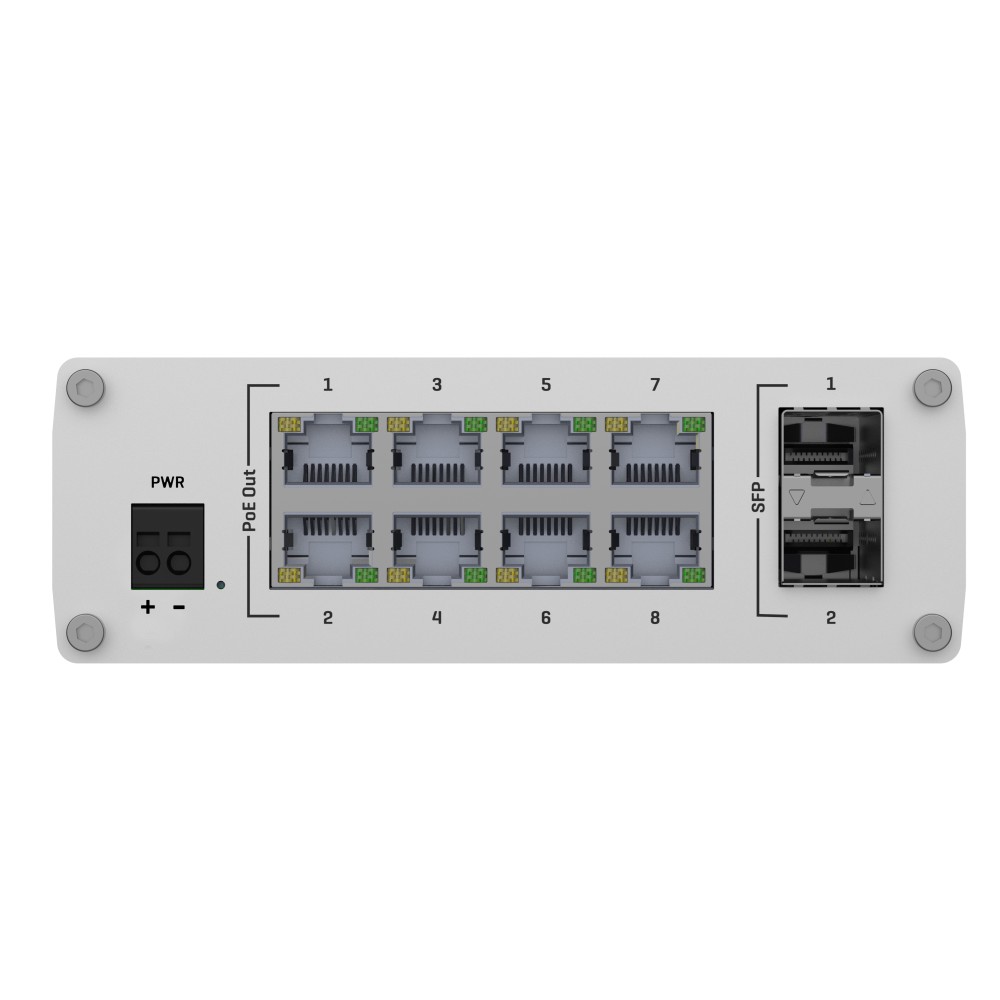

Gigabit ports with PoE and SFP ports
This unmanaged switch has 8 Gigabit Ethernet ports supporting IEEE802.3af and IEEE802.3at PoE standards , with which it powers other devices in your solution. The TSW200 is also equipped with 2 SFP ports for long-range fiber communication.

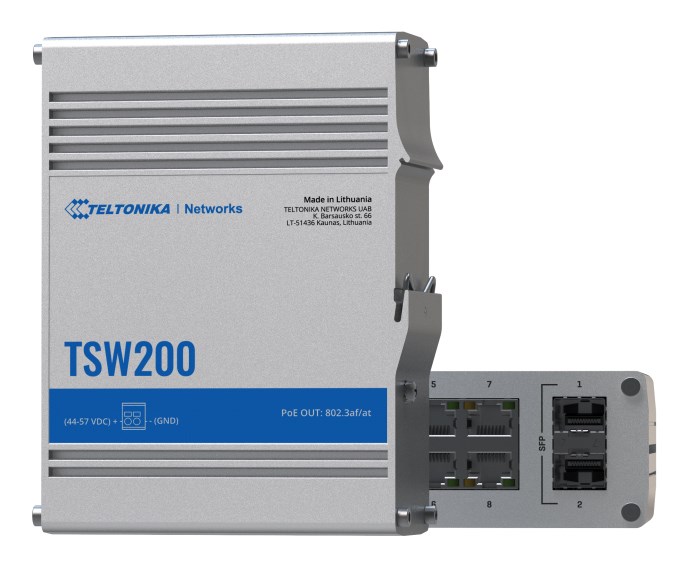

Easy installation and durable housing

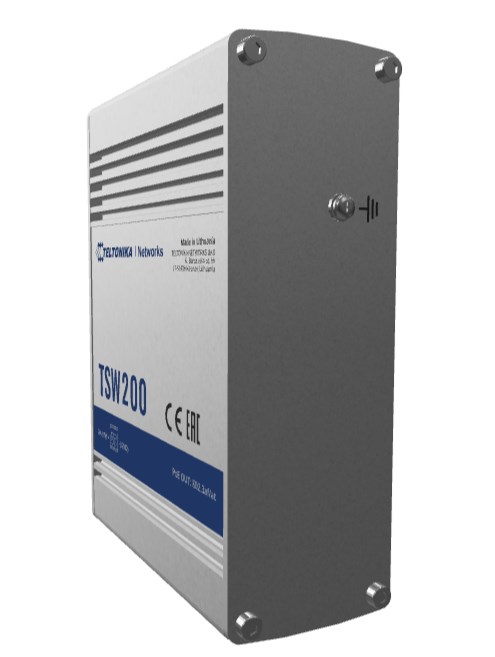

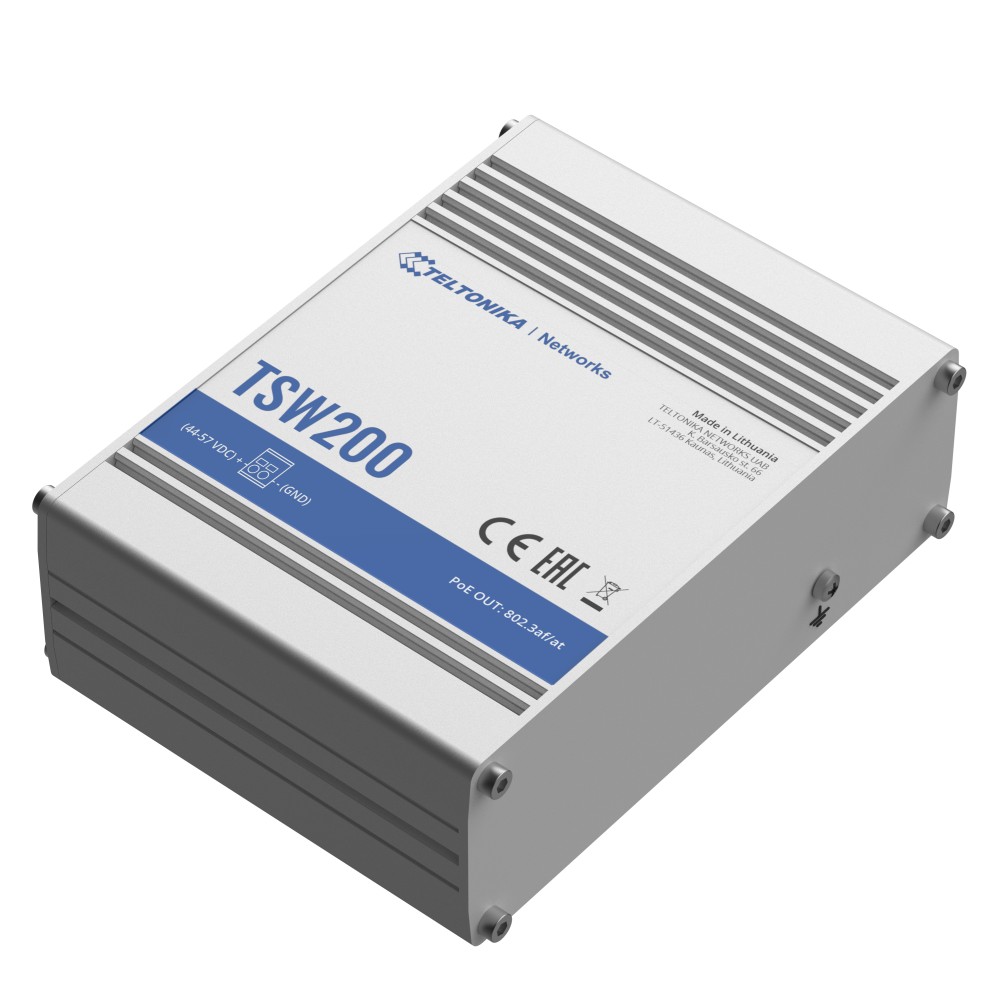

The Teltonika TSW200 features a rugged and durable design to withstand adverse conditions and harsh temperature ranges. It comes with wall and DIN rail mounting options for easy installation. So this switch will fit virtually any corporate, commercial or industrial scenario with broadband, remote applications that require reliable data and power connectivity.
| Producator |
TELTONIKA |
|---|---|
| Cod Produs |
TSW200000010 |
| Networking standards |
IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u |
| International Protection (IP) code |
IP30 |
| Wall mountable |
Yes |
| Depth |
44.2 mm |
| Power source |
DC |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power supply included |
No |
| Power consumption (max) |
106 W |
| Auto MDI/MDI-X |
Yes |
| Operating temperature (T-T) |
-40 – 75 °C |
| Total Power over Ethernet (PoE) budget |
240 W |
| LED indicators |
Status, LAN, PoE |
| Rack mounting |
Yes |
| Weight |
456 g |
| Power consumption (typical) |
1.8 W |
| Housing material |
Aluminium |
| Product colour |
Aluminium |
| Power over Ethernet (PoE) |
Yes |
| Width |
95.1 mm |
| Height |
132 mm |
| Power over Ethernet (PoE) power per port |
30 W |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Jumbo frames support |
Yes |
| SFP module slots quantity |
2 |
| DC input voltage |
7 – 57 V |
| Switch type |
Unmanaged |
| Power over Ethernet (PoE) voltage |
57 V |
| Packet buffer memory |
0.128 MB |
| MAC address table |
2000 entries |
| Jumbo frames |
9216 |
| DIN rail mounting |
Yes |
