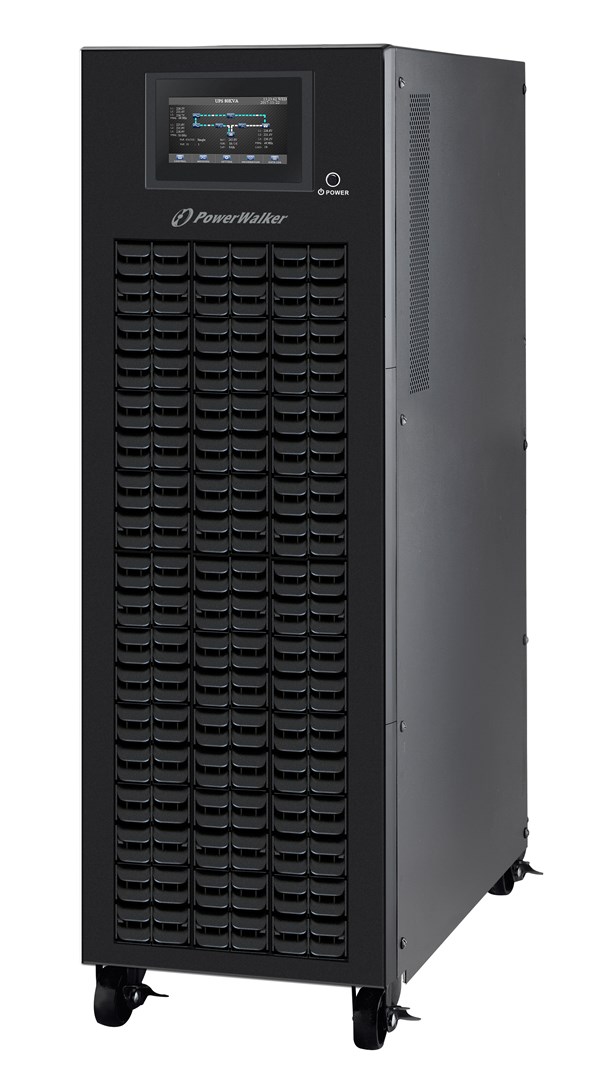

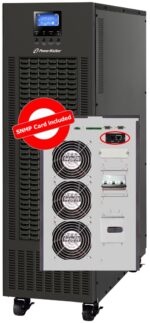

PowerWalker VFI 10K CPG PF1 3/3 BI Double-conversion (Online) 10 kVA 10000 W 1 AC outlet(s)
41.971,25 lei
Stoc epuizat
Informații suplimentare
| Producator |
POWER WALKER |
|---|---|
| Cod Produs |
VFI 10K CPG PF1 3/3 BI |
| Compatibility |
ViewPower |
| Charging current |
12 A |
| Waveform |
Sine |
| Maximum current |
12 A |
| Height |
827 mm |
| Number of battery cells |
20 |
| Emergency Power Off (EPO) connector |
No |
| Operating temperature (T-T) |
0 – 40 °C |
| Product colour |
Black |
| Quick installation guide |
Yes |
| Response time |
4 ms |
| UPS topology |
Double-conversion (Online) |
| Form factor |
Large tower |
| Input frequency |
46/64 Hz |
| Output operation voltage (min) |
208 V |
| Depth |
627 mm |
| AC outlet types |
Terminal |
| Input current Total Harmonic Distortion (THD) |
6% |
| Weight |
139 kg |
| Power factor |
1 |
| Noise level |
60 dB |
| Output power capacity |
10 kVA |
| Output power |
10000 W |
| Rack mount kit |
Yes |
| Efficiency |
95.5% |
| Width |
250 mm |
| Harmonized System (HS) code |
85078000 |
| Output frequency regulation |
±0.1 Hz |
| Display type |
LCD |
| Battery voltage |
12 V |
| USB port |
Yes |
| Output operation voltage (max) |
240 V |
| Battery capacity |
7 Ah |
| AC outlets quantity |
1 AC outlet(s) |
| Output voltage regulation |
±1% |
| RS-232 ports |
1 |
| Output voltage Total Harmonic Distortion (THD) |
4% |
| Power plug |
Terminal |
| Operating relative humidity (H-H) |
0 – 95% |
| Manual |
Yes |
| Efficiency (On-line mode) |
94.5% |
| Input operation voltage (min) |
305 V |
| Battery recharge time |
9 h |
| Input operation voltage (max) |
520 V |
