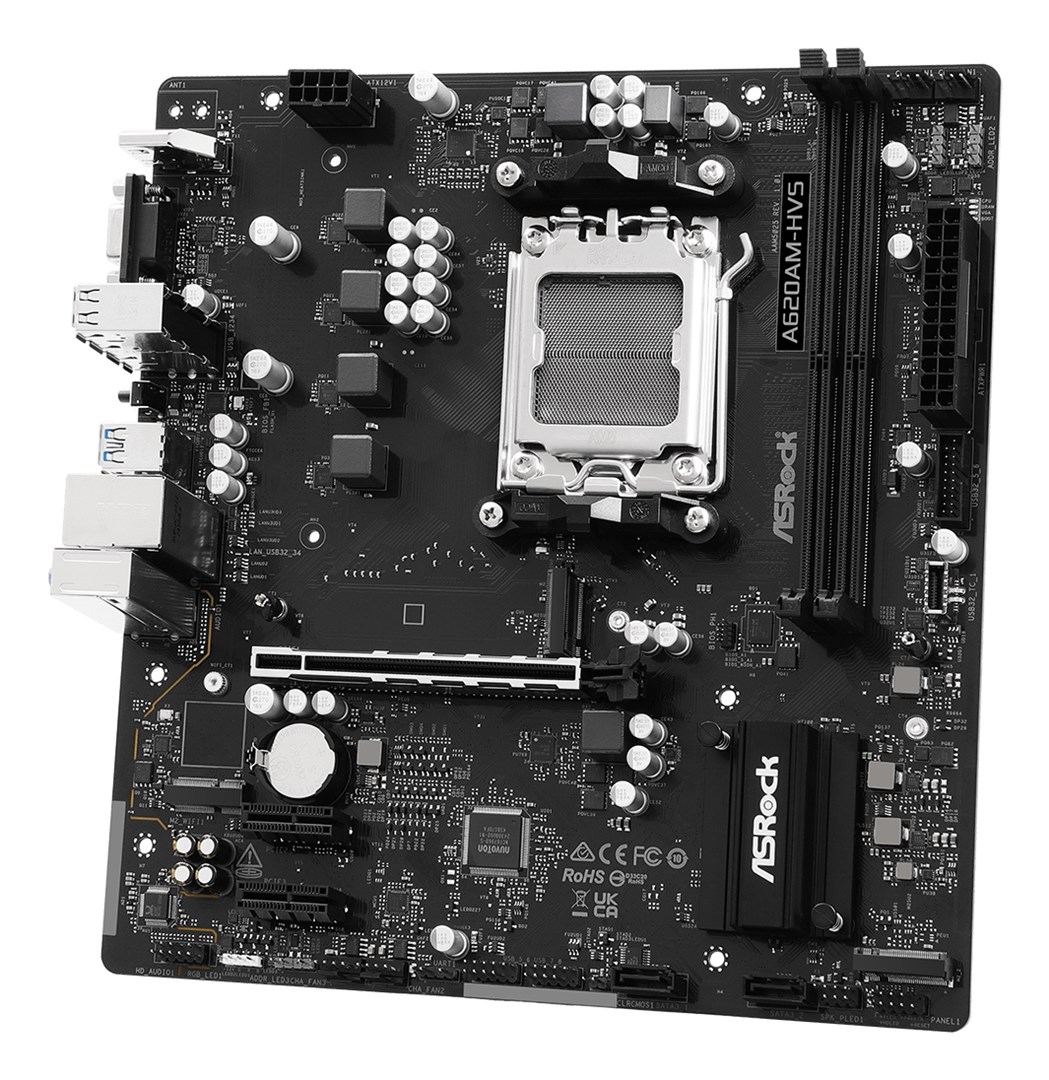

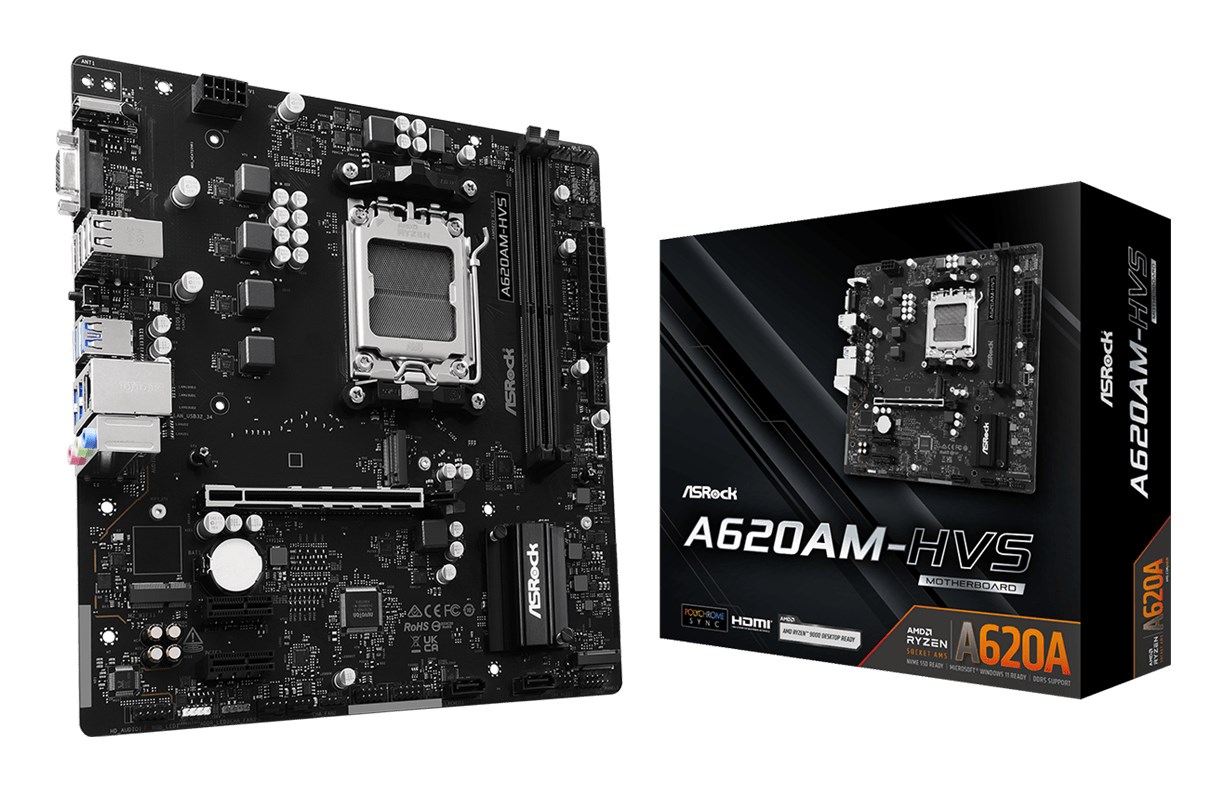

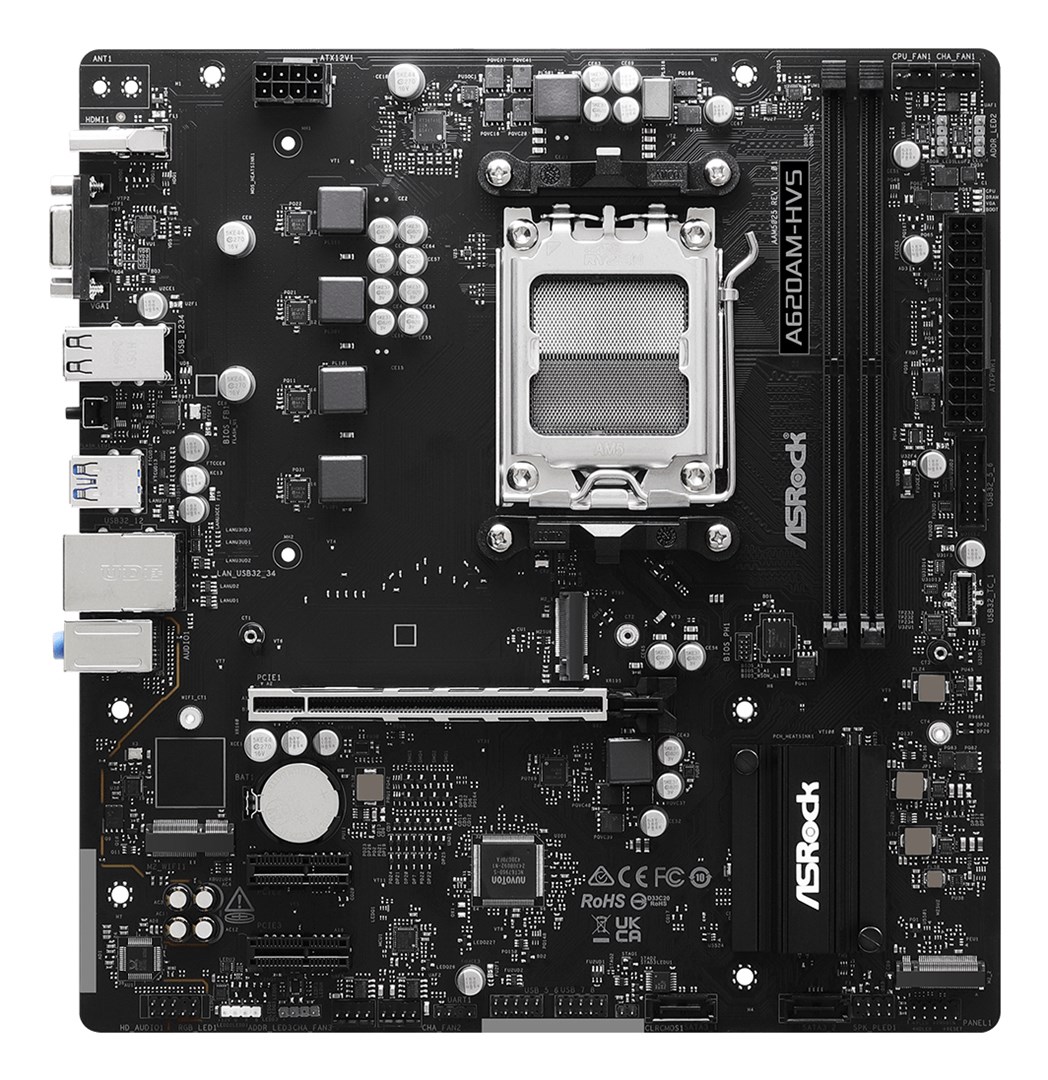

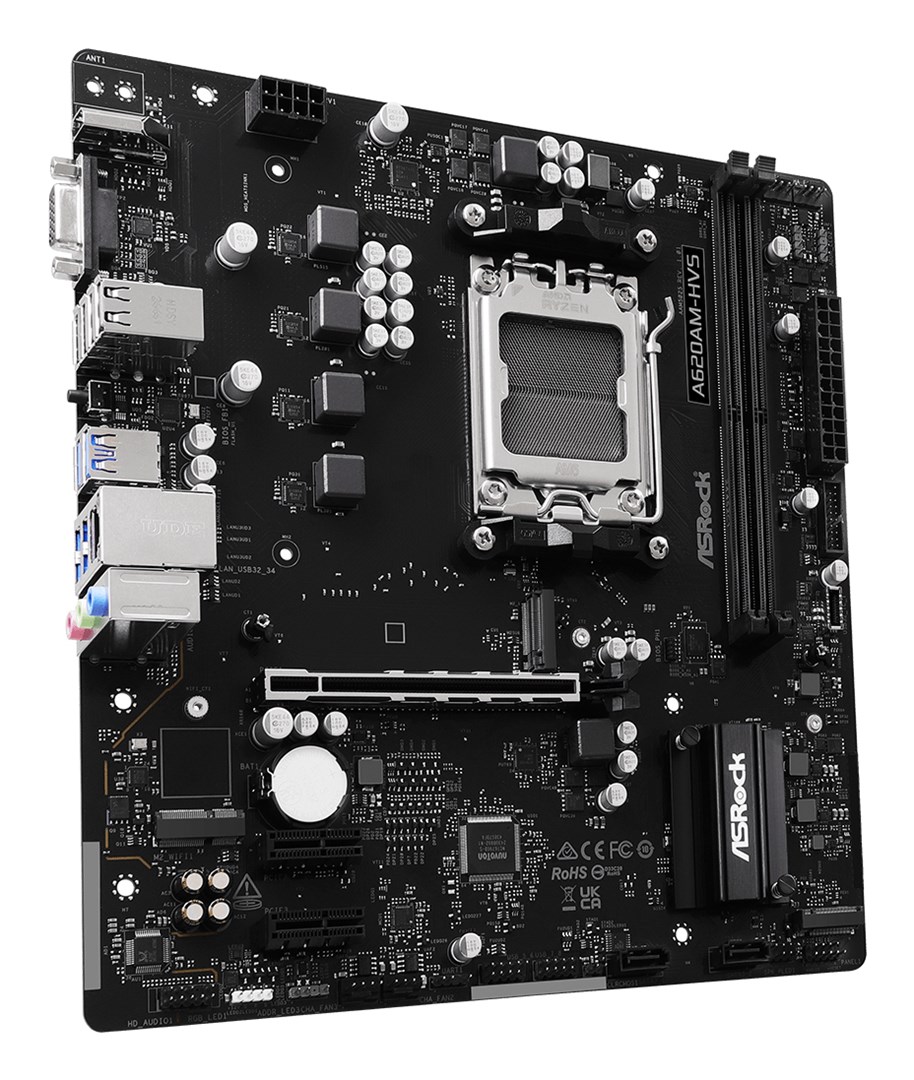

Płyta główna Asrock A620AM-HVS
560,34 lei
50 în stoc
Informații suplimentare
| Producator |
Asrock |
|---|---|
| Cod Produs |
A620AM-HVS |
| Line-in |
Yes |
| Ethernet LAN |
Yes |
| Windows operating systems supported |
Windows 11 x64, Windows 10 x64 |
| Depth |
229 mm |
| HDMI version |
2.1 |
| HDCP version |
2.3 |
| Microphone in |
Yes |
| Headphone outputs |
3 |
| Supported memory clock speed (max) |
6800 MHz |
| CPU fan connector |
Yes |
| BIOS type |
UEFI AMI |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Compatible processor series |
AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor manufacturer |
AMD |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Supported memory types |
DDR5-SDRAM |
| Memory slots type |
DIMM |
| Number of M.2 (M) slots |
1 |
| Cables included |
SATA |
| RGB LED pin header |
Yes |
| Width |
244 mm |
| Ethernet interface type |
Gigabit Ethernet, Fast Ethernet |
| Memory channels |
Dual-channel |
| Number of storage drives supported |
4 |
| Wi-Fi |
No |
| Processor socket |
Socket AM5 |
| Supported processor sockets |
Socket AM5 |
| 12V power connector |
Yes |
| Number of memory slots |
2 |
| Number of chassis fan connectors |
3 |
| VGA (D-Sub) ports quantity |
1 |
| Screws included |
Yes |
| High Dynamic Range (HDR) supported |
Yes |
| ECC сompatibility |
Non-ECC |
| Compliance certificates |
Federal Communications Commission (FCC), CE |
| Number of CPU fan connectors |
1 |
| 1st M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
4.0 |
| Number of RGB LED pin headers |
1 |
| Audio chip |
Realtek ALC897 |
| LAN controller |
Realtek RTL8111H |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Supported storage drive types |
HDD & SSD |
| PCI Express x1 (Gen 3.x) slots |
2 |
| RAID levels |
10, 1 |
| RAID support |
Yes |
| Maximum resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| Motherboard chipset |
AMD A620A |
| USB 2.0 ports quantity |
4 |
| HDCP |
Yes |
| Motherboard chipset family |
AMD |
| USB connector type |
USB Type-A |
| Maximum internal memory |
128 GB |
| Audio output channels |
7.1 channels |
| USB 2.0 connectors |
2 |
| Unbuffered memory |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Supported storage drive interfaces |
PCI Express 3.0, PCI Express 4.0, SATA III |
| Motherboard form factor |
micro ATX |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Parallel processing technology support |
Not supported |
