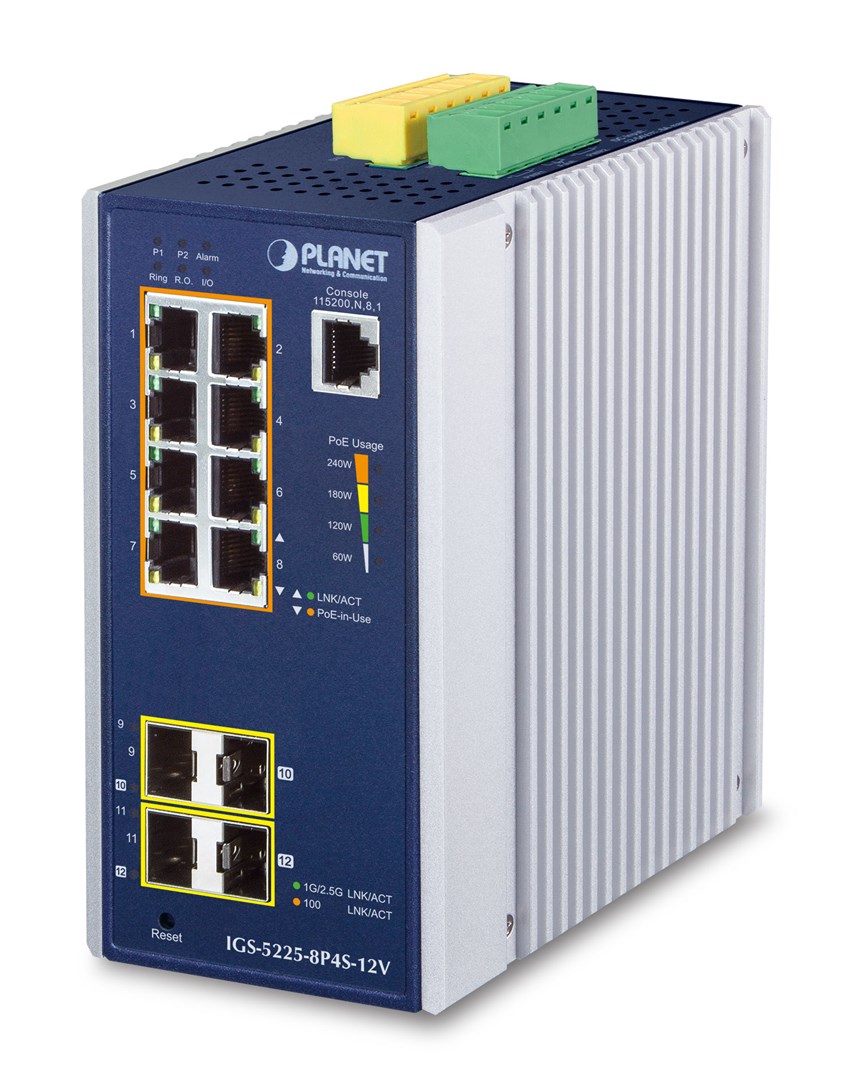

PLANET Industrial 8-Port GE PoE+ 2*1G SFP+ 2*2 5G SFP – 8-Port Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Aluminium Blue
4.759,72 lei
Stoc epuizat
Informații suplimentare
| Producator |
Planet |
|---|---|
| Cod Produs |
IGS-5225-8P4S-12V |
| Certification |
FCC Part 15 Class A, CE |
| Networking standards |
IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3z, IEEE 802.3at, IEEE 802.3ah, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1ab, IEEE 802.1x, IEEE 802.3af, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1ad, IEEE 1588v2, IEEE 802.3u, IEEE 802.1w |
| LED indicators |
Yes |
| Half duplex |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Web-based management |
Yes |
| Switch layer |
L2+ |
| Weight |
1.13 kg |
| Operating relative humidity (H-H) |
5 – 95% |
| Height |
152 mm |
| Storage temperature (T-T) |
-40 – 85 °C |
| 10G support |
No |
| Product colour |
Aluminium, Blue |
| MAC address table |
8000 entries |
| Quality of Service (QoS) support |
Yes |
| Redundant power supply (RPS) support |
Yes |
| Power over Ethernet (PoE) power per port |
36 W |
| Housing material |
Aluminium |
| Operating temperature (T-T) |
-40 – 75 °C |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| International Protection (IP) code |
IP30 |
| Auto MDI/MDI-X |
Yes |
| Packet buffer memory |
4 MB |
| Power source |
DC |
| Wall mountable |
Yes |
| Switching capacity |
30 Gbit/s |
| Full duplex |
Yes |
| Power over Ethernet (PoE) ports quantity |
8 |
| Switch type |
Managed |
| VLAN support |
Yes |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| MAC address auto-learning supported |
Yes |
| Traffic classification |
Yes |
| Installed SFP modules quantity |
4 |
| Depth |
107 mm |
| Auto-negotiation |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| Jumbo frames |
9000 |
| DIN rail mounting |
Yes |
| MAC address auto-aging supported |
Yes |
| Jumbo frames support |
Yes |
| Broadcast storm control |
Yes |
| Width |
76 mm |
| System event log |
Yes |
| ARP inspection |
Yes |
| DC input voltage |
12 – 56 V |
| Store-and-forward |
Yes |
| Throughput |
22.32 Mpps |
