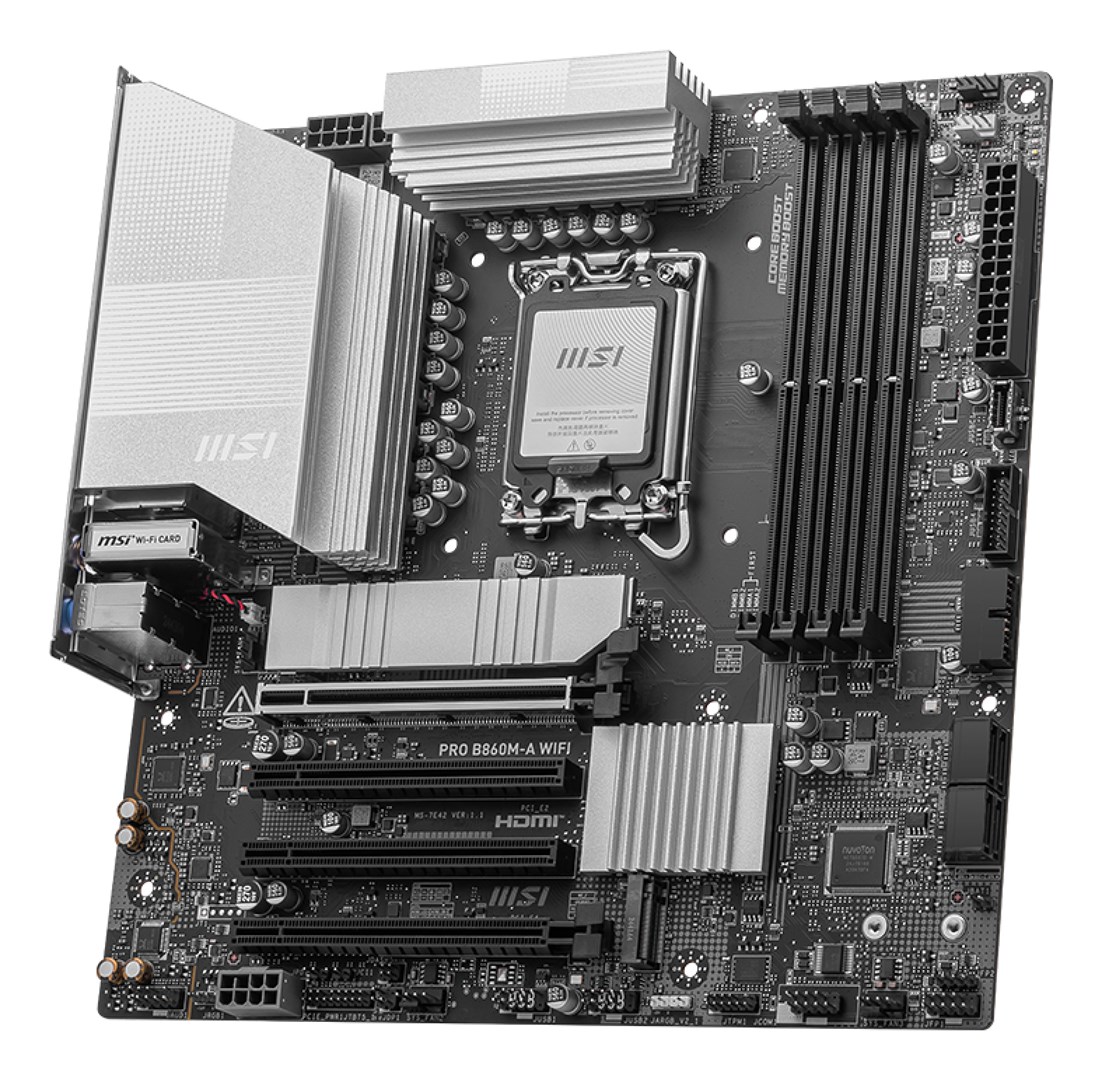

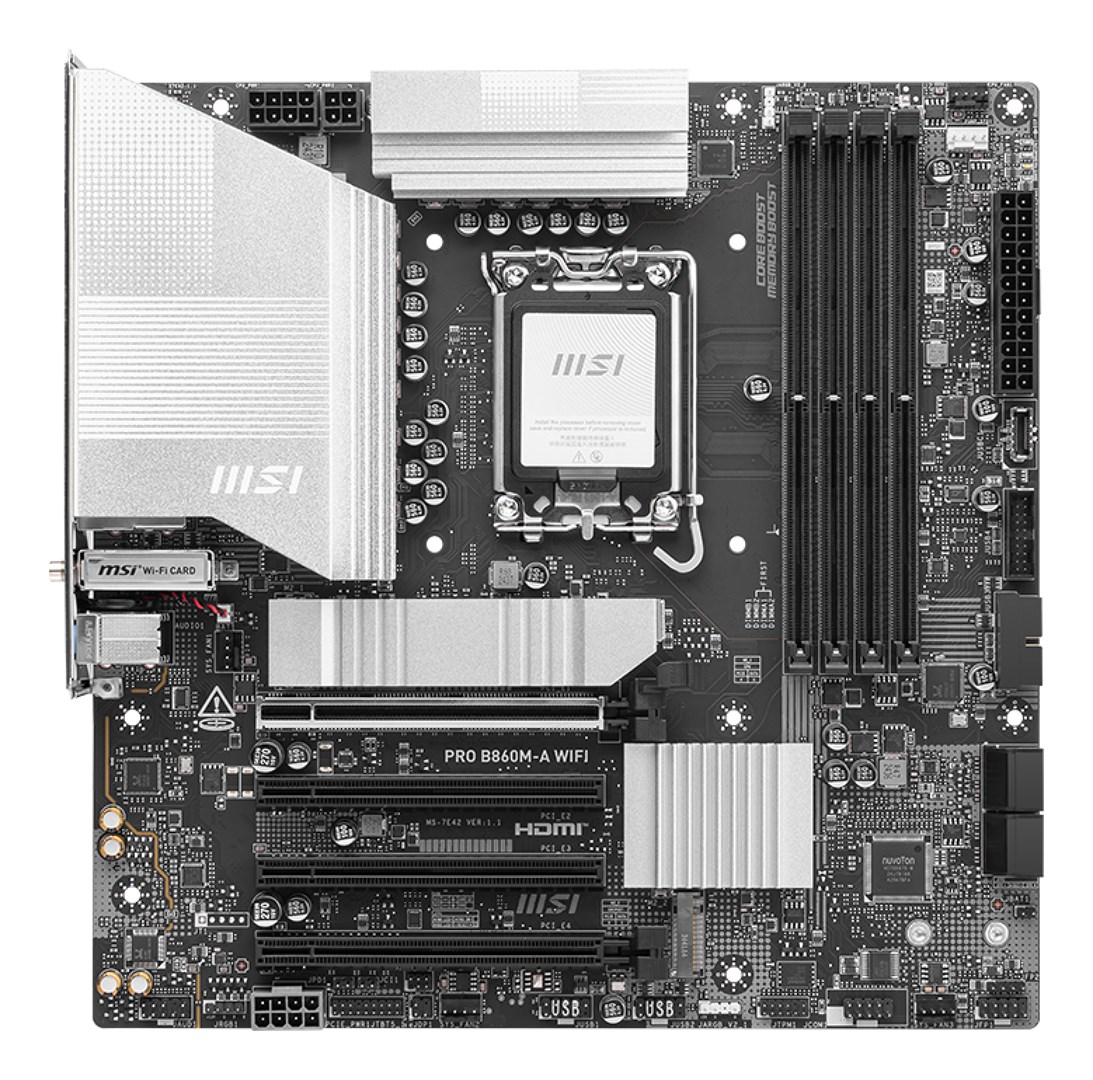

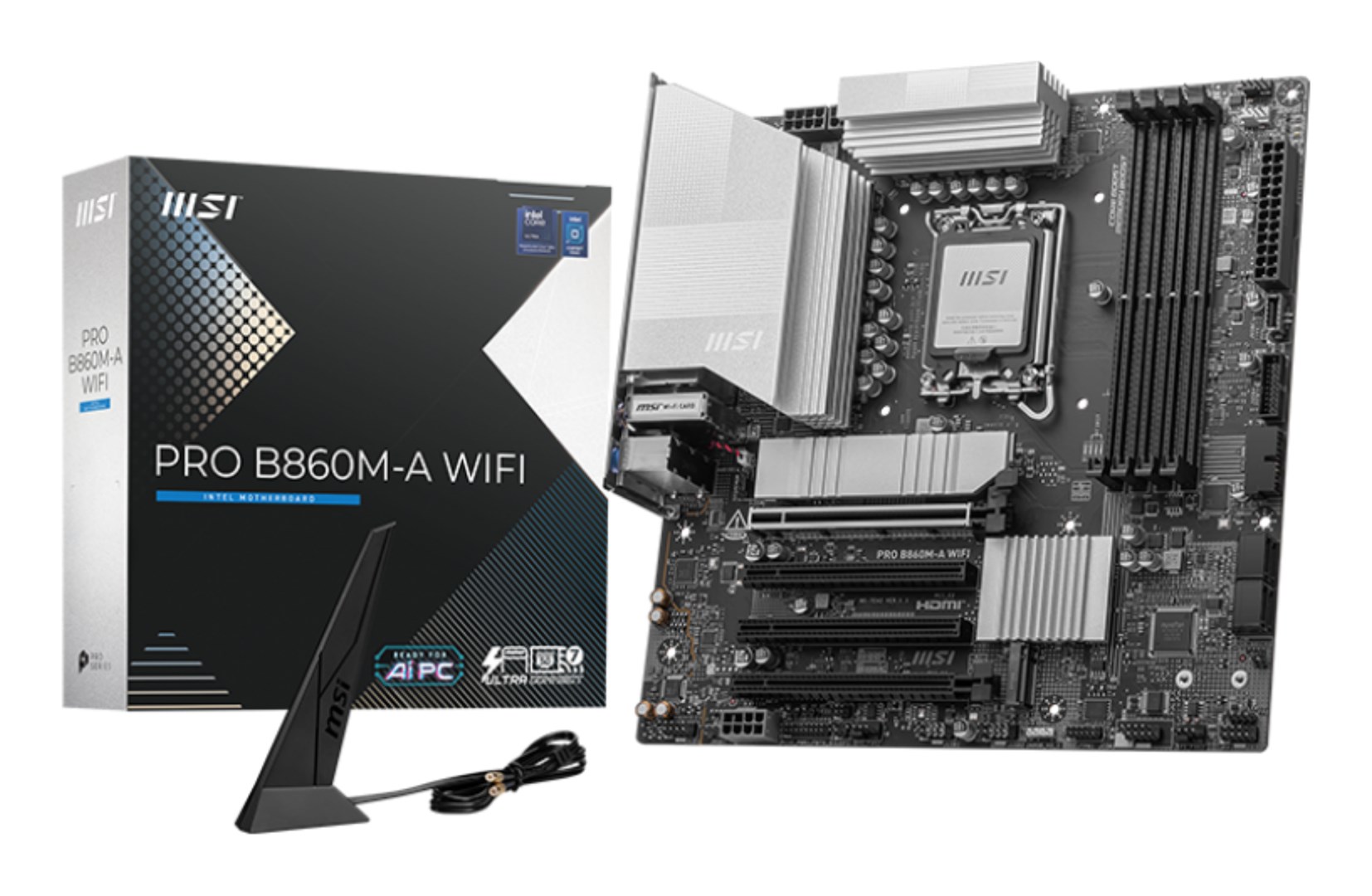

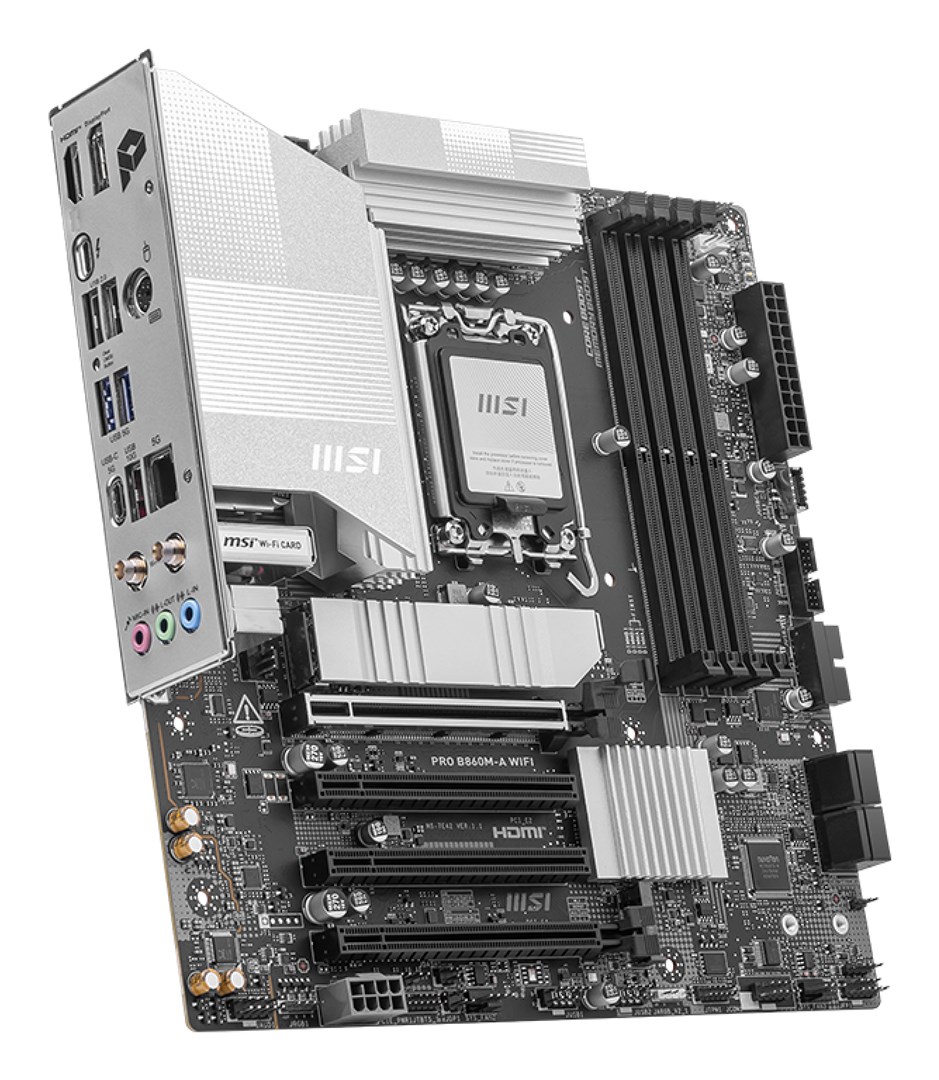

MSI PRO B860M-A WIFI motherboard Intel B860 LGA 1851 (Socket V1) micro ATX
1.443,59 lei
23 în stoc
Informații suplimentare
| Producator |
MSI |
|---|---|
| Cod Produs |
PRO B860M-A WIFI |
| Supported memory clock speed (max) |
8800 MHz |
| PCI Express x16 (Gen 5.x) slots |
1 |
| 1st M.2 largest key size |
2280 |
| ECC сompatibility |
Non-ECC |
| Number of RGB LED pin headers |
3 |
| Number of CPU fan connectors |
1 |
| Number of water pump connectors |
1 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 2nd M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 1st M.2 highest PCI Express generation |
5.0 |
| Audio chip |
Realtek ALC897 |
| Product colour |
Black |
| Wi-Fi standards |
Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, Wi-Fi 6E (802.11ax) |
| USB 2.0 ports quantity |
2 |
| Number of M.2 (M) slots |
3 |
| Motherboard form factor |
micro ATX |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Processor manufacturer |
Intel |
| BIOS type |
UEFI AMI |
| RAID support |
Yes |
| Audio output channels |
7.1 channels |
| On-board graphics card |
No |
| Windows operating systems supported |
Windows 11 x64 |
| Memory channels |
Dual-channel |
| Motherboard chipset family |
AMD |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 connectors |
4 |
| HDMI version |
2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Supported storage drive types |
HDD & SSD |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Supported memory clock speeds |
6400, 4800, 8800 MHz |
| CPU fan connector |
Yes |
| Supported storage drive interfaces |
M.2, Micro SATA III |
| Maximum internal memory |
256 GB |
| Bluetooth |
Yes |
| Number of SATA III connectors |
4 |
| RAID levels |
1, 5, 10 |
| Motherboard chipset |
Intel B860 |
| Supported processor sockets |
LGA 1851 |
| Total number of SATA connectors |
4 |
| Number of storage drives supported |
7 |
| PCI Express x16 (Gen 4.x) slots |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Number of HDDs supported |
4 |
| Width |
243.8 mm |
| Wi-Fi |
Yes |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Processor socket |
LGA 1851 (Socket V1) |
| Depth |
243.8 mm |
| RGB LED pin header |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Ethernet LAN |
Yes |
| Ethernet interface type |
5 Gigabit Ethernet |
| Maximum internal memory supported by processor |
256 GB |
| Bluetooth version |
5.4 |
