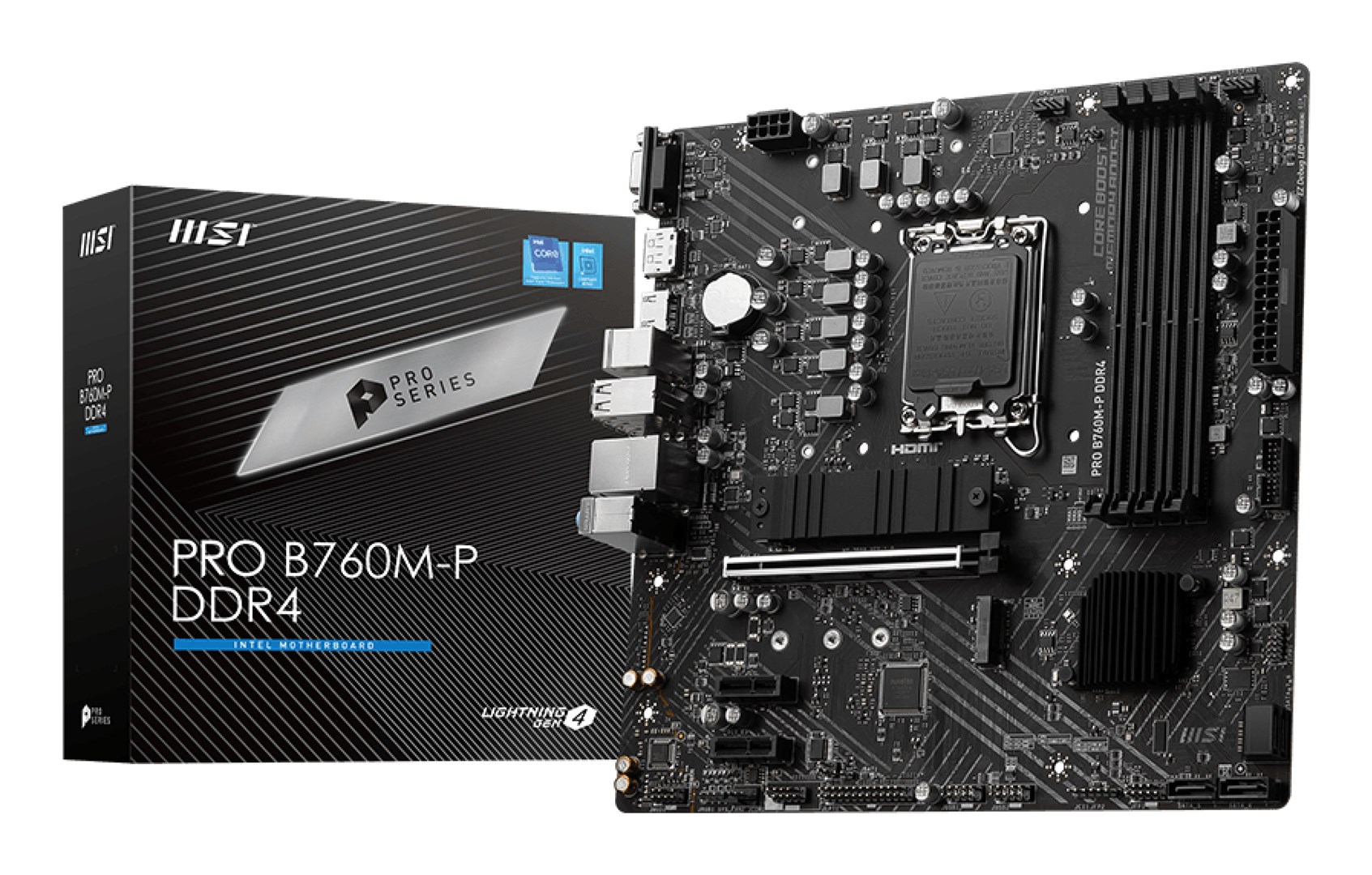

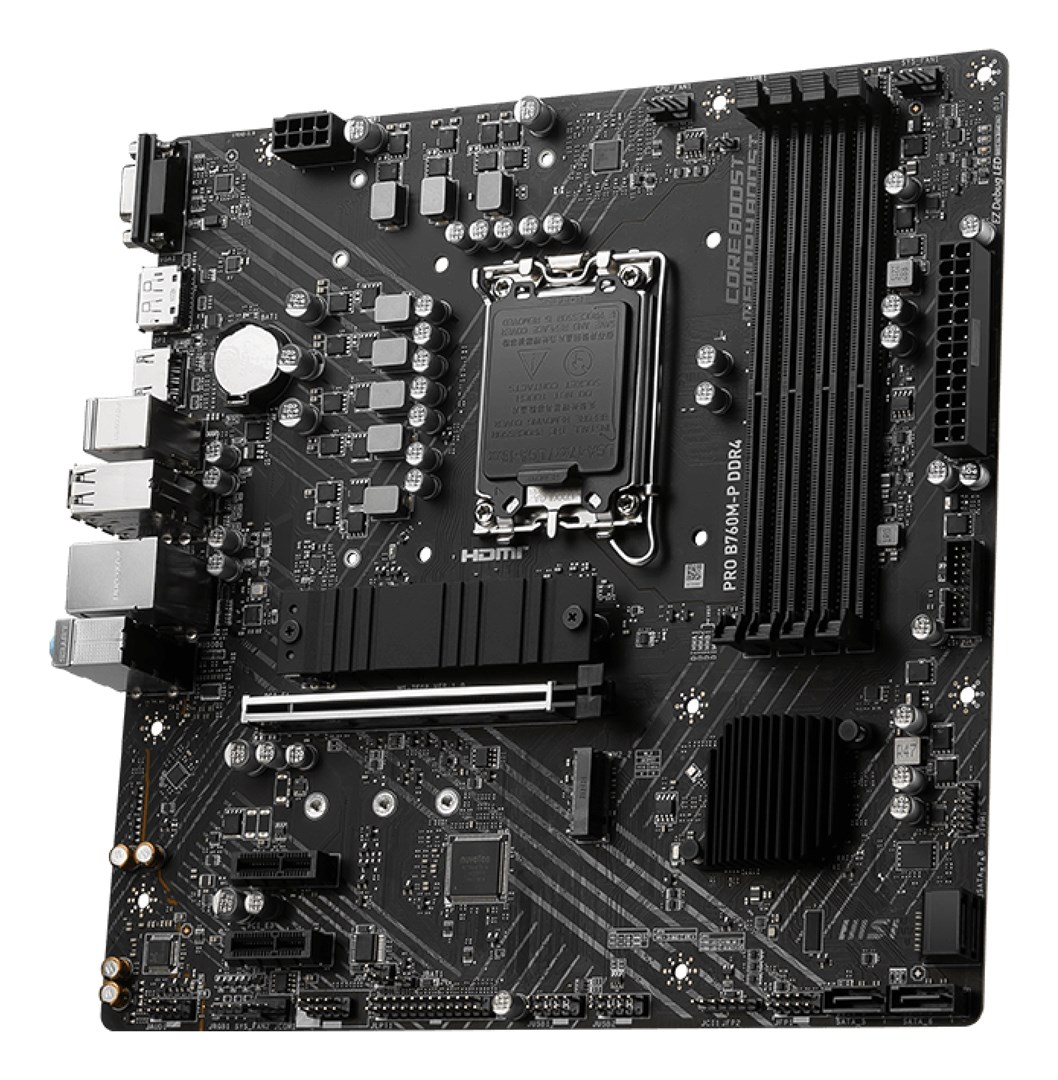

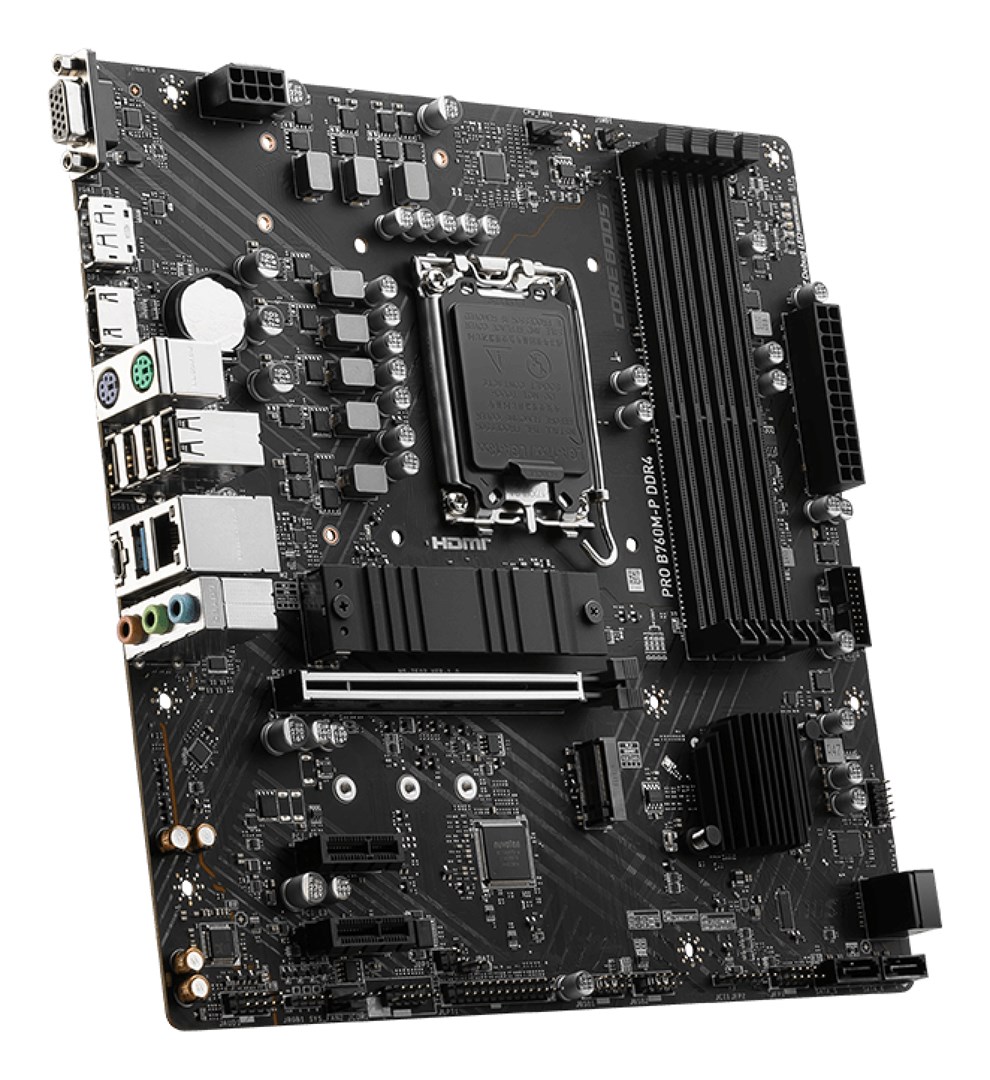

MSI PRO B760M-P DDR4 motherboard Intel B760 LGA 1700 micro ATX
717,14 lei
81 în stoc
Informații suplimentare
| Producator |
MSI |
|---|---|
| Cod Produs |
PRO B760M-P DDR4 |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
DIMM |
| Processor socket |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Depth |
243.8 mm |
| Supported memory clock speed (max) |
4800 MHz |
| Ethernet LAN |
Yes |
| RGB LED pin header |
Yes |
| Number of memory slots |
4 |
| ECC сompatibility |
Non-ECC |
| Supported memory clock speeds |
4000, 2133, 4200, 3800, 3333, 3400, 3200, 2666, 2400, 3466, 4800, 2933, 3600 MHz, 4266, 4600, 3733, 4400 |
| USB 2.0 ports quantity |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of SATA III connectors |
4 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| RAID levels |
10, 1, 5 |
| Maximum internal memory |
128 GB |
| Audio chip |
Realtek ALC897 |
| HDMI ports quantity |
1 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| CPU fan connector |
Yes |
| Memory channels |
Dual-channel |
| BIOS type |
UEFI AMI |
| Supported processor sockets |
LGA 1700 |
| PCI Express x16 slots |
2 |
| RAID support |
Yes |
| TPM connector |
Yes |
| HDMI version |
1.4 |
| Power source type |
ATX |
| ATX Power connector (24-pin) |
Yes |
| DisplayPorts quantity |
1 |
| USB 2.0 connectors |
4 |
| Audio output channels |
7.1 channels |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Product colour |
Black |
| Motherboard chipset |
Intel B760 |
| Number of M.2 (M) slots |
2 |
| DisplayPort version |
1.4 |
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel® Pentium® Gold, Intel® Celeron® |
| On-board graphics card |
No |
| Width |
243.8 mm |
| Wi-Fi |
No |
