Sold out

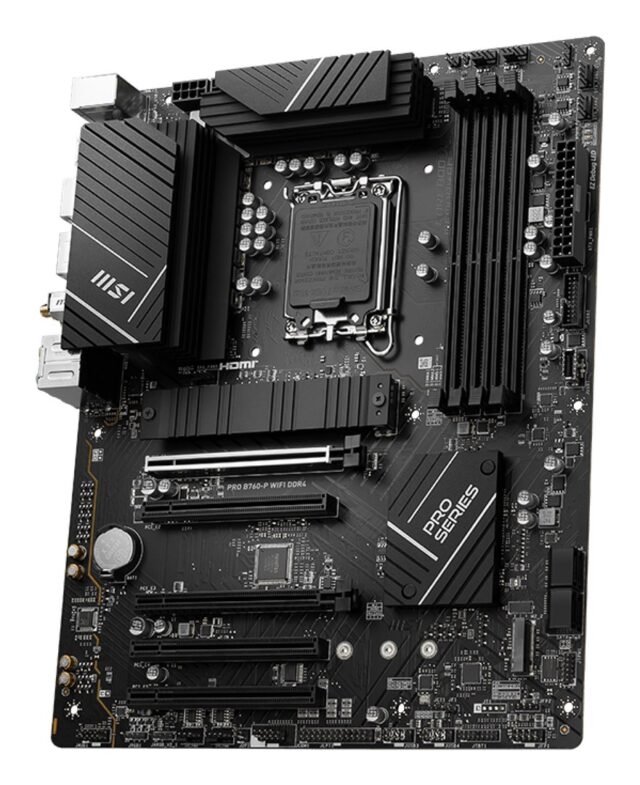

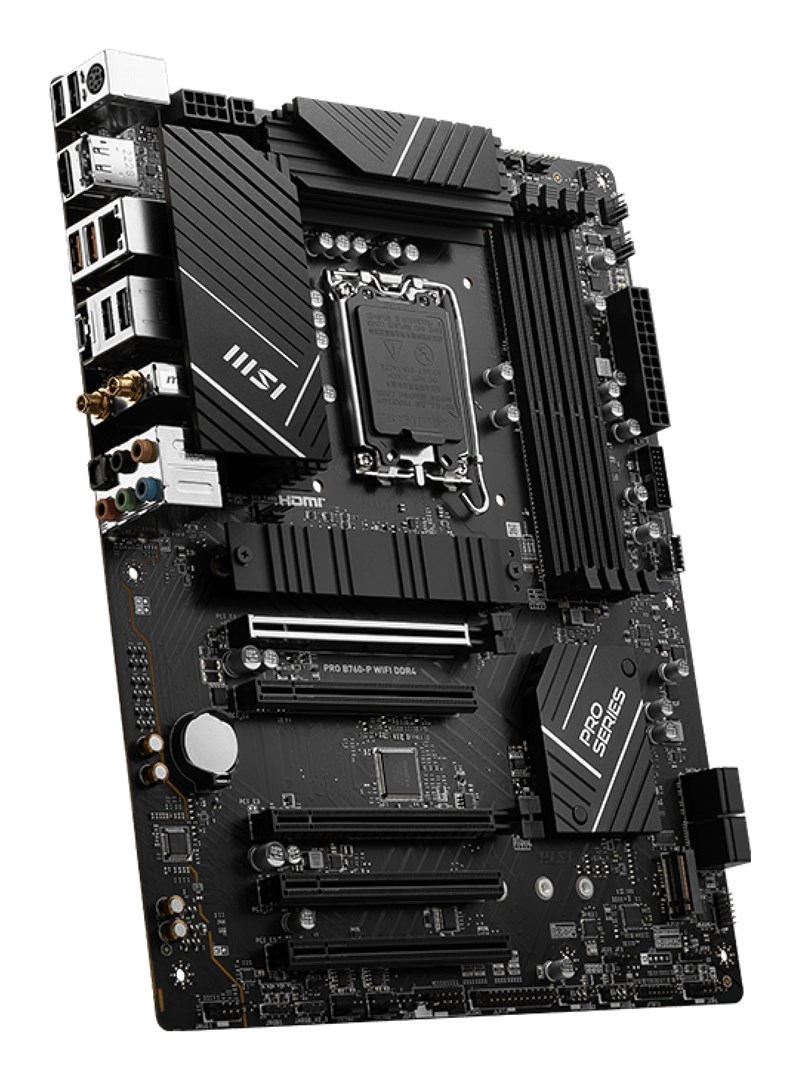

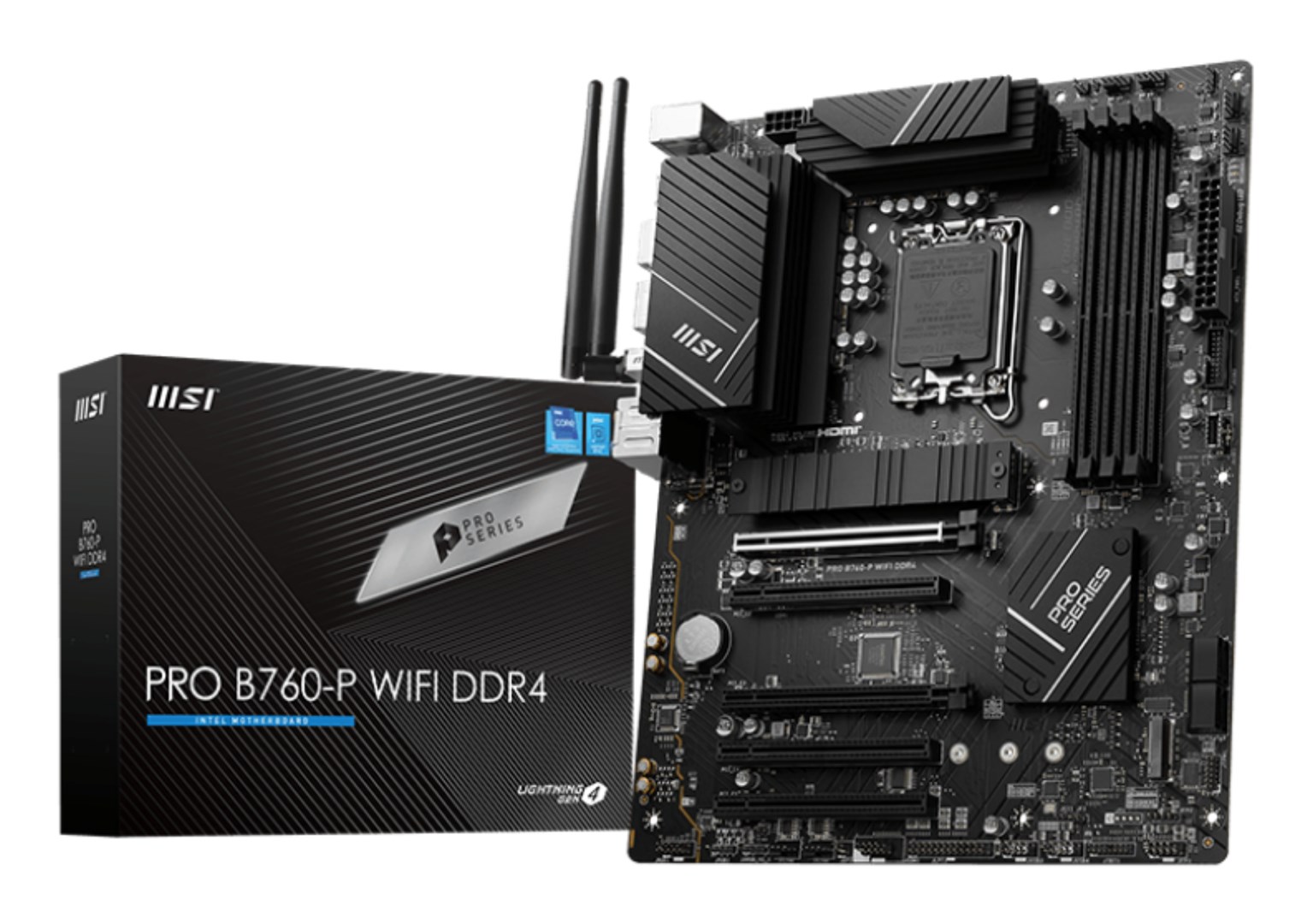

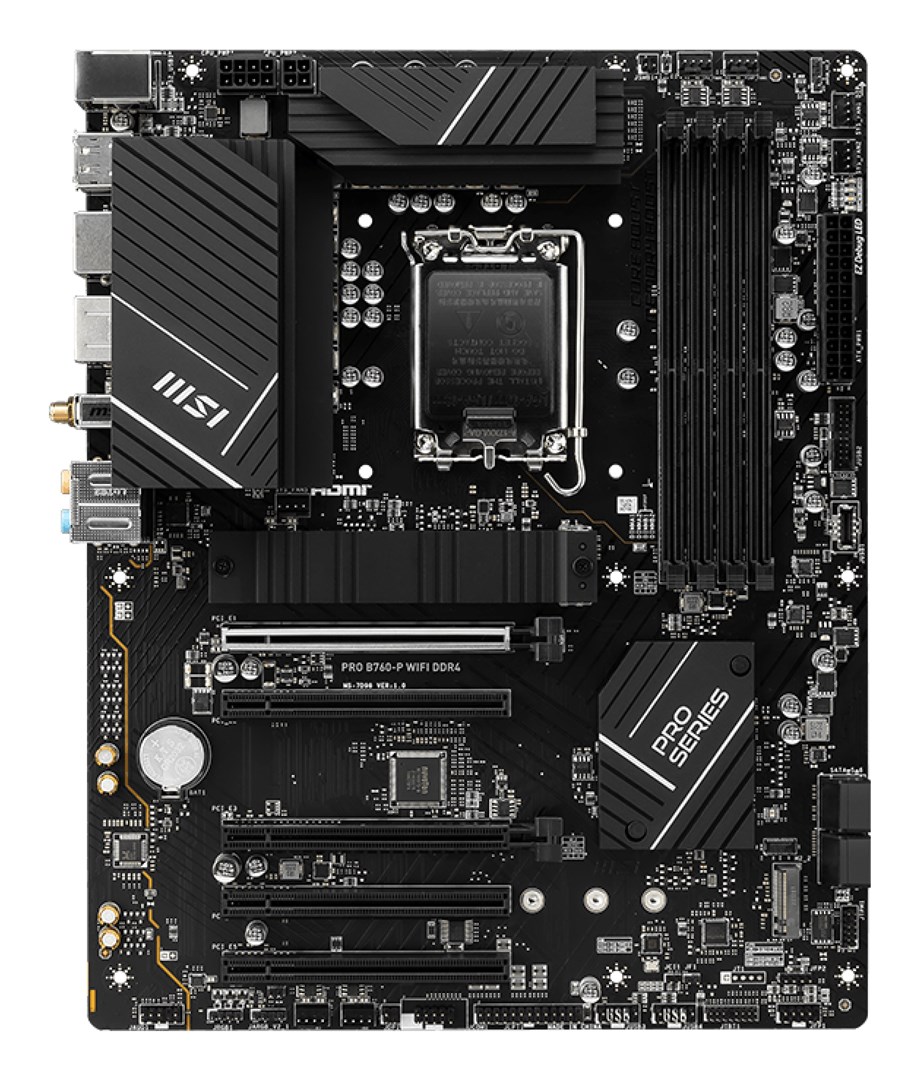

MSI PRO B760-P WIFI DDR4 motherboard LGA 1700 ATX
1.053,05 lei
Stoc epuizat
Informații suplimentare
| Producator |
MSI |
|---|---|
| Cod Produs |
PRO B760-P WIFI DDR4 |
| Supported memory clock speeds |
5333 MHz, 4600, 2933, 3600 MHz, 3200, 2666, 4266, 2133, 4200, 3466, 2400, 5066, 4000, 4800, 3400, 5200, 3733, 4400, 5000, 3800, 3333 |
| Depth |
304.8 mm |
| RAID levels |
10, 5, 1 |
| Number of SATA III connectors |
4 |
| RAID support |
Yes |
| Processor manufacturer |
Intel |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| Bluetooth |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Audio chip |
Realtek ALC897 |
| TPM connector |
Yes |
| Motherboard chipset family |
Intel |
| Front panel connector |
Yes |
| Wi-Fi |
Yes |
| Product colour |
Black |
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® Gold |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| USB 2.0 ports quantity |
2 |
| Number of M.2 (M) slots |
2 |
| On-board graphics card |
No |
| USB 2.0 connectors |
4 |
| Power source type |
ATX |
| Processor socket |
LGA 1700 |
| DisplayPorts quantity |
1 |
| PCI Express x16 slots |
5 |
| Memory channels |
Dual-channel |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Windows operating systems supported |
Windows 10, Windows 11 |
| Maximum internal memory |
128 GB |
| CPU fan connector |
Yes |
| Ethernet LAN |
Yes |
| Front panel audio connector |
Yes |
| Maximum number of SMP processors |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Audio output channels |
7.1 channels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| BIOS type |
UEFI AMI |
| Supported storage drive interfaces |
M.2, SATA III |
| Motherboard form factor |
ATX |
| HDMI ports quantity |
1 |
| Width |
243.8 mm |
| ATX Power connector (24-pin) |
Yes |
| Memory slots type |
DIMM |
| Supported memory types |
DDR4-SDRAM |
| ECC сompatibility |
Non-ECC |
| Number of memory slots |
4 |
| RGB LED pin header |
Yes |
| Supported memory clock speed (max) |
5333 MHz |
