Mantar SZK-24U 19” 148/61/61 | Cabinet | for mounting on the drain SK-1

Mantar cabinet SZK-24U 19″ 148/61/61

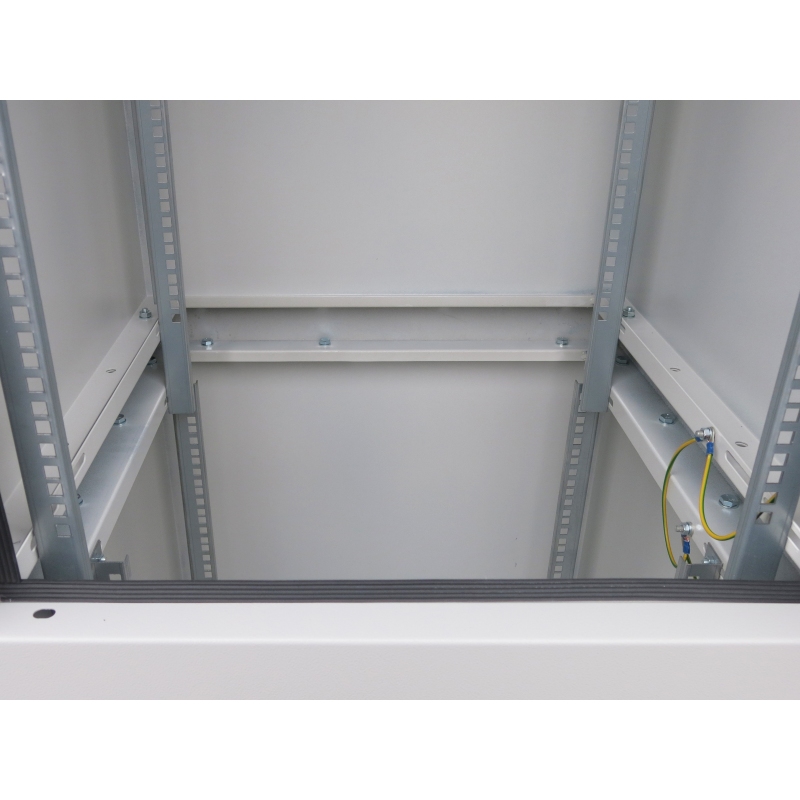

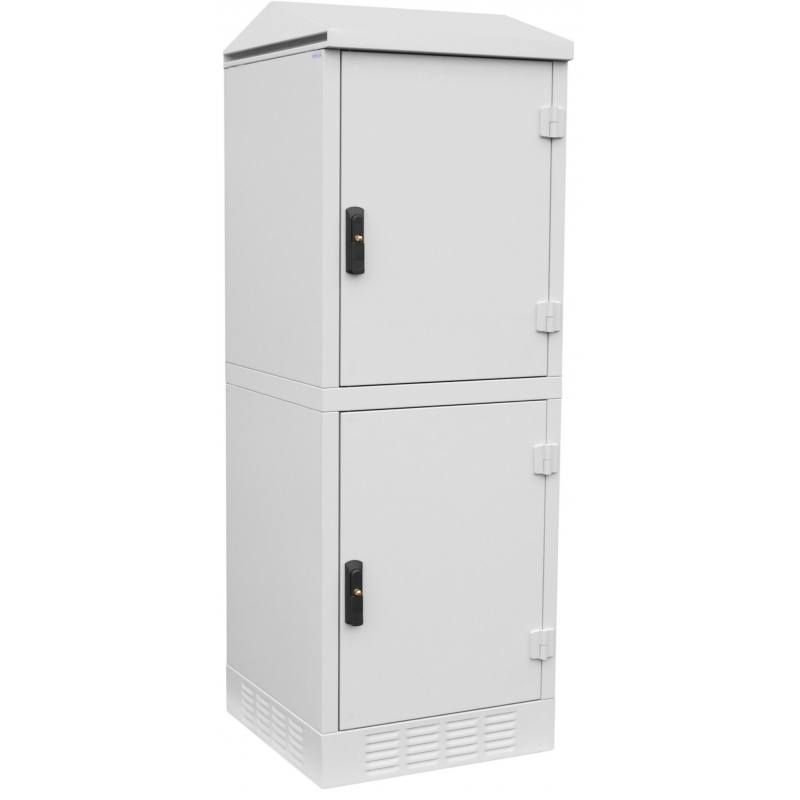

Mantar, cabinet SZK-24U 19″ 148/61/61 to be mounted on the SK-1 channel sump. It is a mechanical shield for telecommunication equipment. It has 2 pairs of 19″ racks. – Adjustable distance between the front and rear pair – from 260 mm to 430 mm. Made of sheet metal with Magnelis® coating 1,5 mm thick. The cabinet can be additionally equipped with a 3U voltage distribution panel, heating set with a thermostat, cabinet ventilation set with a thermostat, floor panel with cable openings, and PS 19″ 1U SC Simplex / Duplex and PS 19″ 2U SC Duplex pull-out shelves.

Features:

Features:

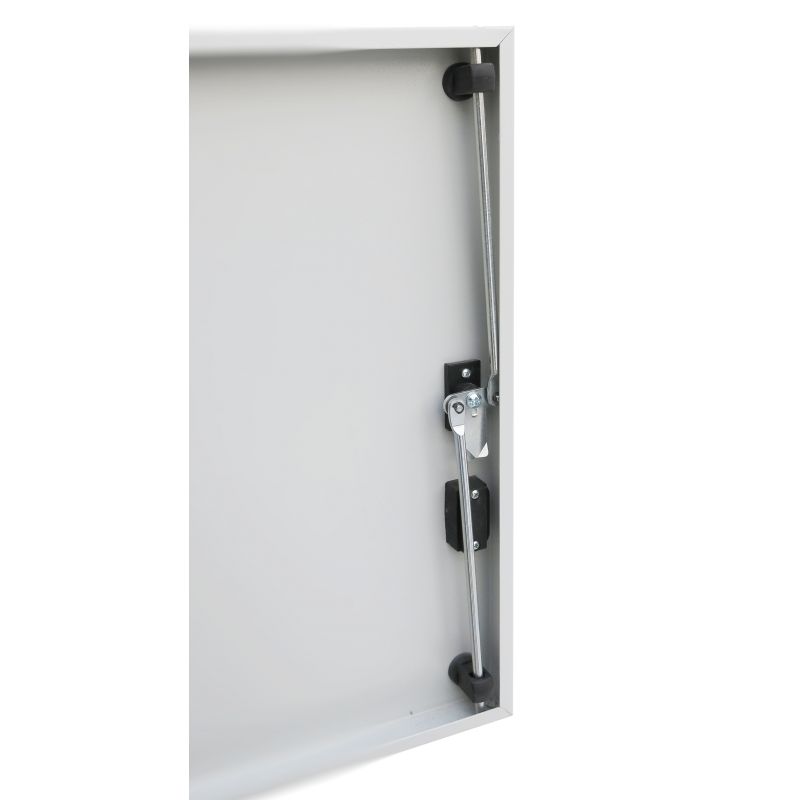

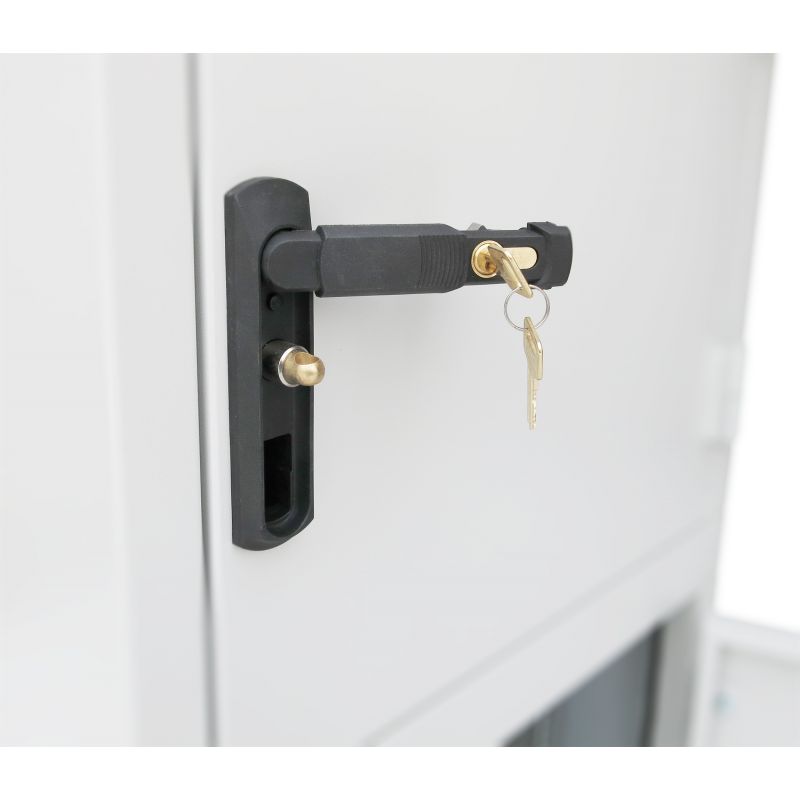

• 3-point locking with padlock bolt, swivel handle, lock cylinder insert
• Made of 1.5 mm thick Magnelis®-coated sheet metal
• Degree of protection IP53, mechanical resistance IK10
• Powder coated in colour: RAL7035- light grey, thick structure
• Plinth made of 2 mm thick sheet metal with Magnelis coating, height 150 mm, ventilation holes made
