Mantar SZK-12U 19” 86/61/61 | Cabinet | for mounting on the drain SK-1

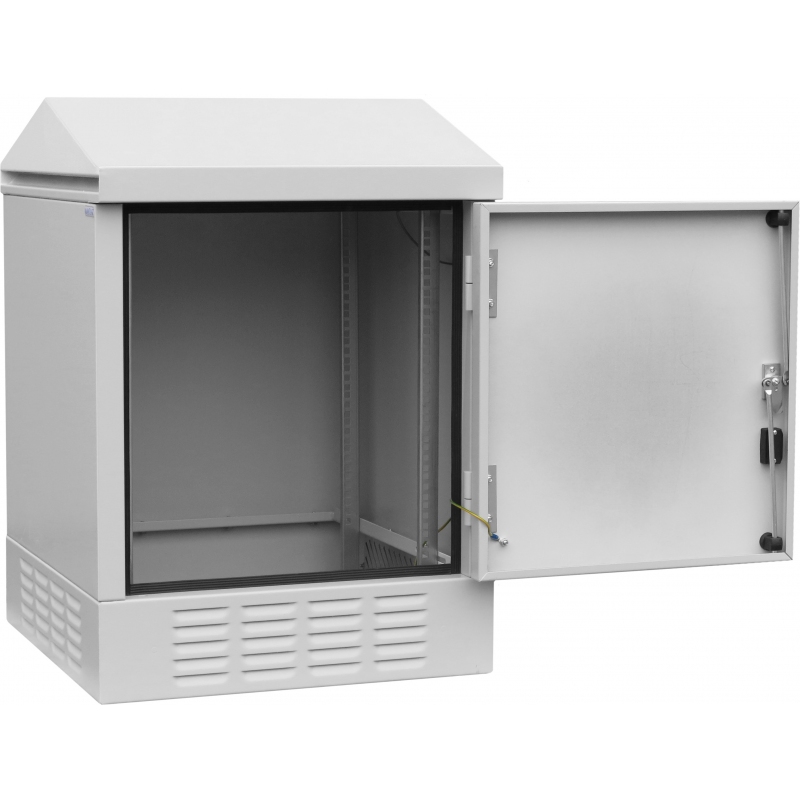

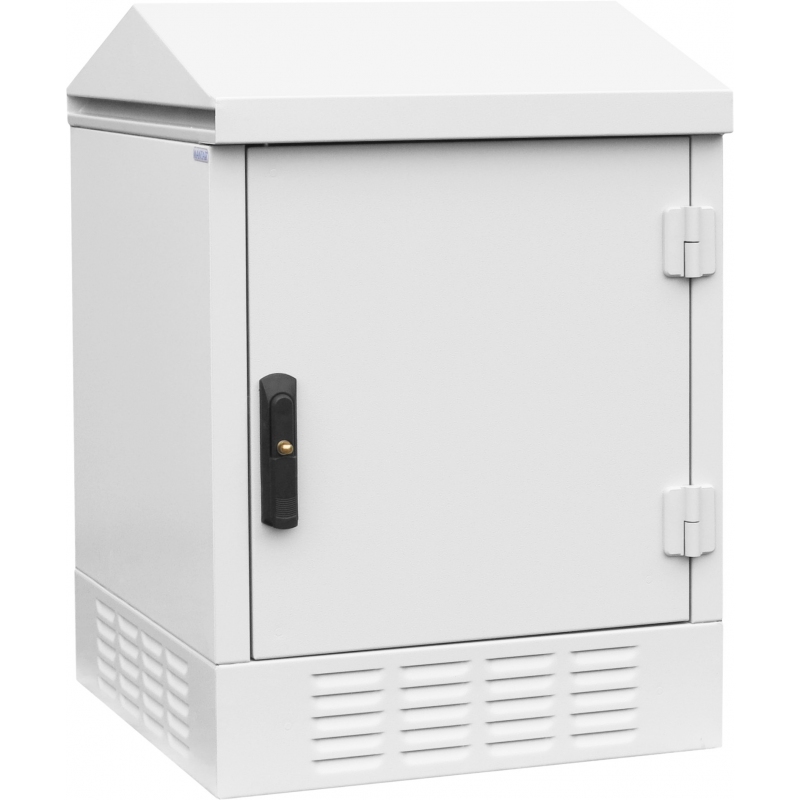

Mantar cabinet SZK-12U 19” 86/61/61

Mantar SZK-12U 19” 86/61/61 is adapted for installation on the SK-1 channel sump. It is a mechanical shield for telecommunication equipment. Made of metal sheet with Magnelis® coating 1.5 mm thick, light grey colour.

Features:

Features:

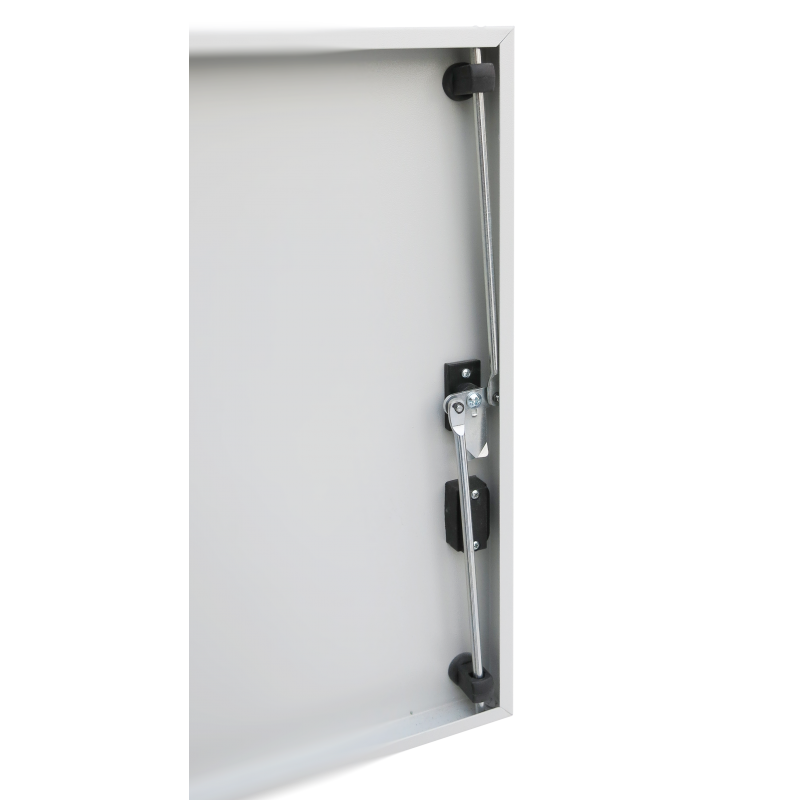

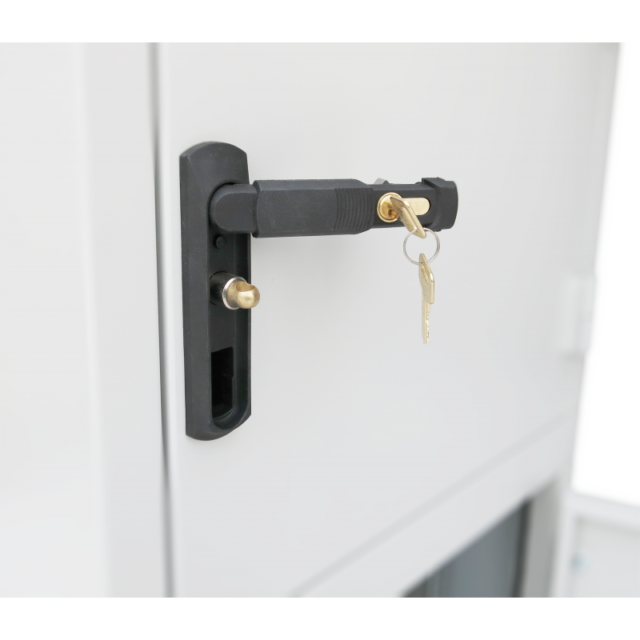

• 3-point locking with padlock bolt, swivel handle, lock cylinder insert

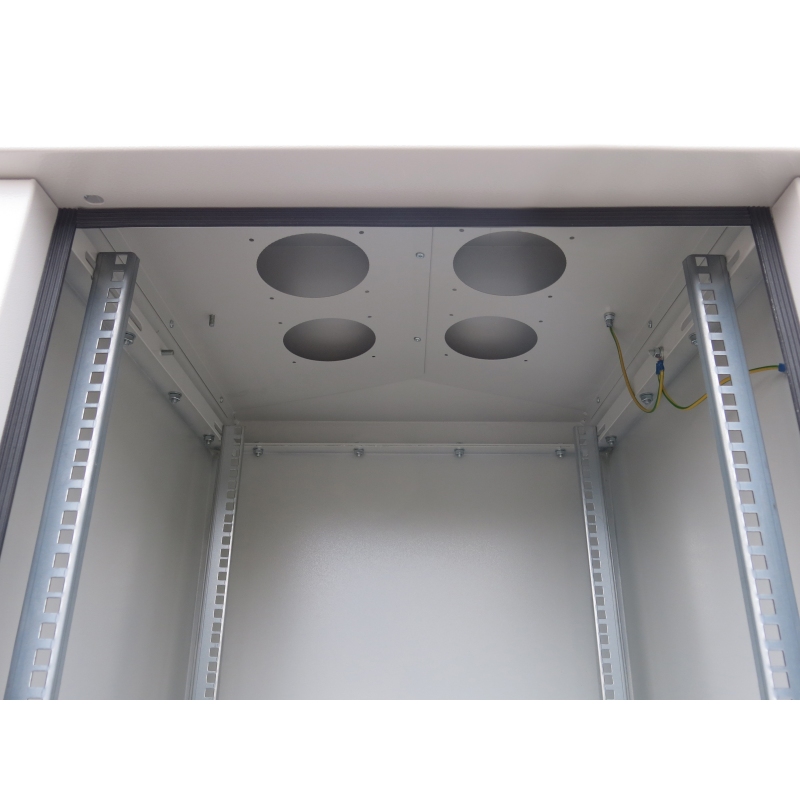

• 2 pairs of 19″ racks – adjustable distance between the front and rear pairs from 260 mm to 430 mm
• Made of 1.5 mm thick Magnelis®-coated sheet metal
• Degree of protection IP53, mechanical resistance IK10
• Colour: RAL7035 – light grey, powder-coated, thick structure

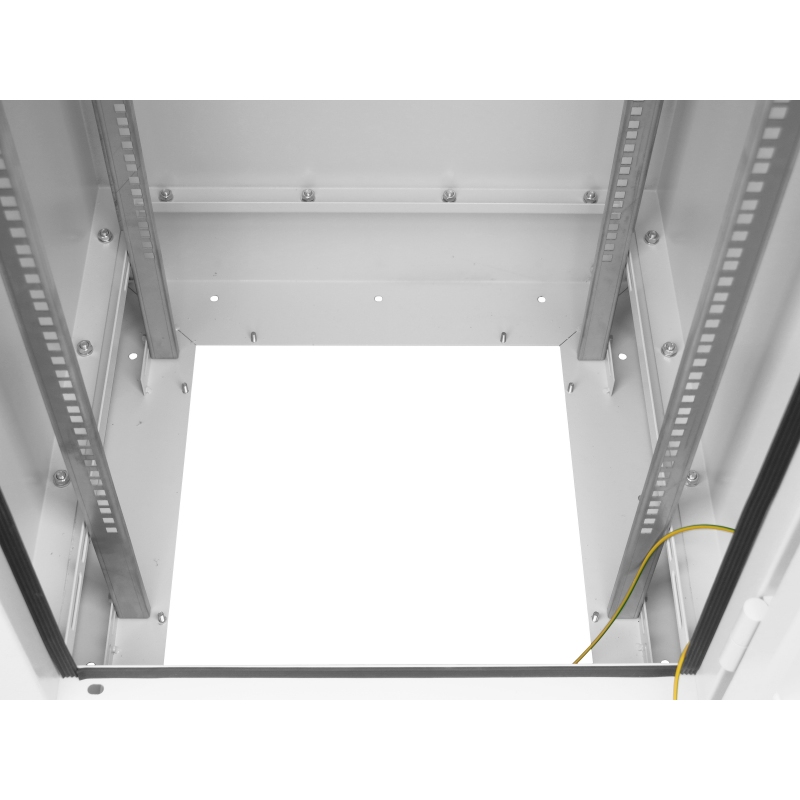

• Plinth made of 2 mm thick sheet metal with Magnelis coating, height 150 mm, ventilation holes made

Additional equipment:

Additional equipment:

• PS 19″ 1U SC Simplex / Duplex extension
• PS 19″ 2U SC Duplex extension
• Shelf 19″ 2U
• 3U voltage distribution panel
• Floor plate with cable holes
• Heating kit with thermostat
• Cabinet ventilation kit with thermostat
