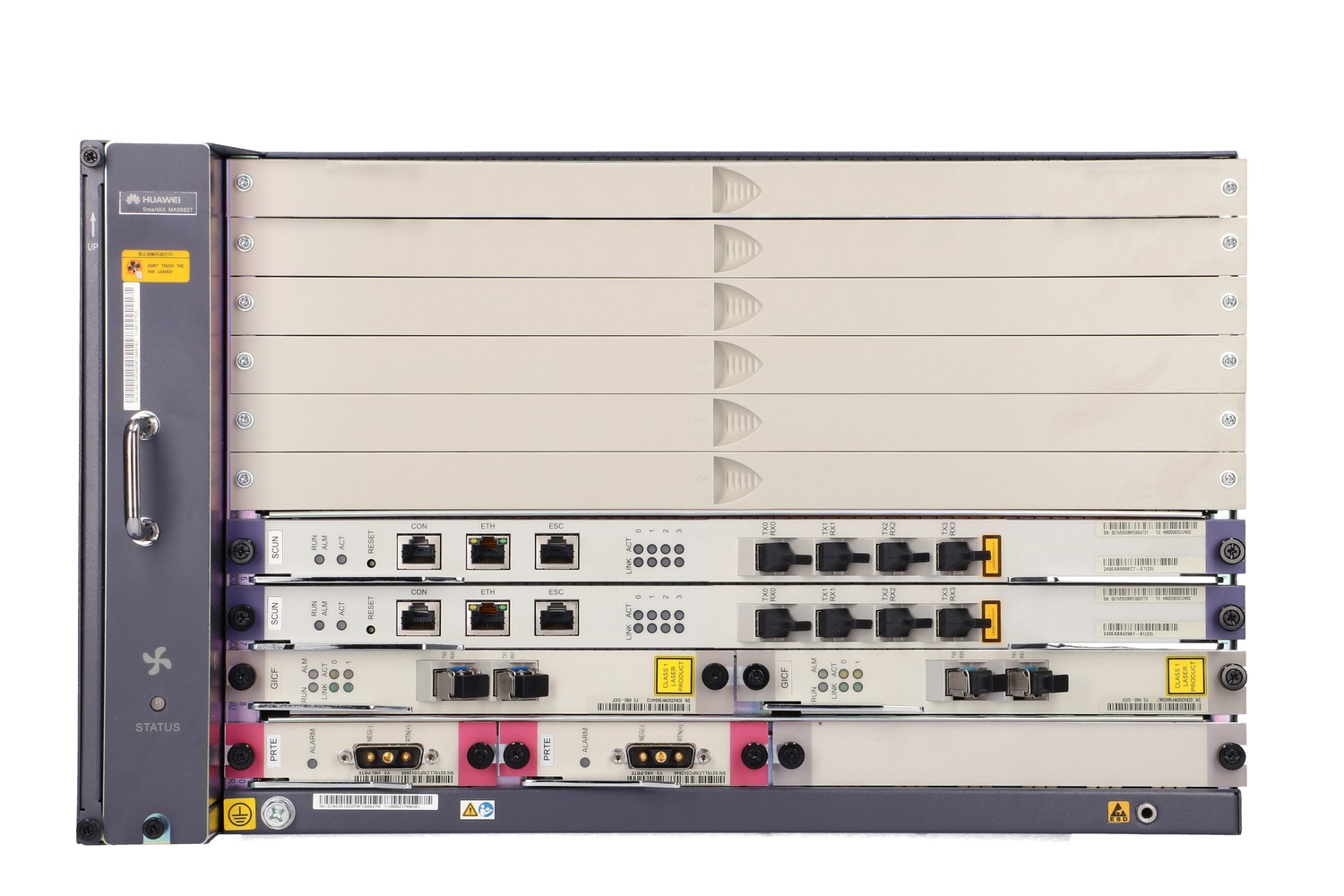

Huawei MA5683T | OLT | 2x GICF, 2x SCUN, 2x PRTE, no PON board

Huawei MA5683T

The first global all-in-one access platform is an integrated fiber and copper access device. With this GPON-enabled device, users will be able to access high-speed Internet, voice and video services such as IPTV and VoD. The MA5683T OLT will simplify network architecture, improve network reliability and significantly reduce total cost of ownership.

Modular design

Huawei MA5683T is a modular optical line aggregation terminal that combines compactness and functionality in connecting up to 12,000 subscribers through GPON technology. High density is achieved with the ability to install 6 service boards of 8 to 16 ports each. The modular design allows seamless expansion of chassis capacity by installing new boards or replacing 8-port boards with 16-port boards.

Features of the Huawei MA5683T model

The Huawei MA5683T is a modular optical line terminal (OLT) that can support up to 12,000 subscribers (GPON). The device has a GICF uplink card. The modular optical line terminal (OLT) has 13 slots:

• 6 service board slots;
• 2 slots for main control boards;
• 2 slots for GIU upstream boards;
• 2 power board slots;
• 1 slot for a common interface board.
