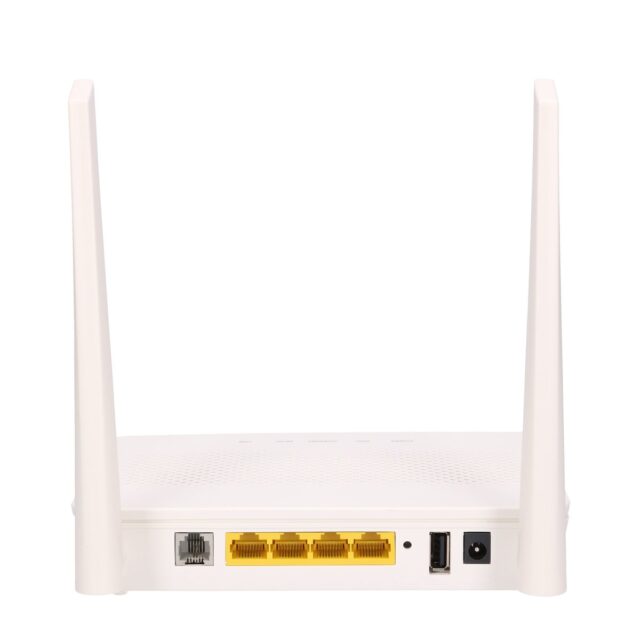

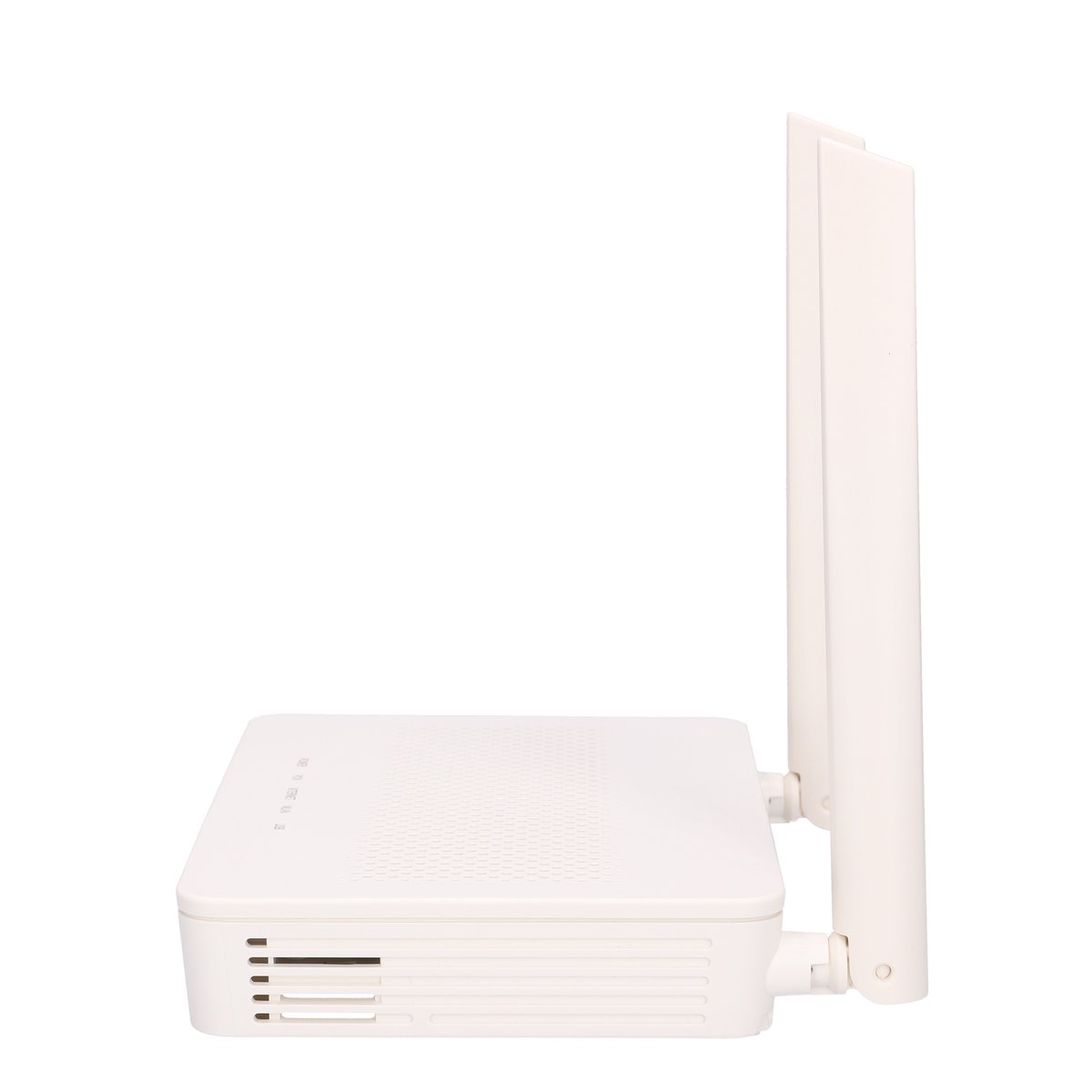

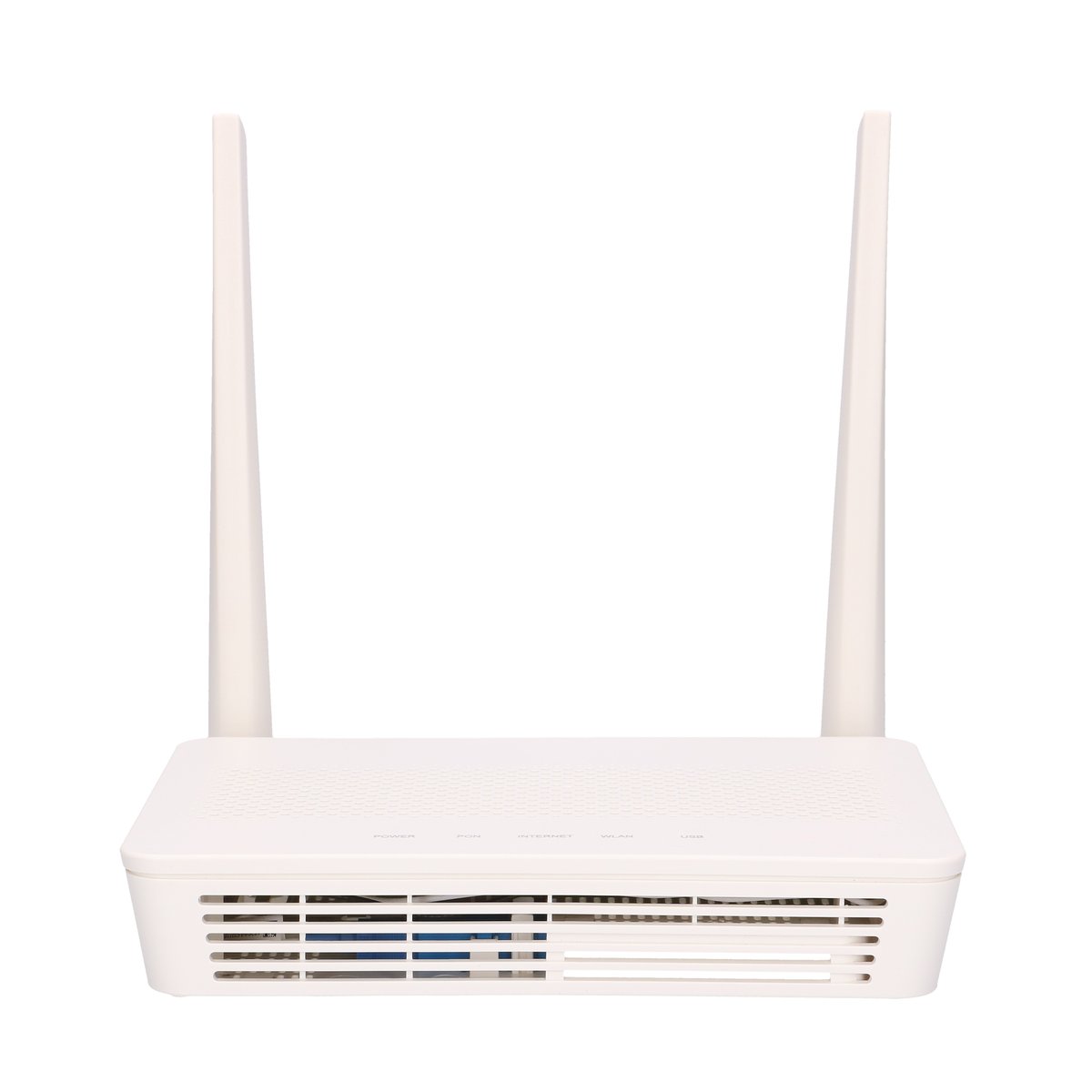

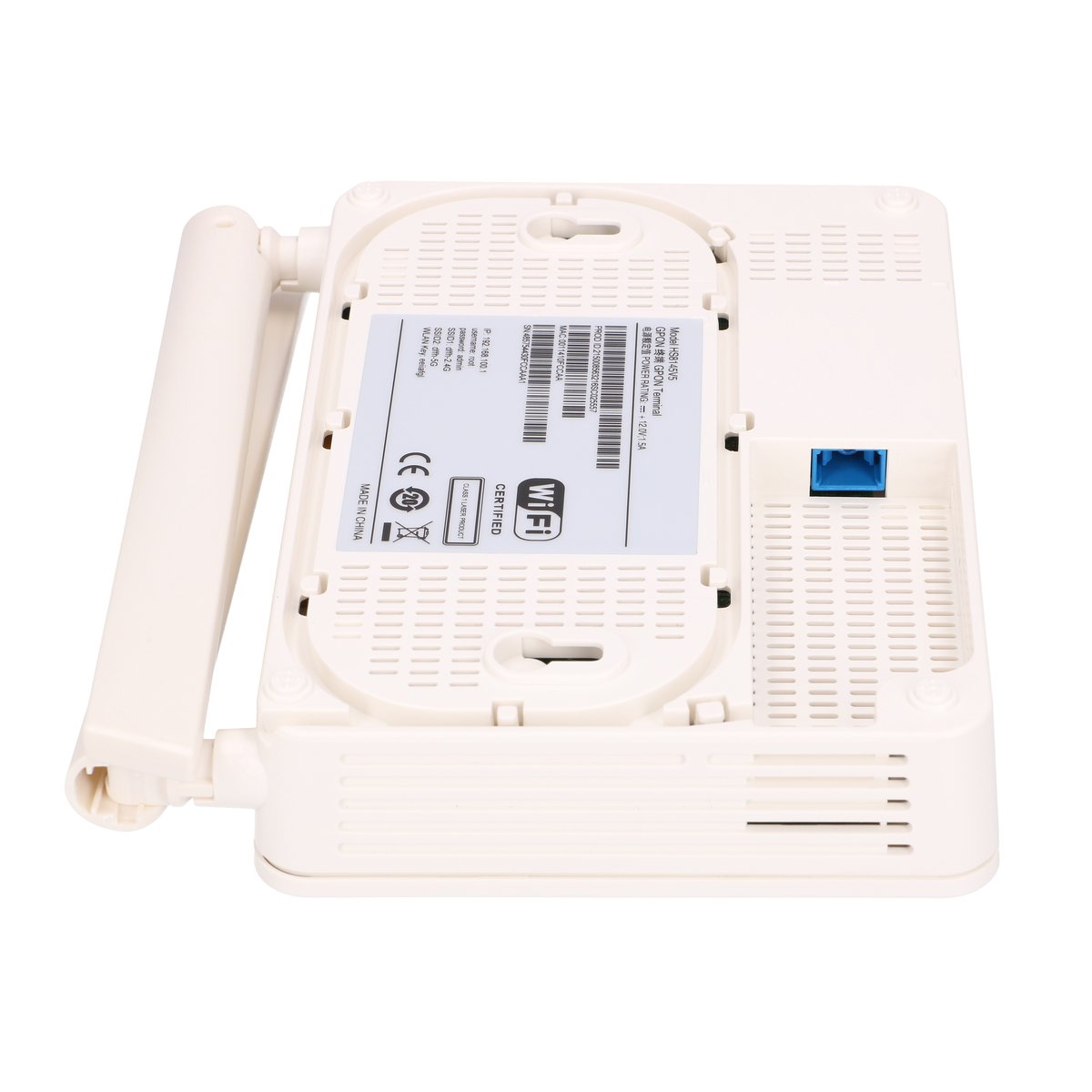

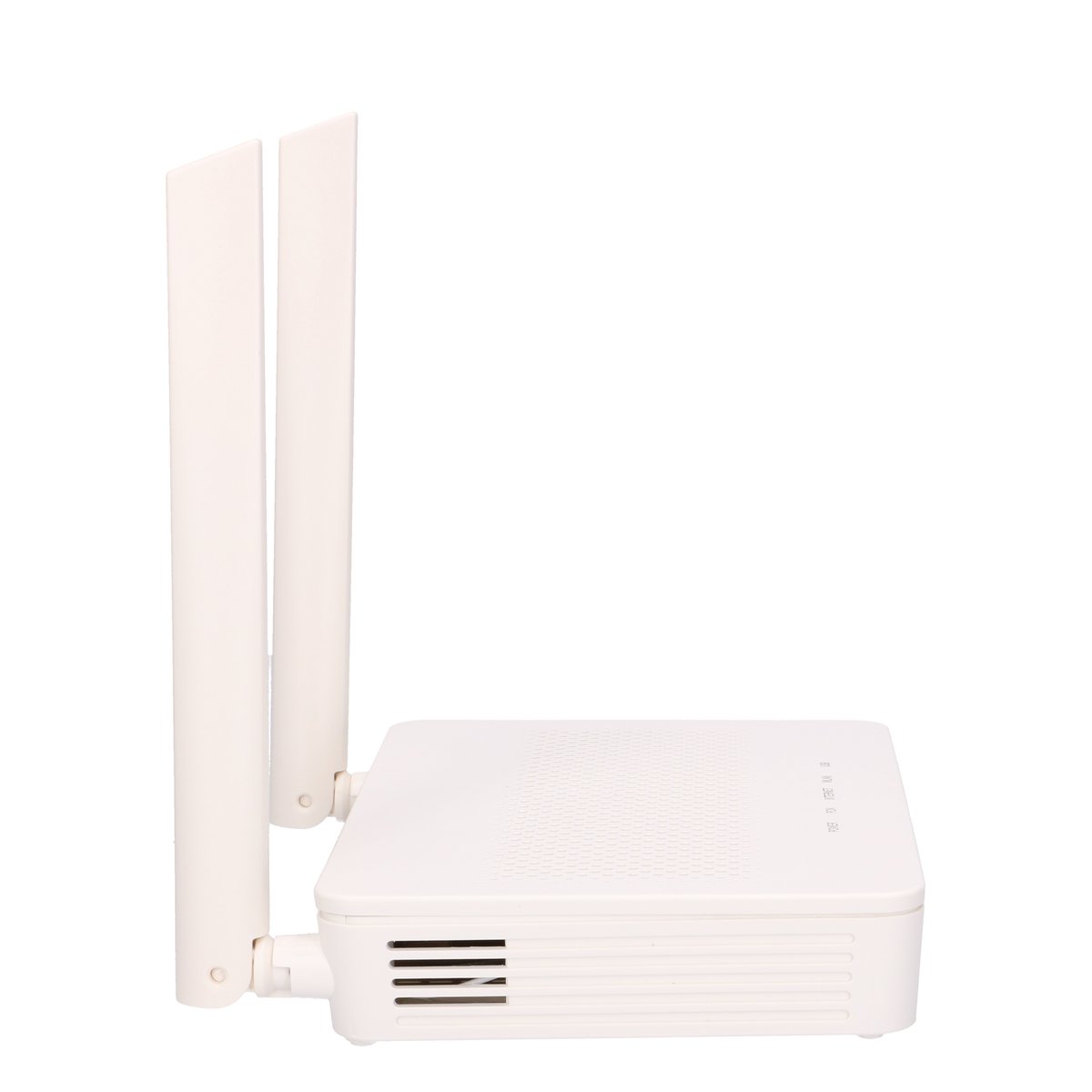

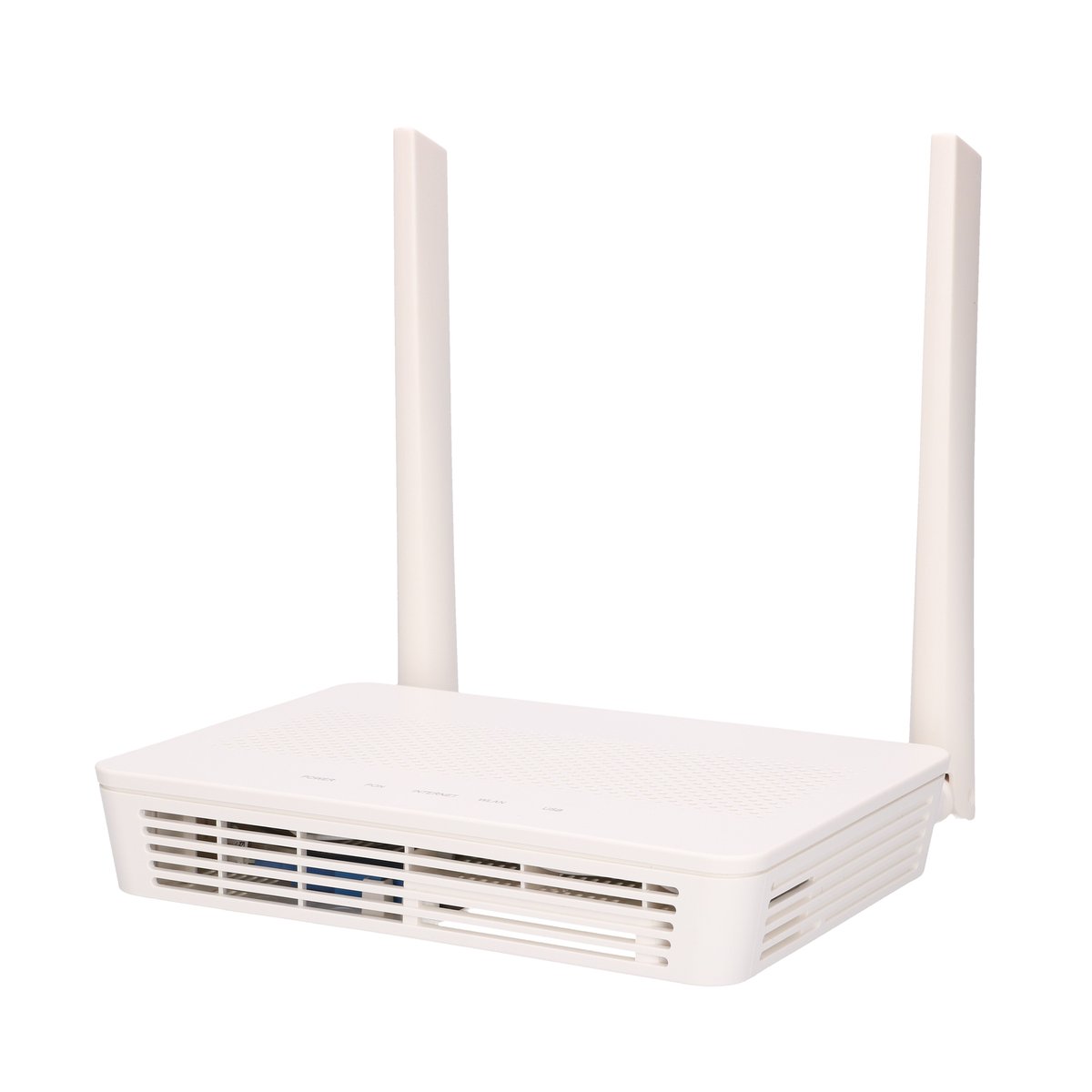

Huawei HS8145V5 | ONT | AC1200, Dual Band, 1x GPON, 4x RJ45 1000Mb/s, 1x RJ11, 1x USB

Huawei HS8145V5 – GPON ONU client terminal for home network

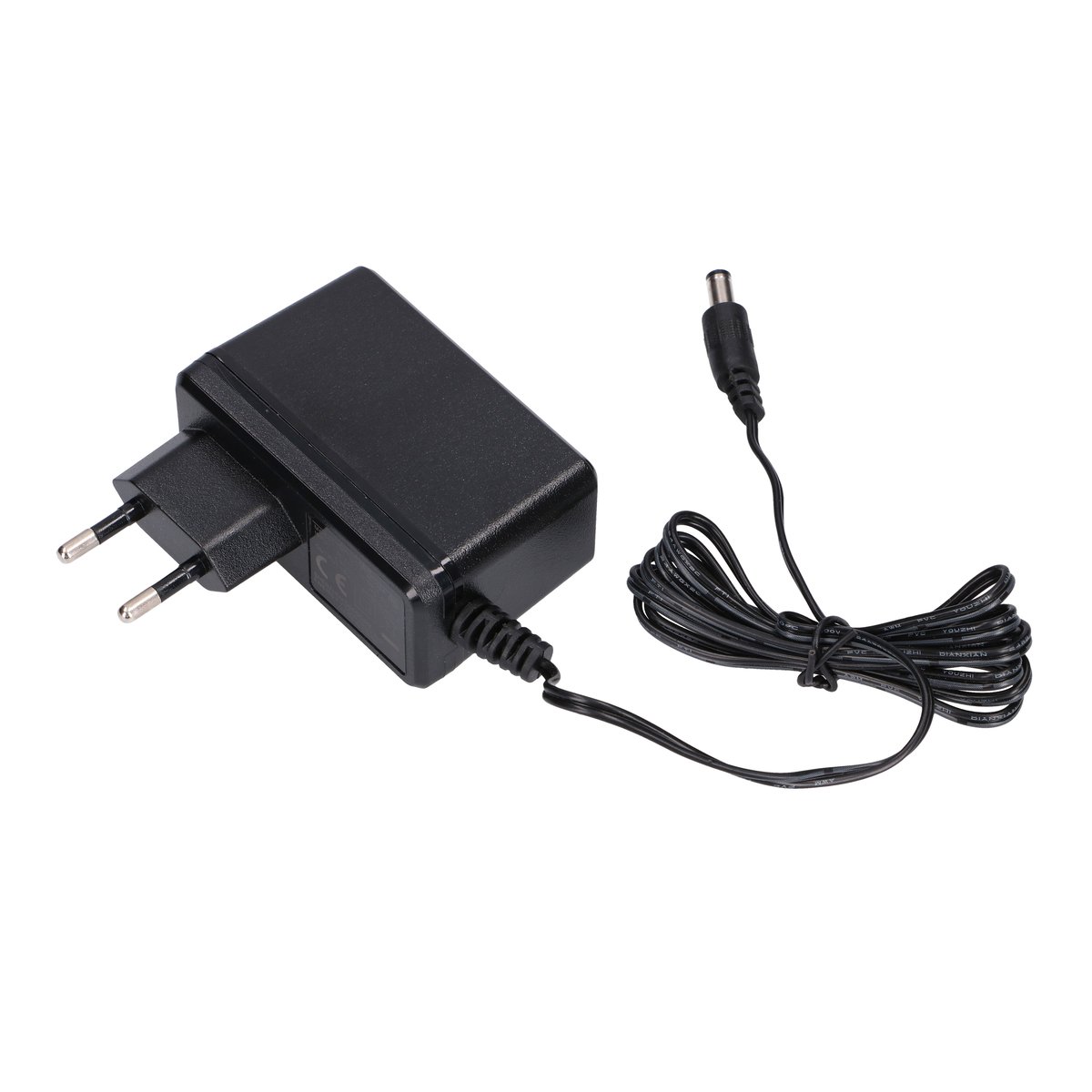

Huawei HS8145V5 is a GPON (ONT – Optical Network Terminal) designed as an ideal device for home gateway units (HGU – Home Gateway Unit) to be used in FTTH networks. This gateway supports Layer 3 functionality to facilitate the creation of a smart home network. It provides the user with access to all Triple-play services (Internet, VoIP telephony, IPTV). Huawei HS8145V5 has been equipped with 4 Gigabit Ethernet ports, 1 telephone port (1x POTS) and 1x USB. HS 8145V5 has been equipped with built-in wireless Wi-Fi radio operating in 2.4 and 5 GHz bands simultaneously (dual band). It supports modern AC standard and 2×2 MIMO dualchain technology, the maximum theoretical transmission speed is up to 300 Mbps in 2.4 GHz band and 867 Mbps in 5 GHz band. The device has two external antennas, each with 2 dBi gain. The set includes DC 12V 1.5A adapter with European plug.

Main features – ONT Huawei hs8145v5 GPON ONU

Main features – ONT Huawei hs8145v5 GPON ONU

• terminal GPON ONT class B+
• fiber optic connector port GPON SC/ UPC
• 4 RJ-45 10/100/1000 Mbps Gigabit Ethernet LAN ports
• 1x USB
• 1 POTS phone port (1x POTS RJ11)
• dual-band 2.4 GHz and 5 GHz AC Wi-Fi transmission
• supports modern ac standard and 2×2 mimo dualchain technology
• external 2 dBi antennas
• maximum theoretical transmission throughput is up to 300 Mb/s in the 2.4 GHz band and 867 Mb/s in the 5 GHz band
