Huawei HG8110H | ONT | EchoLife, 1x GPON, 1x RJ45 1000Mb/s, 1x RJ11

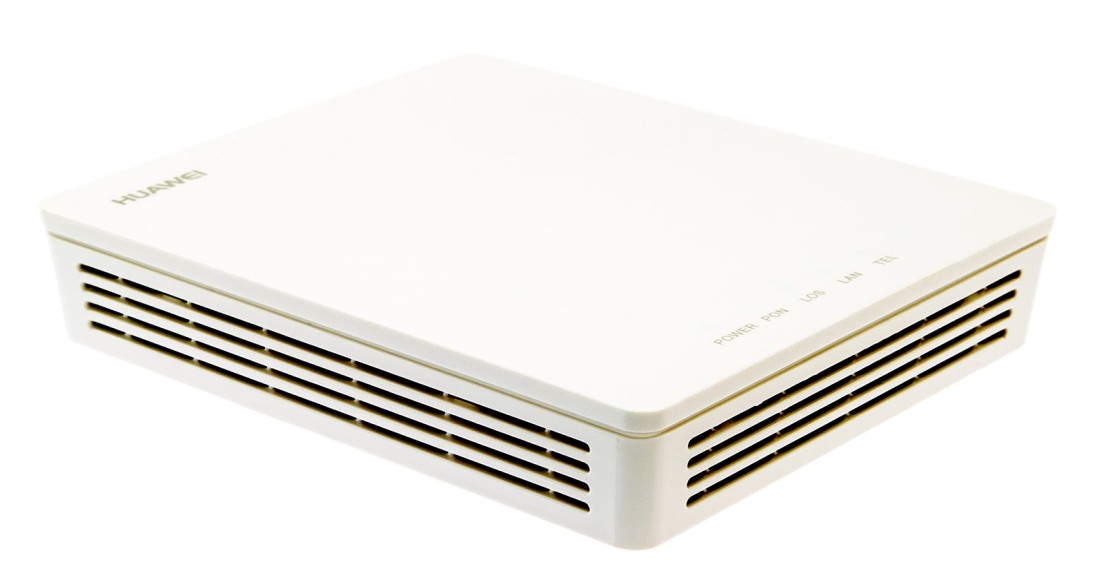

EchoLife HG8110H is an indoor optical network terminal

EchoLife HG8110H is a GPON ONT terminal for indoor use. Thanks to the use of GPON technology, we have access to ultra-broadband connections for individual users or small businesses.
ONT series EchoLife HG has POTS ports and automatic FE/GE Ethernet negotiation ports, which allows for high transmission efficiency.

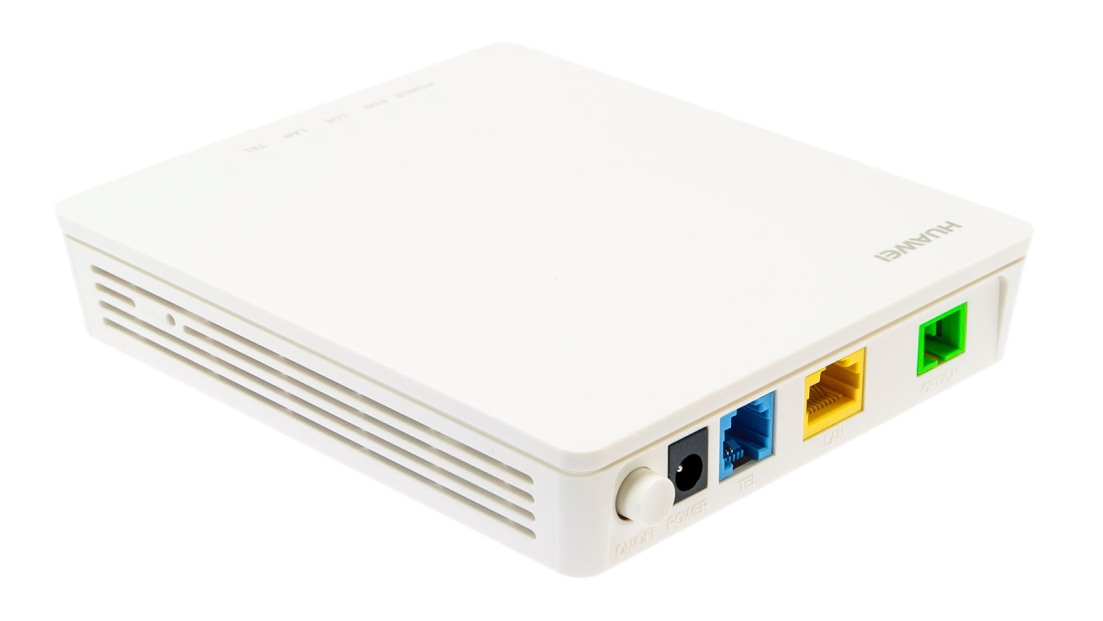

HG8110H has powerful streaming features to provide an excellent VoIP, Internet and high-definition video experience.It has a gigabit Ethernet port and a POTS RJ11 port as a telephone port.
It offers high performance and adequate bandwidth control. It is a good solution for users who need high bandwidth internet.

Main features of HG8110H

Main features of HG8110H

• 1 GPON (SC/APC) port B+
• 1 Ethernet 10/100/1000Mb port (RJ45)
• 1 POTS port (RJ11)
• High transfer efficiency

Functions

Functions

• Plug-and-play: configurations are automatically provided by the network management system – on-site maintenance is not required
• Remote Diagnosis: the POTS port supports loop line tests and call simulation tests, implementing remote error detection
• Support for remote updates
• Link monitoring: based on IEEE 802.1ag Ethernet OAM implements End-to-End (E2E) link detection and network isolation
• Energy-efficient: SOCs integrate PON, voice, gate and LSW modules, saving up to 25% energy
