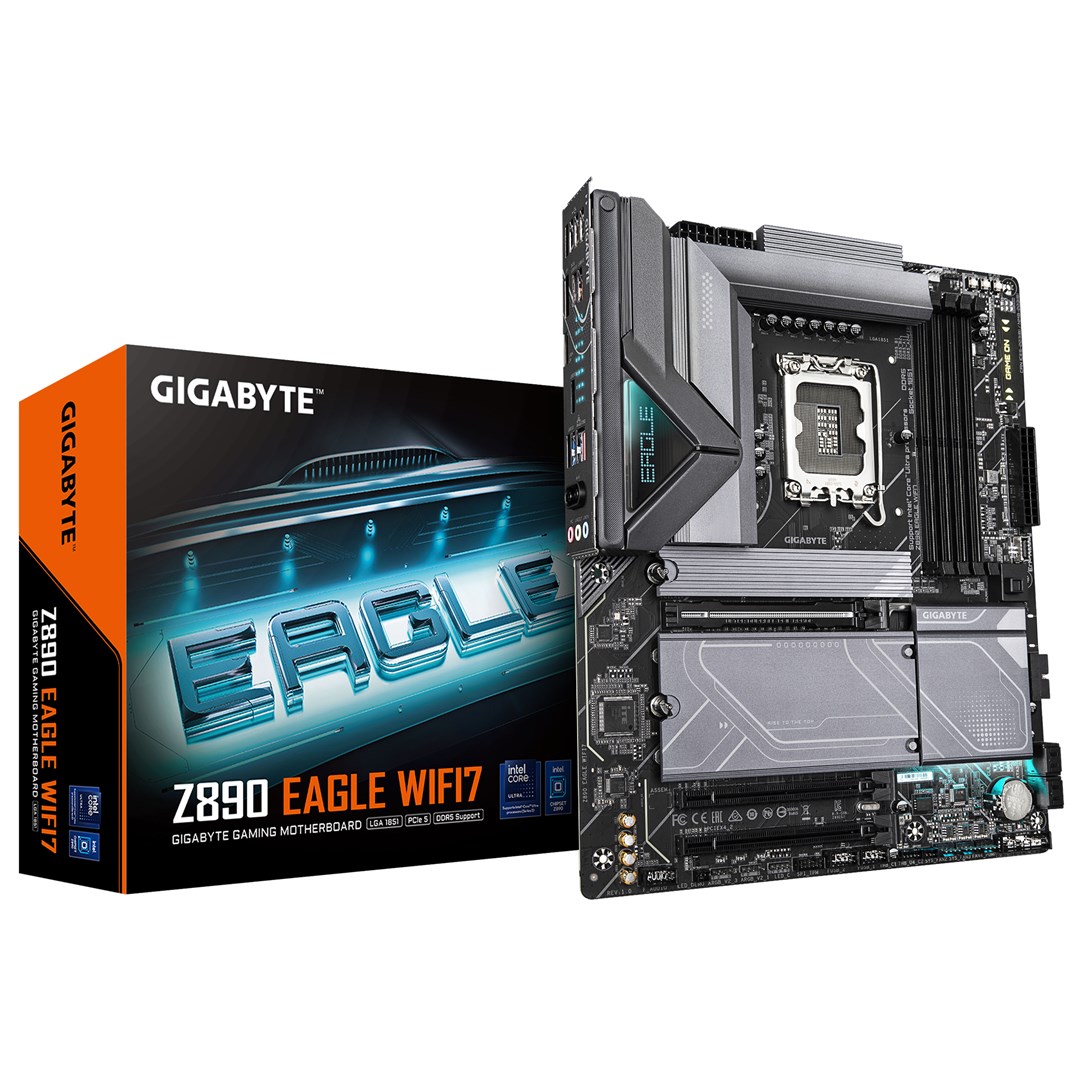

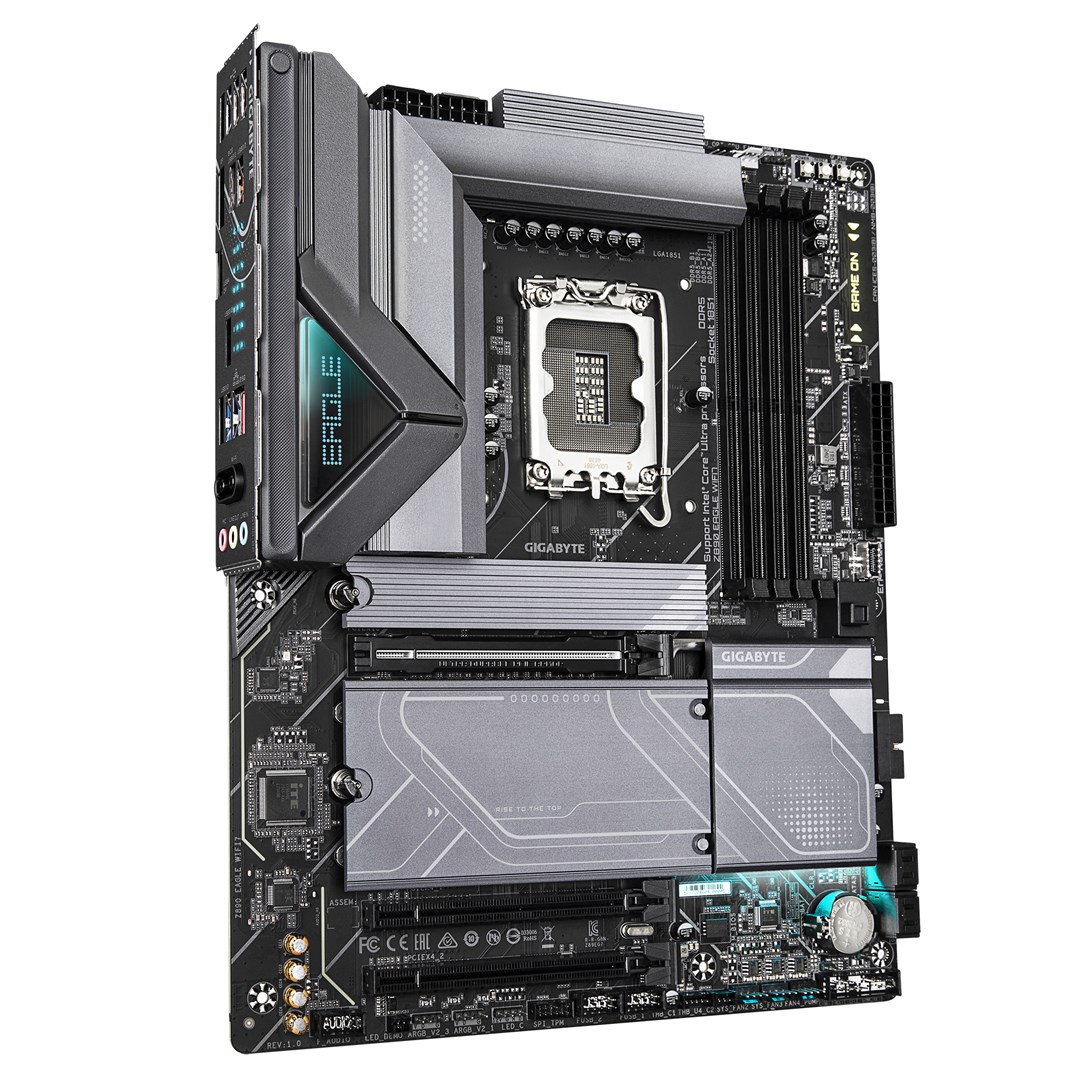

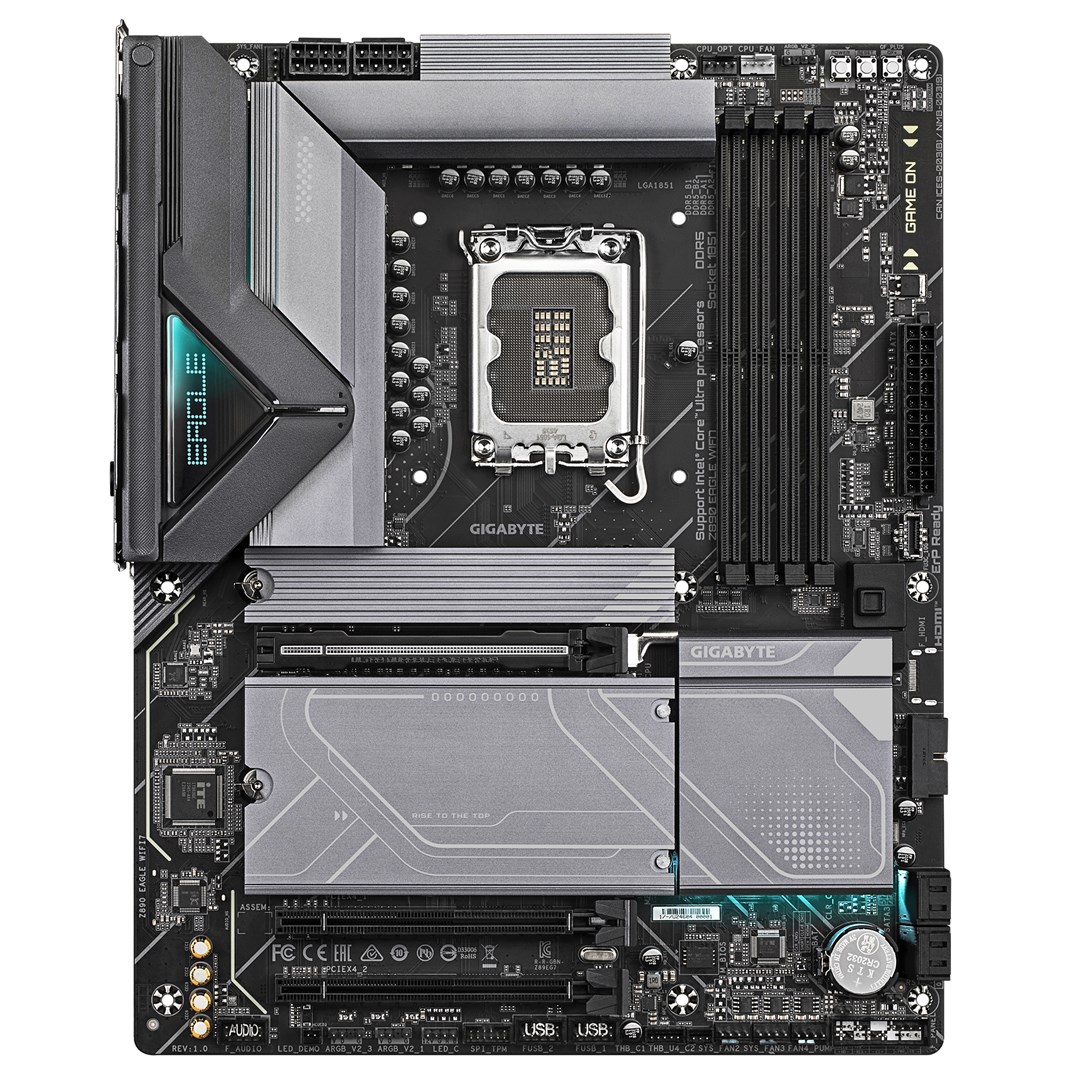

GIGABYTE Z890 EAGLE WIFI7 Motherboard
1.973,88 lei
Stoc epuizat
| Producator |
Gigabyte |
|---|---|
| Cod Produs |
Z890 EAGLE WIFI7 |
| Bundled software |
Norton® Internet Security (OEM version) |
| RAID support |
Yes |
| Motherboard chipset |
Intel Z890 |
| Total number of SATA connectors |
4 |
| Bluetooth version |
5.4 |
| DisplayPorts quantity |
2 |
| Motherboard form factor |
ATX |
| Supported memory types |
DDR5-SDRAM |
| Supported memory module capacities |
8GB, 16GB, 48GB, 64GB, 1GB, 40GB, 24GB, 32GB, 2GB, 4GB, 12GB |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Number of HDDs supported |
8 |
| Battery type |
CR2032 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Package weight |
2.02 kg |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| PC health monitoring |
Fan, Temperature, Voltage |
| Processor socket |
LGA 1851 (Socket V1) |
| Package depth |
270 mm |
| Thunderbolt ports quantity |
2 |
| USB 2.0 connectors |
2 |
| Package width |
335 mm |
| Audio chip |
Realtek ALC1220 |
| BIOS type |
UEFI AMI |
| Audio output channels |
7.1 channels |
| Width |
305 mm |
| Number of battery cells |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Wi-Fi |
Yes |
| Product colour |
Black |
| Motherboard chipset family |
Intel |
| Number of M.2 (M) slots |
4 |
| Batteries included |
Yes |
| Clear CMOS button |
Yes |
| Supported storage drive types |
HDD & SSD |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Desktop Management Interface (DMI) version |
2.7 |
| Maximum internal memory supported by processor |
256 GB |
| Microphone in |
Yes |
| WLAN controller model |
MediaTek MT7925 |
| RAID levels |
5, 1, 10 |
| Number of storage drives supported |
4 |
| Clear CMOS jumper |
Yes |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Maximum internal memory |
256 GB |
| S/PDIF out port |
Yes |
| Supported processor sockets |
LGA 1851 |
| DirectX version |
12.0 |
| Processor manufacturer |
Intel |
| Memory slots type |
DIMM |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Package height |
80 mm |
| Products per shipping (inner) case |
1 pc(s) |
| 12V power connector |
Yes |
| Number of SATA III connectors |
4 |
| RGB LED pin header |
Yes |
| Weight |
1.78 kg |
| Windows operating systems supported |
Windows 11 x64 |
| Height |
35 mm |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of memory slots |
4 |
| Battery weight |
3 g |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Warranty period |
3 year(s) |
| TPM connector |
Yes |
| Supported memory clock speed (max) |
8800 MHz |
| Country of origin |
China |
| Ethernet LAN |
Yes |
| Depth |
244 mm |
| ATX Power connector (24-pin) |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Lithium weight per battery |
0.07 g |
| ECC сompatibility |
Non-ECC |
| Bluetooth |
Yes |
| PCI Express x16 slots |
1 |
| Supported memory clock speeds |
6600, 6200, 7950, 7900, 5600, 7200, 7600 MHz, 7800, 7400, 6000, 8400 MHz, 8266, 8000 MHz, 5800, 7000, 8600, 6400, 6800 |
