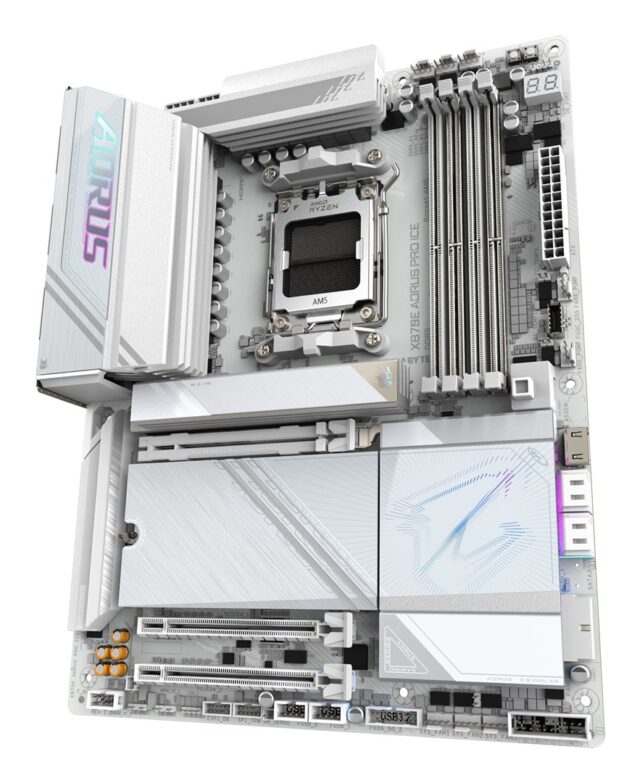

GIGABYTE X870E AORUS PRO ICE Motherboard – Supports AMD Ryzen 9000 CPUs 16+2+2 Phases Digital VRM up to 8000MHz DDR5 (OC) 3xPCIe 5.0 + 1xPCIe 4.0 Wi-Fi 7 2.5GbE LAN USB 4
2.772,93 lei
Stoc epuizat
| Producator |
Gigabyte |
|---|---|
| Cod Produs |
X870E AORUS PRO ICE |
| Bundled software |
Norton® Internet Security (OEM version) |
| RGB LED pin header |
Yes |
| Screws included |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| Battery weight |
3 g |
| Antenna included |
Yes |
| Number of battery cells |
1 |
| WLAN controller model |
Qualcomm QCNCM865 |
| Maximum internal memory supported by processor |
256 GB |
| Bluetooth version |
5.3 |
| PCI Express x4 slots |
2 |
| Number of HDDs supported |
4 |
| WiFi-AP antenna jack |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Products per shipping (inner) case |
1 pc(s) |
| Audio connector |
Yes |
| Supported memory clock speed (max) |
8200 MHz |
| 1st M.2 highest PCI Express generation |
5.0 |
| USB4 Gen 2x2 ports quantity |
2 |
| Lithium weight per battery |
0.07 g |
| Number of CPU fan connectors |
2 |
| 3rd M.2 largest key size |
22110 |
| 4th M.2 highest PCI Express generation |
4.0 |
| ECC сompatibility |
Non-ECC |
| 2nd M.2 largest key size |
22110 |
| USB 3.2 Gen 2x2 connectors |
1 |
| Warranty period |
3 year(s) |
| 3rd M.2 highest PCI Express generation |
5.0 |
| Number of RGB LED pin headers |
4 |
| 1st M.2 largest key size |
25110 |
| Number of EPS power connectors (8-pin) |
2 |
| Maximum internal memory per slot |
64 GB |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Number of water pump connectors |
2 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 4th M.2 largest key size |
22110 |
| Wi-Fi |
Yes |
| Audio output channels |
7.1 channels |
| BIOS type |
UEFI AMI |
| Battery type |
CR2032 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Supported memory module capacities |
8GB, 1GB, 2GB, 4GB, 32GB, 24GB, 12GB |
| Package width |
345 mm |
| Product colour |
White |
| RAID levels |
1, 10 |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| PC health monitoring |
Voltage, Temperature, Fan |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Supported storage drive types |
HDD & SSD |
| Country of origin |
China |
| Number of storage drives supported |
8 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Bluetooth |
Yes |
| Processor socket |
Socket AM5 |
| Parallel processing technology support |
Not supported |
| LAN controller |
Realtek RTL8125 |
| Compatible processor series |
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Front panel audio connector |
Yes |
| Width |
305 mm |
| Windows operating systems supported |
Windows 11 x64 |
| Height |
35 mm |
| ATX Power connector (24-pin) |
Yes |
| Motherboard chipset |
AMD X870E |
| USB 2.0 ports quantity |
2 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| HDMI version |
2.1 |
| DisplayPort version |
1.4 |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| Processor manufacturer |
AMD |
| Unbuffered memory |
Yes |
| DirectX version |
12.0 |
| CPU fan connector |
Yes |
| Depth |
244 mm |
| Motherboard form factor |
ATX |
| Supported memory types |
DDR5-SDRAM |
| Clear CMOS jumper |
Yes |
| Ethernet LAN |
Yes |
| Memory slots type |
DIMM |
| Weight |
2.4 kg |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| RAID support |
Yes |
| Number of M.2 (M) slots |
4 |
| Batteries included |
Yes |
| Clear CMOS button |
Yes |
| Package depth |
294 mm |
| TPM connector |
Yes |
| Motherboard chipset family |
AMD |
| Audio chip |
Realtek ALC1220 |
| Package weight |
2.74 kg |
| Ethernet LAN (RJ-45) ports |
1 |
| Headphone outputs |
1 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Microphone in |
Yes |
| On-board graphics card |
No |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Supported memory clock speeds |
6400, 4400, 4800, 8000 MHz, 7000, 8200 MHz, 7600 MHz, 7800, 6000, 6600, 6800, 6200, 5600 |
| Number of chassis fan connectors |
6 |
| Maximum internal memory |
256 GB |
| S/PDIF out port |
Yes |
| Number of memory slots |
4 |
| Supported processor sockets |
Socket AM5 |
| Package height |
80 mm |
