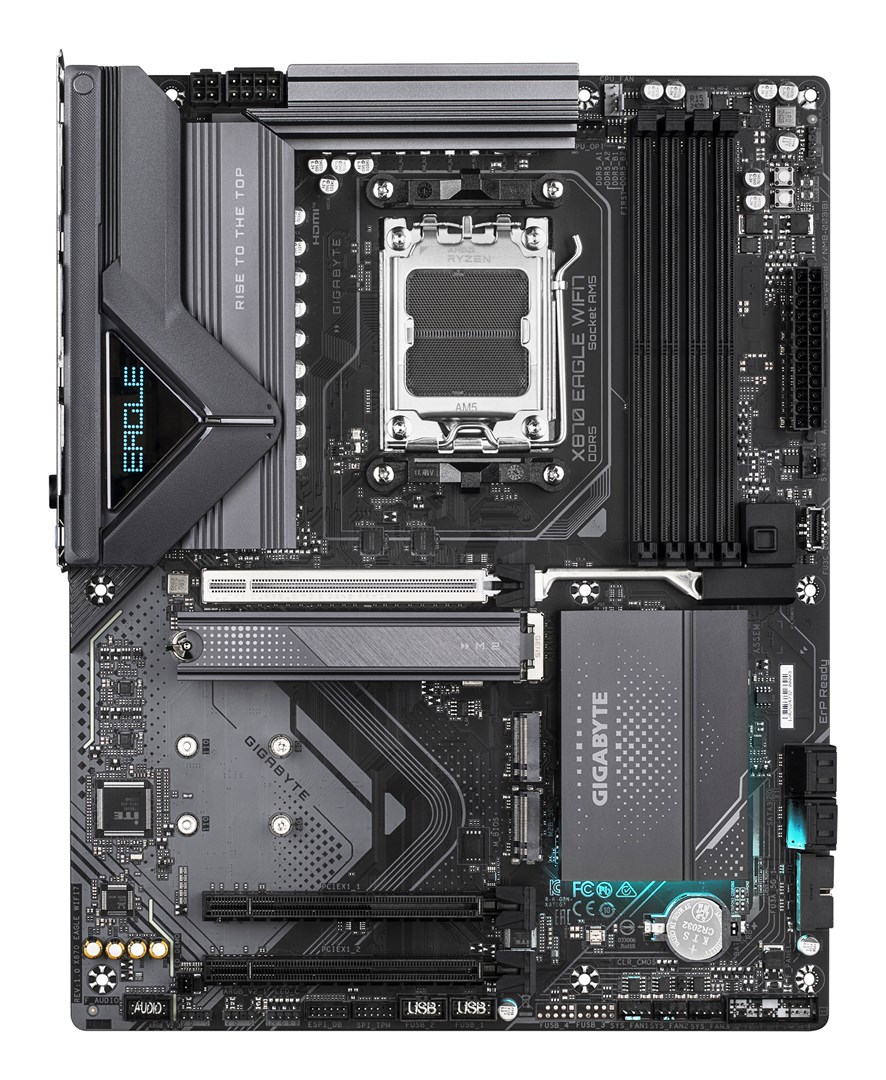

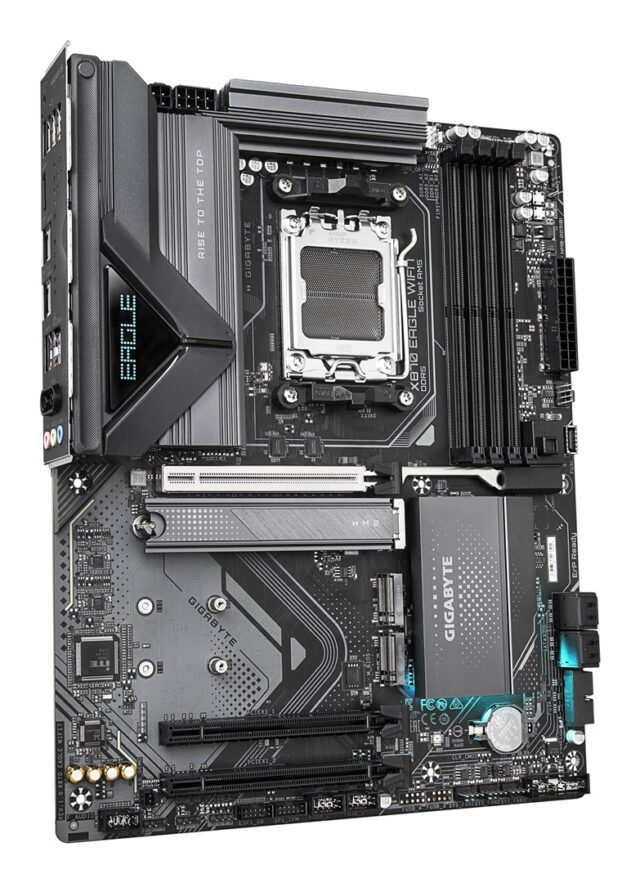

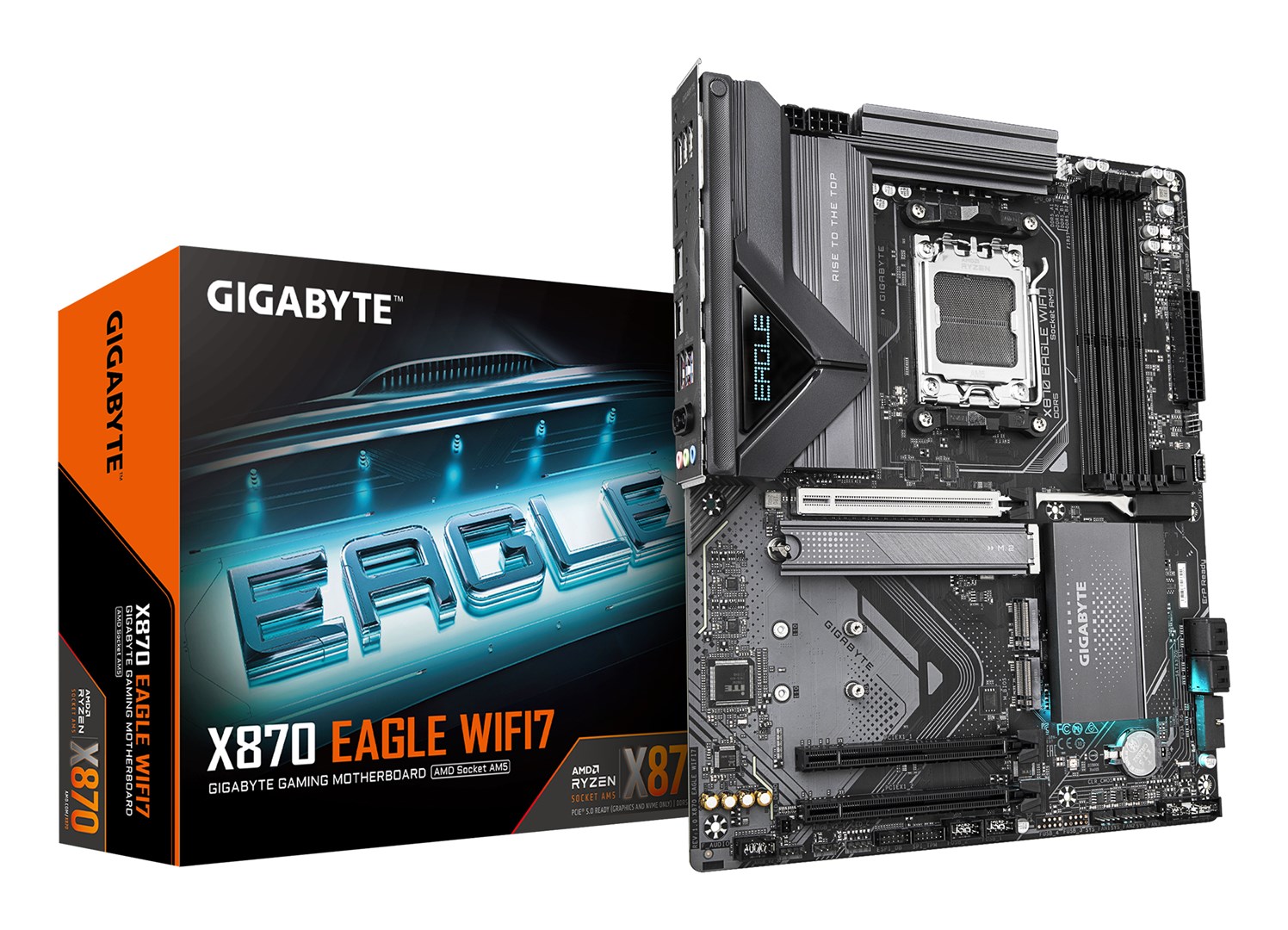

GIGABYTE X870 EAGLE WIFI7 Motherboard – Supports AMD Ryzen 9000 CPUs 14+2+2 phases VRM up to 8000MHz DDR5 (OC) 1xPCIe 5.0 + 2xPCIe 4.0 Wi-Fi 7 2.5GbE LAN USB 4
1.900,55 lei
Stoc epuizat
| Producator |
Gigabyte |
|---|---|
| Cod Produs |
X870 EAGLE WIFI7 |
| Bundled software |
Norton® Internet Security (OEM version) |
| Number of water pump connectors |
1 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| Number of EPS power connectors (8-pin) |
1 |
| 2nd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
25110 |
| 2nd M.2 largest key size |
25110 |
| Number of RGB LED pin headers |
4 |
| 1st M.2 largest key size |
25110 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| LAN controller |
Realtek RTL8125 |
| Compatible processor series |
AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Supported storage drive interfaces |
M.2, SATA III |
| Clear CMOS button |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Number of HDDs supported |
4 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Supported memory module capacities |
1GB, 40GB, 48GB, 24GB, 8GB, 64GB, 2GB, 4GB, 32GB, 16GB |
| HDMI version |
2.1 |
| USB 2.0 connectors |
2 |
| Width |
305 mm |
| WiFi-AP antenna jack |
2 |
| Ethernet LAN |
Yes |
| Audio chip |
Realtek ALC897 |
| TPM connector |
Yes |
| Number of SATA III connectors |
4 |
| Warranty period |
3 year(s) |
| Supported storage drive types |
HDD & SSD |
| Motherboard chipset family |
AMD |
| Front panel audio connector |
Yes |
| Headphone outputs |
1 |
| Clear CMOS jumper |
Yes |
| ECC сompatibility |
Non-ECC |
| Audio output channels |
7.1 channels |
| Package height |
80 mm |
| Unbuffered memory |
Yes |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Processor socket |
Socket AM5 |
| Wi-Fi |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Package depth |
270 mm |
| Supported memory clock speed (max) |
8200 MHz |
| Motherboard form factor |
ATX |
| Supported memory types |
DDR5-SDRAM |
| Supported memory clock speeds |
4400, 5200, 7600 MHz, 7800, 4800, 6200, 6666, 7000, 8200 MHz, 8000 MHz, 6000, 6800, 6600, 6400, 5600, 7200 |
| Product colour |
Black |
| 12V power connector |
Yes |
| Maximum internal memory |
256 GB |
| Country of origin |
China |
| RAID support |
Yes |
| Number of battery cells |
1 |
| Depth |
244 mm |
| Weight |
1.74 kg |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Antenna included |
Yes |
| Products per shipping (inner) case |
1 pc(s) |
| On-board graphics card |
No |
| Bluetooth |
Yes |
| Memory slots type |
DIMM |
| WLAN controller model |
MediaTek MT7925 |
| Desktop Management Interface (DMI) version |
2.7 |
| Number of memory slots |
4 |
| Height |
35 mm |
| Number of storage drives supported |
7 |
| Bluetooth version |
5.4 |
| Motherboard chipset |
AMD X870 |
| Maximum internal memory supported by processor |
256 GB |
| Battery type |
CR2032 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Memory channels |
Dual-channel |
| DisplayPort version |
1.4 |
| Batteries included |
Yes |
| Processor manufacturer |
AMD |
| PC health monitoring |
Fan, Voltage, Temperature |
| DirectX version |
12.0 |
| RGB LED pin header |
Yes |
| Number of CPU fan connectors |
2 |
| HDMI ports quantity |
1 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Screws included |
Yes |
| Maximum internal memory per slot |
64 GB |
| USB4 Gen 2x2 ports quantity |
2 |
| USB 3.2 Gen 2x2 connectors |
1 |
| Lithium weight per battery |
0.07 g |
| Battery weight |
3 g |
| Package width |
335 mm |
| Parallel processing technology support |
Not supported |
| Number of M.2 (M) slots |
3 |
| EPS power connector (8-pin) |
Yes |
| BIOS type |
UEFI AMI |
| ATX Power connector (24-pin) |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Package weight |
1.94 kg |
| Windows operating systems supported |
Windows 11 x64 |
| Front panel connector |
Yes |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| CPU fan connector |
Yes |
| RAID levels |
10, 1 |
| Supported processor sockets |
Socket AM5 |
| Number of chassis fan connectors |
4 |
| USB 2.0 ports quantity |
4 |
