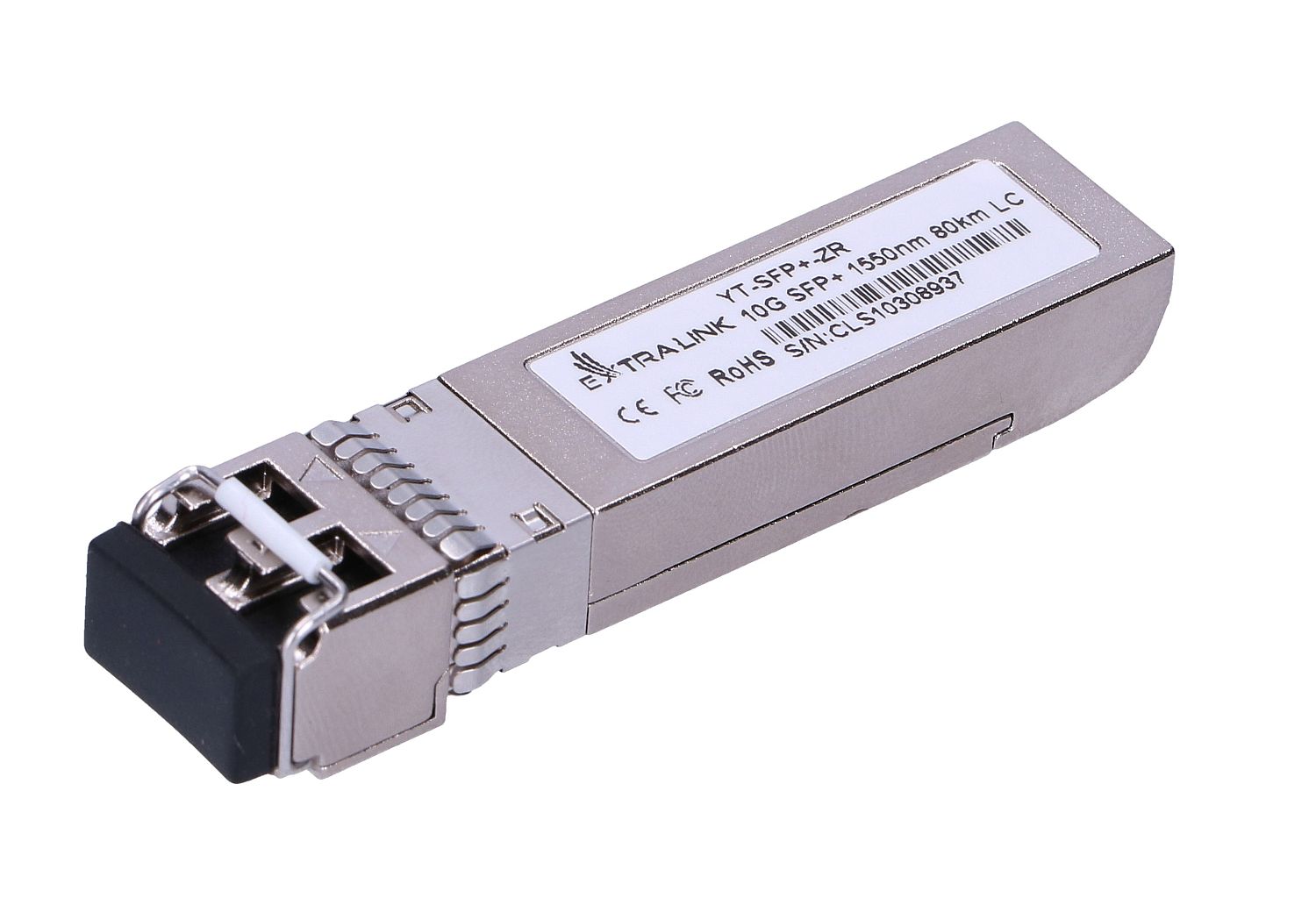

Extralink SFP+ 10G | SFP+ Module | 10Gbps, LC/UPC, 1550nm, 80km, single mode, DOM

SFP 10G 1550NM SM 80KM LC DUP module with long transmission range

The Extralink SFP -ZR fiber optic module is designed for 8.5G/10G Fiber- Channel and 10GBE systems. The 10G single-mode SFP module consists of two sections, i.e., a transmitter section containing an EML laser and a receiver section consisting of an APD photodiode integrated with a TIA. All modules meet Class I laser safety requirements. Digital diagnostic functions of the SFP -ZR insert are available via a 2-wire serial interface, which provides real-time access to device operating parameters such as SFP optical module temperature, laser beam current, transmitted optical power, received optical power and insert supply voltage.
The Extralink SFP 10G 1550NM enables transmission over distances of up to 80 km.

Key features
