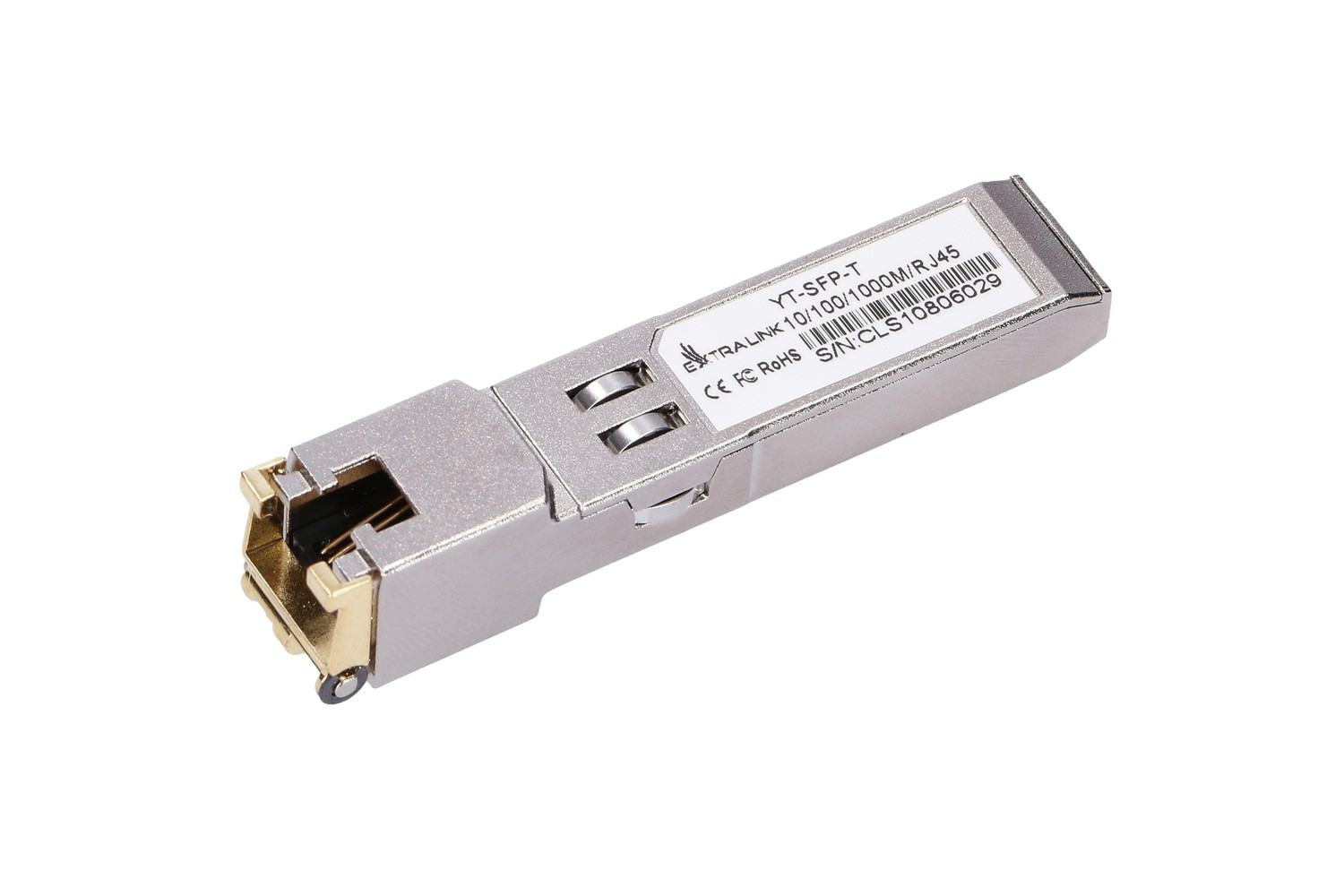

Extralink SFP 1.25G | SFP to RJ45 Module | 1,25Gbps, 1000BASE-T, 100m, dedicated for HP/ARUBA

Cost-effective RJ45 1.25G SFP module dedicated for HP/Aruba

The Extralink SFP RJ45 with 1000 Mbps is a high-performance, cost-effective module that complies with Gigabit Ethernet and 1000-BASE-T standards as defined in IEEE 802. 3-2002 and IEEE 802.3ab. The SFP RJ45 insert supports data rates of 1000 Mbps over a maximum distance of up to 100 meters for Category 5 Ethernet cable. The SFP RJ45 module supports full duplex data links of 1000 Mbps with 5-level pulse amplitude modulation (PAM). All four pairs in the cable are used at a symbolic rate, which is 250 Mbps per pair. The Extralink SFP RJ45 provides standard SFP MSA-compliant serial ID information, which can be accessed via the A0h address via the 2-wire CMOS EEPROM serial protocol. The physical IC can also be accessed via the 2-wire serial bus at address A0h. The SFP RJ45 insert is compatible with most gigabit SFP ports found in network equipment. The SFP Ethernet module’s all-metal housing makes the device characterized by low EMI. The presented insert is designed for HP/Aruba devices.

Special features
