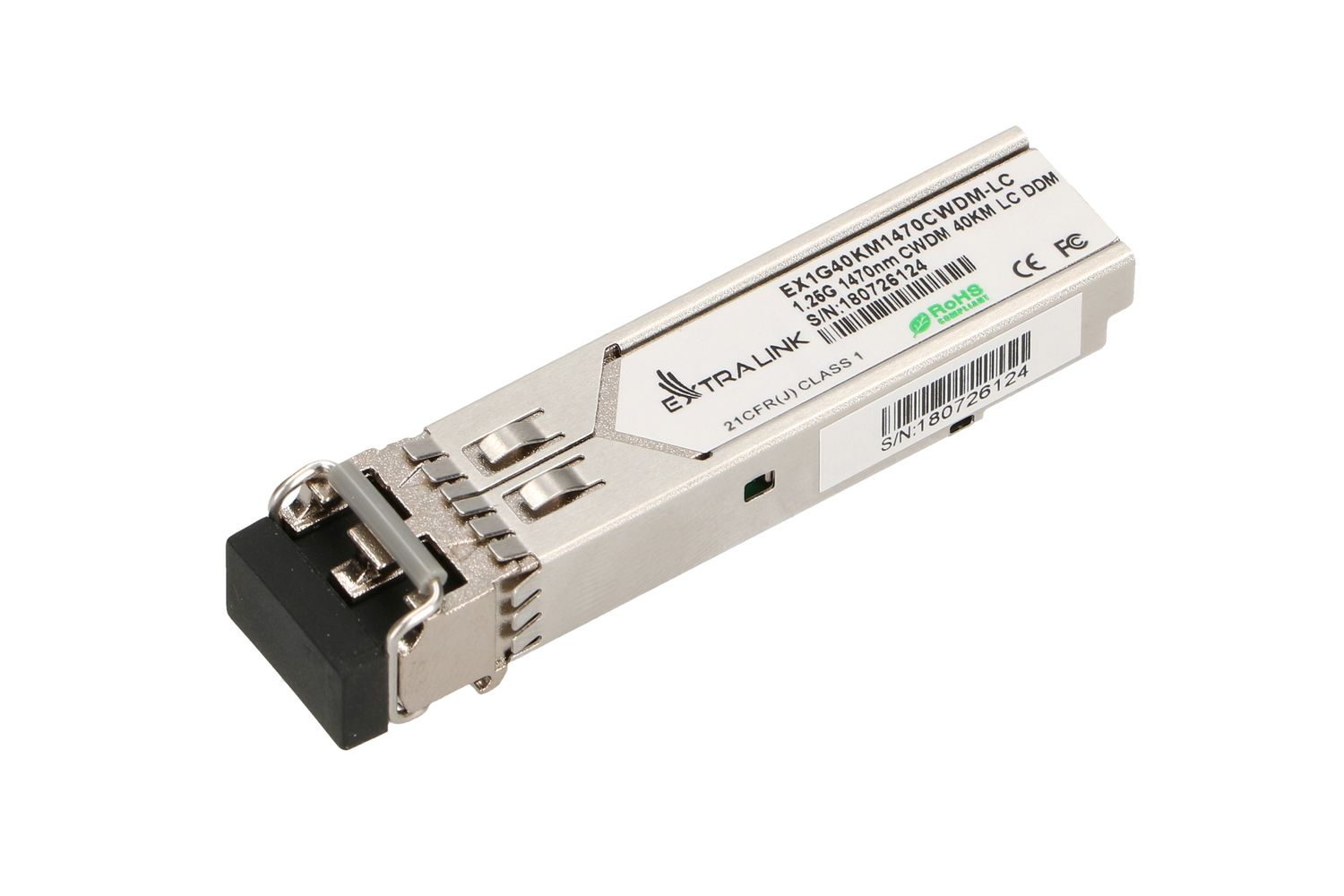

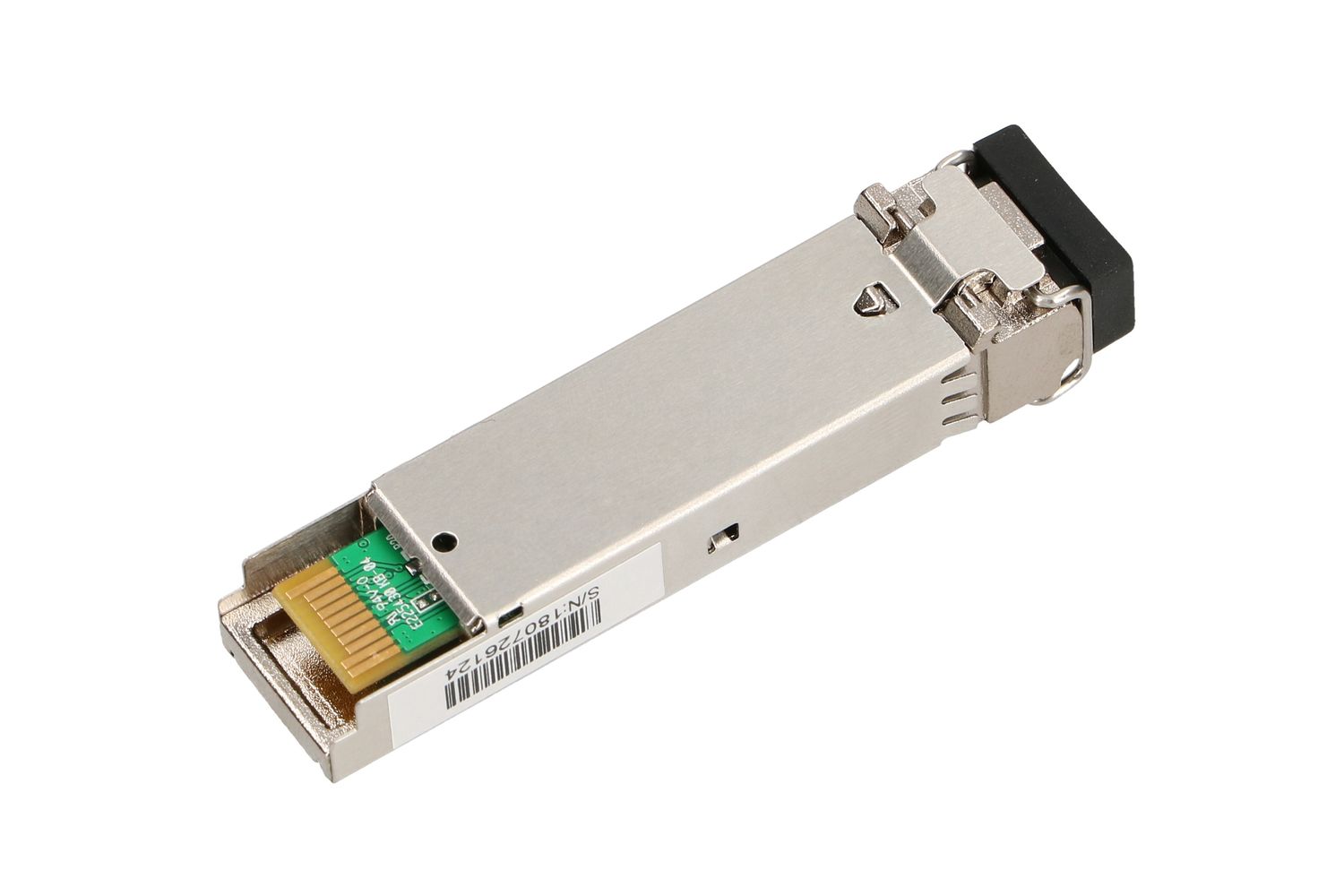

Extralink SFP 1.25G | SFP CWDM Module | 1,25Gbps, 1470nm, single mode, 40km, LC, DOM

Cost-effective 1.25G 1470NM SM 40KM LC DDM SFP CWDM fiber module

Extralink’s fiber optic SFP module is designed for serial CWDM 1G Ethernet optical data transmission over distances up to 40 KM from SMF. The single-mode CWDM optical SFP modules meet the objectives of MSA standards SFF-8431 and SFF-8472, with 8 wavelengths available from 1470 nm to 1610 nm, in 20 nm increments. The SFP insert features low power consumption and data rates of up to 1.25 Gbps.

Special features

Special features

• Operational data rate up to 1.25 Gbp
• CWDM DFB laser transmitter
• Transmission up to 40 km on SMF
• Compliance with SFF-8472
• 3.3 V power supply
• Operating temperature range from 0°C to 70°C
• LC duplex connector interface
• Class 1 laser safety certification
• Low power consumption
