Extralink CAT6 UTP (U/UTP) V2 Indoor | Twisted pair | 305M

Network Cable UTP Cat. 6

FTP network cable Cat. 6 is most often used for local area networks. Category 6 covers cabling that requires a bandwidth of up to 250 MHz and a bandwidth of 200 Mbps, which provides for the implementation of Gigabit Ethernet (4 x 250 MHz = 1 GHz) and ATM transmission of 622 Mbps. The presented product is built with 4 pairs of cables twisted together, thus eliminating both mutual and electromagnetic interference. Made of pure copper, the cables are surrounded by an HDPE sheath with a diameter of 0.92 ± 0.03 mm, which is characterized by increased density and particularly high diaphragm insulation. The cables are also protected by an outer PVC sheath with a thickness of 0.50 ± 0.05 mm.
The package contains 305 meters of cable.

100% Pure Copper

A key element ensuring reliability, minimal signal attenuation and excellent transmission performance is the use of cables made of 100% pure copper. These wires, with a thickness of 24 AWG, guarantee full bandwidth and connection reliability over the entire length of the cable (305m). The use of pure copper, as opposed to alloys, is fundamental to achieving stable and long-lasting network performance.

100% Pure Copper

• UTP Cat.6 network cable
• Package contains 305m of cable
• HDPE coating with diameter 0.92 ± 0.03mm
• Outer PVC coating 0.50 ± 0.05mm thick
• Packaging equipped with a self-developing roller
• Cable for indoor use

Cable compatible with PoE, PoE and PoE standards

Using solid, pure copper 24 AWG wires, this cable is fully compatible with Power over Ethernet (PoE) technology. This enables simultaneous transmission of data and power (PoE, PoE and PoE ), which is essential in many modern installations, especially in closed-circuit television (CCTV) systems. In these applications, a single cable can efficiently transmit both the video signal from the cameras and their power supply, simplifying the infrastructure.

High performance data transmission up to 10 Gbps

The Cat. 6 is designed for demanding network environments, supporting applications up to 10 Gbps (10 Gigabit Ethernet). This performance is crucial for smooth transfer of large files, video streaming and ensuring stable and uninterrupted operation of monitoring systems.

Extralink twisted pair cable for indoor applications

Extralink CAT 6 UTP (U/UTP) V2 cable is designed for indoor use, and is ideal for building networks in offices. UTP is often used in CCTV installations, where one cable can transmit video signals from several cameras and power.

Robust and proven design

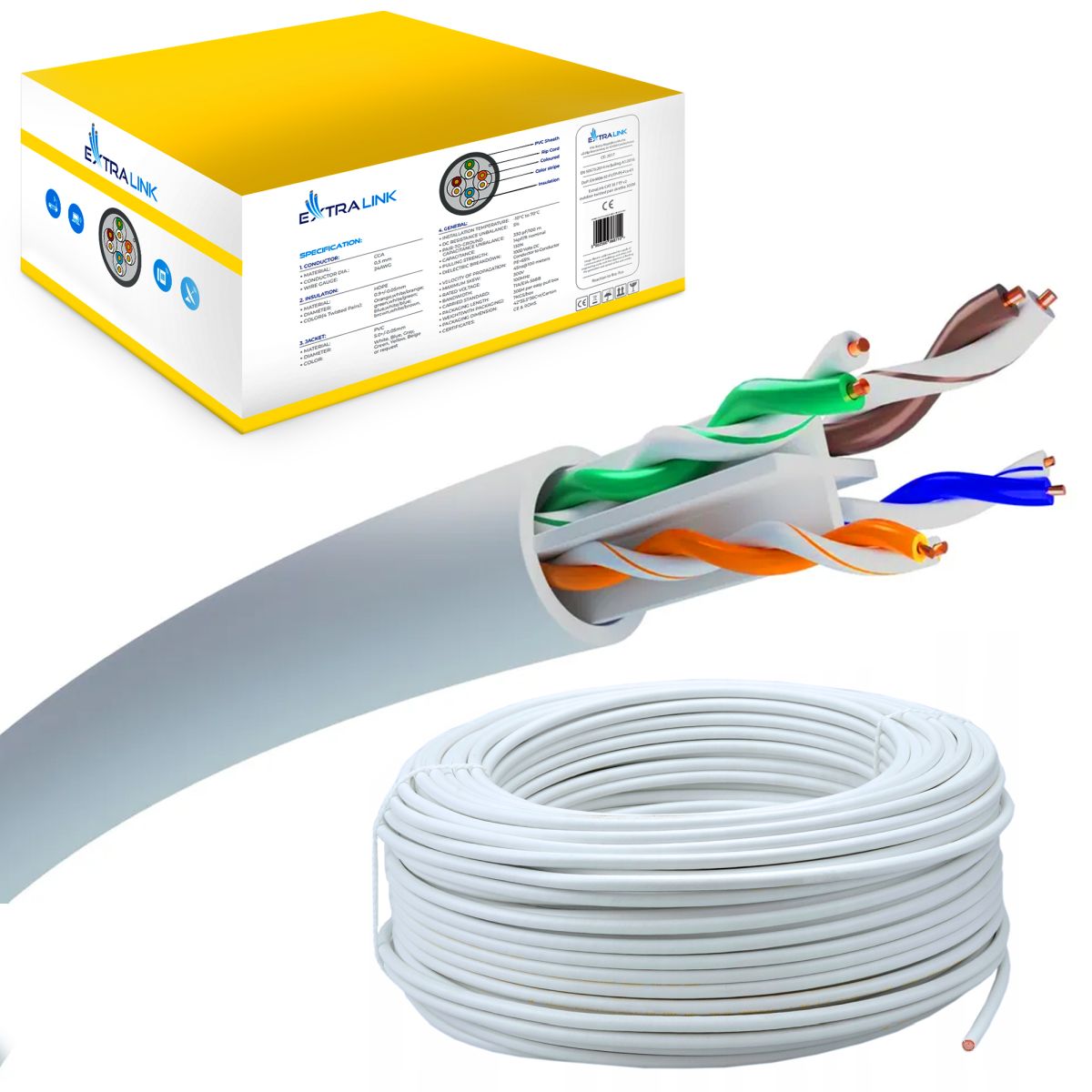

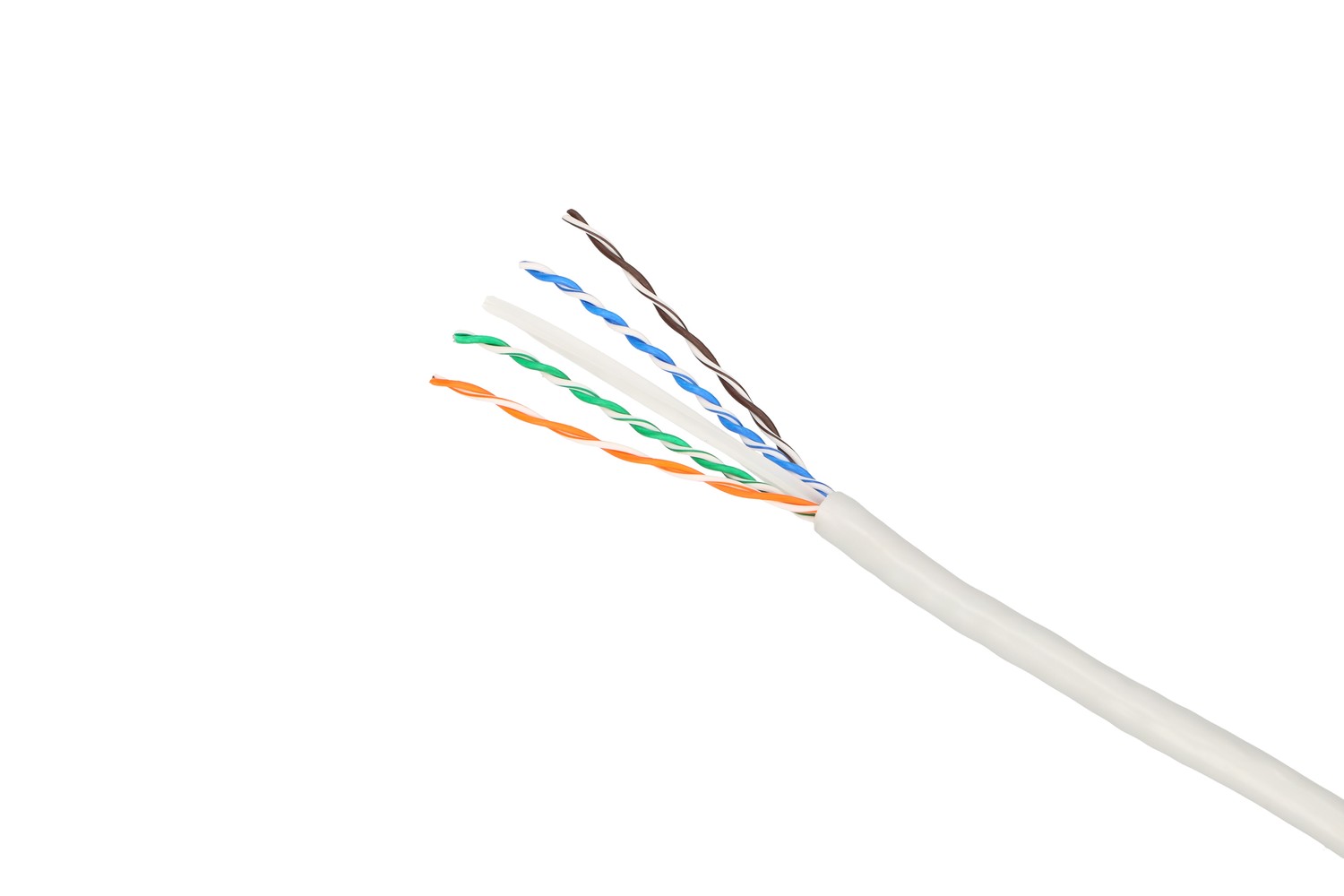

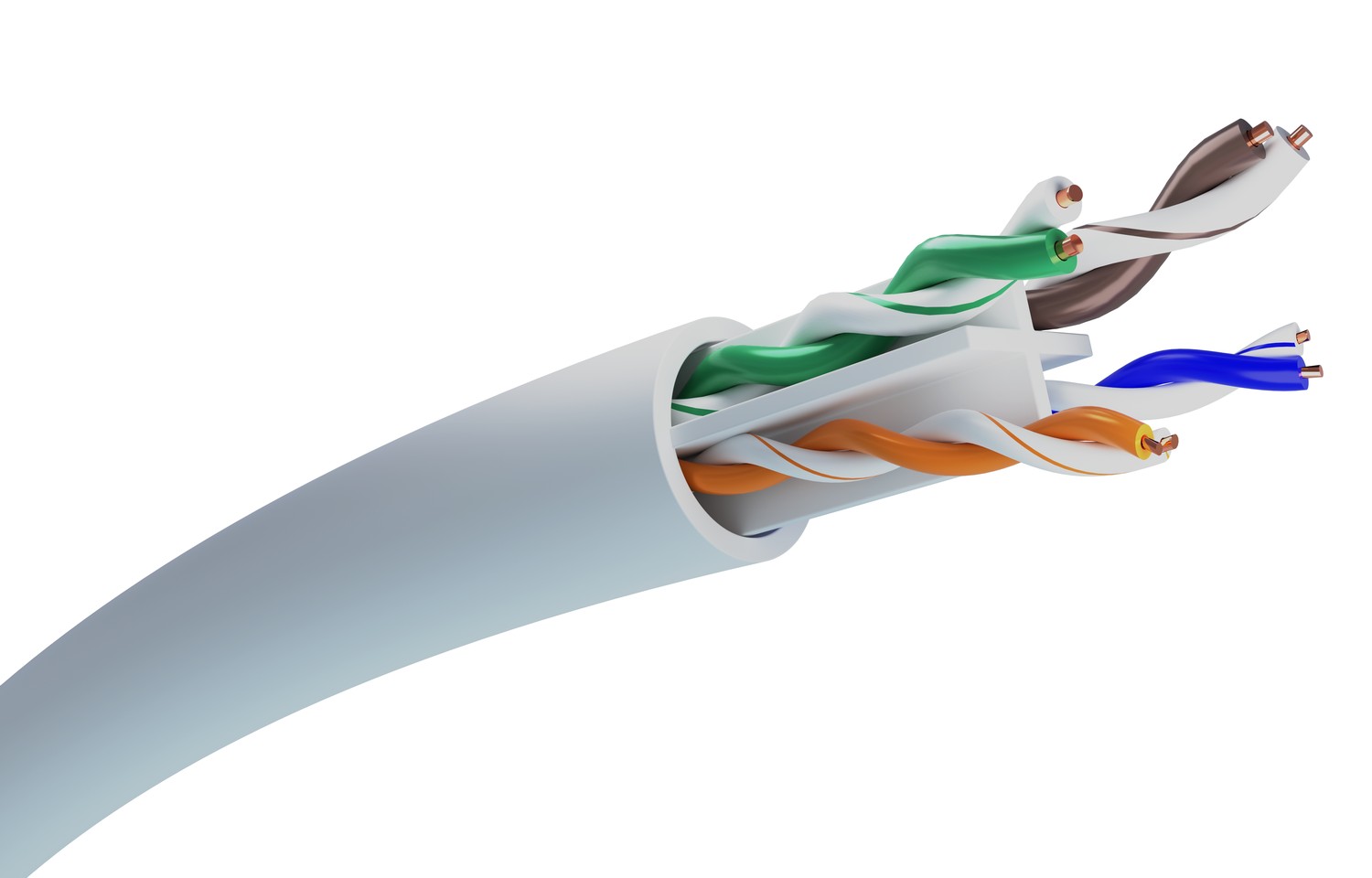

The presented product is built with 4 pairs of cables twisted together, so both mutual and electromagnetic interference are eliminated. Made of pure copper, the cables are surrounded by an HDPE sheath with a diameter of 0.92 ± 0.03 mm, which is characterized by increased density and particularly high diaelectric insulation. The cables are also protected by an outer PVC sheath with a thickness of 0.50 ± 0.05 mm, which is highly resistant to mechanical damage. Convenience of installation is guaranteed by the self-expanding reel, in which 305 meters of the product are supplied, allowing the cable to be unwound quickly and without problems.
