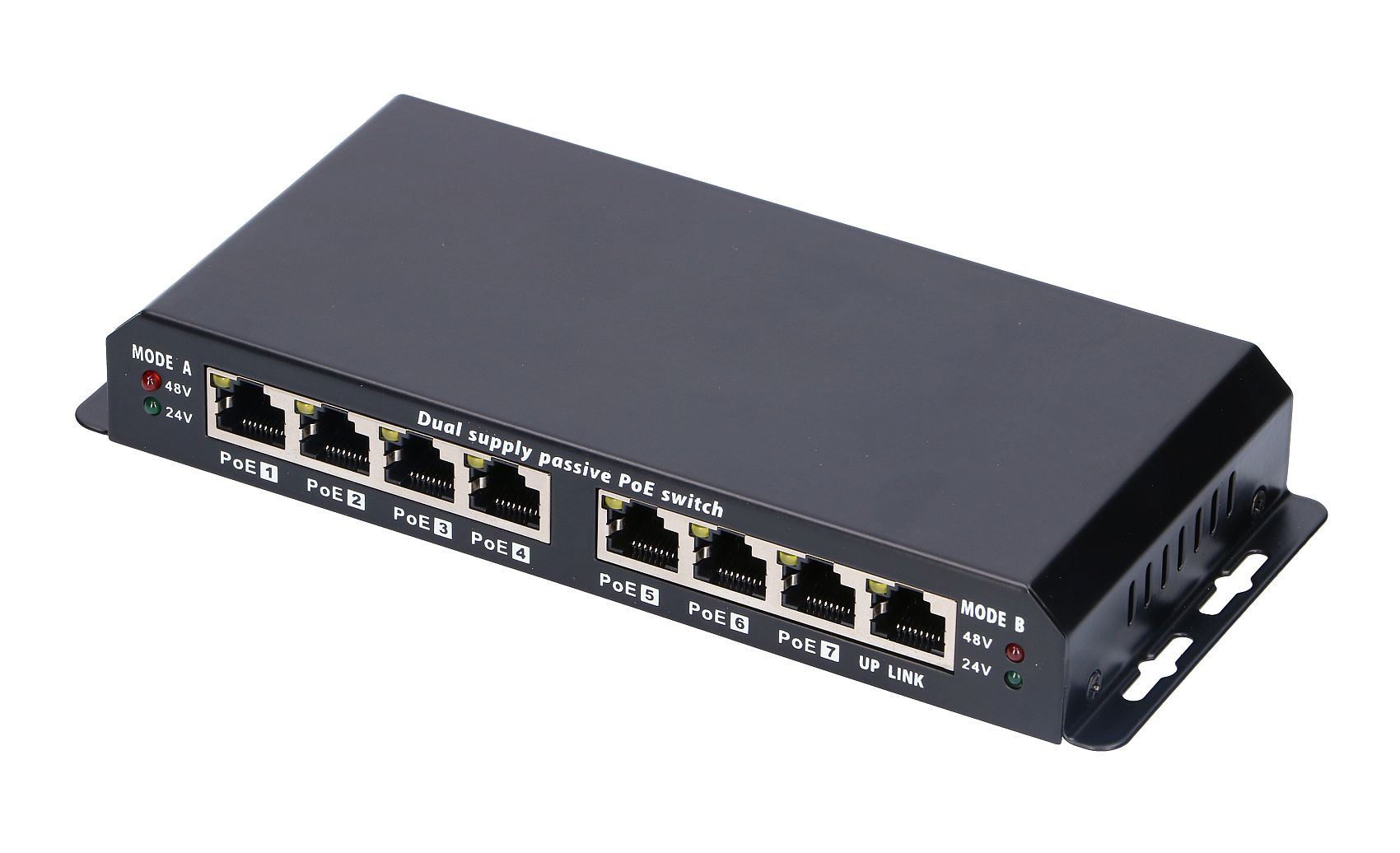

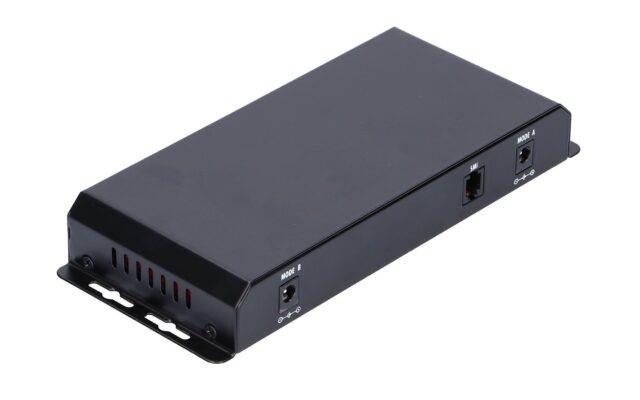

Switch with 7 PoE ports and one 100Mbps Uplink port

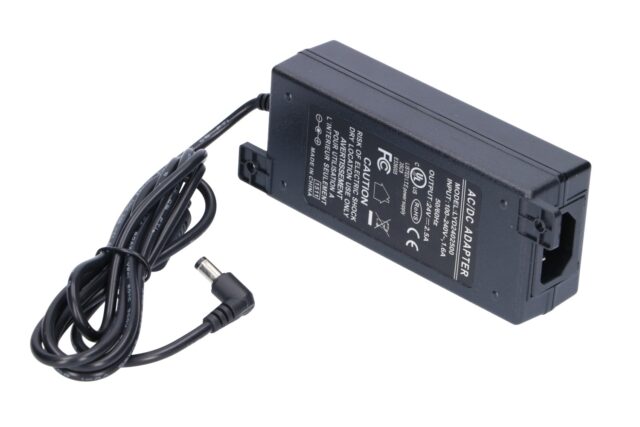

It is a switch characterized by high performance and has 8 10/100 Mb/s ports, including 7 ports with PoE support. The switch is powered by an external power supply with from 18V to 57V. The PoE supply voltage depends on the power supply used. The device is designed for home or small business use. It is an inexpensive solution for solutions where power to the devices is not available or too expensive to install.
Main features of the device:
– 8 ports with capacity 10/100Mbps
– Available supply voltages: 18V, 24V, 48V, 56V
– Power input 100 to 240V AC
– The PoE outputs can operate in two modes:
Mode A data and power on pins 1/2 (-) and 3/6 (+),
Mode B power supply on pins 4/5 (+) and 7/8 (-) and data on pins 1/2 and 3/6
– Dual PTC fuses on each PoE output port
– One 650mA fuse per port in mode A
– One 1000mA fuse per port in B mode

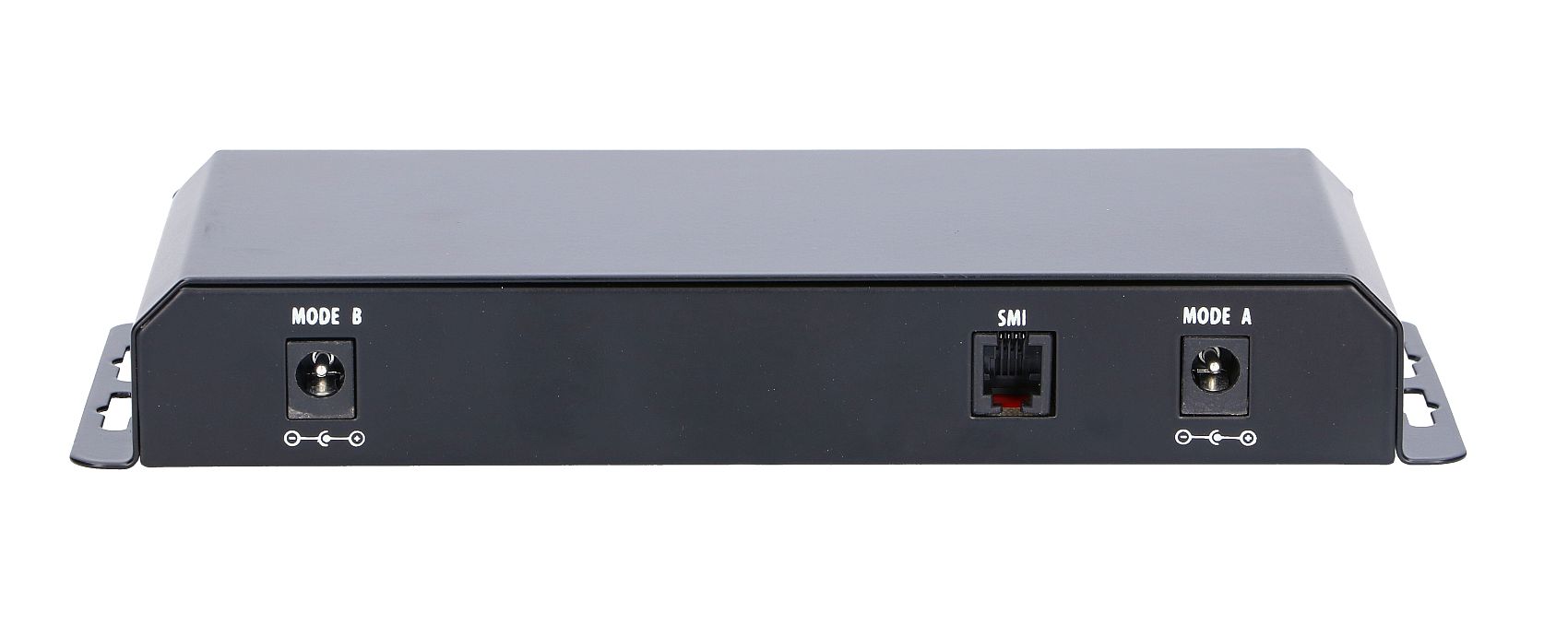

– Power inputs for modes A and B with LED
– LED indicates 18/24V or 48/56V operation
– Maximum input current per mode – 2.5 A
