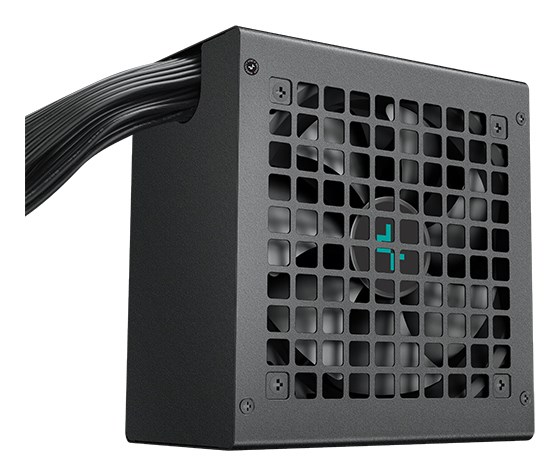

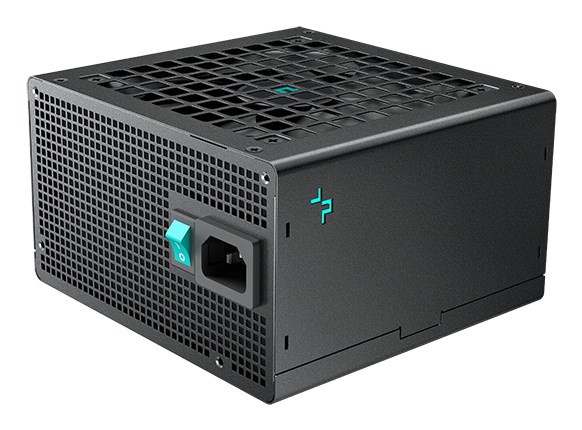

DeepCool PL800D power supply unit 800 W 20+4 pin ATX ATX Black
632,54 lei
96 în stoc
Informații suplimentare
| Producator |
DEEPCOOL |
|---|---|
| Cod Produs |
R-PL800D-FC0B-EU-V2 |
| Certification |
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Height |
86 mm |
| Total power |
800 W |
| Combined power (+3.3V) |
100 W |
| Cooling type |
Active |
| Power protection features |
Over power, Over voltage, Surge & inrush protection (SIP), No load operation, Under voltage, Over current, Overheating, Surge protection |
| ATX power connector (20+4 pin) |
Yes |
| Product colour |
Black |
| SATA power cable length |
550, 650, 450 |
| Purpose |
PC |
| Combined power (-12V) |
3.6 W |
| Input current |
9 – 4.5 A |
| Max output current (+5V) |
20 A |
| Sustainability compliance |
Yes |
| Depth |
140 mm |
| Efficiency |
85% |
| Sustainability certificates |
ErP, Triman |
| Power Factor Correction (PFC) type |
Active |
| AC input voltage |
100 – 240 V |
| Motherboard power cable length |
55 cm |
| 80 PLUS certification |
80 PLUS Bronze |
| Mean time between failures (MTBF) |
100000 h |
| Cabling type |
Non-Modular |
| Hold time |
16 ms |
| Power supply unit (PSU) form factor |
ATX |
| CPU power connector (4+4 pin) |
Yes |
| Package type |
Box |
| Operating temperature (T-T) |
0 – 40 °C |
| PCI Express power connectors (16-pin) |
1 |
| Number of SATA power connectors |
6 |
| Max output current (+5Vsb) |
3 A |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| PCI Express power connectors (6+2 pin) |
3 |
| Combined power (+5Vsb) |
15 W |
| Combined power (+5V) |
100 W |
| AC input frequency |
50/60 Hz |
| On/off switch |
Yes |
| Bearing technology |
HYB |
| Max output current (+3.3V) |
20 A |
| Max output current (-12V) |
0.3 A |
| Fan location |
Top |
| Compliance certificates |
RoHS, WEEE |
| Width |
150 mm |
| Number of fans |
1 fan(s) |
| ATX version |
3.0 |
| Power Good signal delay range |
100 – 150 ms |
| Fan diameter |
12 cm |
| Motherboard power connector |
20+4 pin ATX |
