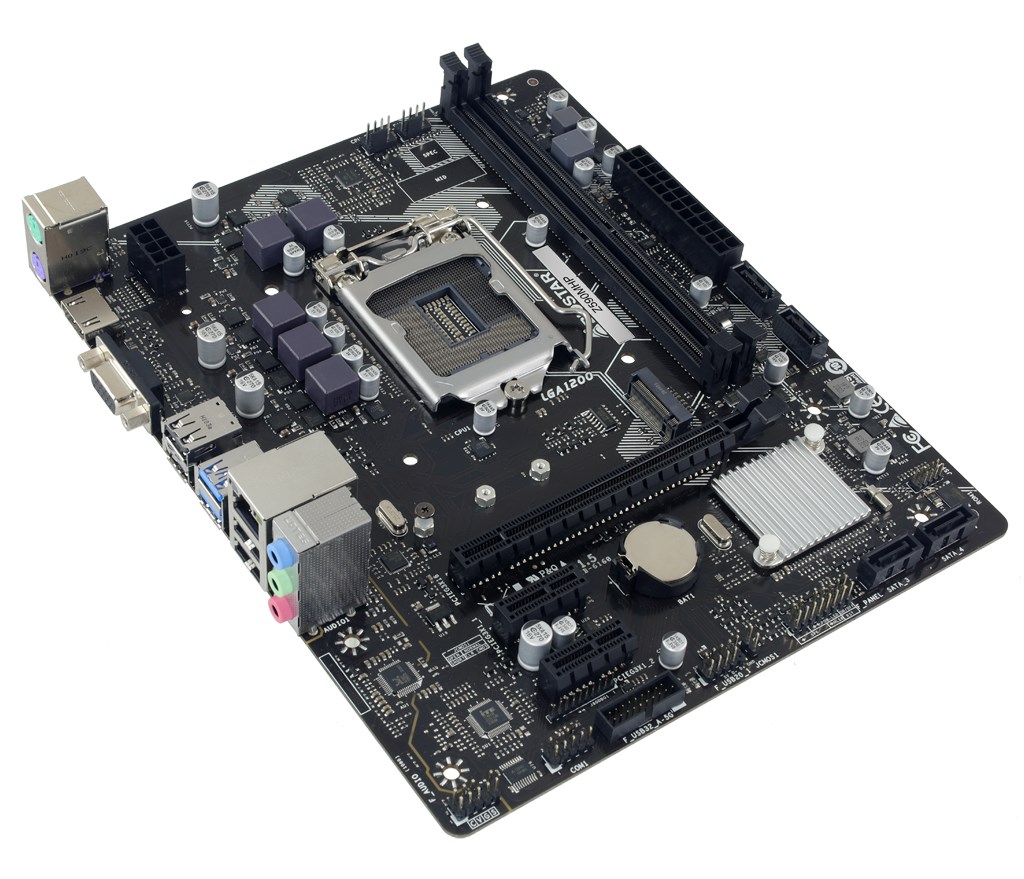

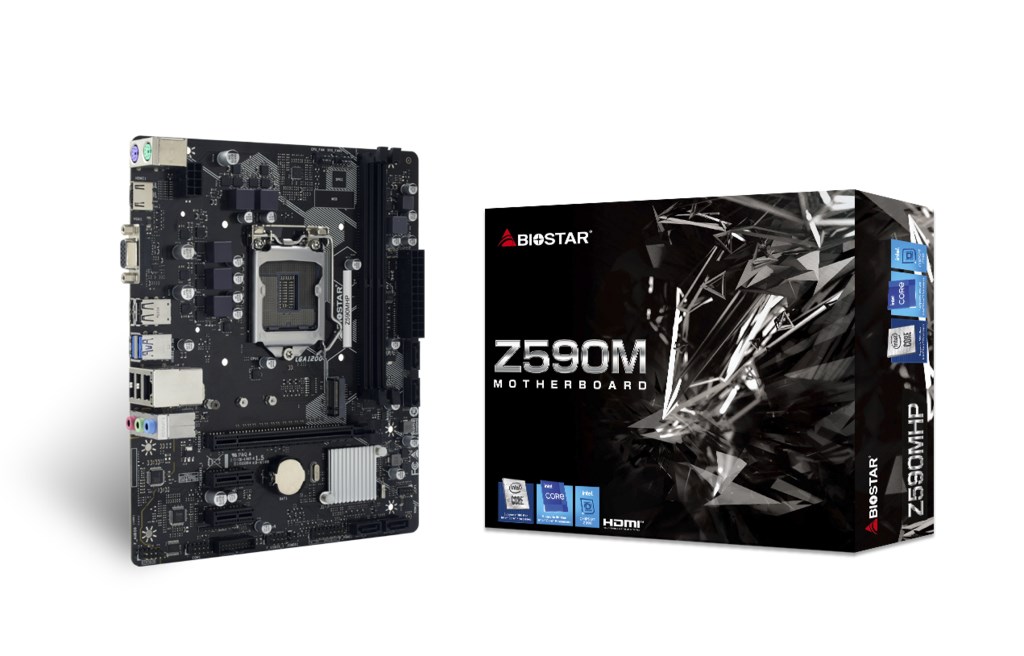

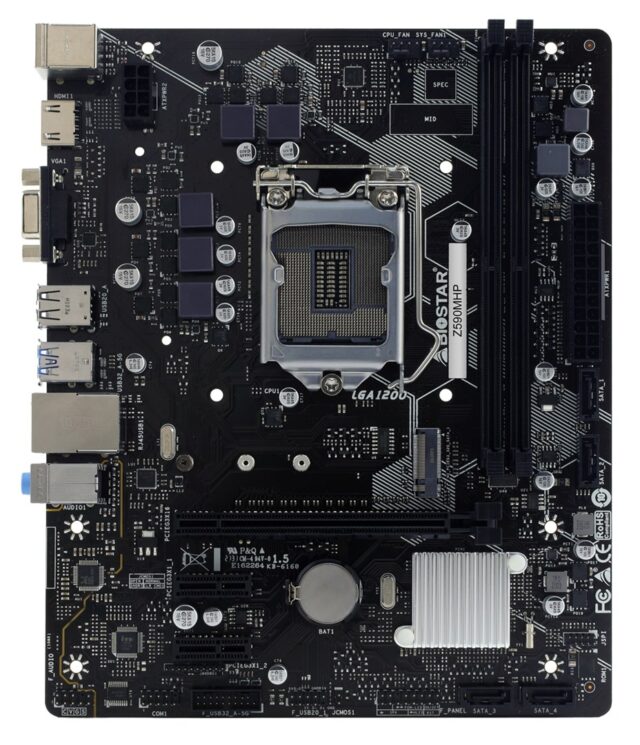

Biostar Z590MHP Intel Z590 LGA 1200 (Socket H5) micro ATX
492,39 lei
Stoc epuizat
Informații suplimentare
| Producator |
Biostar |
|---|---|
| Cod Produs |
Z590MHP |
| Bundled software |
BullGuard |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Supported storage drive types |
HDD & SSD |
| Audio output channels |
7.1 channels |
| Ethernet LAN (RJ-45) ports |
1 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| Power fan connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 2.0 connectors |
1 |
| RAID support |
Yes |
| PC health monitoring |
Voltage, Temperature, CPU, Fan |
| Supported memory clock speeds |
3800, 4000, 3866, 2933, 3600 MHz, 3733, 2133, 3200, 2666, 2400, 2800 |
| Motherboard chipset |
Intel Z590 |
| RAID levels |
5, 1, 10 |
| Maximum internal memory |
64 GB |
| PCI Express x16 (Gen 3.x) slots |
1 |
| LAN controller |
Intel® I219-V |
| USB 2.0 ports quantity |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| ATX Power connector (24-pin) |
Yes |
| ECC сompatibility |
Non-ECC |
| Front panel audio connector |
Yes |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
Intel |
| Audio chip |
Realtek ALC897 |
| DirectX version |
12.0 |
| HDCP |
Yes |
| Width |
185 mm |
| HDMI ports quantity |
1 |
| Processor socket |
LGA 1200 (Socket H5) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| BIOS type |
UEFI |
| PS/2 ports quantity |
2 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Processor manufacturer |
Intel |
| Ethernet LAN |
Yes |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| CPU fan connector |
Yes |
| Front panel connector |
Yes |
| Number of COM connectors |
1 |
| Drivers included |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| HDMI version |
1.4 |
| Number of memory slots |
2 |
| Cables included |
SATA |
| Depth |
226 mm |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Clear CMOS jumper |
Yes |
| Wi-Fi |
No |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
DIMM |
| Number of M.2 (M) slots |
1 |
| Number of chassis fan connectors |
2 |
