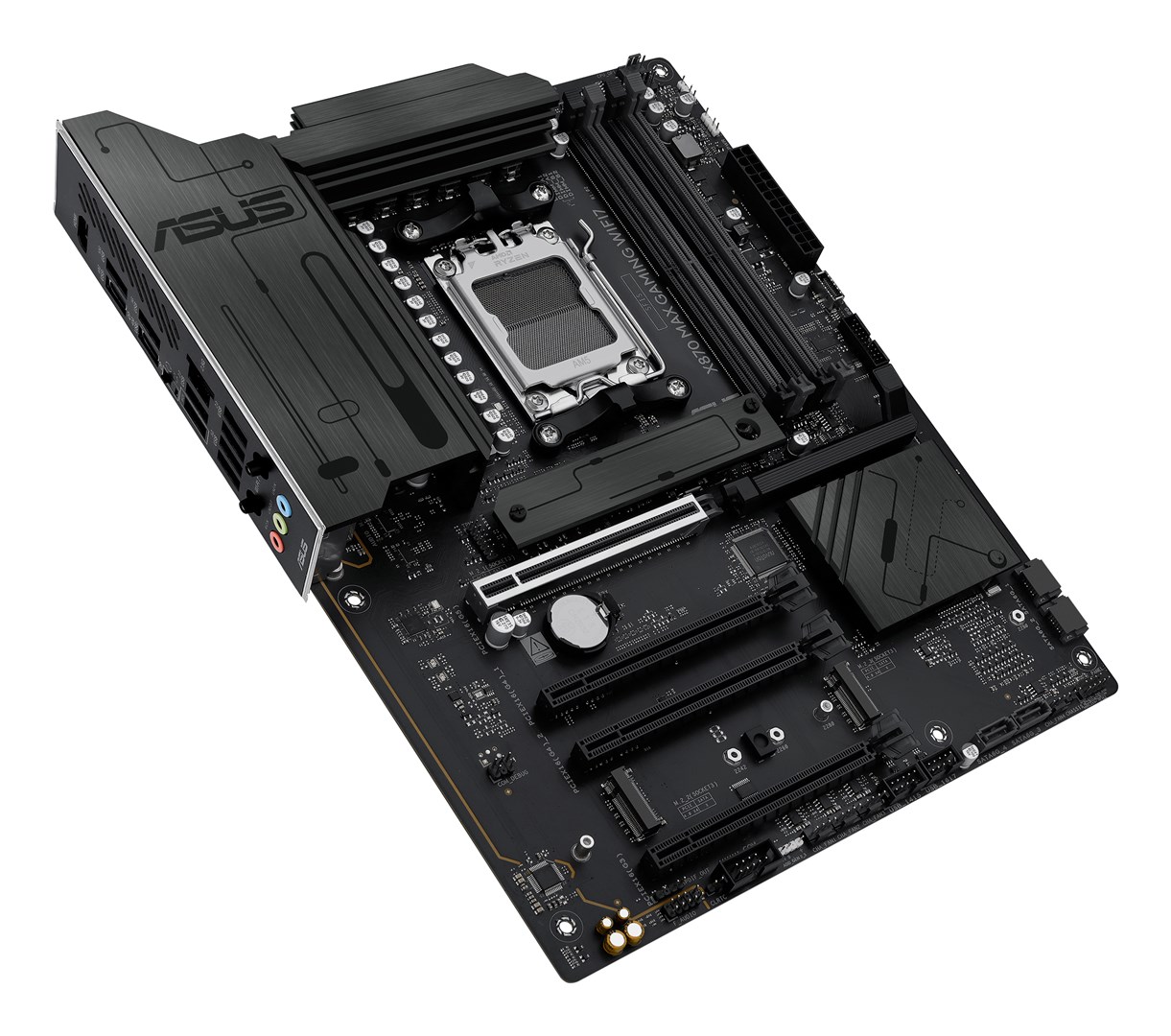

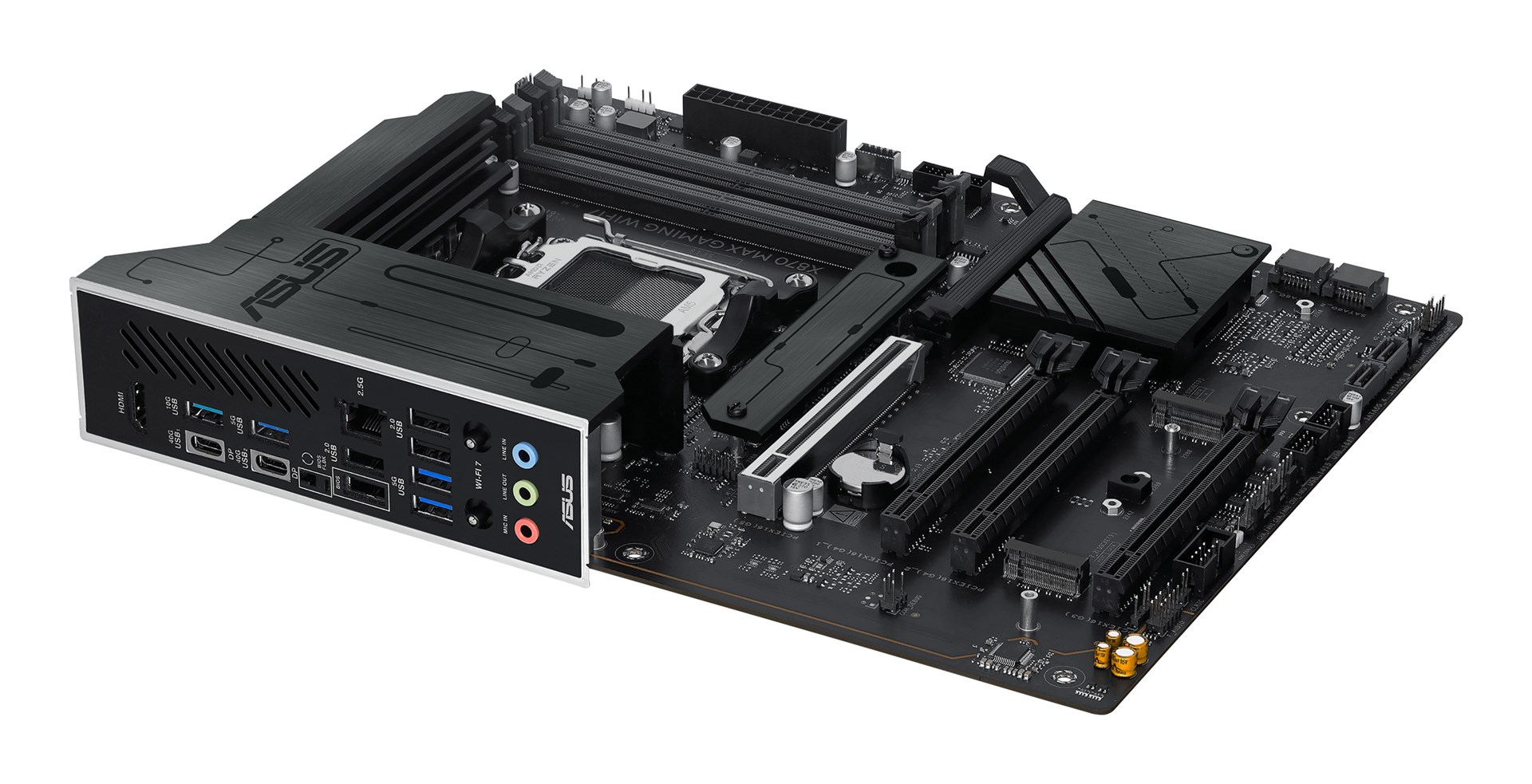

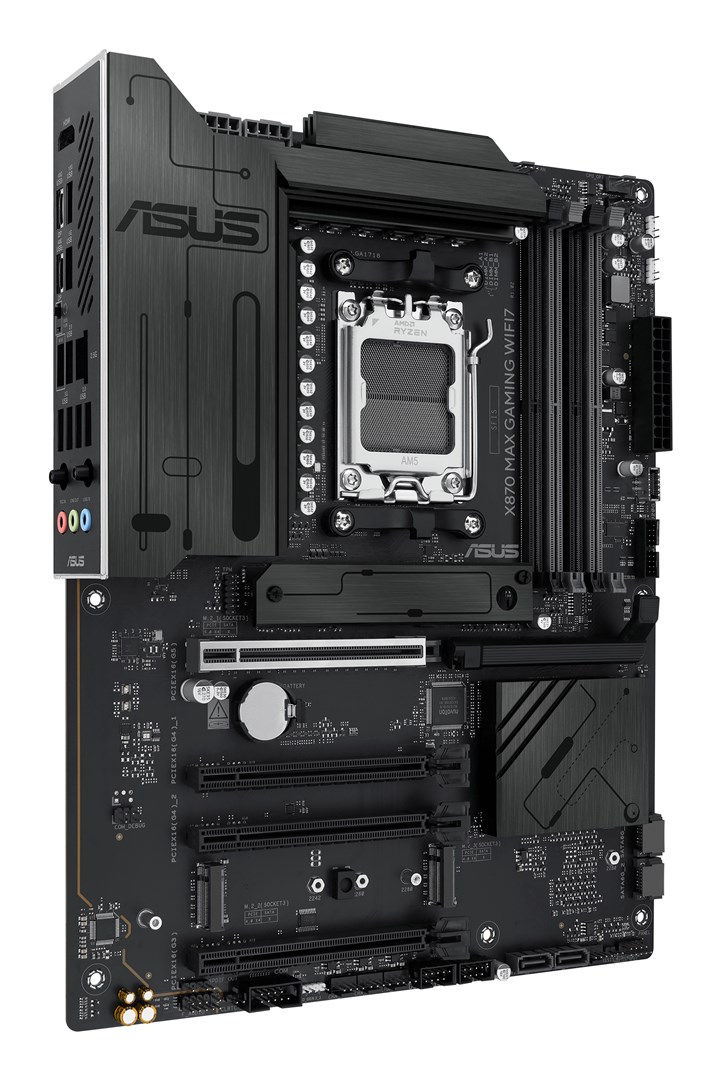

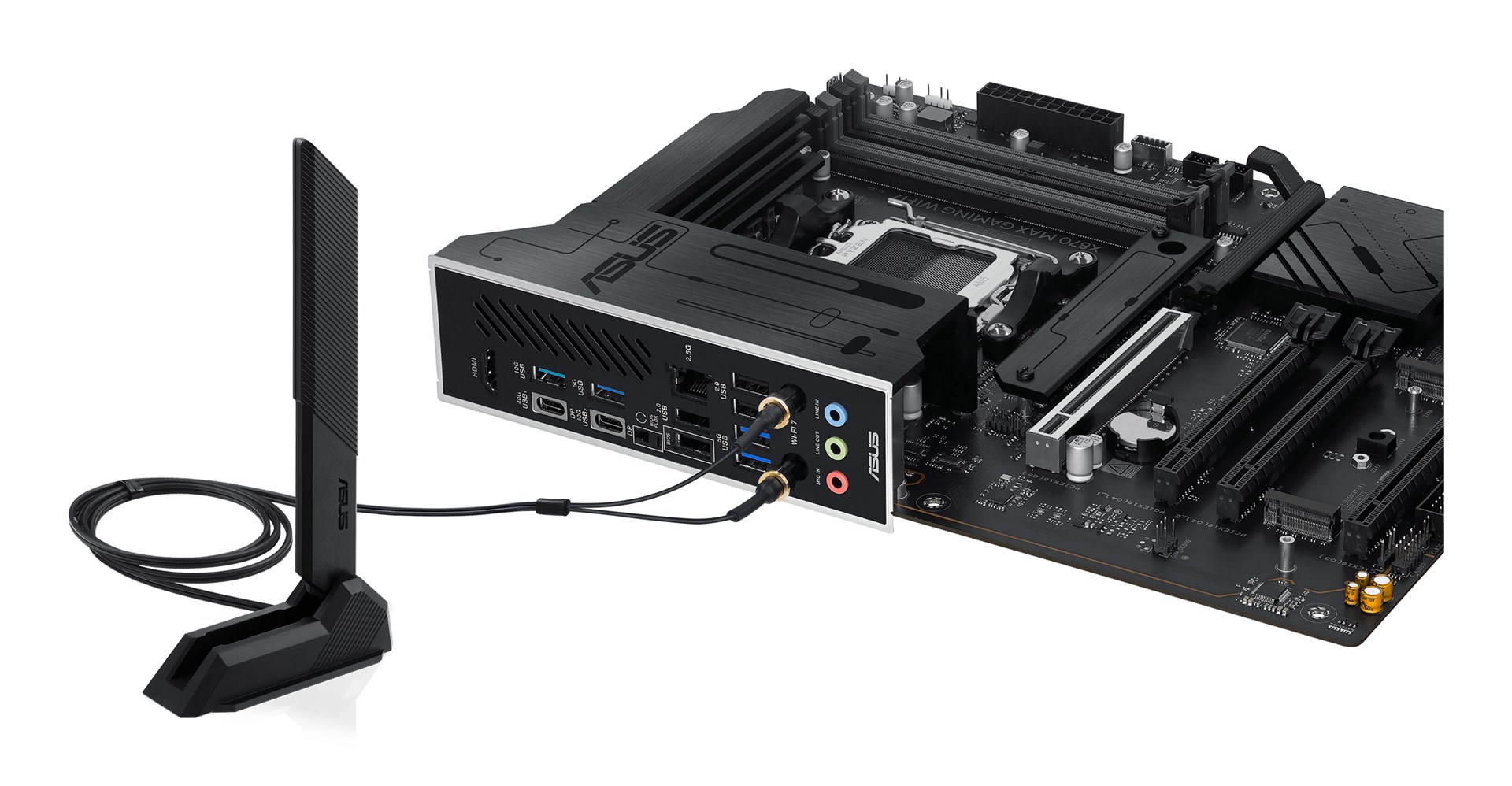

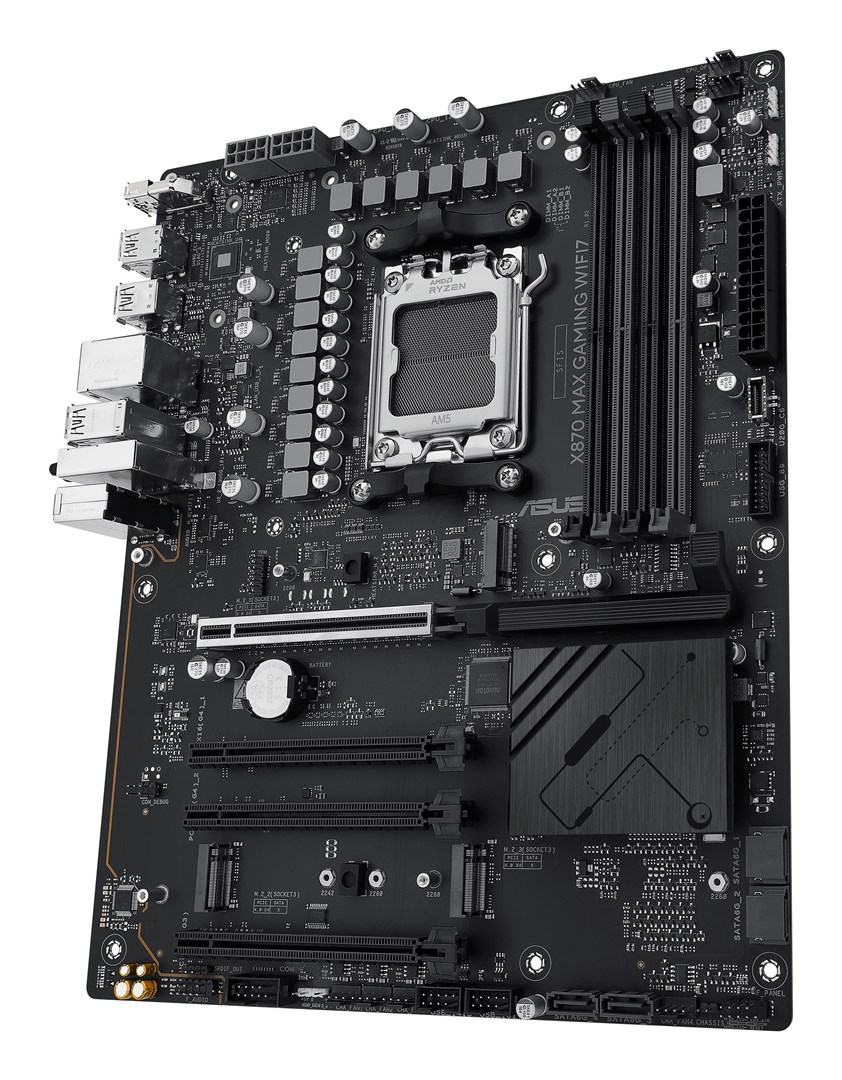

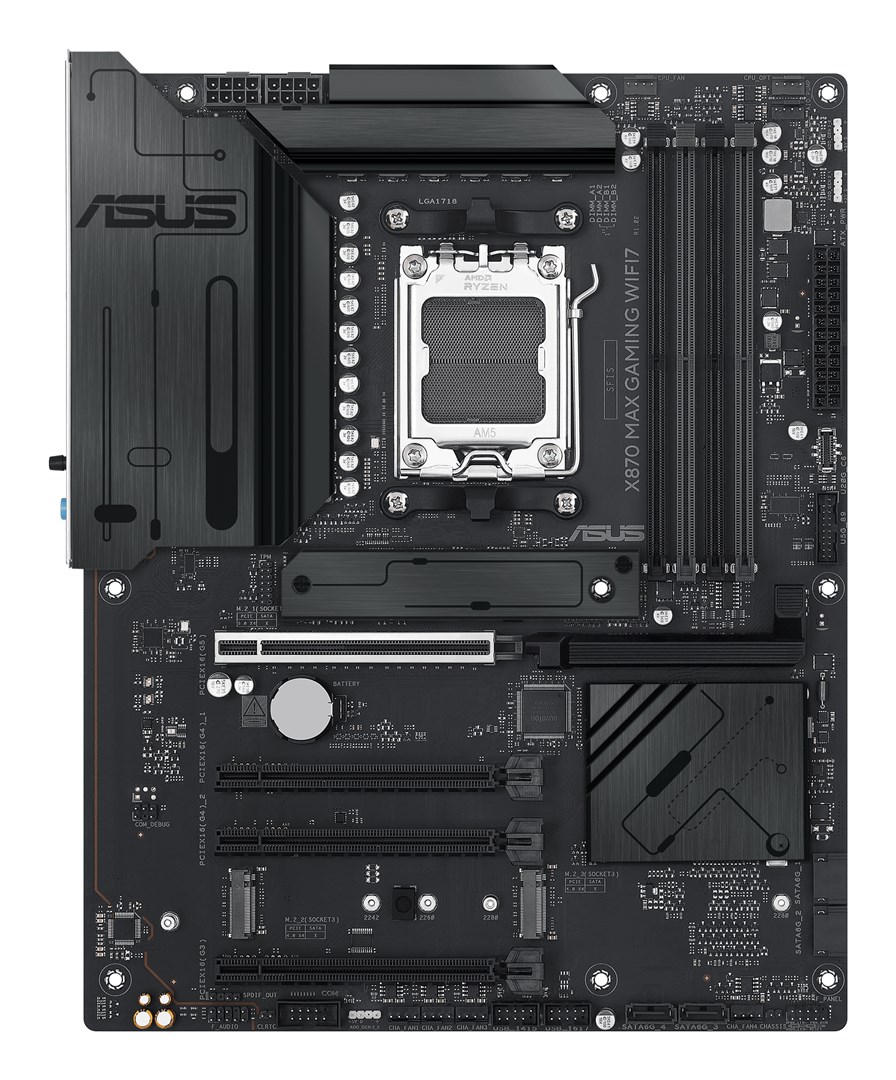

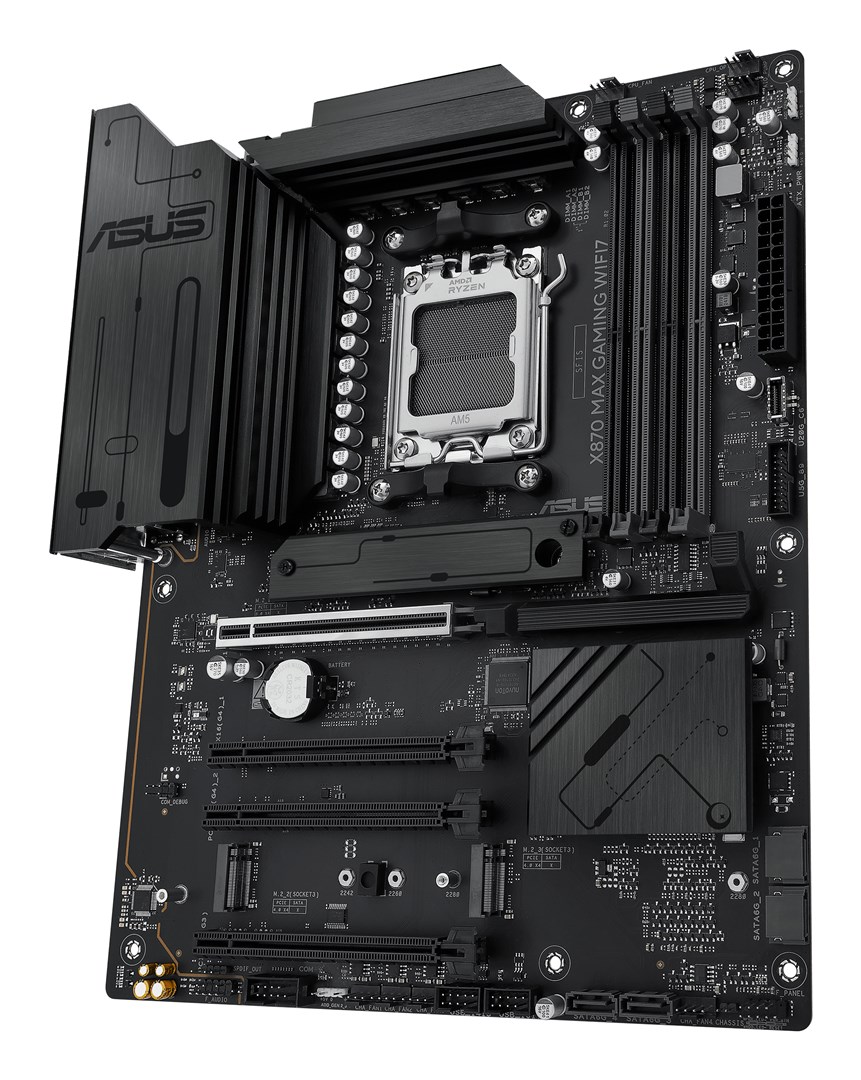

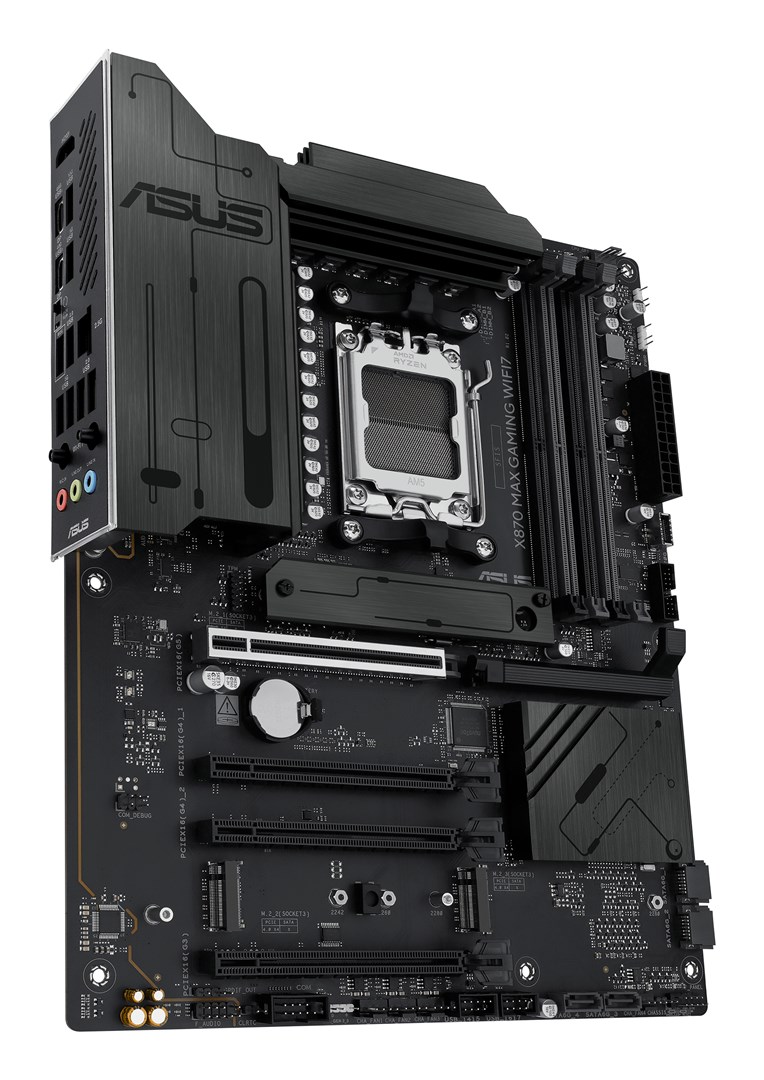

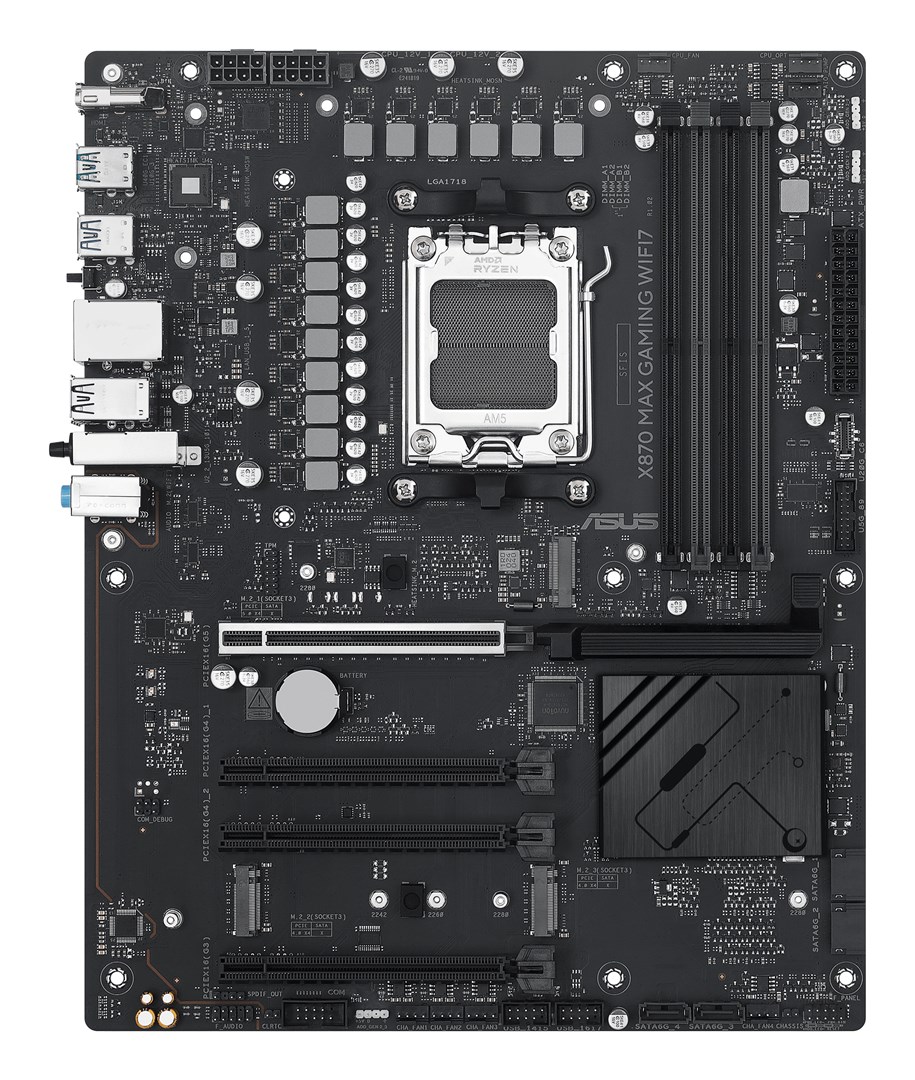

ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX
2.235,21 lei
75 în stoc
Informații suplimentare
| Producator |
ASUS |
|---|---|
| Cod Produs |
90MB1LY0-M0EAY0 |
| USB4 Gen 3x2 ports quantity |
2 |
| 12V power connector |
Yes |
| Bluetooth version |
5.4 |
| PCI Express x16 (Gen 4.x) slots |
2 |
| WiFi-AP antenna jack |
2 |
| Antenna included |
Yes |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD X870 |
| S/PDIF out connector |
Yes |
| Unbuffered memory |
Yes |
| Maximum internal memory |
256 GB |
| Supported storage drive types |
HDD & SSD |
| Bluetooth |
Yes |
| Product colour |
Multicolour |
| Motherboard form factor |
ATX |
| Supported memory types |
DDR5-SDRAM |
| Processor socket |
Socket AM5 |
| TPM connector |
Yes |
| Motherboard chipset family |
AMD |
| Number of chassis fan connectors |
4 |
| USB connector type |
USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of COM connectors |
1 |
| Number of SATA III connectors |
4 |
| Compatible processor series |
AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Parallel processing technology support |
Not supported |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
4 |
| RAID support |
Yes |
| Wi-Fi |
Yes |
| Chassis intrusion connector |
Yes |
| HDMI ports quantity |
1 |
| CPU fan connector |
Yes |
| RAID levels |
1, 5, 10 |
| USB 2.0 connectors |
2 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Processor manufacturer |
AMD |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Microphone in |
Yes |
| BIOS type |
UEFI AMI |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of storage drives supported |
7 |
| Front panel audio connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Windows operating systems supported |
Windows 11 |
| Width |
305 mm |
| Number of HDDs supported |
4 |
| Memory slots type |
DIMM |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Supported storage drive interfaces |
M.2, SATA III |
| Depth |
244 mm |
| Ethernet LAN |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Number of M.2 (M) slots |
3 |
| Line-in |
Yes |
| Number of memory slots |
4 |
| ATX Power connector (24-pin) |
Yes |
| USB 3.2 Gen 2x2 connectors |
1 |
| ECC сompatibility |
ECC & Non-ECC |
| Number of CPU fan connectors |
1 |
| Supported memory clock speed (max) |
8000 MHz |
