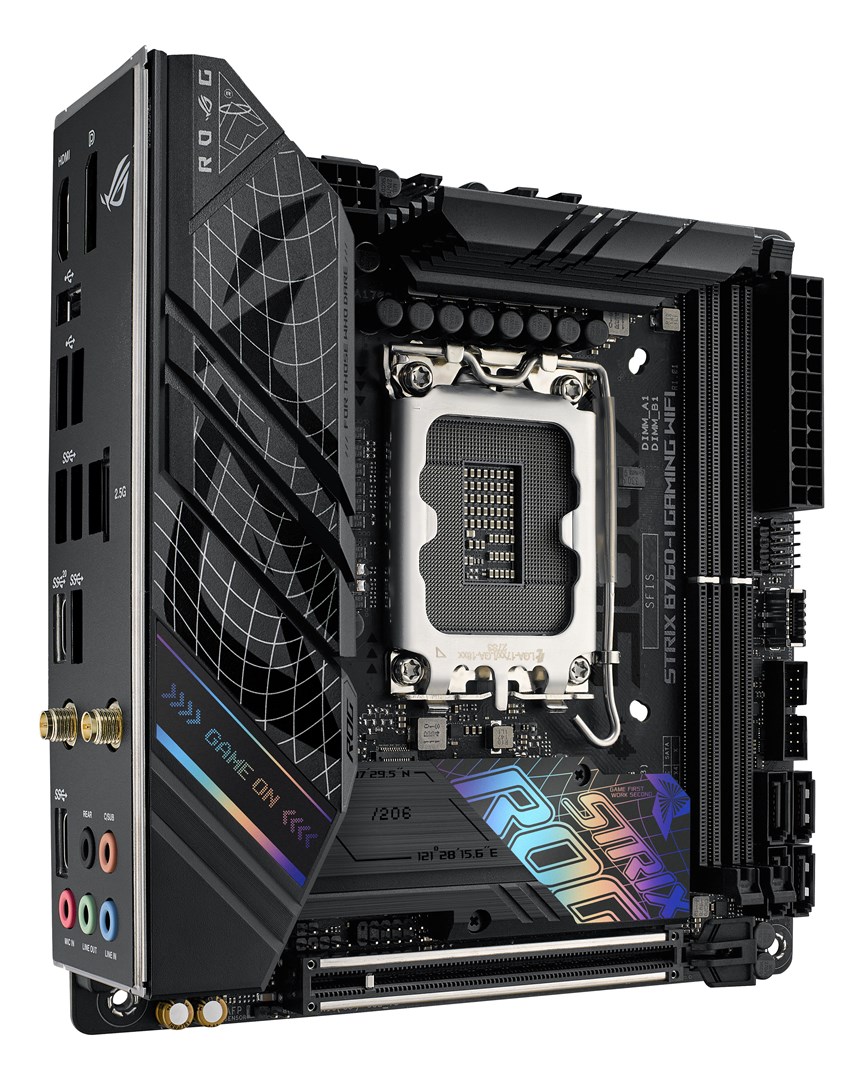

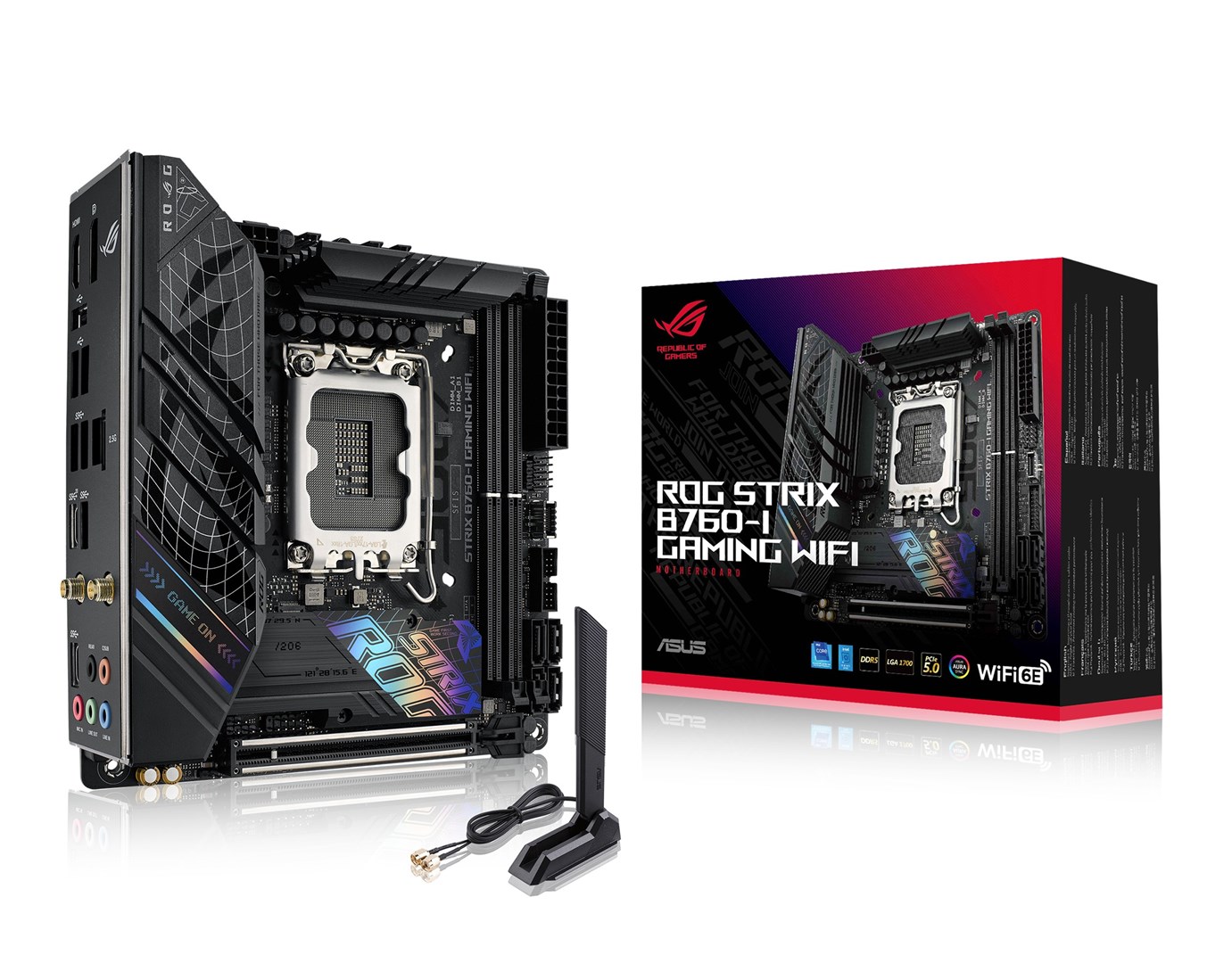

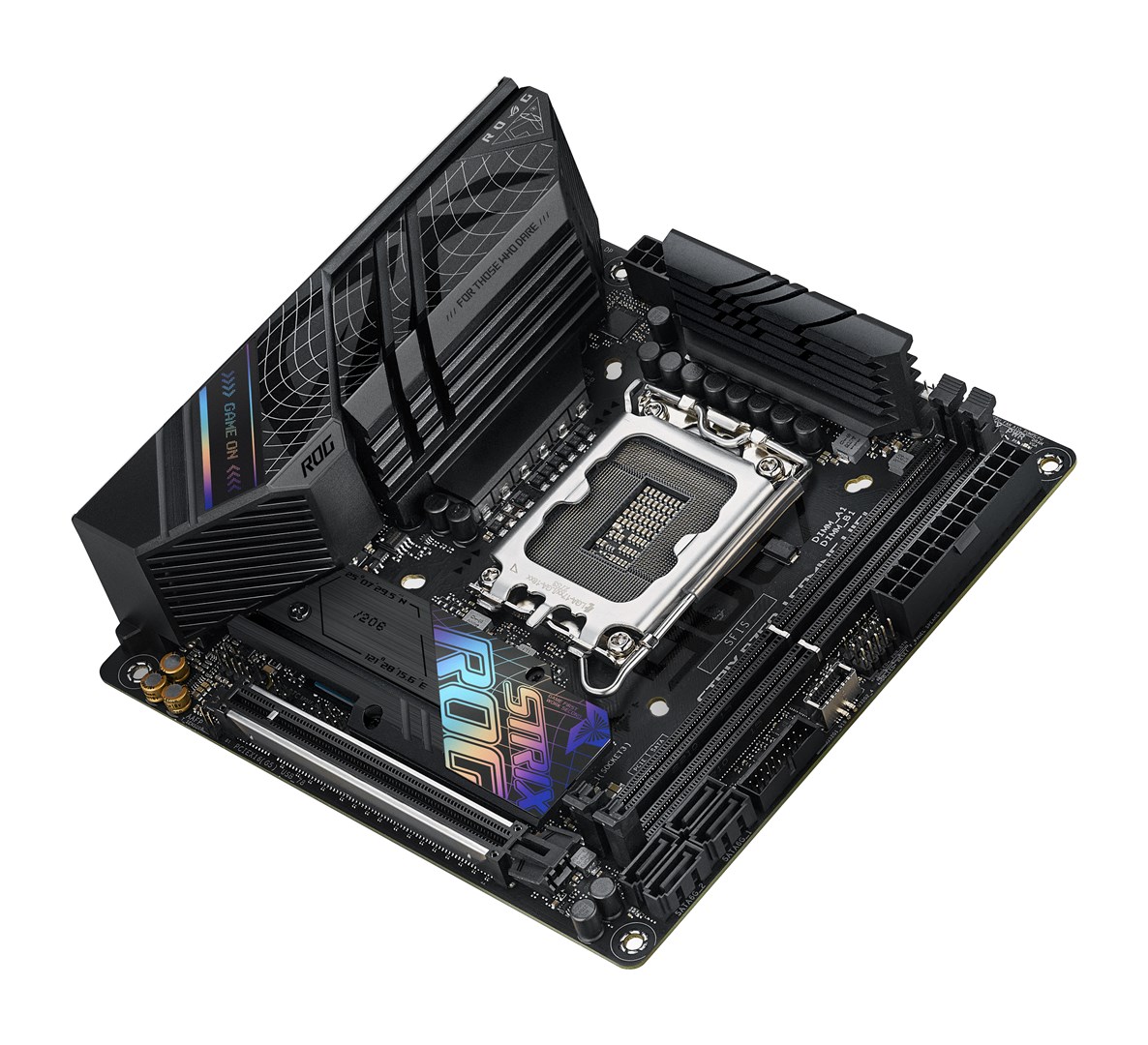

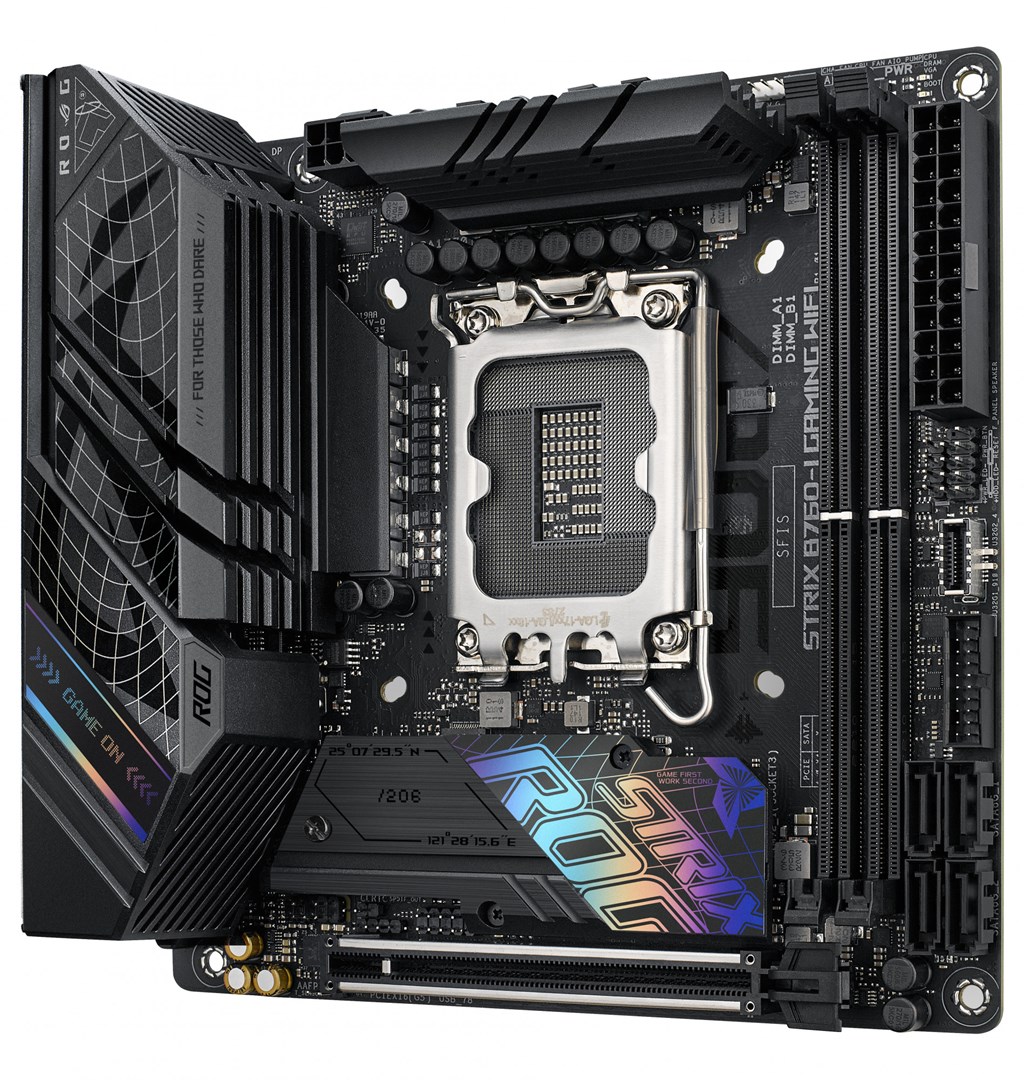

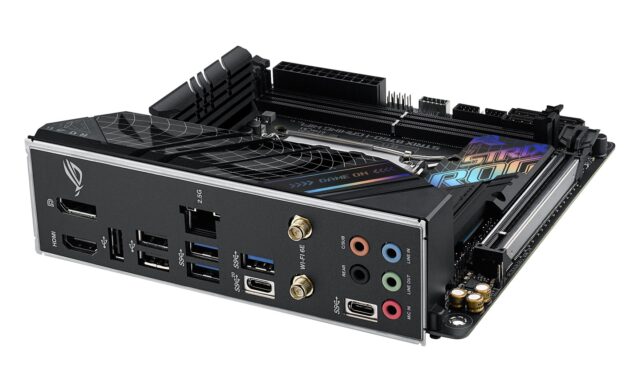

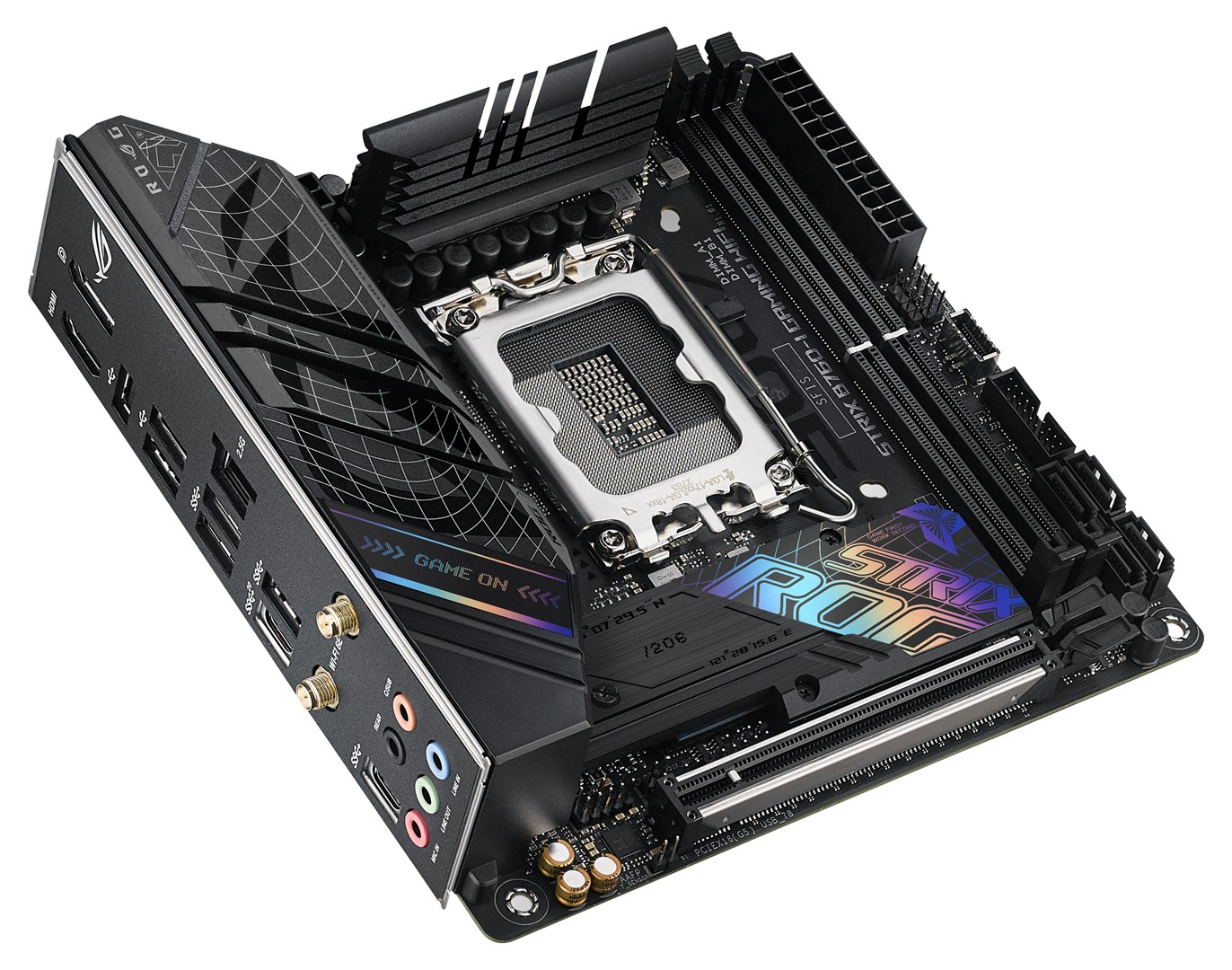

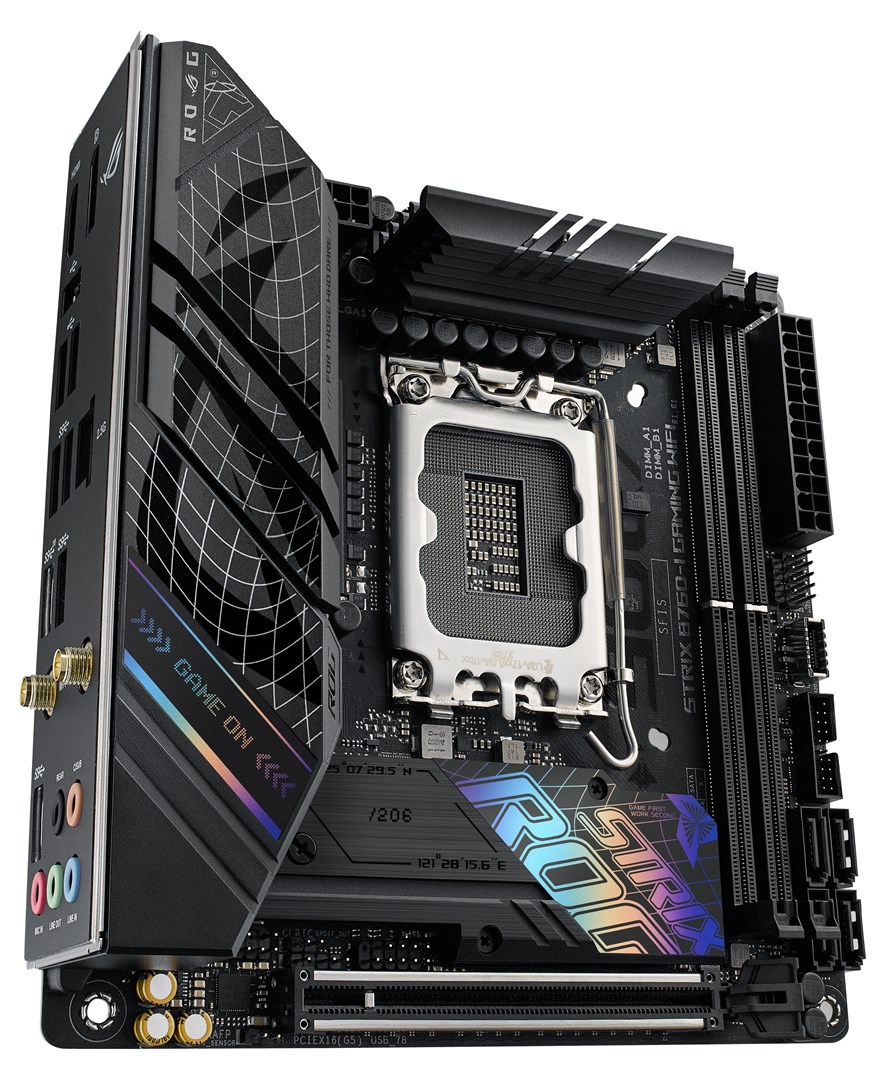

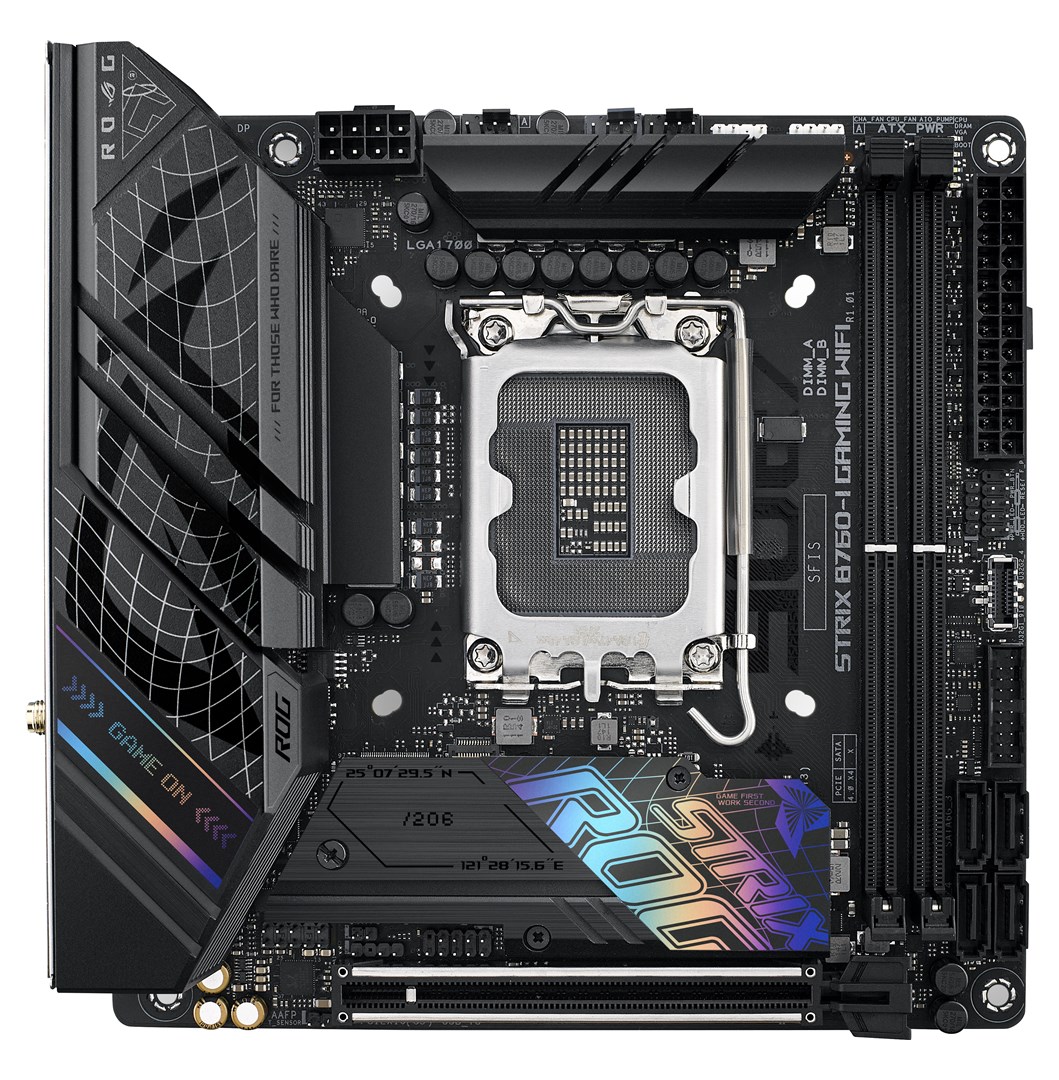

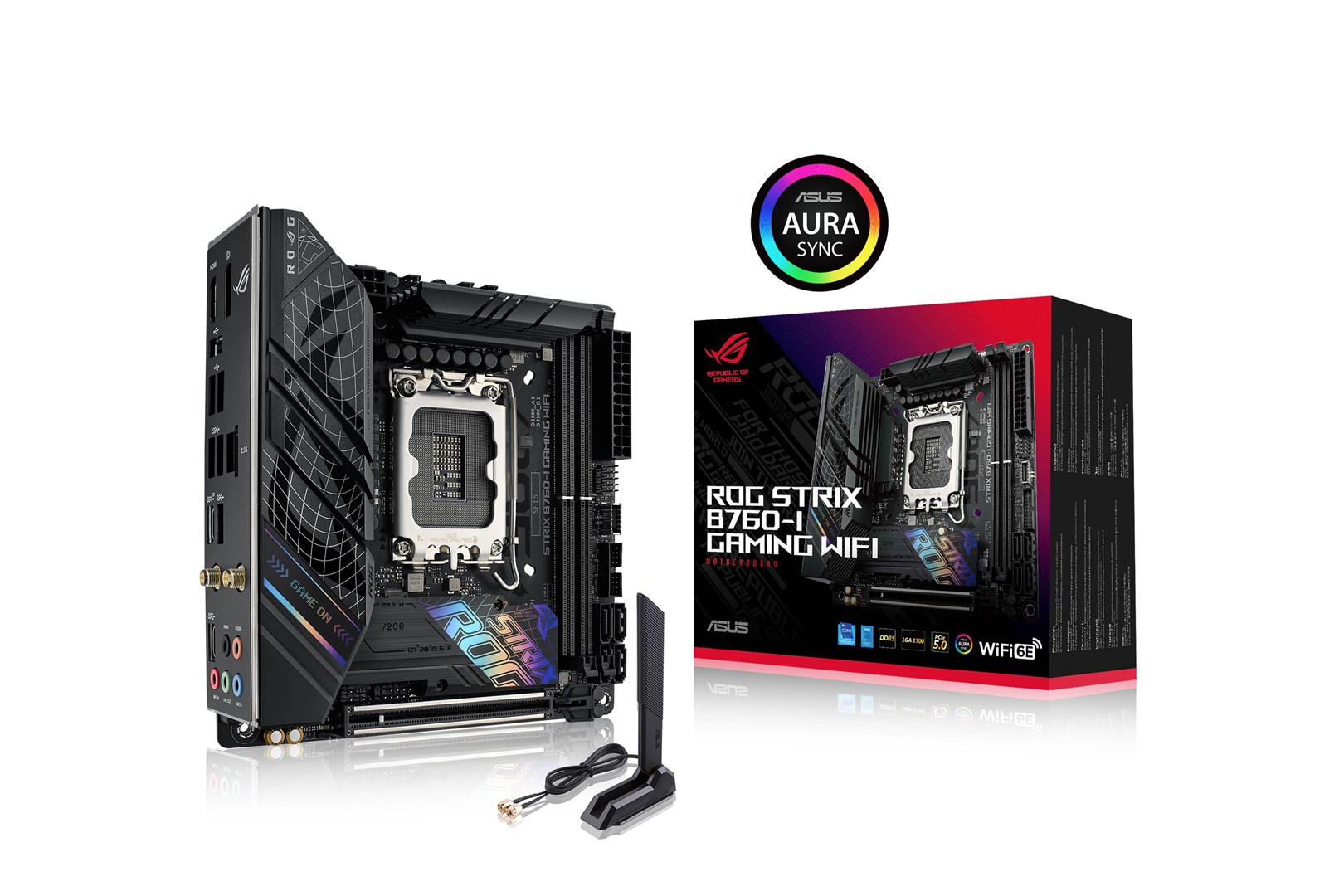

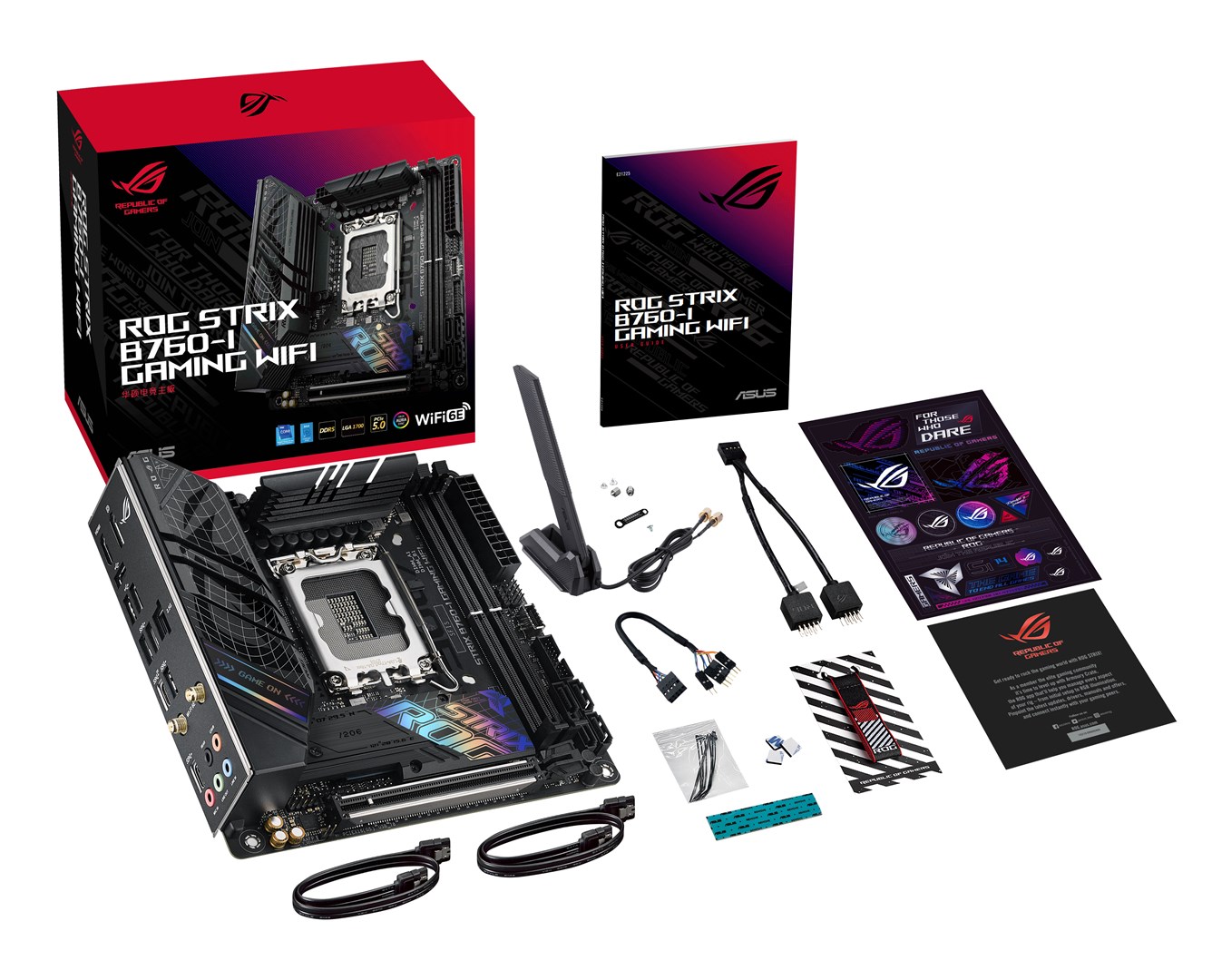

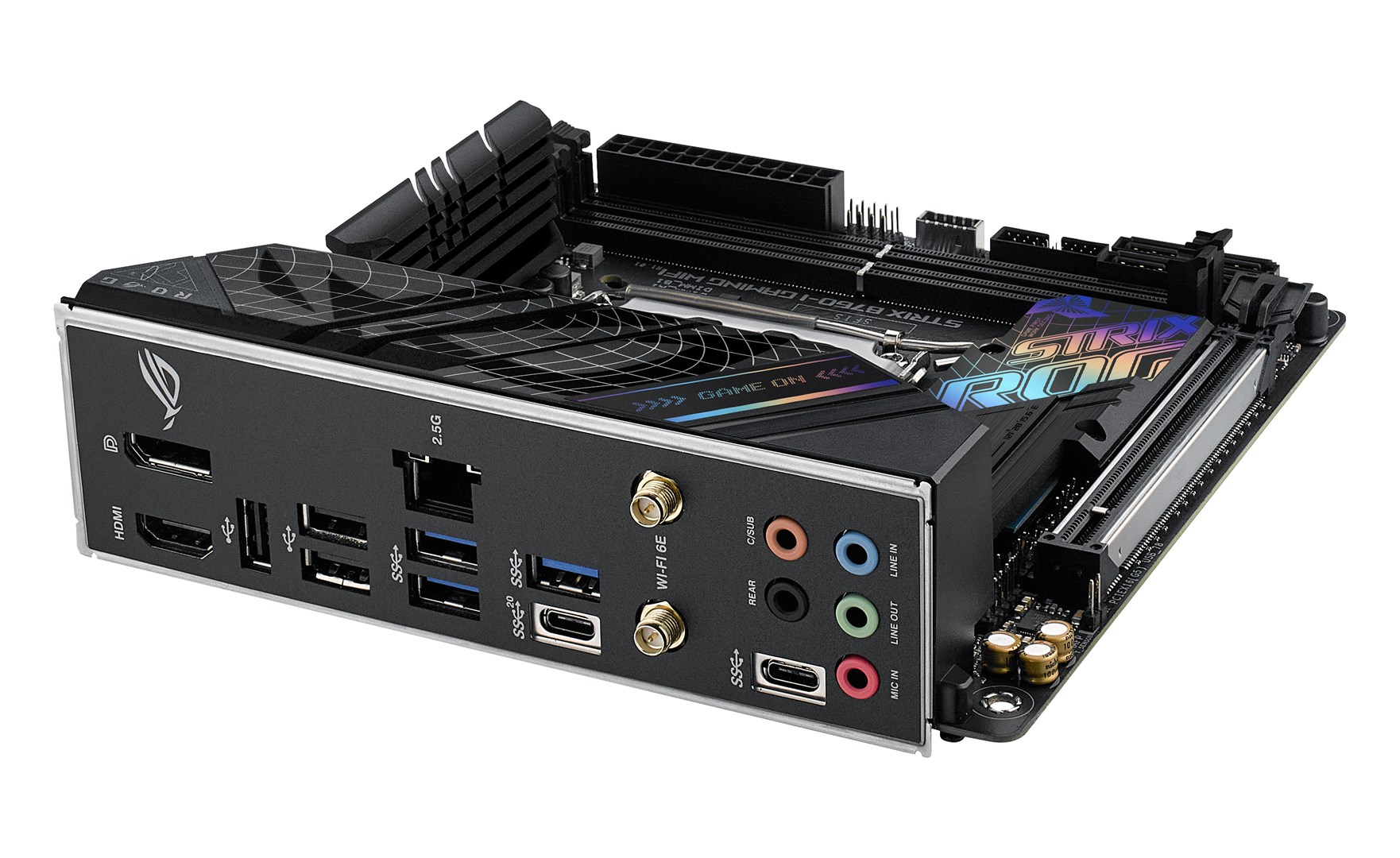

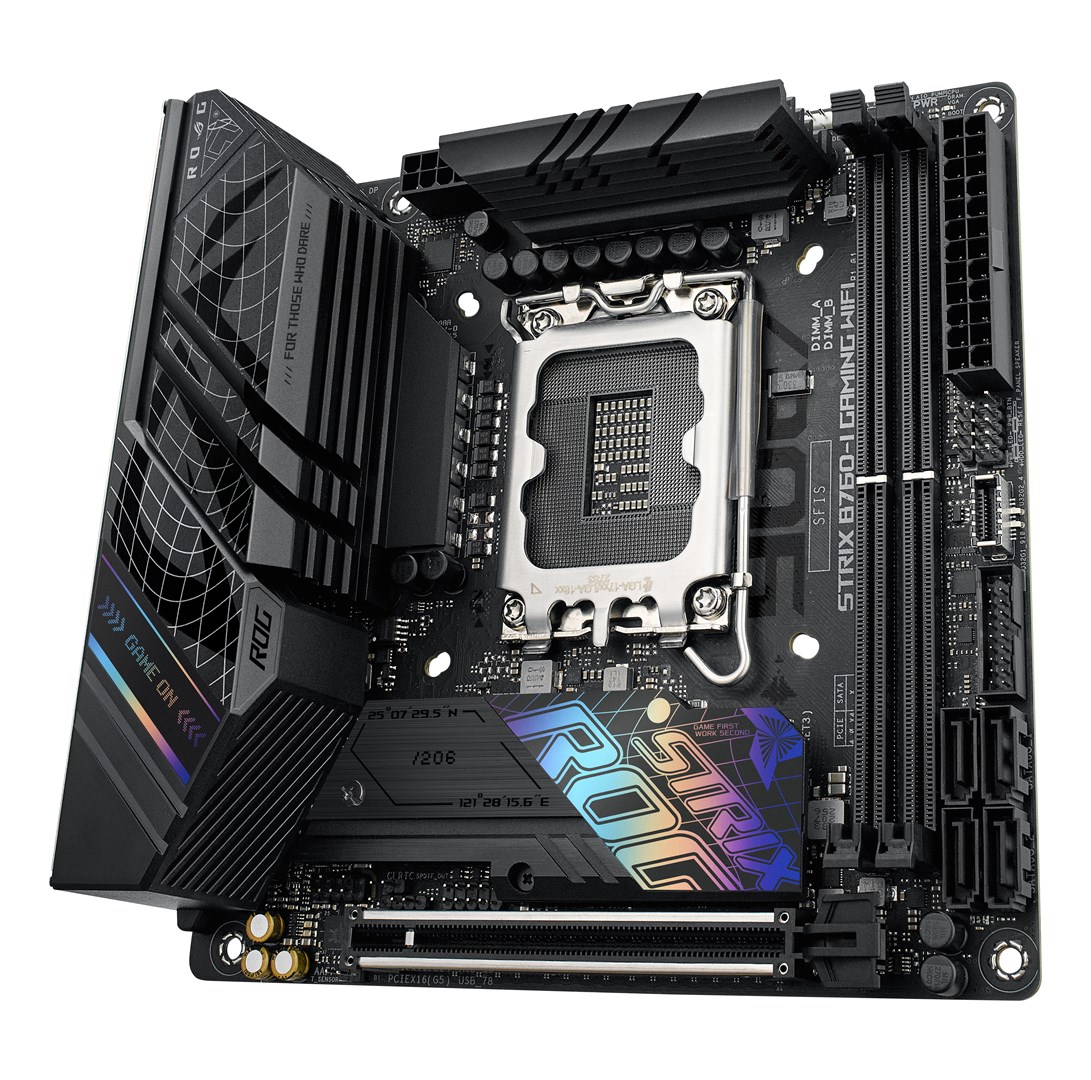

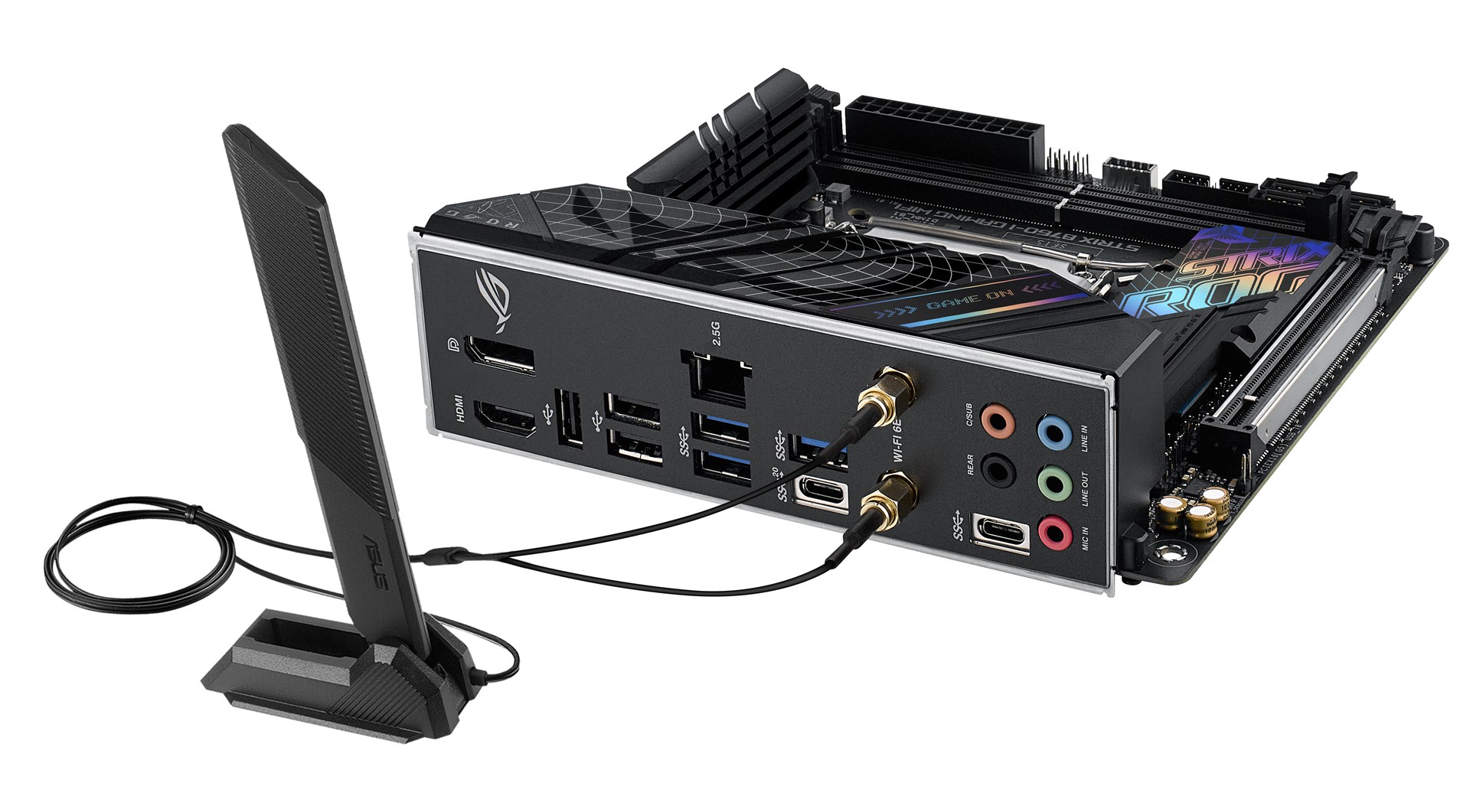

ASUS ROG STRIX B760-I GAMING WIFI Intel B760 LGA 1700 mini ITX
1.626,21 lei
2 în stoc
Informații suplimentare
| Producator |
ASUS |
|---|---|
| Cod Produs |
90MB1D90-M1EAY0 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Supported memory clock speed (max) |
7600 MHz |
| Headphone outputs |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Supported memory types |
DDR5-SDRAM |
| Number of HDDs supported |
4 |
| RGB LED pin header |
Yes |
| Height |
50 mm |
| Line-in |
Yes |
| Memory slots type |
DIMM |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Bluetooth version |
5.3 |
| 12V power connector |
Yes |
| Number of memory slots |
2 |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax) |
| Maximum number of SMP processors |
1 |
| RAID levels |
5, 10, 1 |
| Microphone in |
Yes |
| Processor socket |
LGA 1700 |
| Package width |
226 mm |
| Number of storage drives supported |
6 |
| BIOS type |
UEFI AMI |
| Wi-Fi |
Yes |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron® |
| Processor manufacturer |
Intel |
| Supported processor sockets |
LGA 1700 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Package depth |
94 mm |
| User guide |
Yes |
| Cables included |
SATA |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| Number of chassis fan connectors |
1 |
| Depth |
170 mm |
| Width |
170 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| Windows operating systems supported |
Windows 11 x64, Windows 10 x64 |
| Number of M.2 (M) slots |
2 |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Package weight |
1.28 kg |
| Package height |
185 mm |
| USB 2.0 ports quantity |
3 |
| Ethernet LAN |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Weight |
644 g |
| Supported memory clock speeds |
6200, 4800, 5000, 6600, 6000, 5600, 7200, 5800, 5400, 6400, 5200, 7600 MHz, 7000, 6800 |
| RAID support |
Yes |
| Maximum internal memory |
64 GB |
| Supported storage drive types |
HDD & SSD |
| USB 2.0 connectors |
1 |
| DisplayPorts quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Motherboard form factor |
mini ITX |
| Parallel processing technology support |
Not supported |
| Audio output channels |
7.1 channels |
| Bluetooth |
Yes |
| Unbuffered memory |
Yes |
| ECC сompatibility |
Non-ECC |
| Motherboard chipset |
Intel B760 |
| Number of SATA III connectors |
4 |
| Audio chip |
SupremeFX S1220A |
| Motherboard chipset family |
Intel |
| Supported storage drive interfaces |
M.2, SATA III |
