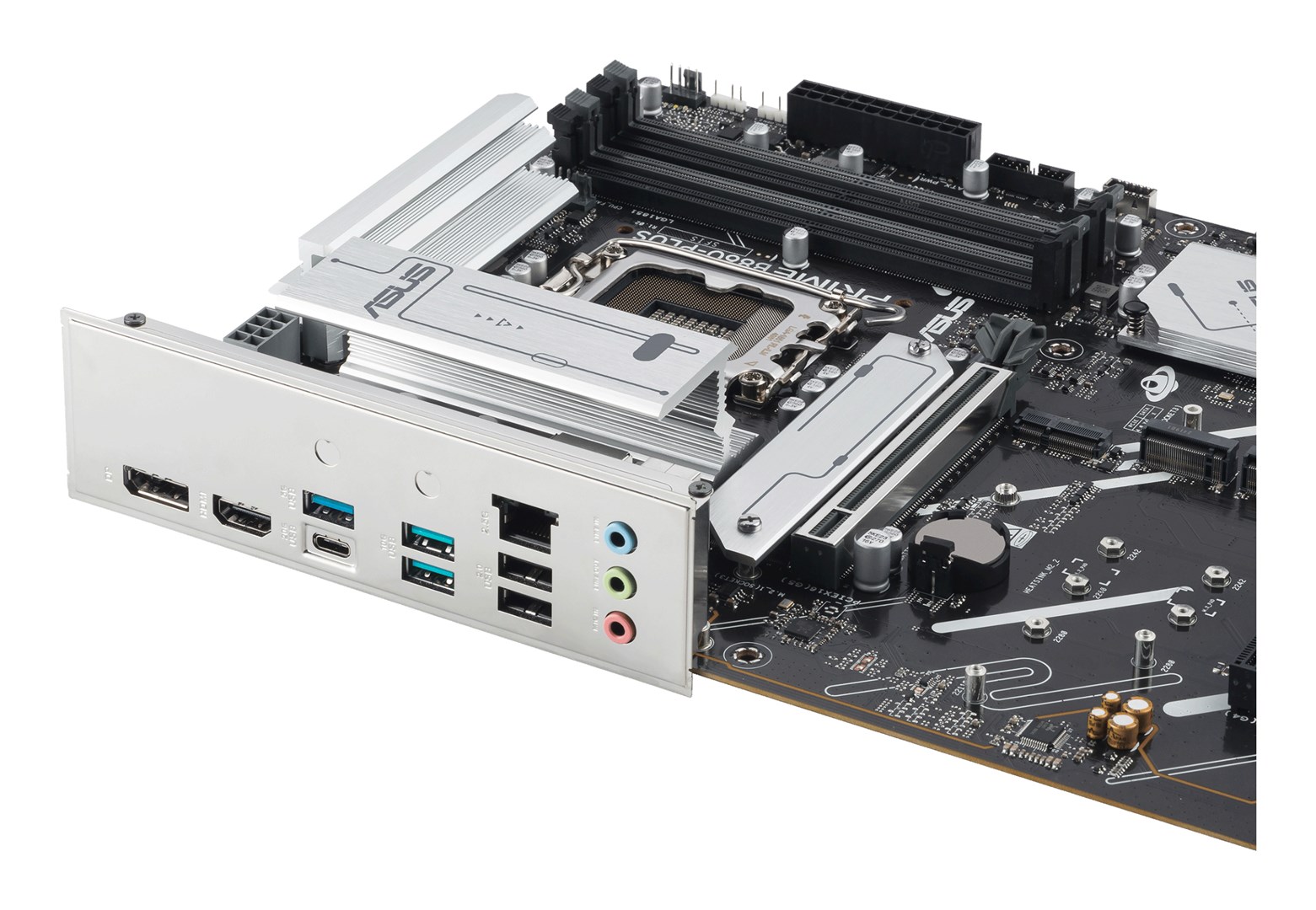

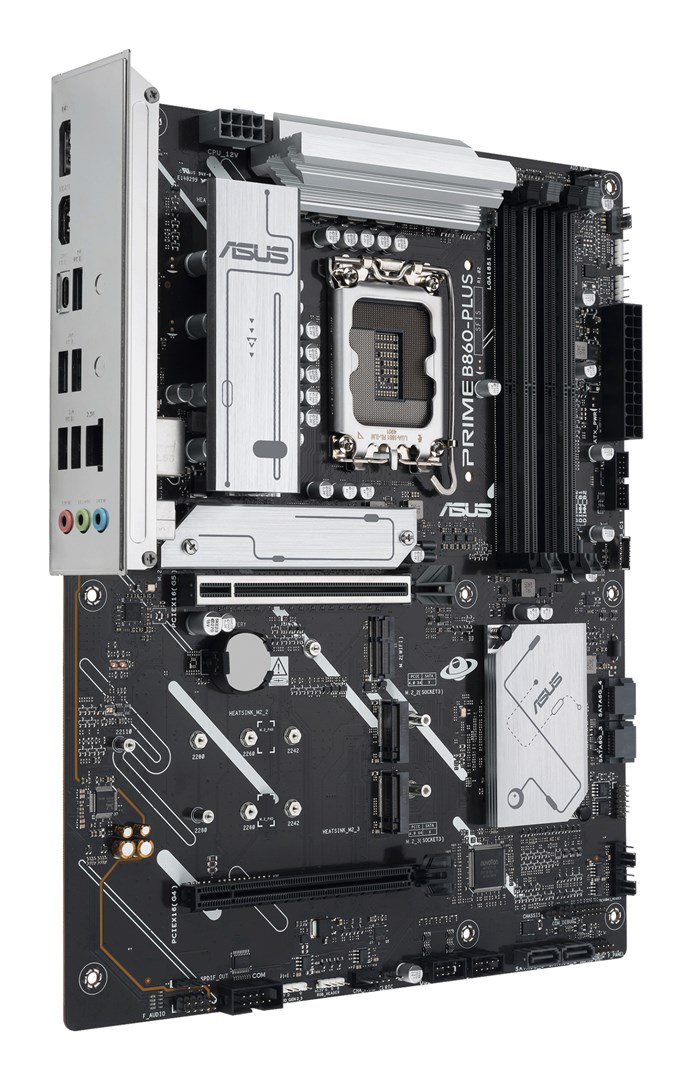

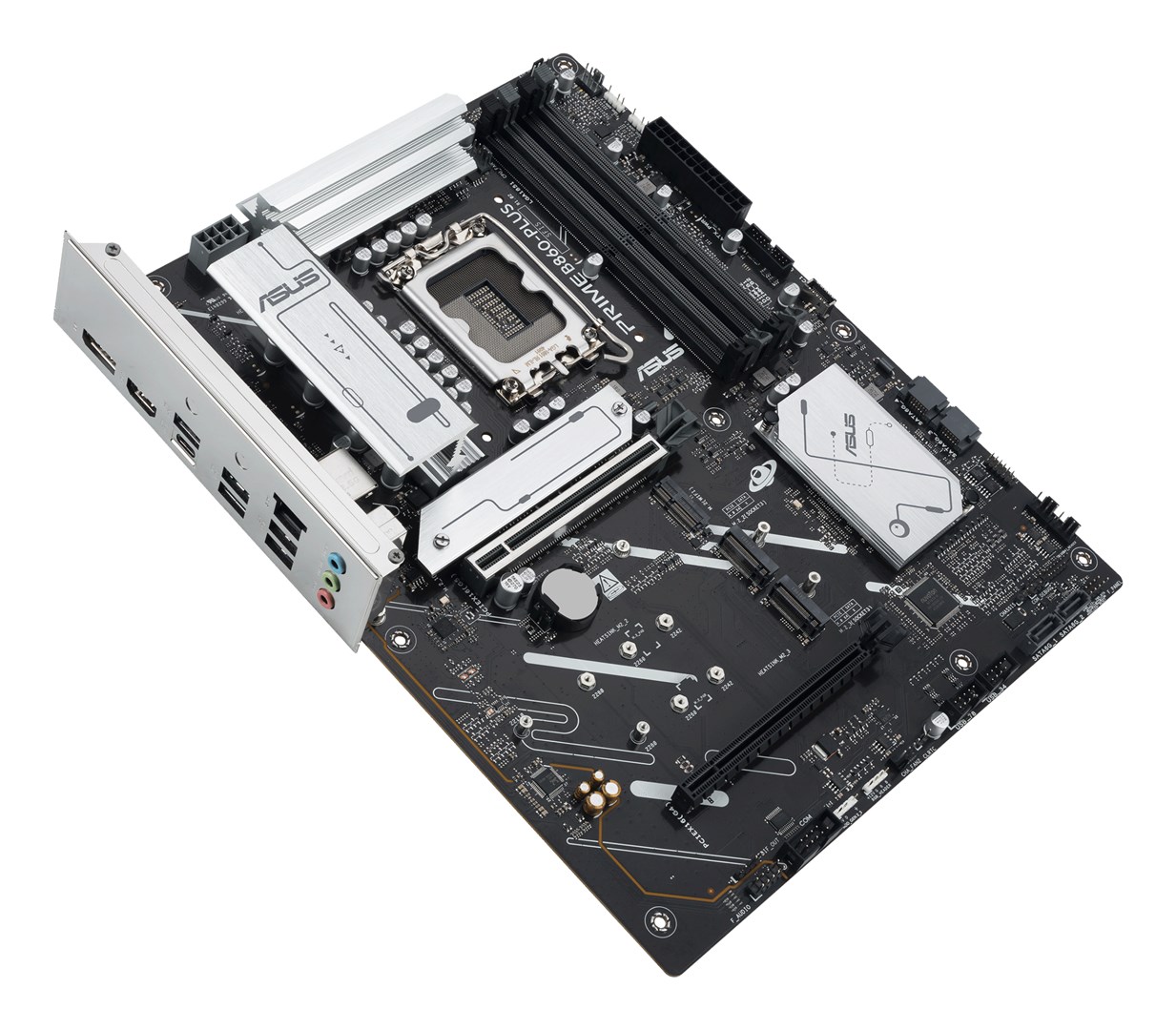

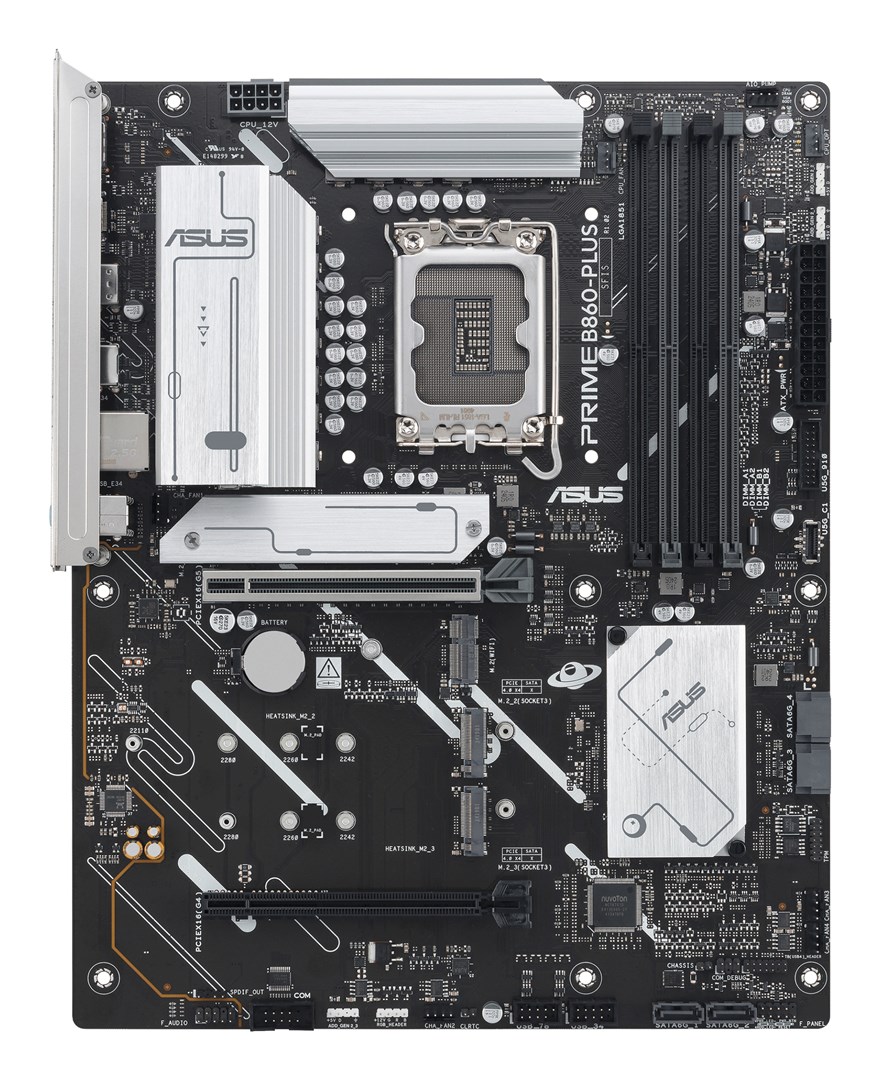

ASUS PRIME B860-PLUS-CSM Intel B860 LGA 1851 (Socket V1) ATX
1.555,44 lei
7 în stoc
Informații suplimentare
| Producator |
ASUS |
|---|---|
| Cod Produs |
90MB1KA0-M0EAYC |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Line-in |
Yes |
| ECC сompatibility |
Non-ECC |
| PCI Express x16 (Gen 4.x) slots |
1 |
| RGB LED pin header |
Yes |
| Number of CPU fan connectors |
1 |
| Supported memory clock speed (max) |
8666 MHz |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| 12V power connector |
Yes |
| Number of audio jack connectors |
3 |
| Ethernet LAN |
Yes |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Front panel audio connector |
Yes |
| Thunderbolt headers |
1 |
| RAID levels |
1, 10, 5 |
| S/PDIF out connector |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Windows operating systems supported |
Windows 11, Windows 10 x64 |
| Motherboard chipset |
Intel B860 |
| Audio output channels |
7.1 channels |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of COM connectors |
1 |
| Processor socket |
LGA 1851 (Socket V1) |
| Parallel processing technology support |
Not supported |
| Supported storage drive interfaces |
M.2, Serial ATA |
| Number of M.2 (M) slots |
3 |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Processor manufacturer |
Intel |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 ports quantity |
2 |
| Memory slots type |
DIMM |
| Motherboard form factor |
ATX |
| Supported memory types |
DDR5-SDRAM |
| Product colour |
Multicolour |
| TPM connector |
Yes |
| CPU fan connector |
Yes |
| RAID support |
Yes |
| Wi-Fi |
No |
| Motherboard chipset family |
Intel |
| Depth |
244 mm |
| Unbuffered memory |
Yes |
| USB 2.0 connectors |
2 |
| Width |
305 mm |
| Chassis intrusion connector |
Yes |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| DisplayPorts quantity |
1 |
| BIOS type |
UEFI AMI |
| Number of memory slots |
4 |
| Number of chassis fan connectors |
4 |
| Maximum internal memory |
256 GB |
| ATX Power connector (24-pin) |
Yes |
