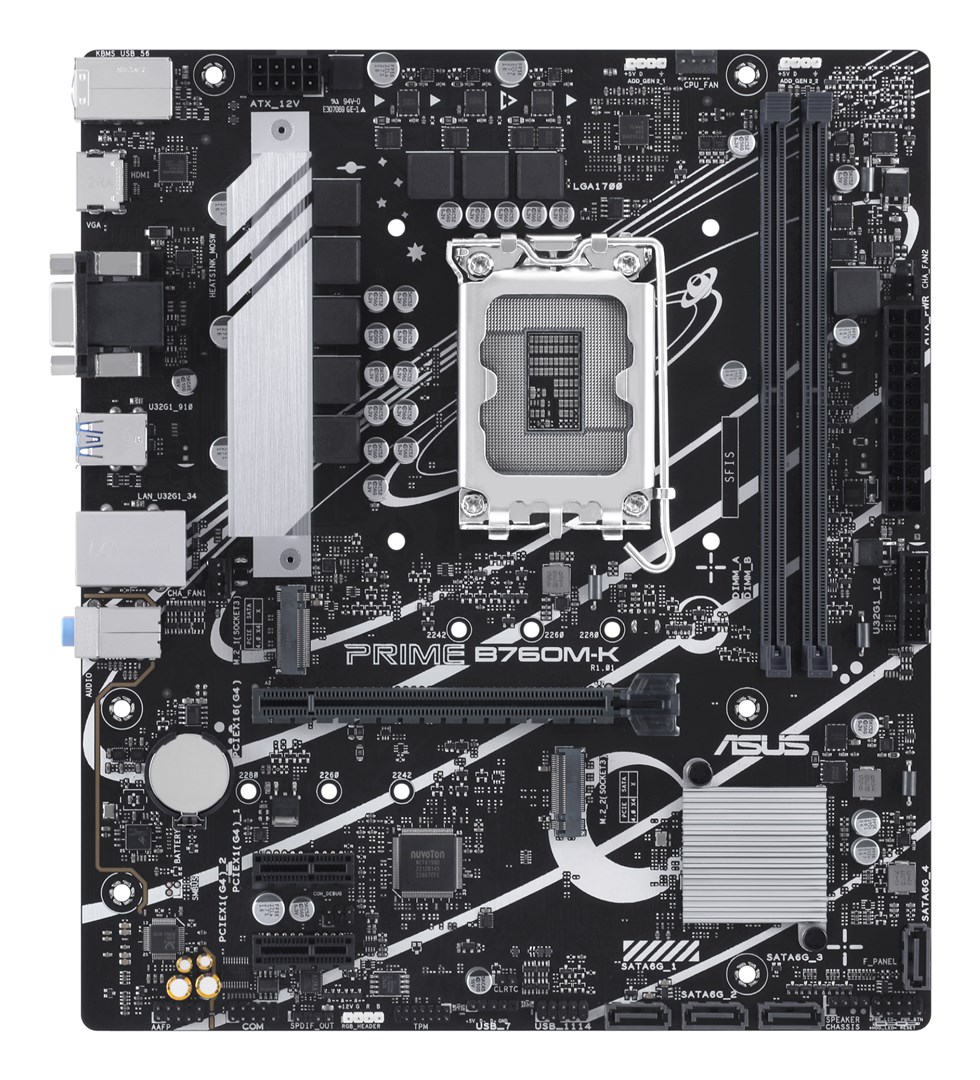

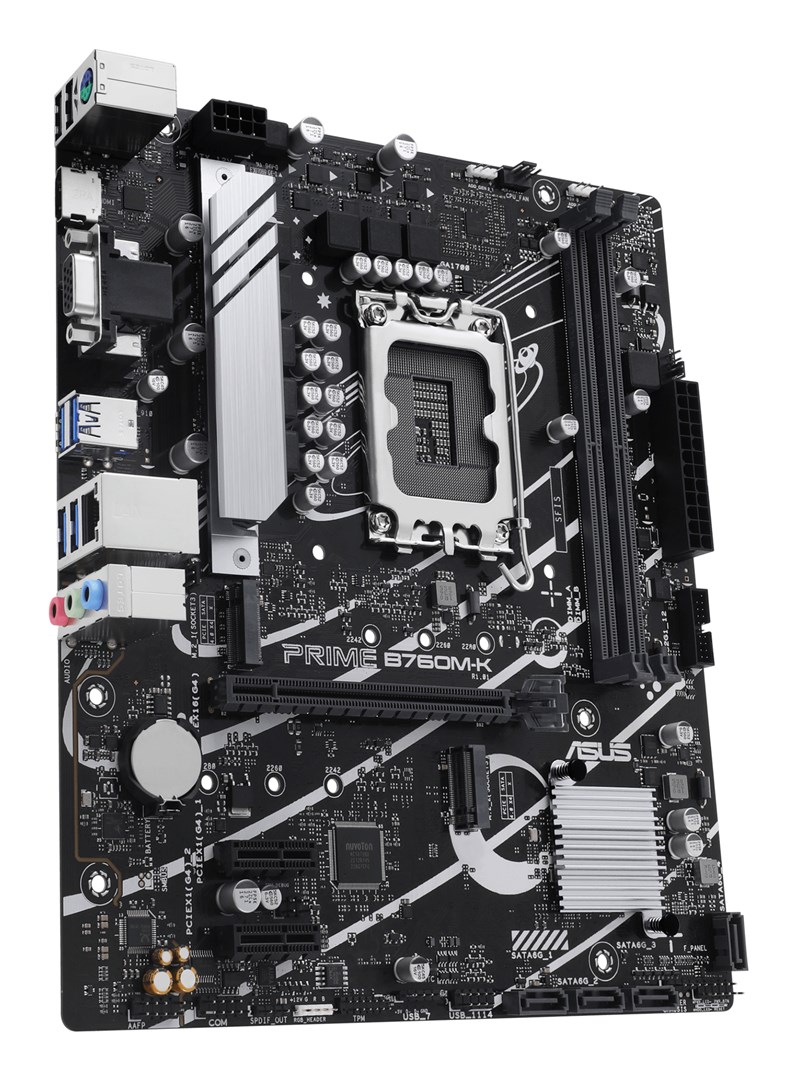

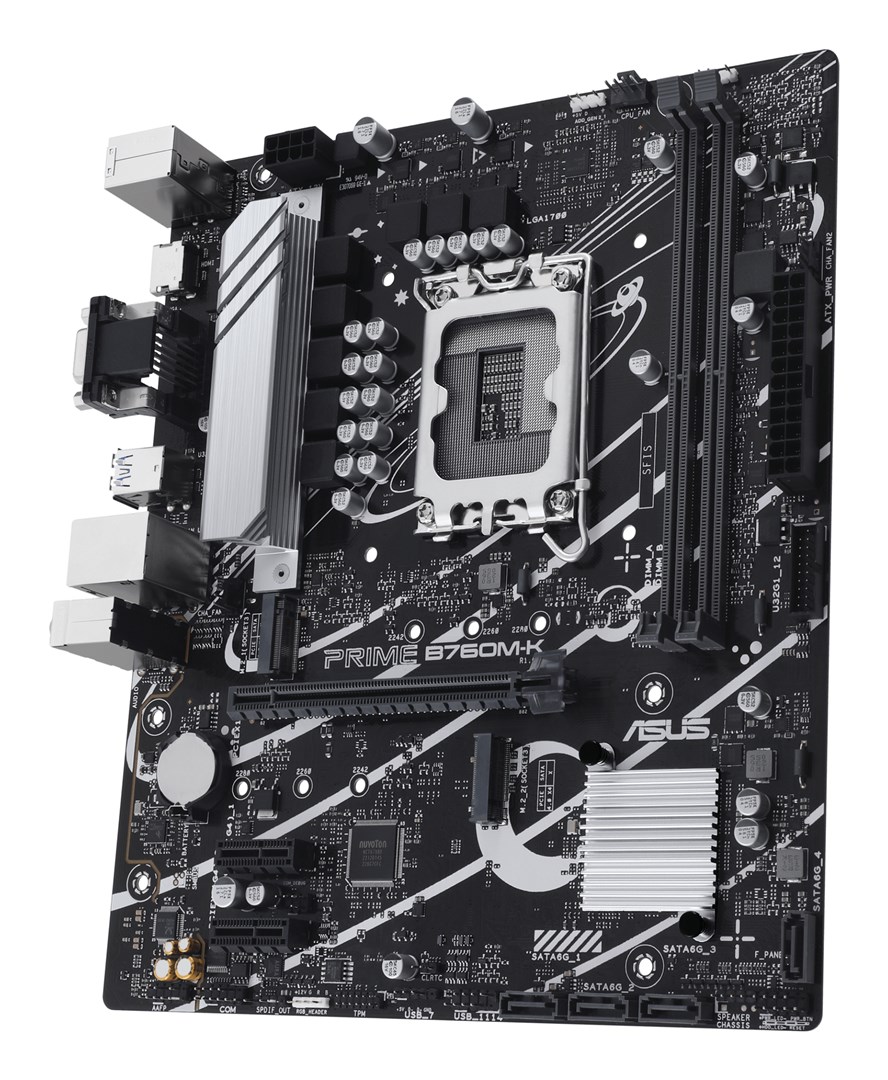

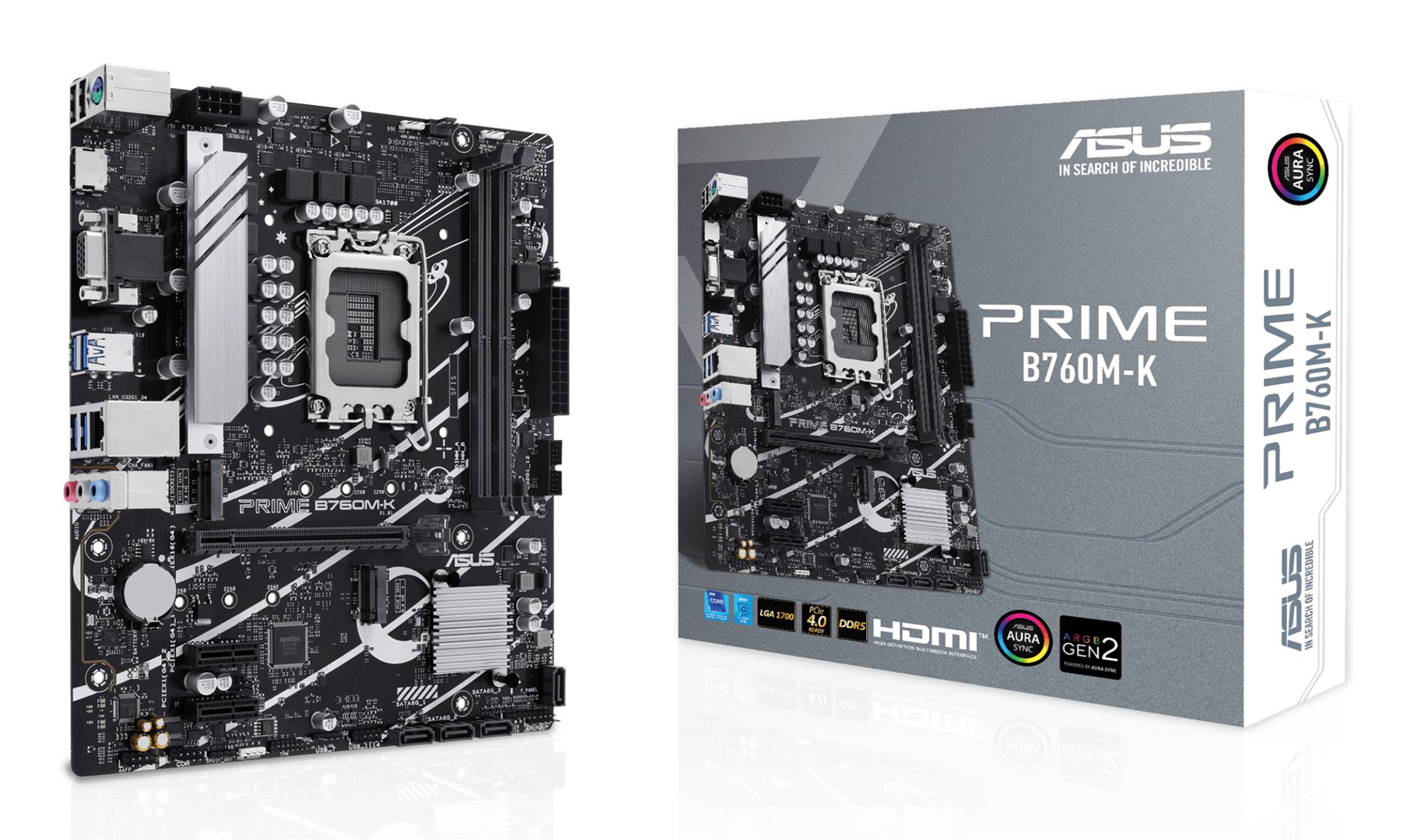

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
954,60 lei
118 în stoc
Informații suplimentare
| Producator |
ASUS |
|---|---|
| Cod Produs |
90MB1FI0-M1EAY0 |
| Supported memory clock speeds |
5800, 5400, 6200, 5200, 7400, 6800, 5600, 6400, 8000 MHz, 4800, 6600, 7000, 5000, 7600 MHz, 7800, 7200, 6000 |
| Supported storage drive types |
HDD & SSD |
| Processor socket |
LGA 1700 |
| Number of M.2 (M) slots |
2 |
| TPM connector |
Yes |
| Wi-Fi |
No |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| USB 2.0 connectors |
2 |
| RAID support |
Yes |
| CPU fan connector |
Yes |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Maximum number of SMP processors |
1 |
| Supported memory types |
DDR5-SDRAM |
| ECC сompatibility |
Non-ECC |
| RAID levels |
10, 5, 1 |
| Memory slots type |
DIMM |
| Number of storage drives supported |
6 |
| Maximum internal memory |
96 GB |
| Supported processor sockets |
LGA 1700 |
| Parallel processing technology support |
Not supported |
| Ethernet LAN |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Compatible processor series |
Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of COM connectors |
1 |
| 12V power connector |
Yes |
| Depth |
211 mm |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| PCI Express x1 (Gen 4.x) slots |
2 |
| Number of chassis fan connectors |
1 |
| Motherboard form factor |
micro ATX |
| Motherboard chipset family |
Intel |
| Number of SATA III connectors |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 ports quantity |
2 |
| Processor manufacturer |
Intel |
| Windows operating systems supported |
Windows 10 x64, Windows 11 |
| Cables included |
SATA |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Front panel audio connector |
Yes |
| Audio output channels |
7.1 channels |
| ATX Power connector (24-pin) |
Yes |
| S/PDIF out port |
Yes |
| Motherboard chipset |
Intel B760 |
| S/PDIF out connector |
Yes |
| Unbuffered memory |
Yes |
| Number of memory slots |
2 |
| RGB LED pin header |
Yes |
| Width |
244 mm |
| HDMI ports quantity |
1 |
| Number of HDDs supported |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Supported memory clock speed (max) |
8000 MHz |
| BIOS type |
UEFI AMI |
