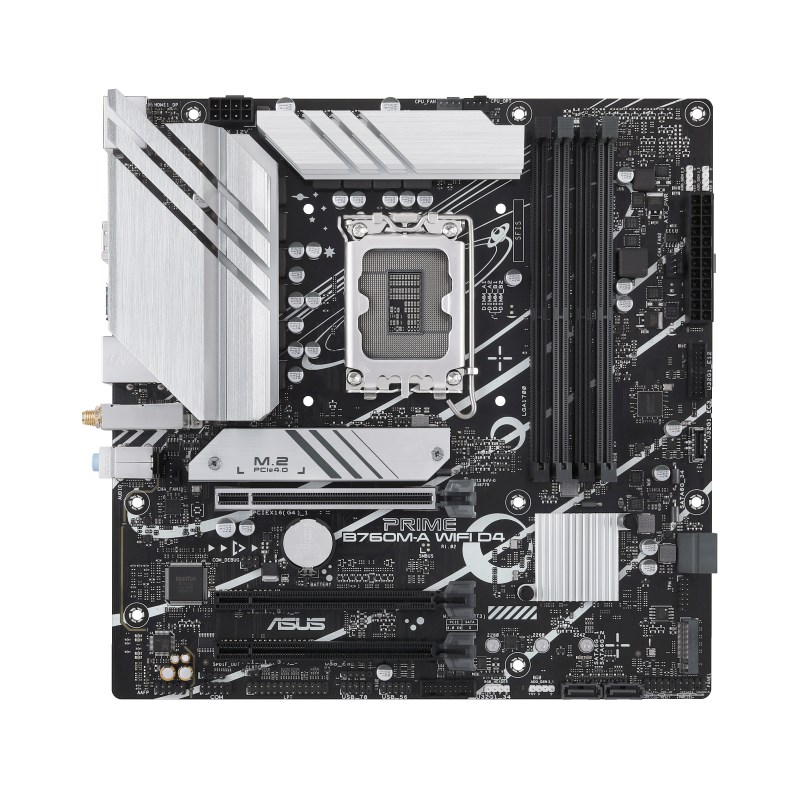

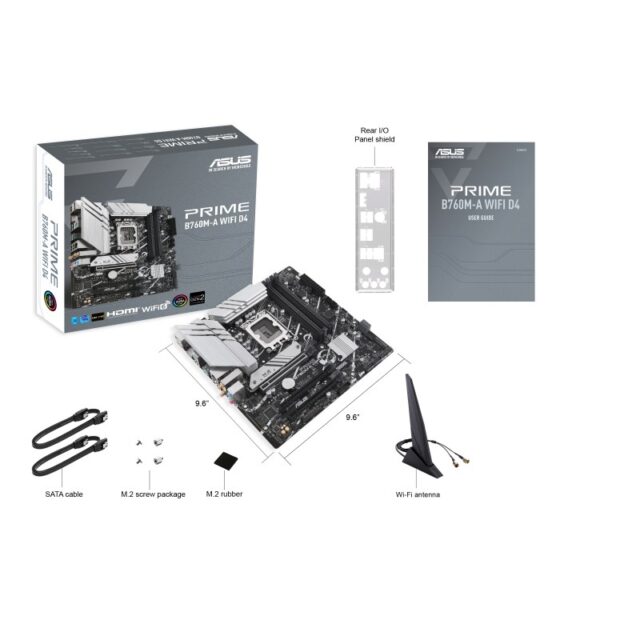

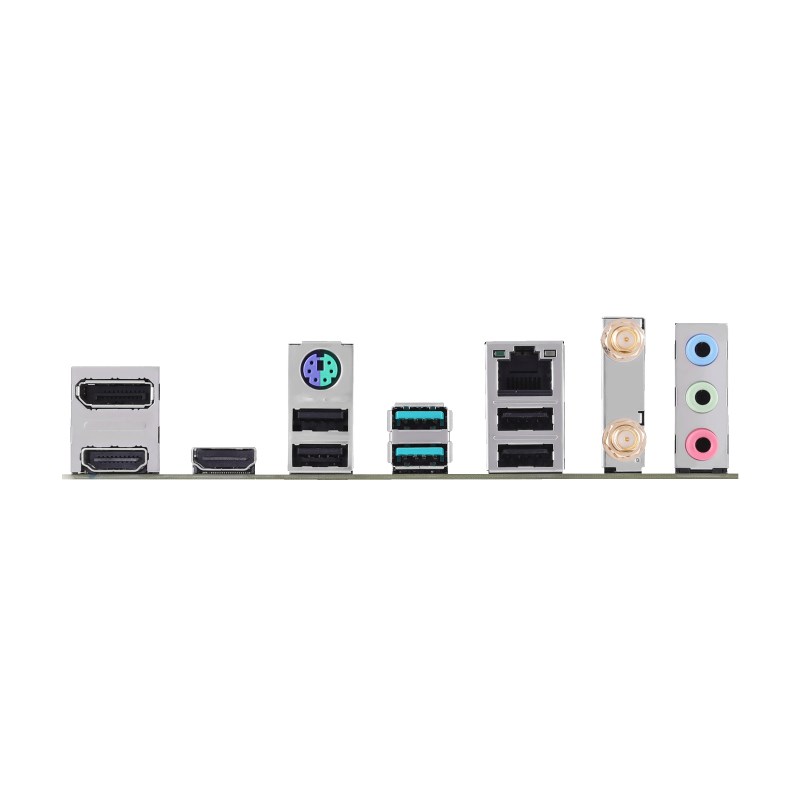

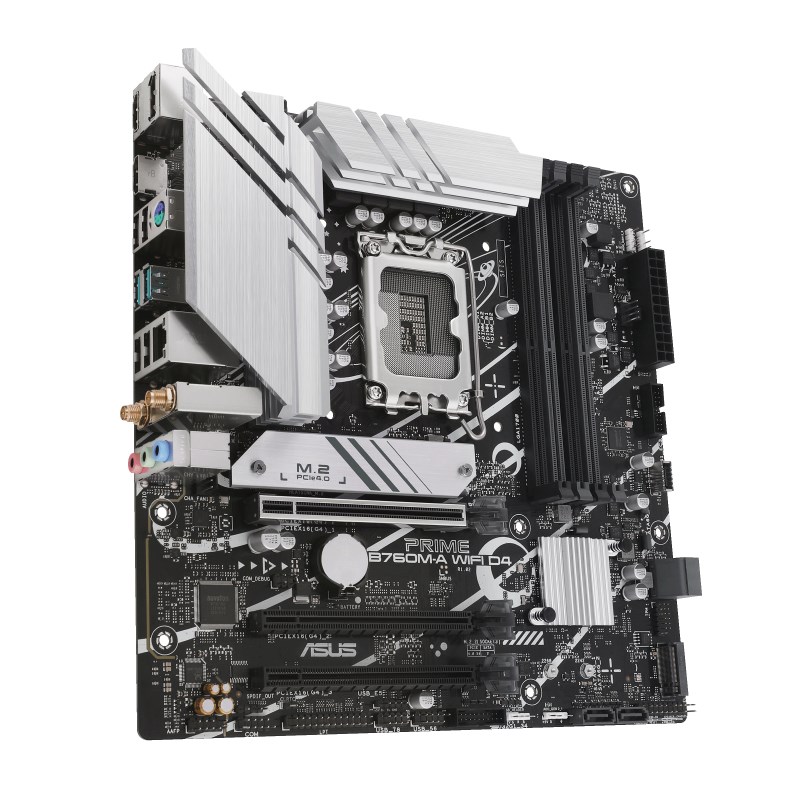

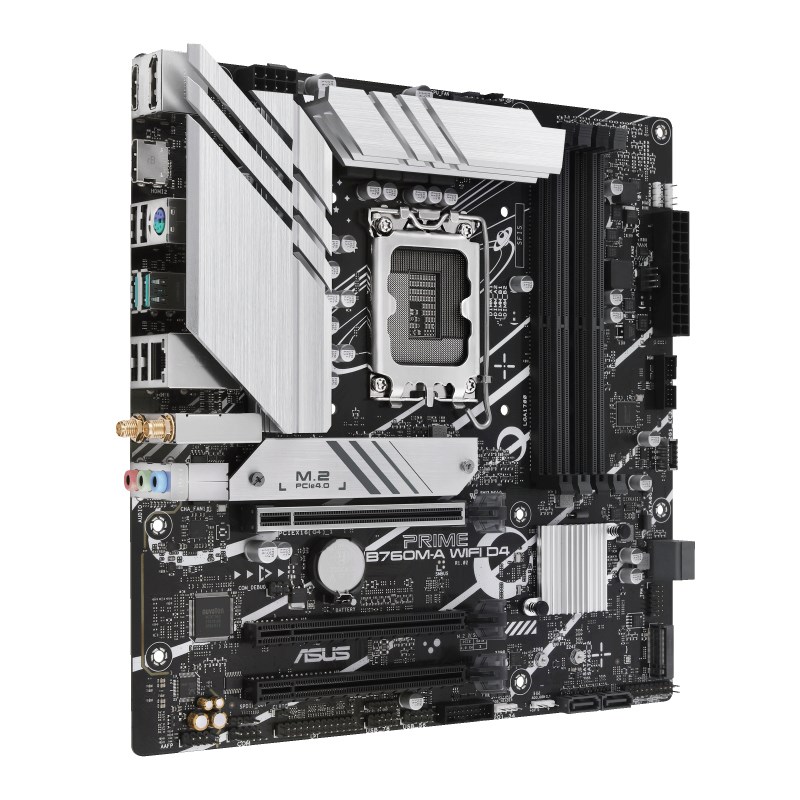

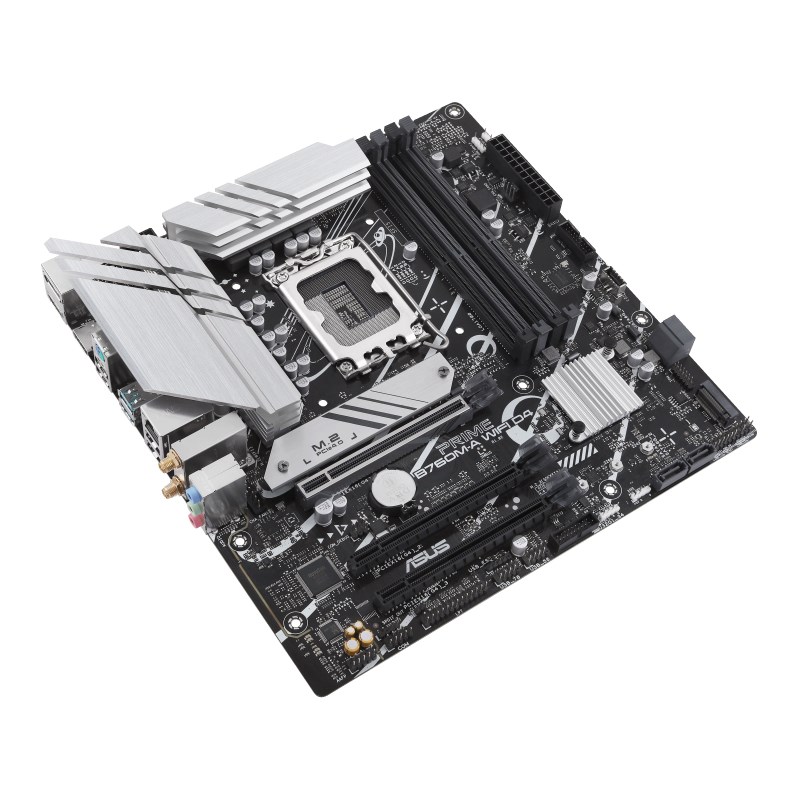

ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX
943,46 lei
Stoc epuizat
Informații suplimentare
| Producator |
ASUS |
|---|---|
| Cod Produs |
90MB1CX0-M1EAY0 |
| RAID support |
Yes |
| USB 2.0 ports quantity |
4 |
| Motherboard chipset family |
Intel |
| CPU fan connector |
Yes |
| Number of SATA III connectors |
4 |
| Supported storage drive types |
HDD & SSD |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
3 |
| Package width |
275 mm |
| RAID levels |
1, 10, 5 |
| Supported memory clock speed (max) |
5333 MHz |
| S/PDIF out connector |
Yes |
| USB 2.0 connectors |
3 |
| BIOS type |
UEFI AMI |
| Parallel processing technology support |
Not supported |
| Number of M.2 (M) slots |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Number of COM connectors |
1 |
| Clear CMOS button |
Yes |
| DisplayPort version |
1.4 |
| Audio output channels |
7.1 channels |
| Front panel audio connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Windows operating systems supported |
Windows 11, Windows 10 x64 |
| Package weight |
1.4 kg |
| Supported storage drive interfaces |
M.2, SATA III |
| DisplayPorts quantity |
1 |
| Motherboard form factor |
micro ATX |
| Supported processor sockets |
LGA 1700 |
| Number of chassis fan connectors |
2 |
| ATX Power connector (24-pin) |
Yes |
| PCI Express x16 (Gen 4.x) slots |
3 |
| Wi-Fi |
Yes |
| RGB LED pin header |
Yes |
| Line-in |
Yes |
| Width |
244 mm |
| PS/2 ports quantity |
1 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Microphone in |
Yes |
| Headphone outputs |
3 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Number of storage drives supported |
6 |
| Memory channels |
Dual-channel |
| Cables included |
SATA |
| Processor socket |
LGA 1700 |
| Wi-Fi standards |
802.11g, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax) |
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
| Memory slots type |
DIMM |
| Package depth |
275 mm |
| TPM connector |
Yes |
| Supported memory types |
DDR4-SDRAM |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Depth |
244 mm |
| Ethernet LAN |
Yes |
| HDMI version |
2.1 |
| Bluetooth version |
5.2 |
| Package height |
67.5 mm |
| Number of memory slots |
4 |
| 12V power connector |
Yes |
| Supported memory clock speeds |
3200, 2666, 2933, 3600 MHz, 2400, 2800, 2133, 4000, 3000, 5333 MHz, 3400, 5066, 4266, 3466, 4800, 3733, 4400, 5000, 4600, 3333 |
| Bluetooth |
Yes |
| ECC сompatibility |
Non-ECC |
| Motherboard chipset |
Intel B760 |
| Maximum internal memory |
128 GB |
| Unbuffered memory |
Yes |
