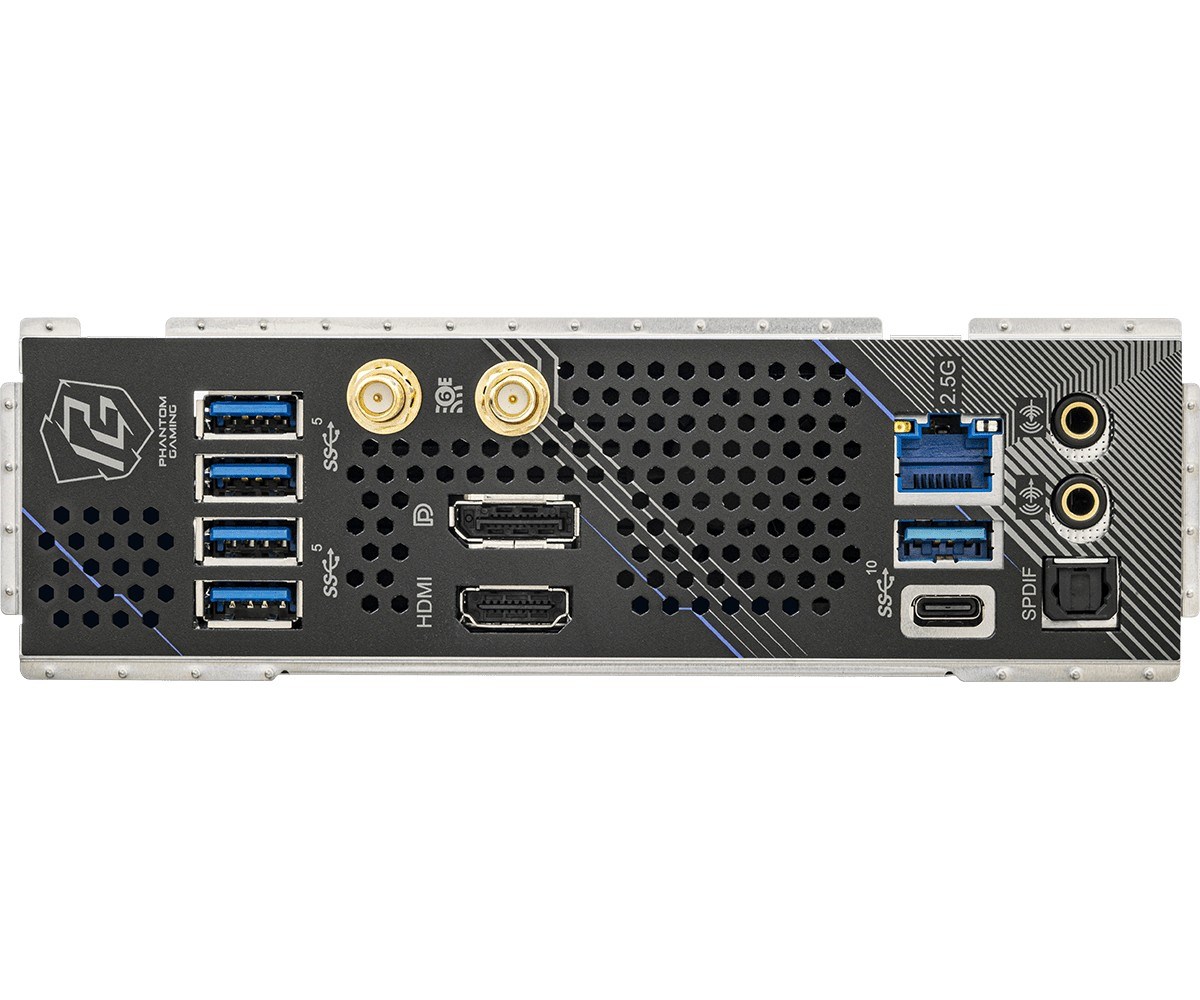

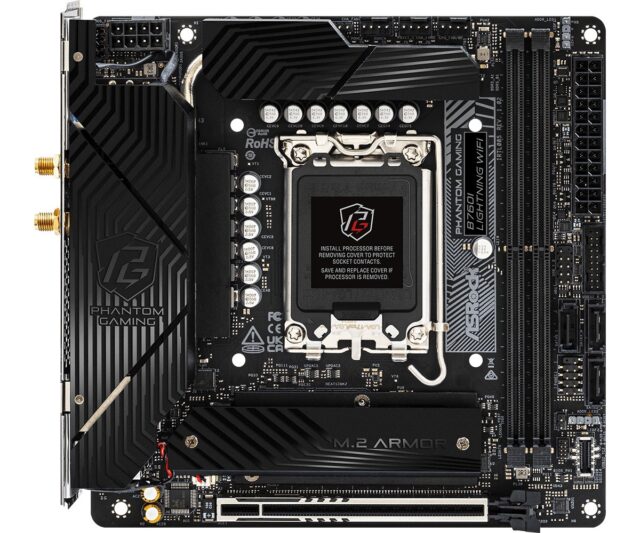

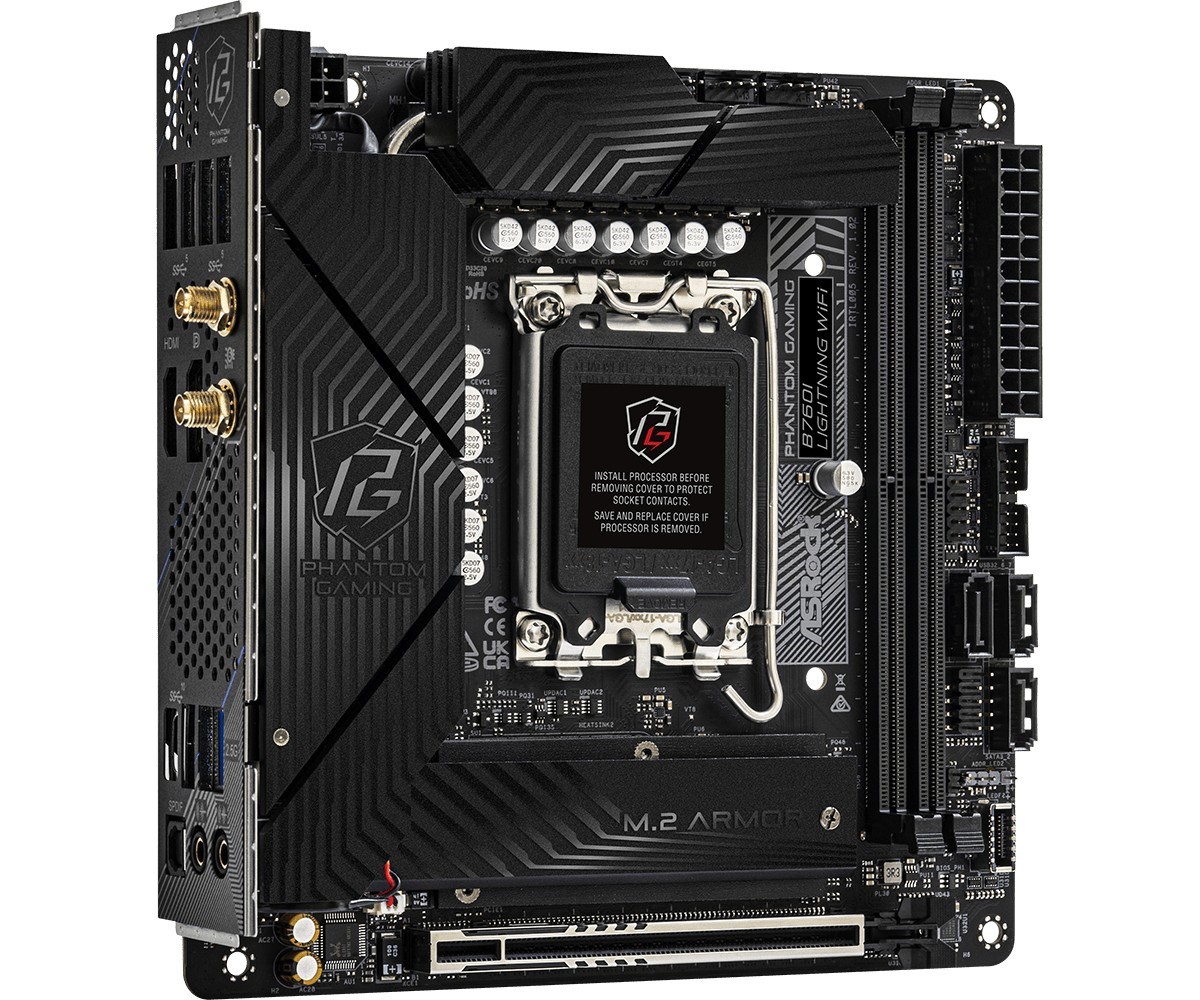

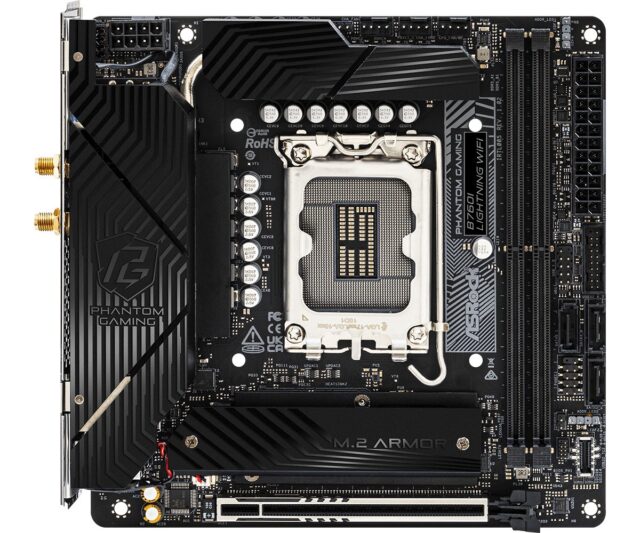

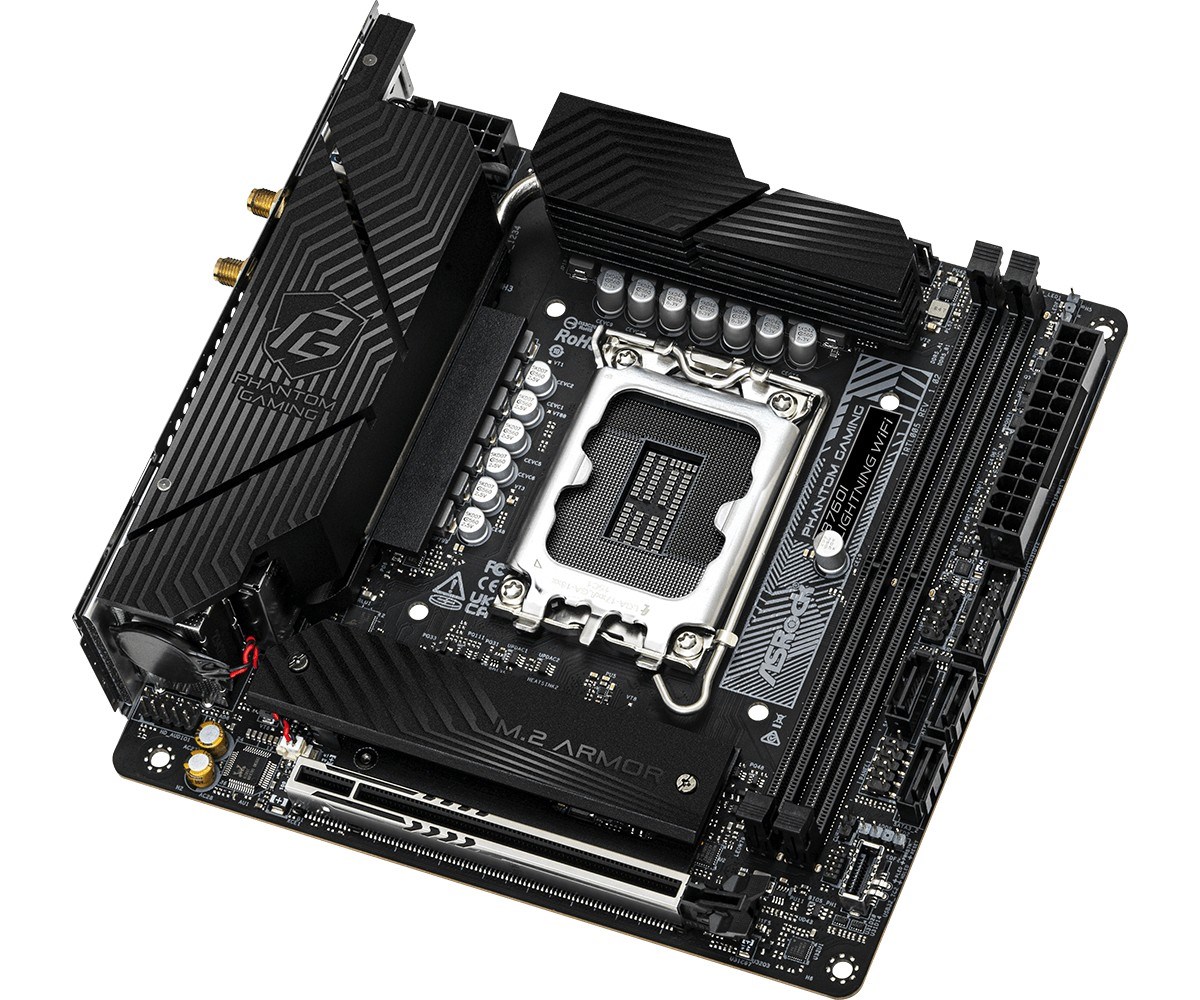

ASRock B760I LIGHTNING WIFI Motherboard
1.429,44 lei
9 în stoc
Informații suplimentare
| Producator |
Asrock |
|---|---|
| Cod Produs |
B760I LIGHTNING WIFI |
| Certification |
FCC, CE, ErP/EuP |
| DisplayPort version |
1.4 |
| Bluetooth |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Supported storage drive types |
HDD & SSD |
| Number of M.2 (M) slots |
2 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11axe) |
| Supported storage drive interfaces |
M.2, PCI Express 4.0, SATA III |
| ATX Power connector (24-pin) |
Yes |
| RAID support |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| RAID levels |
1, 5 |
| Number of storage drives supported |
5 |
| Line-out |
Yes |
| SPDIF optical output |
Y |
| Depth |
170 mm |
| Ethernet LAN |
Yes |
| CPU fan connector |
Yes |
| Supported memory clock speed (max) |
8600 MHz |
| Audio chip |
Realtek ALC897 |
| Number of USB 3.2 Gen 2 Type-C ports |
1 |
| Product colour |
Black |
| Motherboard chipset family |
Intel |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, 802.11 axe, Wi-Fi 6E (802.11ax) |
| LAN controller |
Dragon RTL8125BG |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Compatible processor series |
Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Windows operating systems supported |
Windows 11 x64, Windows 10 x64 |
| Memory slots type |
DIMM |
| Antenna included |
Yes |
| Supported memory types |
DDR5-SDRAM |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| Cables included |
SATA |
| Processor socket |
LGA 1700 |
| USB 2.0 connectors |
1 |
| Processor manufacturer |
Intel |
| MIC input |
1 |
| HDMI ports quantity |
1 |
| Number of SATA III connectors |
3 |
| WiFi-AP antenna jack |
2 |
| Width |
170 mm |
| Number of USB 3.2 Gen 1 ports |
4 |
| Audio output channels |
7.1 channels |
| Front panel audio connector |
Yes |
| Wi-Fi |
Yes |
| Motherboard chipset |
Intel B760 |
| Maximum internal memory |
96 GB |
| Supported processor sockets |
LGA 1700 |
| USB Type-C socket on the front panel |
Y |
| DisplayPorts quantity |
1 |
| Number of memory slots |
2 |
| 12V power connector |
Yes |
| Bluetooth version |
5.3 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Motherboard form factor |
Mini-ITX |
| USB connector type |
USB Type-C, USB Type-A |
| Number of USB 3.2 Gen 2 Type-A ports |
1 |
| BIOS type |
UEFI AMI |
| Screws included |
Yes |
| Unbuffered memory |
Yes |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Number of chassis fan connectors |
2 |
| Number of addressable LED slots |
2 |
