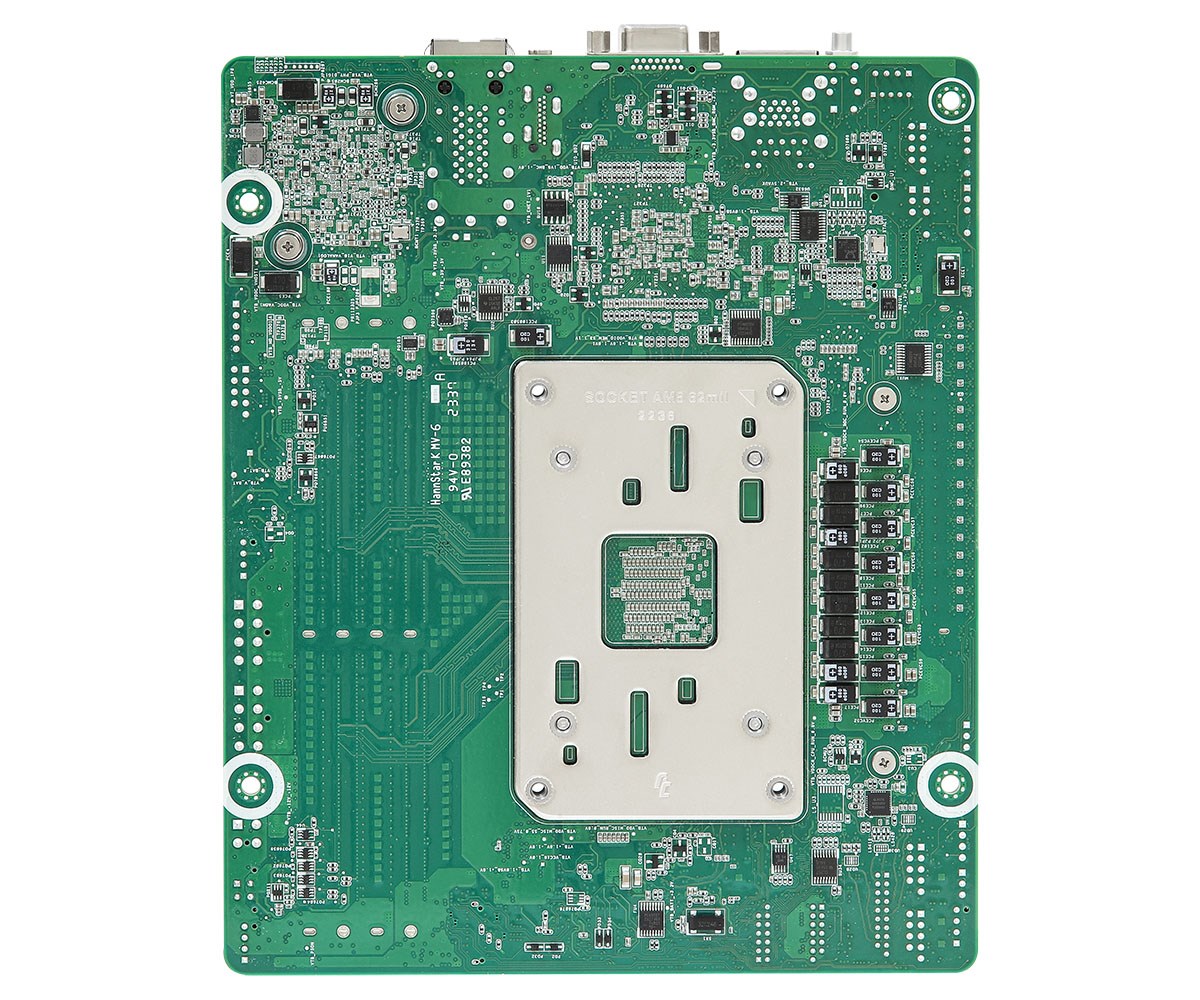

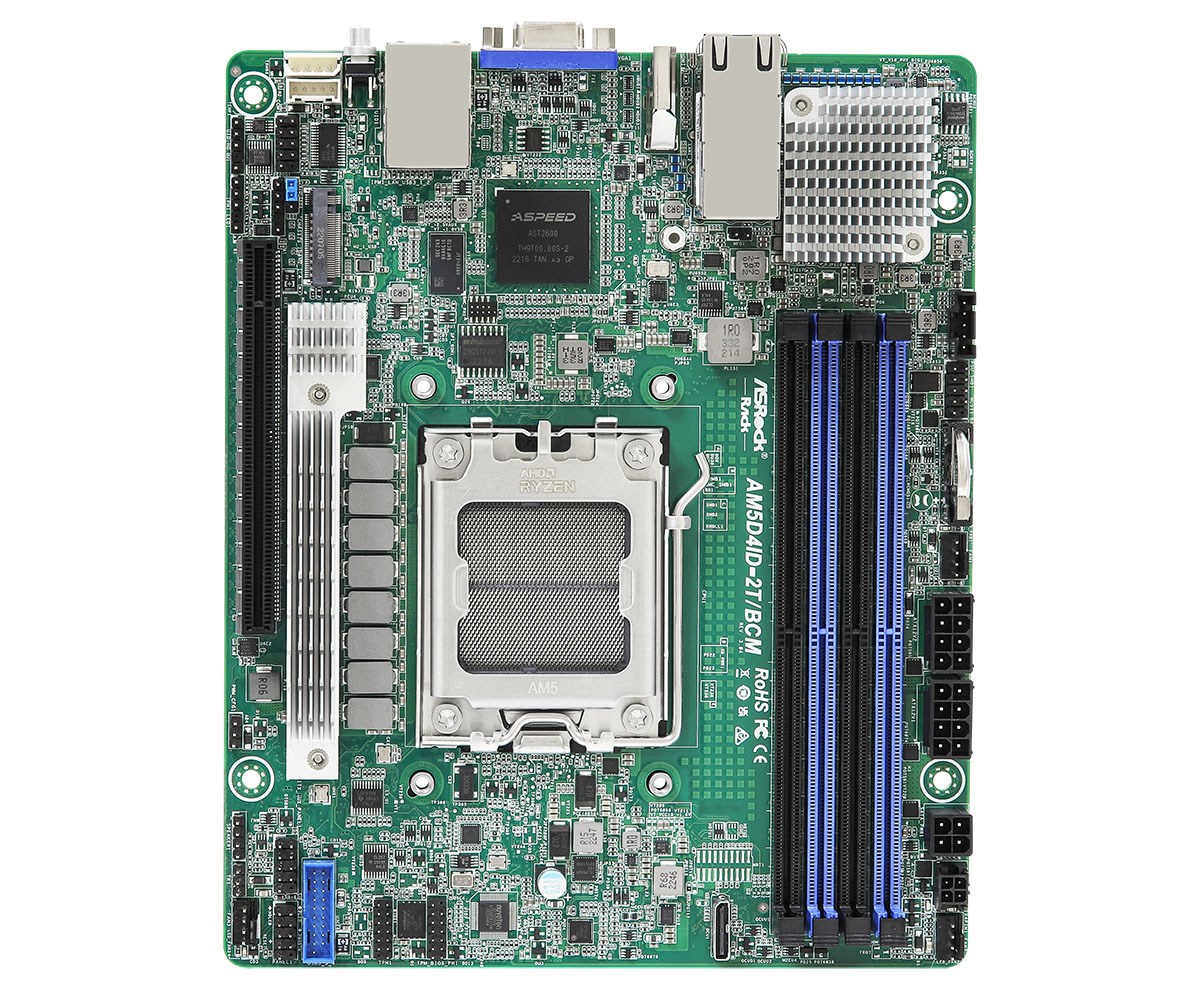

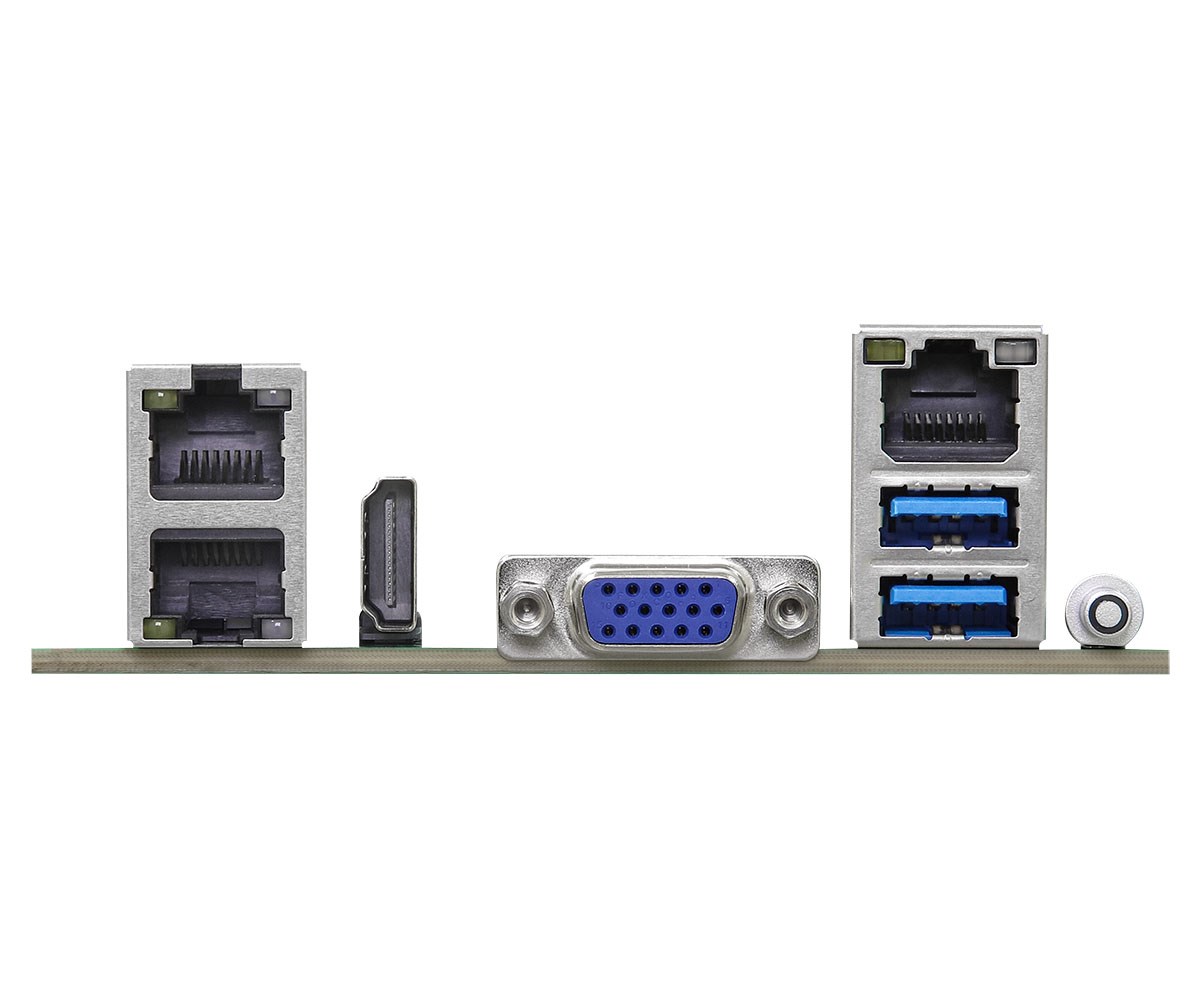

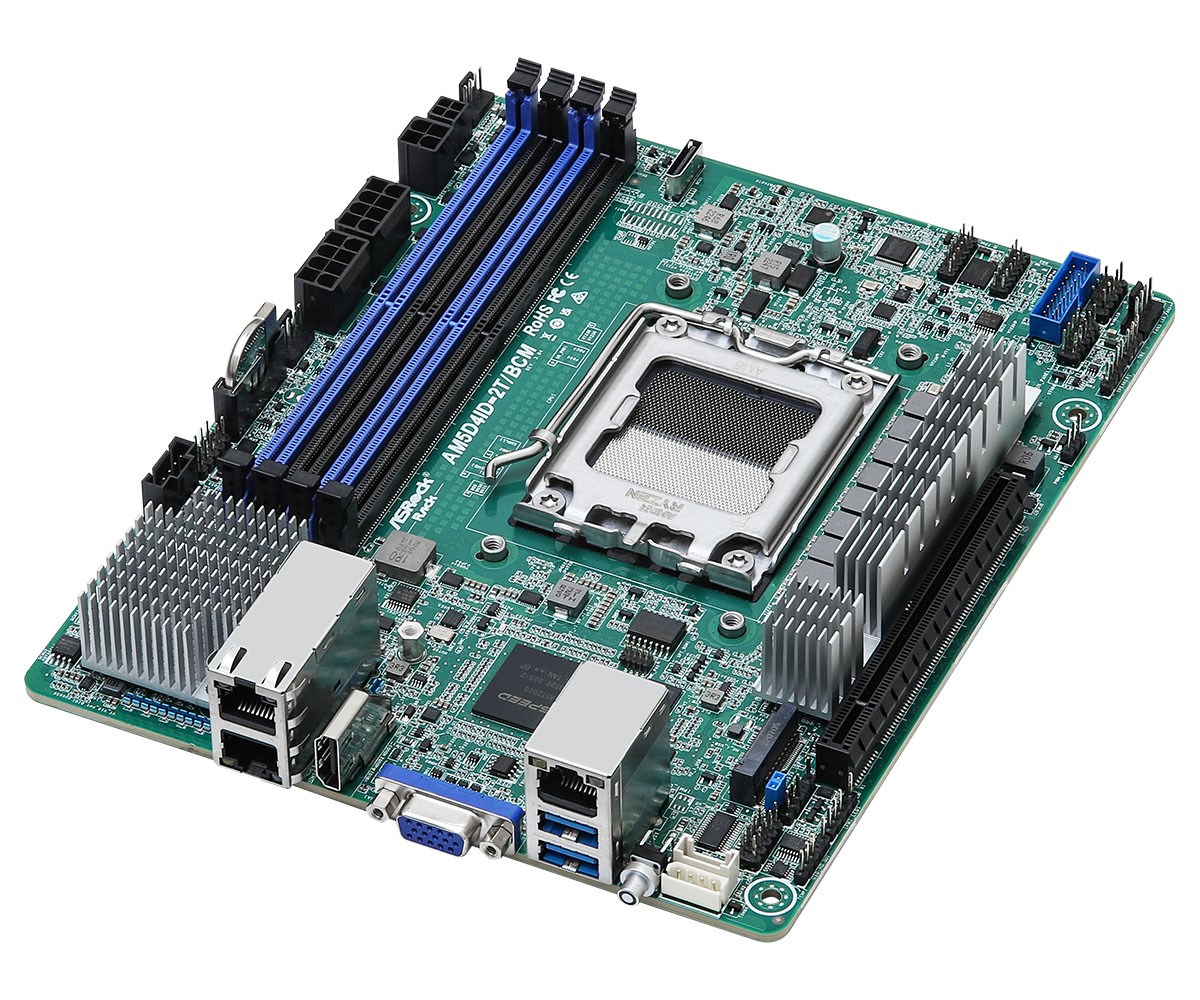

Asrock AM5D4ID-2T/BCM motherboard KNOLL3 X300 Socket AM5 mini ITX
4.116,75 lei
Stoc epuizat
Informații suplimentare
| Producator |
Asrock |
|---|---|
| Cod Produs |
AM5D4ID-2T/BCM |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Supported memory clock speed (max) |
5200 MHz |
| ECC сompatibility |
ECC & Non-ECC |
| Windows operating systems supported |
Windows 11 x64, Windows 10 x64 |
| Width |
170.2 mm |
| TPM connector |
Yes |
| Graphics card family |
ASPEED |
| Storage relative humidity (H-H) |
20 – 90% |
| ATX Power connector (24-pin) |
Yes |
| Audio connector |
Yes |
| Chassis intrusion connector |
Yes |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| System Management BIOS (SMBIOS) version |
2.3 |
| BIOS type |
UEFI AMI |
| Number of COM connectors |
1 |
| Operating temperature (T-T) |
10 – 35 °C |
| Component for |
Server |
| Ethernet LAN (RJ-45) ports |
2 |
| Linux operating systems supported |
Ubuntu 22.04 |
| IPMI LAN (RJ-45) port |
Yes |
| ACPI version |
5.1 |
| Memory voltage |
1.1 V |
| Processor manufacturer |
AMD |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD EPYC 4004, AMD Ryzen 8000 Series |
| Depth |
208.3 mm |
| Ethernet LAN |
Yes |
| Number of M.2 (M) slots |
1 |
| Memory slots type |
DIMM |
| Supported memory types |
DDR5-SDRAM |
| Storage temperature (T-T) |
-40 – 70 °C |
| Processor socket |
Socket AM5 |
| Ethernet interface type |
10 Gigabit Ethernet |
| BIOS memory size |
256 Mbit |
| Supported processor sockets |
Socket AM5 |
| 12V power connector |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Number of memory slots |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Supported storage drive interfaces |
M.2 |
| LAN controller |
Broadcom BCM57416 |
| Supported storage drive types |
SSD |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
mini ITX |
| Motherboard chipset |
KNOLL3 X300 |
| Graphics card |
AST2600 |
| Supported memory clock speeds |
5200, 3600 MHz |
