Bundled software
| Bitdefender Internet Security |
Internal components
| ASUS PRIME B850M-A WIFI / ASUS Radeon RX 9060 XT / WD Blue SN5100 / ASUS Prime AP201 |
Special features
| The specification and description are for illustrative purposes only. |
Intel® Thunderbolt 5
| No |
Intel® Thunderbolt 4
| No |
Processor generation
| AMD Ryzen 8000 Series |
PCI Express x16 (Gen 5.x) slots
| 1 |

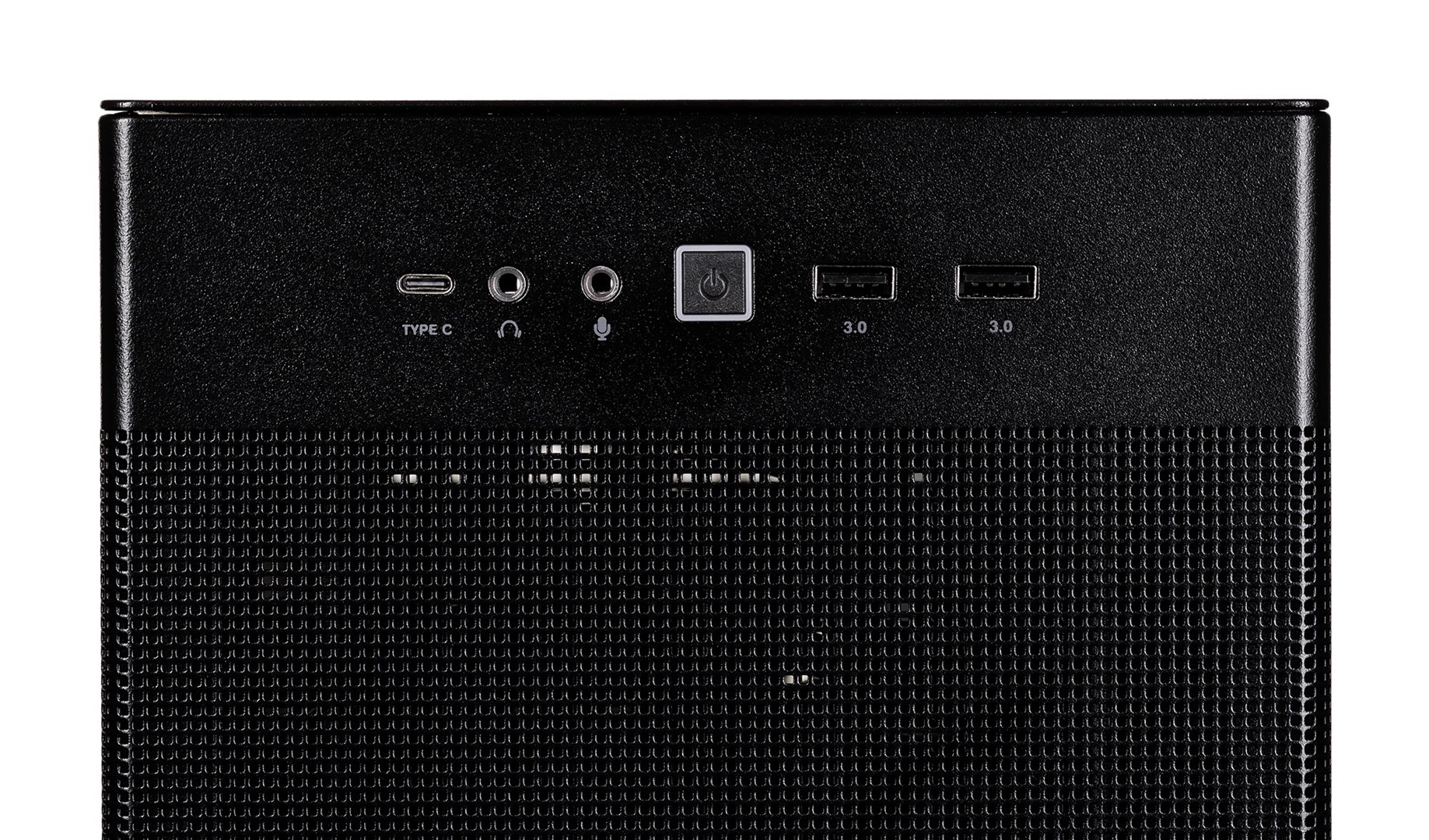

Number of front USB ports
| 3 |
80 PLUS certification
| 80 PLUS Bronze |
Operating system architecture
| 64-bit |
Processor base power
| 65 W |
Discrete GPU manufacturer
| AMD |
Power supply
| 750 W |
Line-in
| Yes |
Depth
| 460 mm |
Mouse included
| No |
Chassis type
| Mini Tower |
Height
| 350 mm |

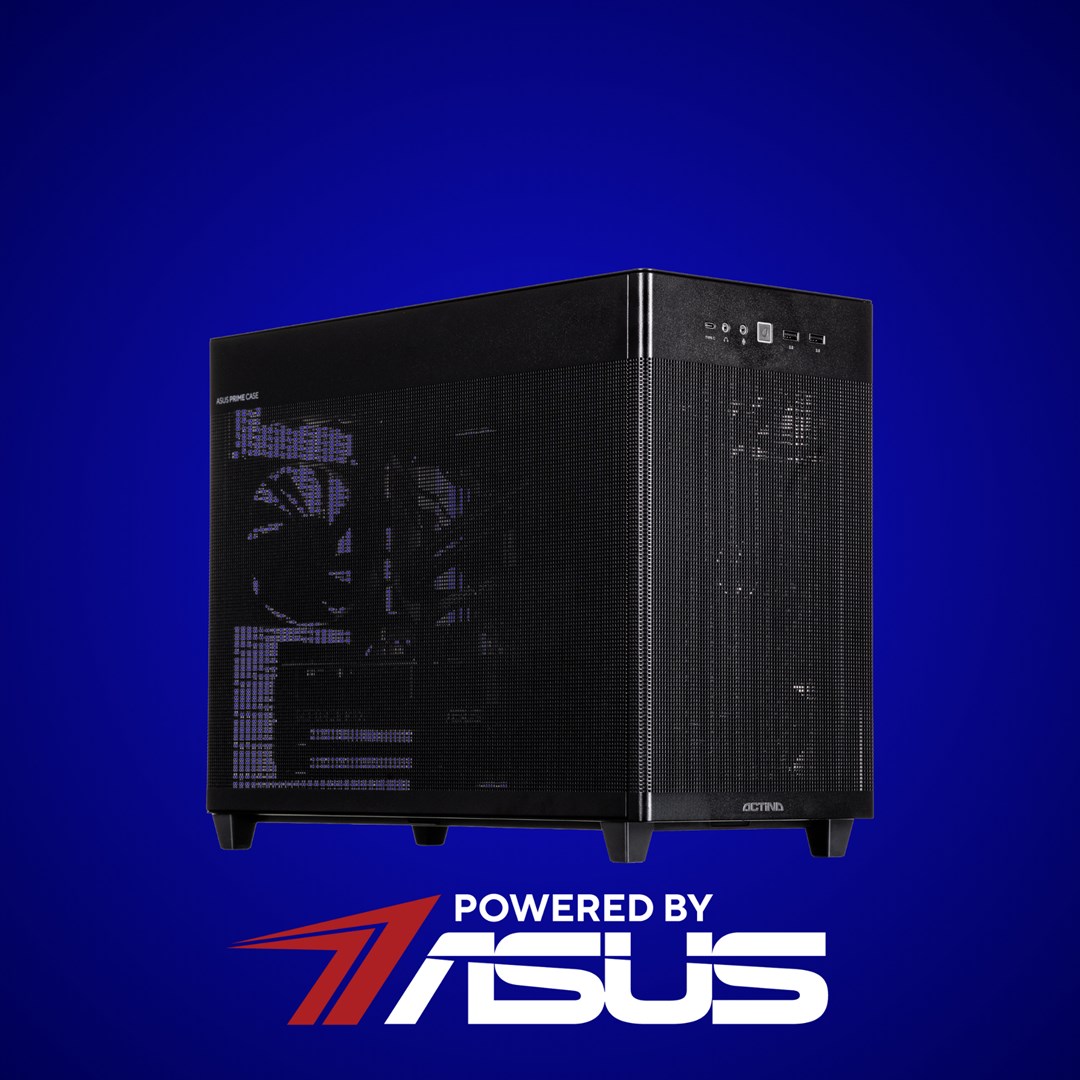

Powered by
| ASUS |
Discrete graphics memory type
| GDDR6 |
SSD capacity
| 1 TB |
Headphone outputs
| 1 |
AMD FreeSync
| Yes |
Number of rear audio ports
| 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
| 1 |
Bluetooth version
| 5.3 |
Refurbished
| No |
VESA mounting
| No |
Discrete graphics card
| Yes |
Power supply input voltage
| 100-240 V |
Number of storage drives installed
| 1 |
PCI Express x16 (Gen 4.x) slots
| 1 |
NVMe
| Yes |
Display included
| No |
Memory slots
| 4x DIMM |
SSD form factor
| M.2 |
Virtual Reality (VR) ready
| Yes |
SSD interface
| PCI Express |
Fiber NIC port (Flex I/O)
| No |
Number of processors installed
| 1 |
Operating system installed
| Windows 11 Home |
Line-out
| Yes |
Graphics card DisplayPorts quantity
| 3 |
Number of front audio ports
| 2 |
Housing material
| Metal, Plastic |
Graphics card HDMI ports quantity
| 1 |
Ray tracing acceleration
| Yes |
Total SSDs capacity
| 1 TB |
Number of 2.5" bays
| 4 |
Product type
| PC |
Intel® Optane™ Memory module installed
| No |
Water cooling system
| No |
Viewing window
| No |
Memory layout (slots x size)
| 2 x 16 GB |
Market positioning
| Gaming |

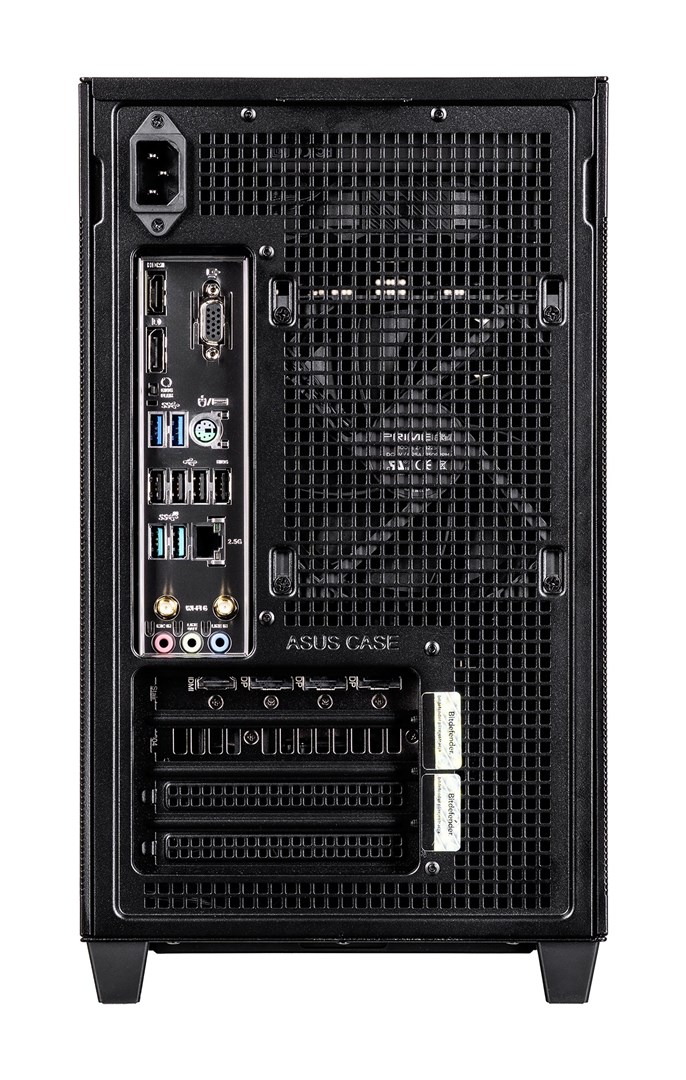

Number of rear USB ports
| 8 |
Number of SSDs installed
| 1 |
Keyboard included
| No |
M.2 SSD size
| 2280 (22 x 80 mm) |
Number of 3.5" bays
| 3 |
Number of discrete graphics cards
| 1 |
Processor frequency
| 4.1 GHz |
Microphone in
| Yes |
USB 2.0 ports quantity
| 4 |
Processor manufacturer
| AMD |
Internal memory
| 32 GB |
CUDA
| No |
Processor family
| AMD Ryzen™ 7 |
NVIDIA G-SYNC
| No |
Discrete graphics card model
| AMD Radeon RX 9060 XT |
DisplayPorts quantity
| 3 |
Wi-Fi standards
| 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11b |
Card reader integrated
| No |
Audio output channels
| 7.1 channels |
On-board graphics card
| No |
DC-in jack
| No |
Weight
| 10 kg |
Ethernet LAN
| Yes |
Ethernet LAN data rates
| 100, 1000 Mbit/s, 10, 2500 Mbit/s |
Memory channels
| Dual-channel |
Top Wi-Fi standard
| Wi-Fi 6E (802.11ax) |
Cabling technology
| 10/100/1000Base-T(X) |
NVIDIA GameWorks VR
| No |
Total storage capacity
| 1 TB |
Motherboard chipset
| AMD B850 |
Processor cache type
| L3 |
Antenna type
| 2×2 |
Processor model
| 8700F |
ECC
| No |
HDMI ports quantity
| 1 |
TV tuner integrated
| No |
On-board graphics card model
| Not available |
Discrete graphics card memory
| 16 GB |
Storage media
| SSD |
Memory clock speed
| 6000 MHz |
S/PDIF out port
| No |
Bluetooth
| Yes |
Internal memory type
| DDR5-SDRAM |
Processor threads
| 16 |
Product colour
| Black |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
| 4 |
Combo headphone/mic port
| No |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
| 2 |
Wi-Fi
| Yes |
DVI port
| No |
Maximum internal memory
| 256 GB |
Number of storage drives supported
| 7 |
Width
| 205 mm |
Processor boost frequency
| 5 GHz |
Processor cores
| 8 |
Processor cache
| 16 MB |
Motherboard form factor
| micro ATX |
Ethernet LAN (RJ-45) ports
| 1 |
Number of SATA III connectors
| 4 |
Optical drive type
| No |
Built-in microphone
| No |
Processor socket
| Socket AM5 |
