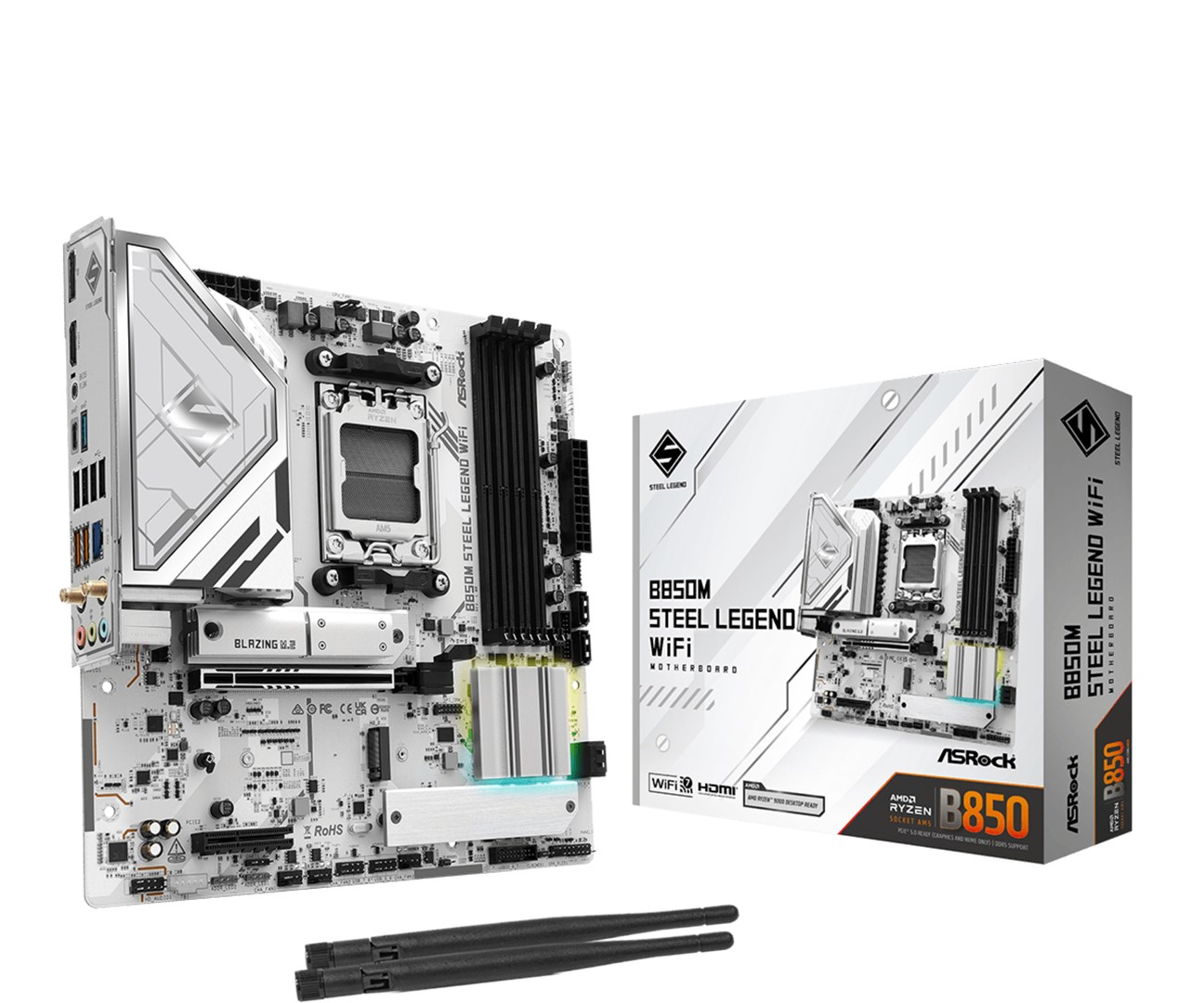

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX
1.260,67 lei
2 în stoc
Informații suplimentare
| Producator |
Asrock |
|---|---|
| Cod Produs |
B850M Steel Legend WiFi |
| Certification |
FCC, CE, ErP/EuP |
| BIOS type |
UEFI AMI |
| Supported storage drive interfaces |
PCI Express 4.0, PCI Express 5.0, SATA III |
| USB connector type |
USB Type-C, USB Type-A |
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
3 |
| DisplayPort version |
1.4 |
| Number of M.2 (M) slots |
3 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
3 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Parallel processing technology support |
Not supported |
| RAID levels |
1, 10 |
| Front panel audio connector |
Yes |
| Audio output channels |
7.1 channels |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| HDMI ports quantity |
1 |
| Supported processor sockets |
Socket AM5 |
| Motherboard form factor |
micro ATX |
| Windows operating systems supported |
Windows 10 x64, Windows 11 x64 |
| HDMI version |
2.1 |
| HDCP |
Yes |
| EPS power connector (8-pin) |
Yes |
| Memory channels |
Dual-channel |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Number of SATA III connectors |
4 |
| Maximum resolution |
3840 x 2160 pixels |
| Supported storage drive types |
HDD & SSD |
| RAID support |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Cables included |
SATA |
| Audio chip |
Realtek ALC1220 |
| Motherboard chipset family |
AMD |
| TPM connector |
Yes |
| CPU fan connector |
Yes |
| Product colour |
White |
| Unbuffered memory |
Yes |
| LAN controller |
Dragon RTL8125BG |
| Motherboard chipset |
AMD B850 |
| Bluetooth |
Yes |
| Maximum internal memory |
256 GB |
| 1st M.2 highest PCI Express generation |
5.0 |
| Microphone in |
Yes |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g, Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Line-in |
Yes |
| Memory slots type |
DIMM |
| Headphone outputs |
3 |
| Number of memory slots |
4 |
| Wi-Fi |
Yes |
| PCI Express x4 (Gen 4.x) slots |
1 |
| Antenna included |
Yes |
| 2nd M.2 highest PCI Express generation |
4.0 |
| ECC сompatibility |
ECC & Non-ECC |
| Supported memory types |
DDR5-SDRAM |
| 12V power connector |
Yes |
| 3rd M.2 largest key size |
2280 |
| Number of storage drives supported |
7 |
| Number of EPS power connectors (8-pin) |
1 |
| Processor socket |
Socket AM5 |
| 1st M.2 largest key size |
2280 |
| Compatible processor series |
AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Depth |
244 mm |
| 2nd M.2 largest key size |
2280 |
| Ethernet LAN |
Yes |
| Processor manufacturer |
AMD |
| WiFi-AP antenna jack |
2 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Number of RGB LED pin headers |
1 |
| Number of CPU fan connectors |
2 |
| Screws included |
Yes |
| Width |
244 mm |
| Bluetooth version |
5.4 |
| RGB LED pin header |
Yes |
| M.2 standoff included |
Yes |
| 3rd M.2 highest PCI Express generation |
4.0 |
