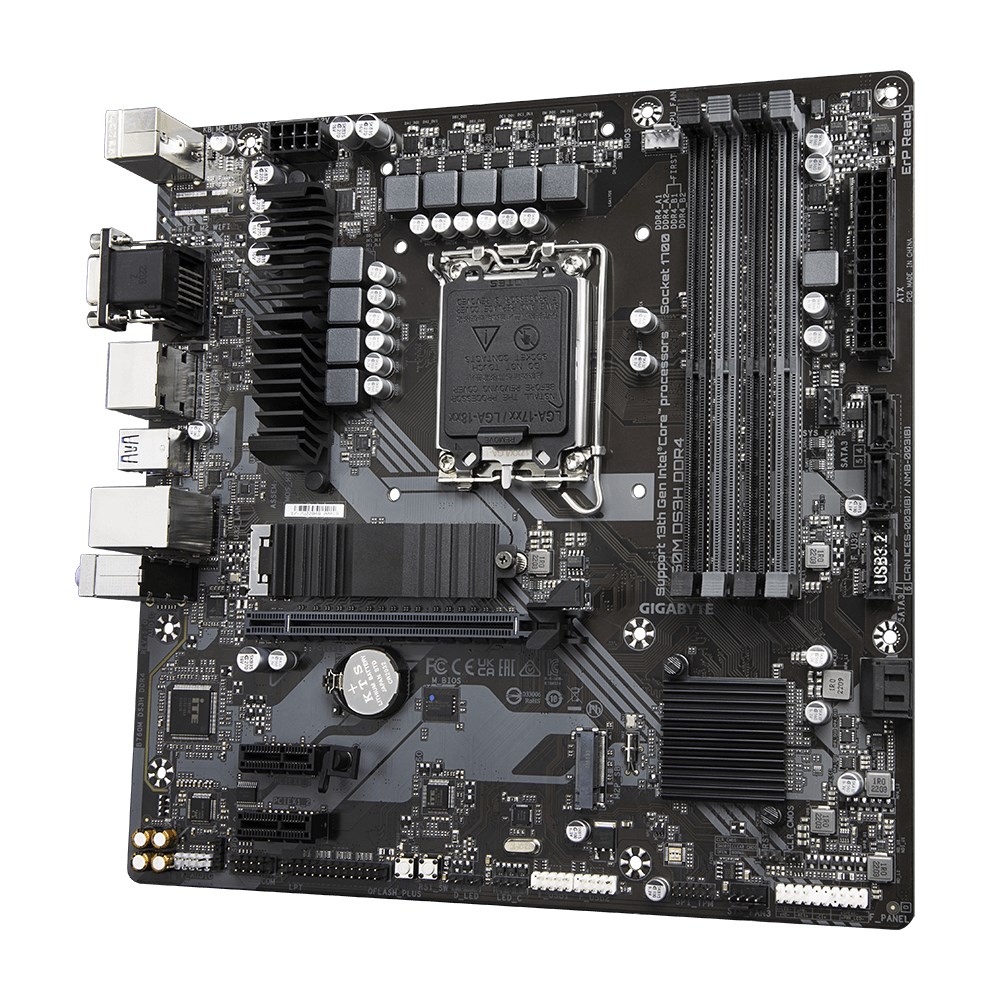

Gigabyte B760M DS3H DDR4 motherboard Intel B760 LGA 1700 micro ATX
762,49 lei
60 în stoc
Informații suplimentare
| Producator |
Gigabyte |
|---|---|
| Cod Produs |
B760M DS3H DDR4 |
| Bundled software |
Norton Internet Security |
| Supported memory clock speeds |
3400, 3866, 2933, 3600 MHz, 3300, 3200, 2666, 4266, 4500, 4133, 4000, 3666, 2133, 3800, 3333, 3000, 4600, 3466, 4800, 4933 MHz, 3733, 4300, 4400, 2400, 4700 |
| Maximum internal memory |
128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Width |
244 mm |
| Number of storage drives supported |
6 |
| Line-in |
Yes |
| Memory channels |
Dual-channel |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Number of displays supported |
4 |
| PS/2 ports quantity |
1 |
| Windows operating systems supported |
Windows 11, Windows 10 |
| RGB LED pin header |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| Memory types supported by processor |
DDR4-SDRAM |
| Memory slots type |
DIMM |
| Supported memory types |
DDR4-SDRAM |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Number of memory slots |
4 |
| Depth |
244 mm |
| Clear CMOS jumper |
Yes |
| Ethernet LAN |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| Compatible processor series |
Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
| Supported memory clock speed (max) |
4933 MHz |
| TPM connector |
Yes |
| Front panel connector |
Yes |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1700 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Headphone outputs |
1 |
| Parallel processing technology support |
Not supported |
| PCI Express x16 (Gen 3.x) slots |
1 |
| EPS power connector (8-pin) |
Yes |
| Audio output channels |
7.1 channels |
| HDCP |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| CPU fan connector |
Yes |
| USB 2.0 connectors |
2 |
| Number of SATA III connectors |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| RAID support |
Yes |
| Maximum resolution |
4096 x 2304 pixels |
| Power source type |
ATX |
| USB 2.0 ports quantity |
2 |
| Front panel audio connector |
Yes |
| Serial port headers |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Motherboard chipset |
Intel B760 |
| S/PDIF out connector |
Yes |
| Unbuffered memory |
Yes |
| Motherboard chipset family |
Intel |
| ATX Power connector (24-pin) |
Yes |
| Number of M.2 (M) slots |
1, 2 |
| DisplayPorts quantity |
2 |
| Motherboard form factor |
micro ATX |
| Number of chassis fan connectors |
3 |
| PC health monitoring |
Water cooling, Temperature, Fan, Voltage |
| Supported storage drive types |
HDD & SSD |
| Supported processor sockets |
LGA 1700 |
| RAID levels |
5, 1, 10 |
| Parallel connector |
Yes |
| BIOS type |
UEFI AMI |
